Ortofon 2MR Red Cartridge
€99.00
per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.

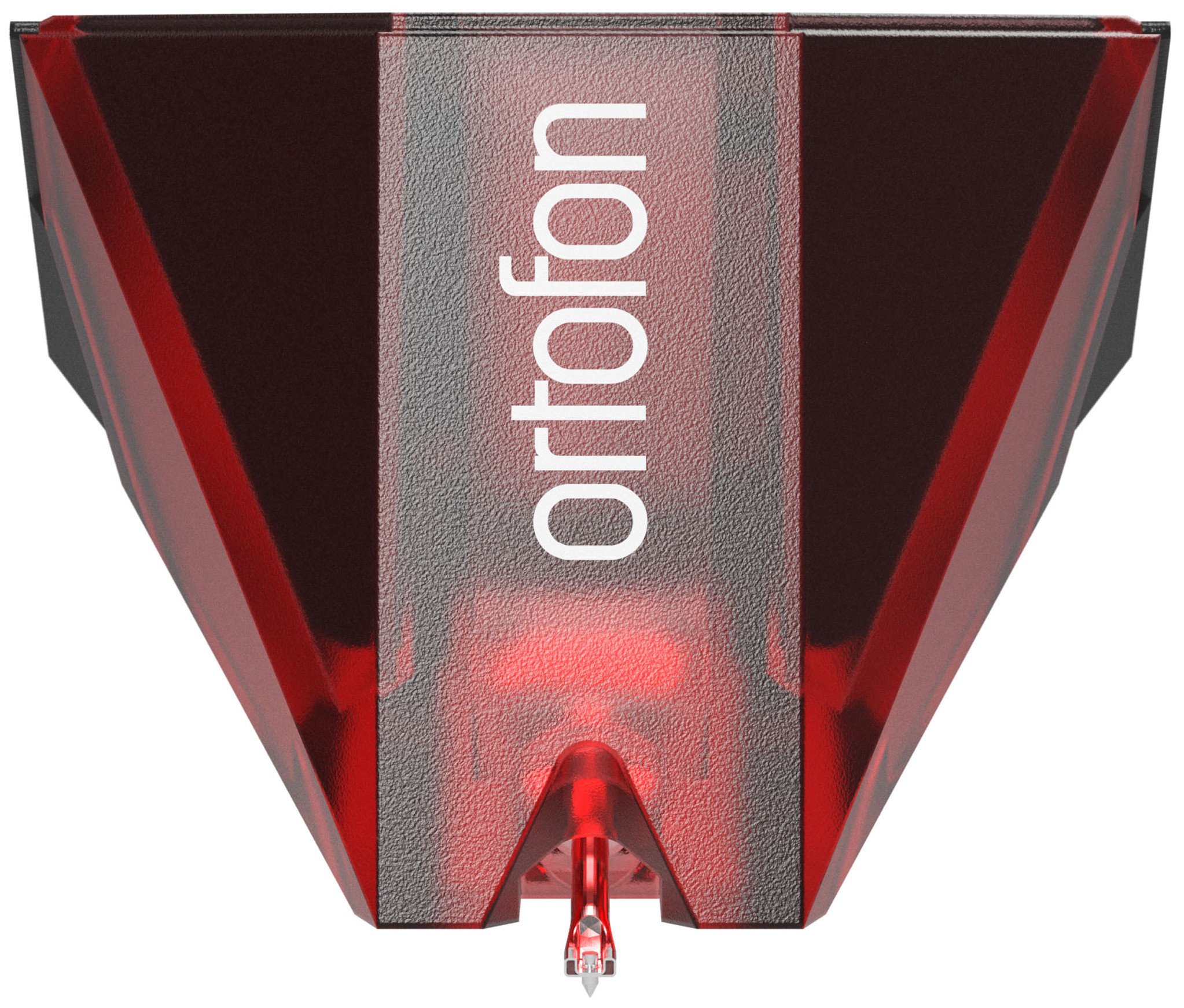

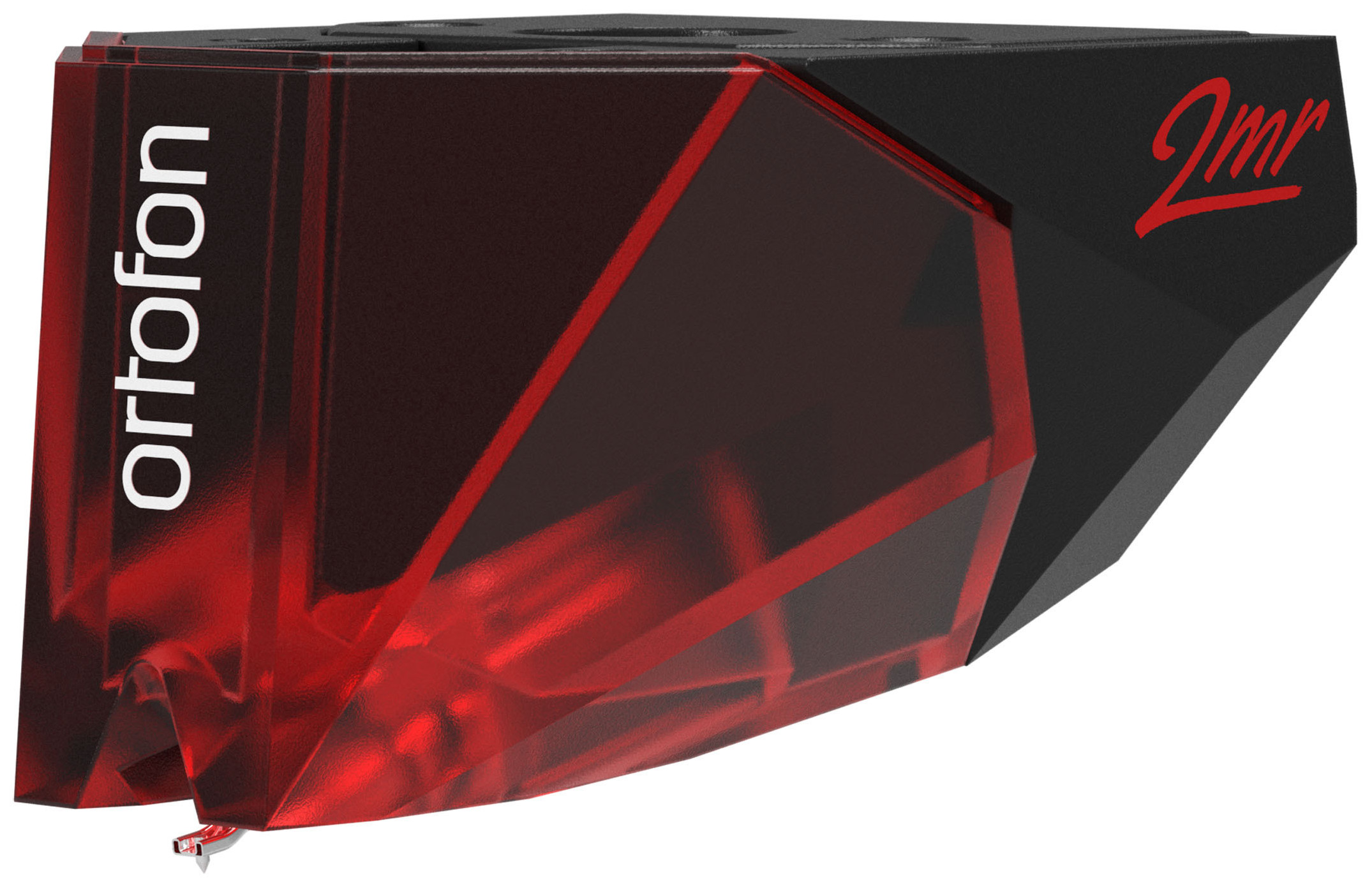

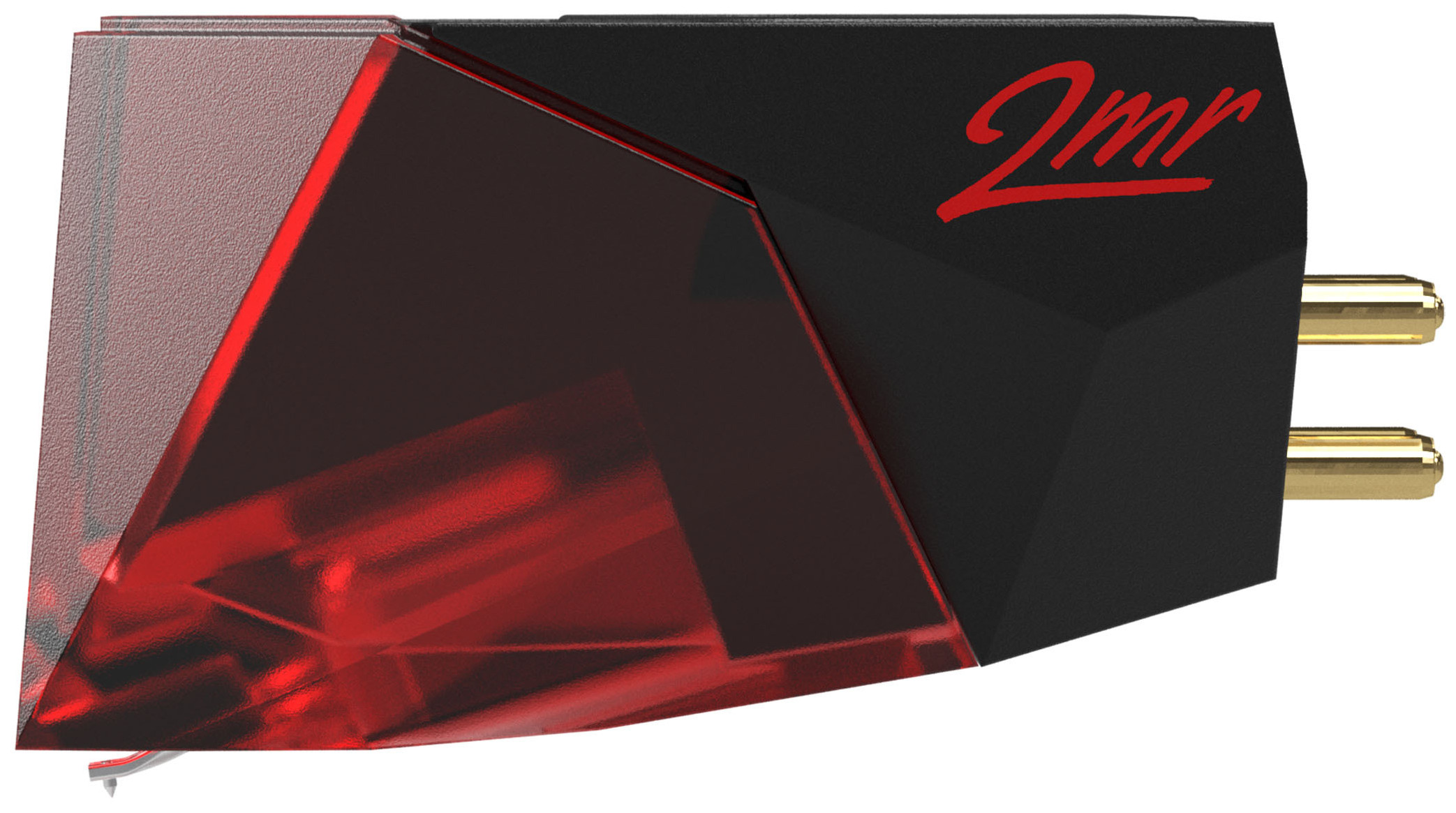

2MR Red pickup
Immerse yourself in the world of music with the 2MR Red. With this pickup you can experience music in its purest form. It's like taking a step into the music itself. The 2MR Red is the entry-level model in the 2MR series, but what an entry!
Features:
The 2MR Red features an elliptical diamond tip and split pole pins with a copper wire. The motor offers increased output power of 5.5 mV and optimized sound reproduction and a high level of acoustic accuracy.
Designed for easy assembly, this cartridge is the appropriate weight and size to fit most standard turntables on the market. The 2MR series offers excellent compatibility for use in various playback systems and with a wide range of phono stages.
The 2MR Red delivers an open, dynamic sound with a hint of warmth.
Technical data:
- Output voltage at 1000 Hz, 5 cm/sec. - 5.5mV
- Channel balance at 1 kHz - 1.5 dB
- Channel separation at 1 kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency response - 20-20,000 Hz + 3 / - 1 dB
- Tracking performance at 315 Hz with recommended tracking force - 70 µm
- Dynamic compliance, lateral - 20 µm/mN
- Stylus Type - Elliptical
- Stylus tip radius - r/R 8/18 µm
- Trailing force range - 1.6-2.0 g (16-20 mN)
- Recommended trailing force - 1.8 g (18 mN)
- Caster angle - 20°
- Internal resistance, direct current resistance - 1.3 kOhm
- Internal choke - 700 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacity - 150-300 pF
- Color of the cartridge body/stylus - Black/Red
- Weight of the 2M Red cartridge - 6 g
- Weight of the 2M and 2M Verso pickups - 7.2 g
- Weight of the pre-assembled 2M cartridge - 16.7 g
Interchangeable stylus unit:
The 2MR Red's stylus unit is interchangeable and can be used with the 2M Blue and 2M Silver. With proper care, the lifespan of the stylus is up to 1000 hours. For more information about stylus care, see our FAQ.
2M Series Compatibility:
The 2MR series motors, coils and magnet configurations are not identical. The 2MR Red and 2MR Blue are identical, as are the 2MR Bronze and 2MR Black, as well as the true mono variants 2MRMono and 2MR 78. Likewise, the stylus units are interchangeable within the following combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78
| Abschlussimpedanz in Ohm: | 47000 |
|---|---|
| Cartridge type: | MM |
| Condition: | new item |
| Configuration: | Standard version |
| Output voltage in mV: | 5.5 |
| Product type: | Pickup MM |
| Series: | 2MR |
| Tracking force in g: | 1.8 |
Manufacturer
Ortofon A/S
Stavangervej 9
DK-4900 Nakskov
Denmark
