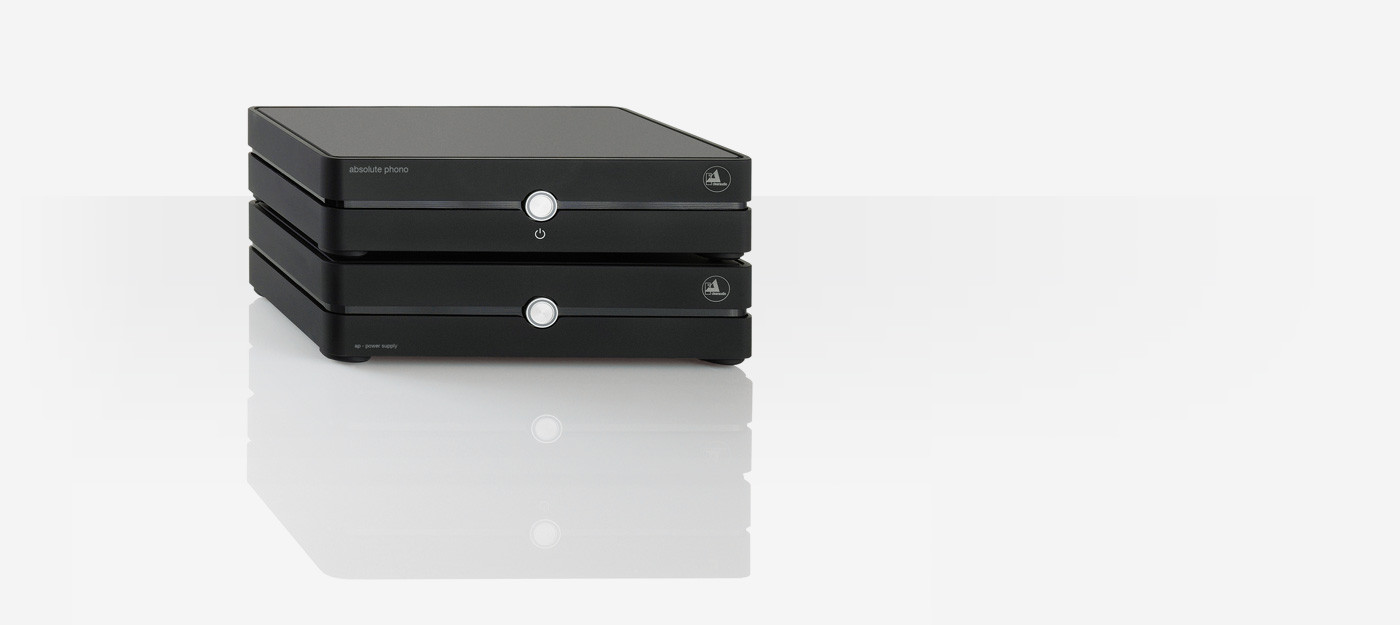

Clearaudio ABSOLUTE PHONO INSIDE

The absolute phono inside is based on the absolute phono and contains its innovative circuit design. With the absolute phono inside, the symmetrical amplifier circuit of the absolute phono microboard could be integrated directly on the RIAA main board. This enables universal use - without installing the circuit board in the tonearm, but with a loss-free connection to the input amplifier. Almost every common tonearm can be connected to the balanced XLR or unbalanced MPC cinch input. Thanks to the automatically optimal input adjustment, any commercially available moving coil pickup can be used. Two-stage high-frequency amplifiers in an absolutely symmetrical design provide revolutionary performance features in the sound and dynamics of moving coil pickups. The entire structure of the absolute phono inside is designed to transmit the flawless input signal to the output, as far as technically possible, without interference. The engineering performance can be recognized by the extremely linear transmission characteristic, which has an extremely large, audibly distortion-free transmission range. To complete the audiophile listening experience, the maximum achievable channel separation with clearaudio is considered the ultimate. The fully symmetrical equalizer stages according to the RIAA standard are characterized by the highest level of accuracy. They guarantee audiophile top performance - just like the fully symmetrical output stages, which were designed as buffer stages with a defined output impedance. The absolute phono inside can therefore be called an absolute masterpiece. All of its details have been designed to be absolutely sensible from an electrical point of view, have been tried and tested many times and optimally implemented. This also includes the consistent omission of relays and coupling capacitors, which would cause unnecessary interference in the signal path. Due to the completely decentralized power supply, the heart of the signal amplification accesses absolutely 'clean' electricity. It is operated with just one button, which informs about the respective operating and mute status via a flashing signal.

Power supply: Power supply with switched-mode power supply Input: 100-265 V AC / 50 - 60 Hz

Signal / noise ratio: 90 dB (A)

Channel separation: 100 dB

Total harmonic distortion: <0.001%

Gain at 1 kHz: 60 dB

RIAA equalization: RIAA - standard, deviation max. 0.1 dB

Output resistance: 64 ohms (balanced), 32 ohms (unbalanced)

Inputs: 2 (balanced XLR / unbalanced MPC cinch)

Power consumption: In operation: 6.5 watts. Switched off: 0.0 watts

Weight preamplifier: approx. 3.25 kg

Weight power supply: approx. 3.20 kg

Dimensions preamplifier (W / D / H in mm): approx. 240 x 160 x 65

Dimensions power supply (W / D / H in mm): approx. 240 x 160 x 65

Guarantee: 5 years
