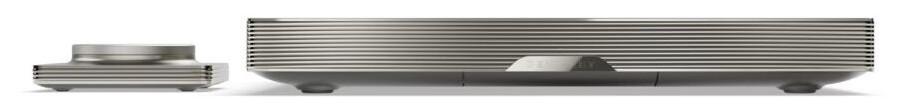

Devialet Astra All-in-One-System

Astra All-in-One system

The French high-end manufacturer Devialet continues its tradition of uncompromising sound quality with the new Devialet Astra amplifier. Developed for music lovers who are looking for the best in digital playback, the Astra combines first-class technology with an elegant, modern design.

Devialet Astra combines all the core elements of audio playback – preamplifier, amplifier, DAC, streamer and phono preamplifier – in a single, extremely compact device. This complete solution sets new standards in style and functionality and offers a breathtaking sound experience for audiophiles.

performance and precision

With a powerful output of 2x 300 watts RMS under 4 O and 2x 150 watts RMS under 8 O, Devialet Astra delivers unparalleled sound without distortion. It is designed to produce crystal clear sounds even at high volumes, completely eliminating saturation. The system redefines sound quality with impressive clarity and precision.

Elegance in Control

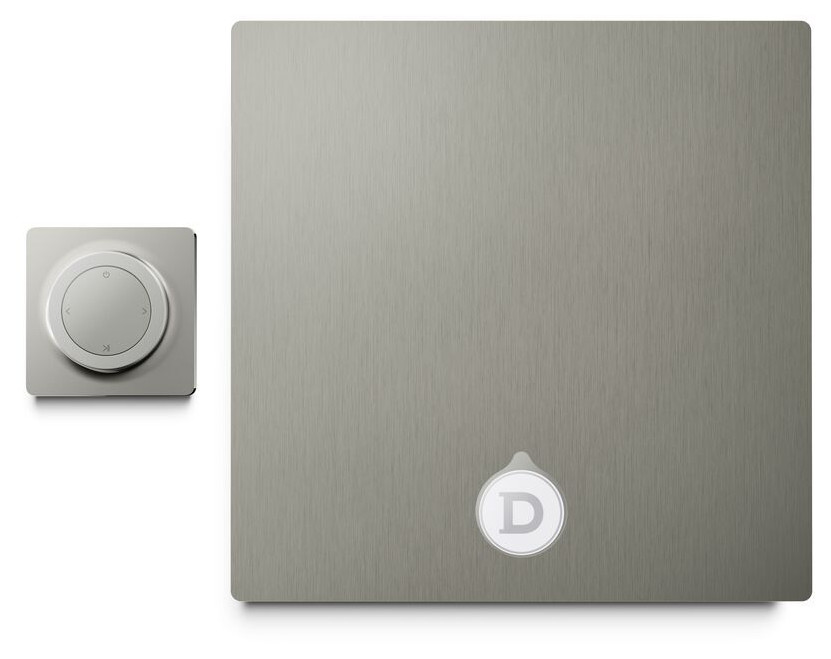

The newly designed remote control perfectly complements the elegant appearance of the Devialet Astra. With an integrated display that shows information such as volume and playlists in real time and a central rotary knob for precise volume control in 1 dB steps, you have full control over your listening experience. The remote control is conveniently charged via USB-C.

Two elegant surfaces

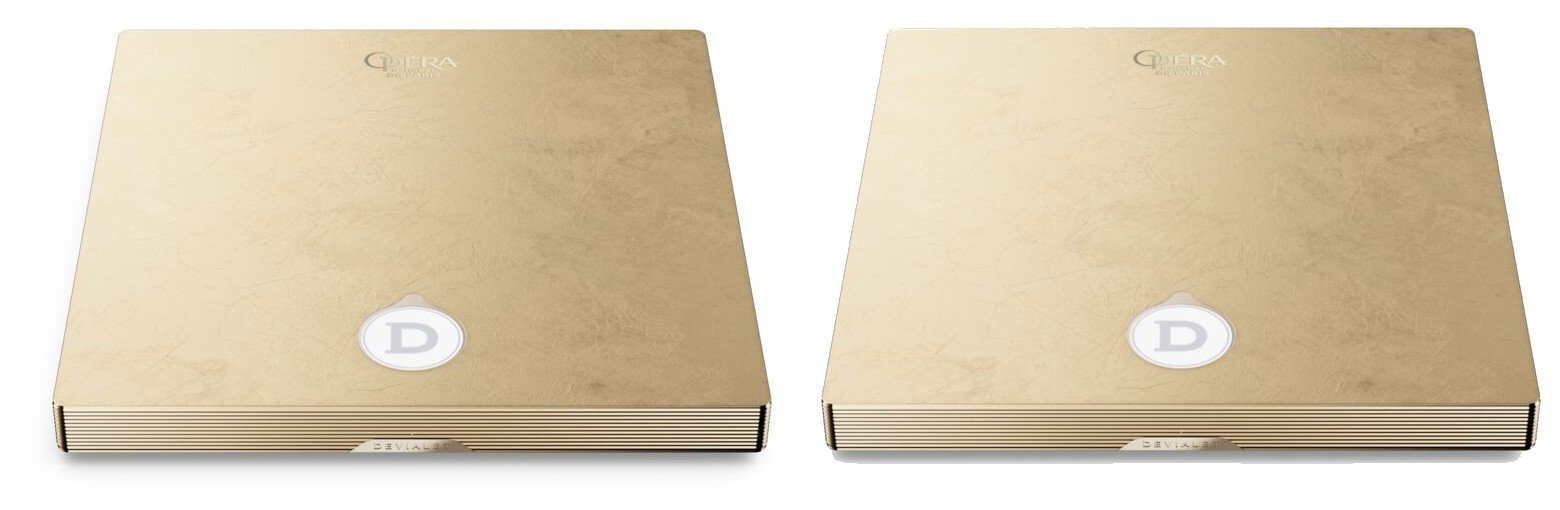

The choice between the elegant “Light Bronze” and the striking “Opéra de Paris gold leaf”, called Leaf Gold, underlines the luxurious character of this amplifier.

dual-mono configuration

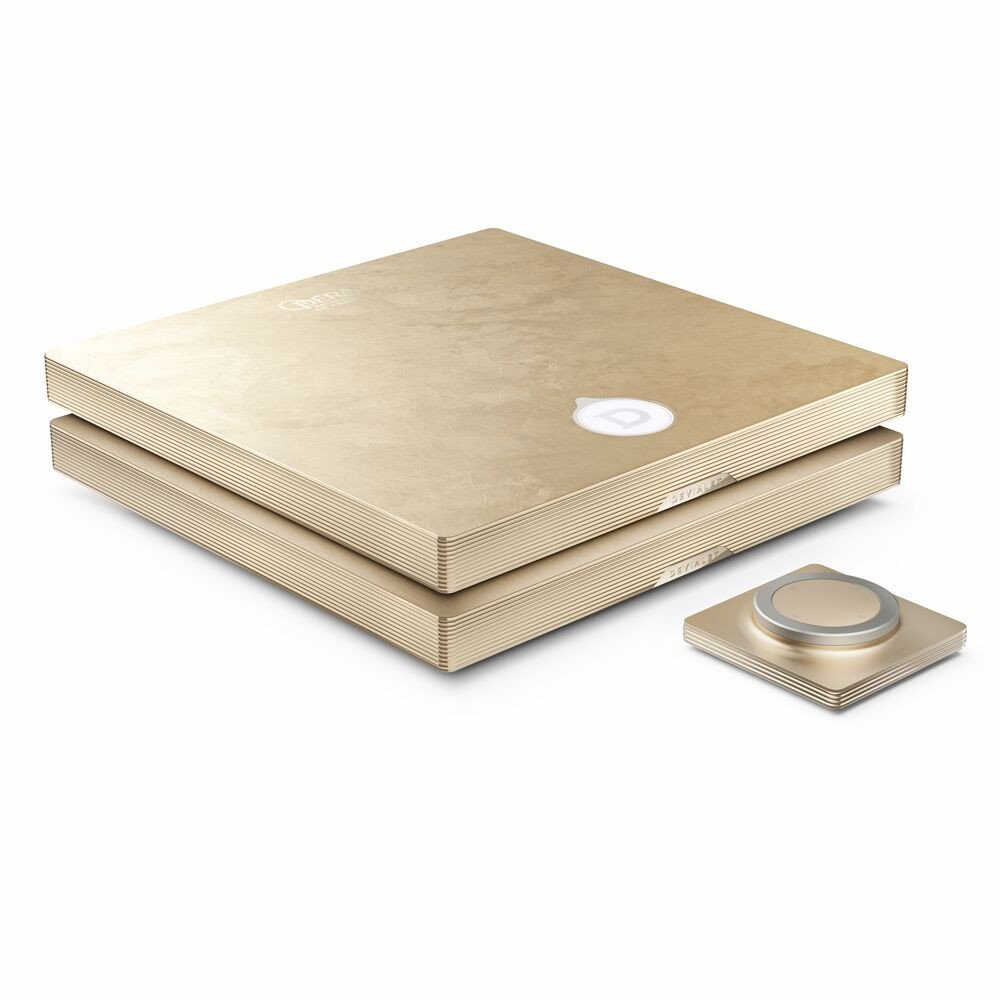

Devialet Astra offers maximum flexibility. Whether side by side or stacked in a dual configuration - expand your setup as you wish to enjoy twice the power and even more intense sound.

Thanks to the integrated SAM technology (Speaker Active Matching), the amplifier adapts perfectly to each loudspeaker and guarantees perfect sound reproduction that will delight even the most demanding listeners.

Technical data

solo variant

specifications

• Range : Stereo
• Streaming services :
  • Airplay
  • Google Cast
  • Spotify Connect
  • Tidal Connect
  • UPnP
  • Roon Ready (RAAT)
• Chaining : Up to 8 devices
• Phono stage : Advanced (MM / MC)
• Preamplifier output : Yes (mono / stereo)

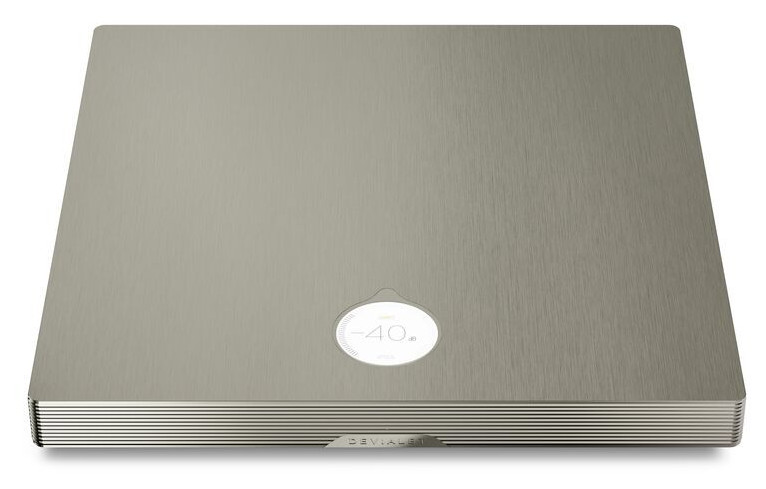

• Case : Light Bronze
• Power Supply : 100-240 Vac – 50/60 Hz, country-specific power cable included
• Power : Continuous max. 750 W
• Housing material : Made from a single block of aluminum, anodized, laser engraved, brushed and shot blasted
• Exclusive technologies : ADH®, SAM®, RAM®, DAC Magic Wire®
• Bluetooth : Yes (Bluetooth 5.3, AAC and SBC codecs)

dimensions and weight

• Dimensions : 386 mm (width) x 386 mm (depth) x 47 mm (height)
• Weight : 7.2 kg

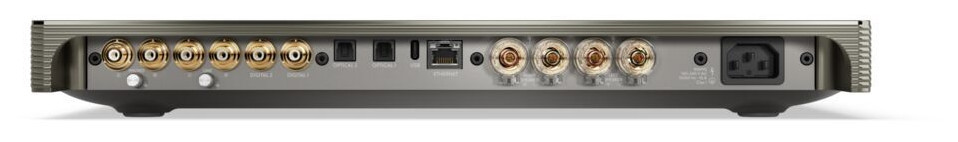

connectivity

• WLAN : WLAN 6 (b/g/n/ac/ax) 2x2 WPA3
• Ethernet : RJ45 Ethernet 100/1000 Mbps
• USB : USB-C 2.0 (data port)
• Digital coaxial inputs : Up to 4x RCA 75O
• Digital Optical Inputs : 2x TOSLINK®
• Analog inputs : Up to 2x RCA stereo
  • MM/MC phono stage with 13 equalization curves and extensive pickup loading options
• Speaker output : Compatible with 4 mm banana plugs, spades or stripped cables (8O to 2O compatible)
• Short circuit protection : Active filtering possible

Performance

• Distortion at 10V :
  • 0.001% (10 Wrms, 4O, 1kHz)
  • 0.0006% (100 Wrms, 4O, 1kHz)
• Signal-to-noise ratio : -117dB
• Output impedance : 0.004O (1kHz)
• Damping factor : 2000 (1kHz)
• Bandwidth :
  • +/-0.1 dB (DC to 20 kHz)
  • +/-2.3 dB (DC to 80 kHz)
  • DC to 56.9 kHz (+/-1 dB)
  • DC to 88 kHz (+/-3 dB)
• Output power : 2x 300 Wrms under 4O, 2x 150 Wrms under 8O
• Peak power : 1000 W peak (1ms)
• Crosstalk : -100dB (300 Wrms, 4O, 1kHz)
• DSP : 192 kHz / 32-bit audio processing
• Inputs :
  • Digital: Up to 192 kHz / 24-bit
  • Network: Up to 192 kHz / 24-bit
  • USB: Up to 384 kHz / 24-bit

scope of delivery

• 1 Devialet Astra
• 1 battery-operated remote control (USB-C)
• 1 user manual
• 1 power cable
• 1 USB-C cable for the remote control
• 1 pair of gloves
• 1 microfiber cloth
