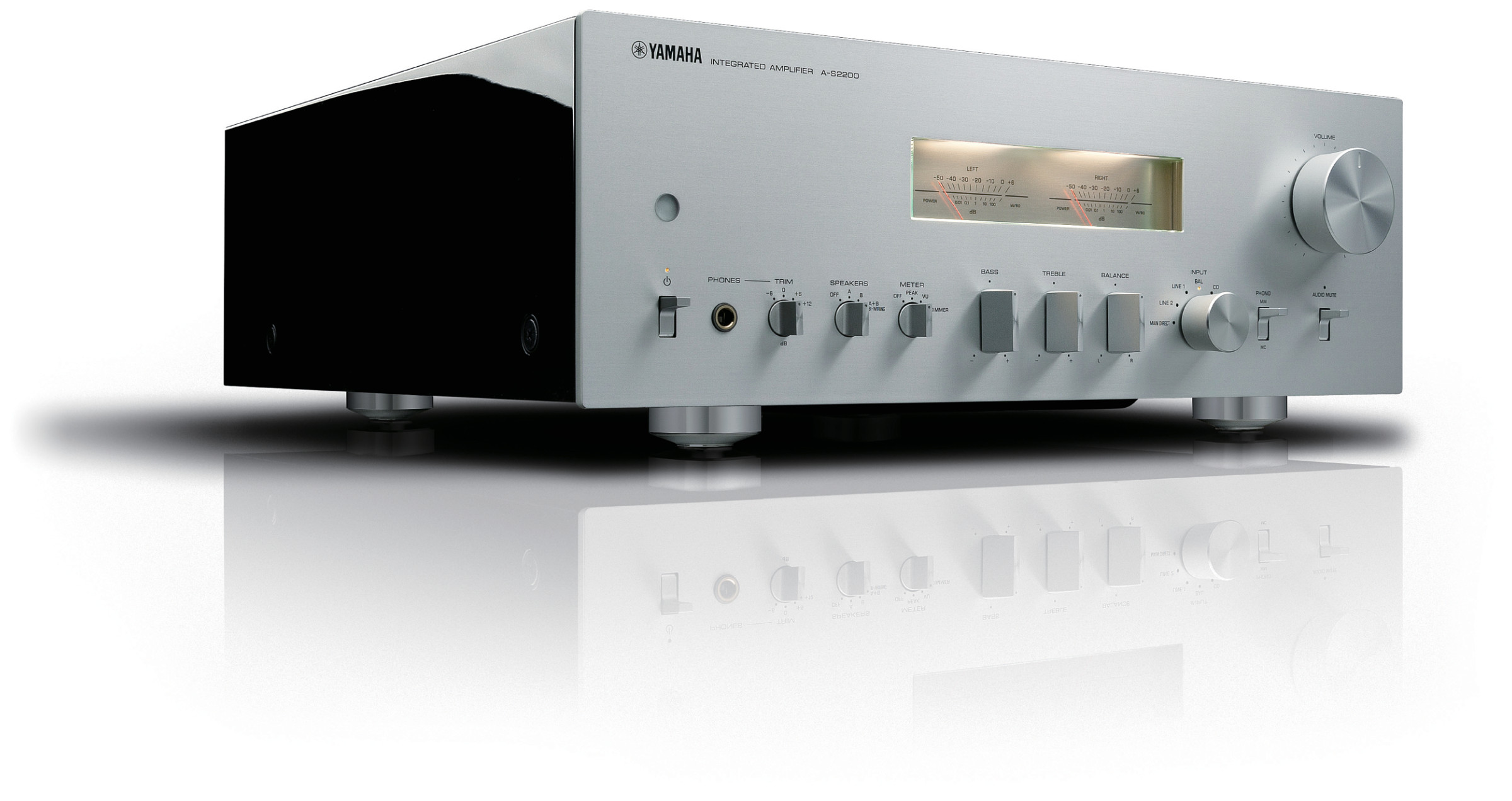

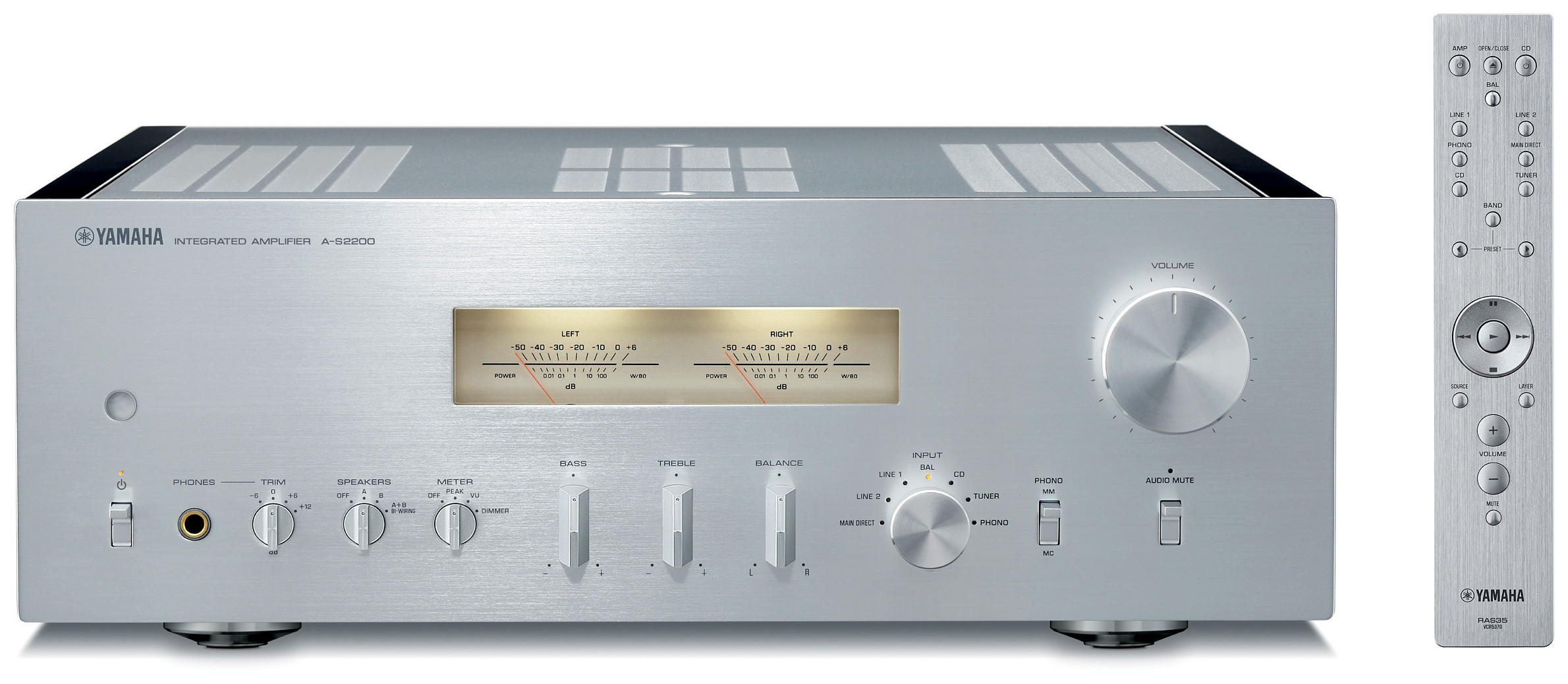

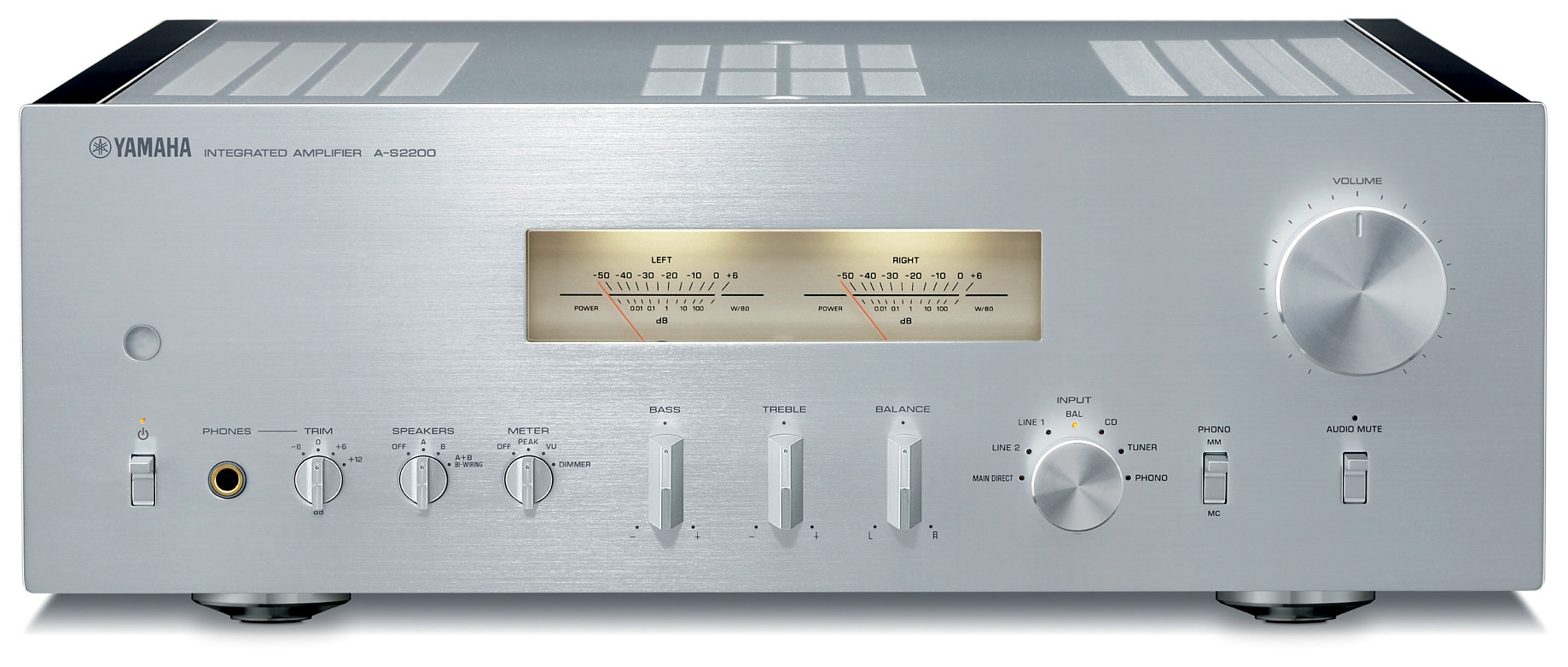

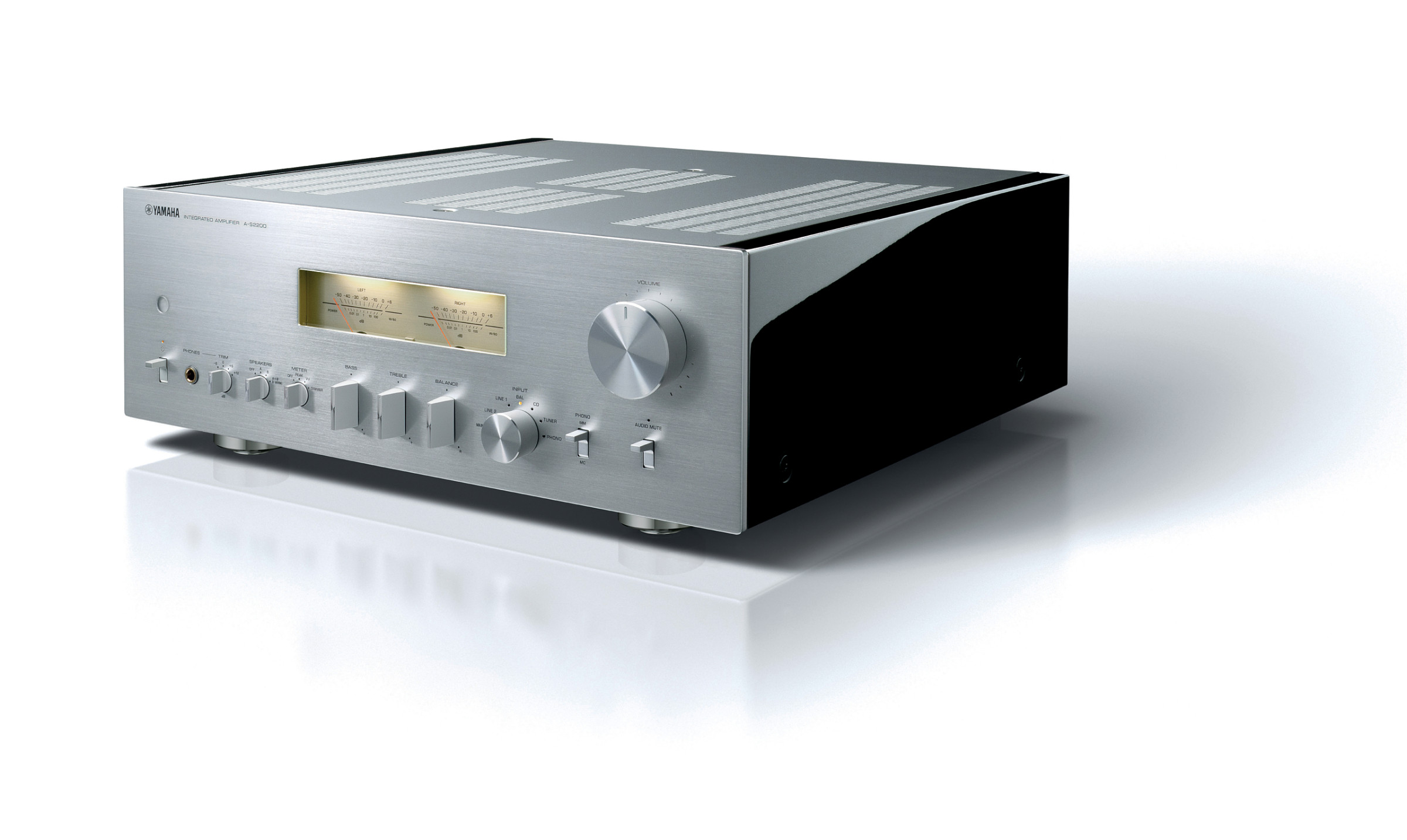

Yamaha A-S2200 Integrated Amplifier

emotions

Reproducing an artist's emotional story true to the original requires a profound understanding of how music is created. This understanding is embedded in Yamaha's DNA and has come from working with artists, whom we have helped create their musical works. On this basis, Yamaha is able to convey the emotions rooted in the music to the listener in great detail.

toroidal transformer

A toroidal transformer is responsible for the power supply of the A-S2200, which has proven its high performance in hi-fi components. Its ability to maintain current levels, which is superior to other products, gives the A-S2200 the ability to convey all of the emotional energy that the artist has poured into his music.

Attractive level meters

The level meters are not only a nostalgic tribute to the Hi-Fi golden age, but also emphasize the importance of pure Hi-Fi sound for today's music enthusiasts. They make the dynamics and the pulse of the music visible and give the system a pleasant atmosphere with their softly lit LEDs.

openness

Pure hi-fi experiences let the artist come to the fore - and the listener forget time and space. Enjoying music is more of an active than a passive experience. The openness of the Yamaha Hi-Fi range makes this vision a reality.

Thick ground wires contribute to lower impedance

A naturally open sound space is created by the perfect design and well thought-out selection of components. Thick ground wires are deliberately used to further reduce the amplifier's impedance and create a wide, open sonic space for the listener. As a result, the components recede into the background and make room for the artist.

Original quality speaker connectors

The luxurious speaker terminals are crafted from solid brass for a highly secure connection, yet are easy to hand tighten.

groove

Music doesn't just tell a story. The rhythm and groove of the music reaches the listener whether they are aware of it or not. They awaken feelings that are hidden in the musical history. This is what listeners experience when they succeed in letting the sound of the music come about as the artist intended.

Basic mechanical concept

The basic mechanical concept of the A-S2200 provides the necessary stability and reduces unwanted vibrations - guaranteeing an expressive and rhythmic bass. The large power converter, blocking capacitors and heatsink are bolted directly to the frame, strengthening rigidity. The feet, whose bolts are welded to the main frame, increase stability even further.

Silver plated brass feet

The silver-plated brass feet round off the robustness of the amplifier perfectly.

Technical details

Power 2x90W at 8Ohm, 2x150W at 4Ohm
Analog inputs 6x cinch high level, 1x XLR high level
Phono inputs 1x Phono MM/MC
Headphone connection 1x jack 6.3mm
Speaker outputs 1 pair
Speaker impedance 4-16 ohms
Analog outputs 1x RCA high level, 1x RCA pre-out
Signal-to-noise ratio high level 114dB, Phono MM 96dB, MC 90dB
Frequency response 20Hz - 20kHz
Sound control bass, treble, balance
Power consumption standby <0.5 watts
Power pack/battery AC 230V - 50Hz
Dimensions WxHxD 435 x 157 x 463mm
Color version black, silver
