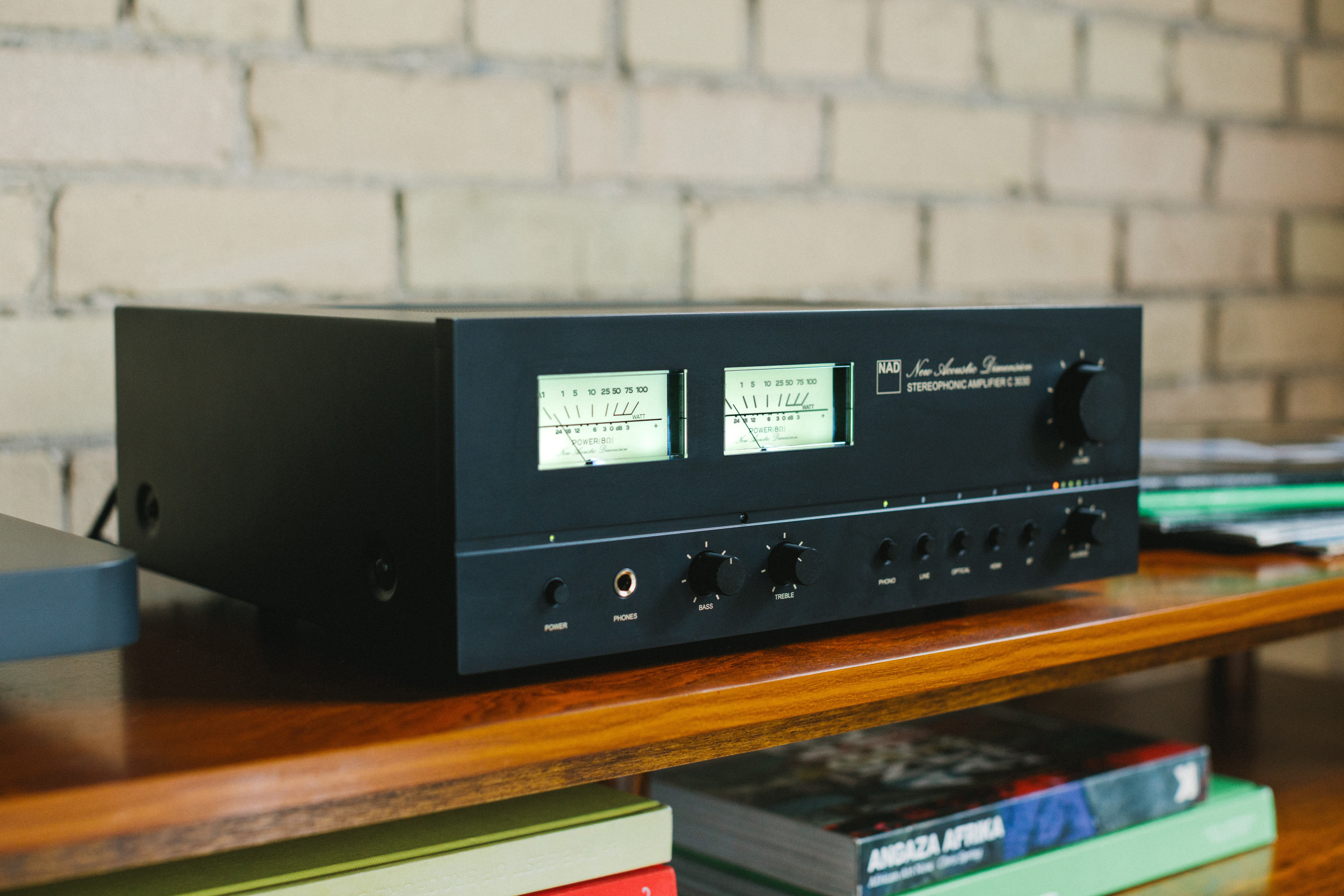

NAD C 3030 Stereo Amplifier

The NAD C 3030 is an integrated amplifier for music lovers who value substance over gimmicks. It embodies precisely what NAD has stood for for decades: honest performance, technical clarity, and a musical reproduction that doesn't seek to impress, but rather to convince. Minimalist in design, uncompromising in its internal components, engineered for lasting musical enjoyment.

Power, control and musical sovereignty

With 100 watts per channel at 8 ohms, the C 3030 offers more than just ample power reserves. What's crucial is how effortlessly it utilizes this power. The amplifier performs with control, dynamism, and impressive composure – even during complex passages or at high volumes. Vocals are clearly positioned in the soundstage, instruments are cleanly separated, and the bass remains precise and well-defined at all times.

The sophisticated amplifier architecture and the use of high-quality components ensure that musical nuances are preserved. The NAD C 3030 never sounds intrusive, but rather balanced, open, and pleasantly natural – a character that remains convincing even during long listening sessions.

Digital competence meets analog passion

The integrated 32-bit/384 kHz DAC enables high-resolution playback of digital sources and ensures clean, detailed signal processing. Whether streaming, TV sound, or classic digital sources – the C 3030 integrates effortlessly into modern setups. HDMI eARC transforms the amplifier into the powerful audio hub of your living room, while optical and coaxial inputs offer maximum flexibility.

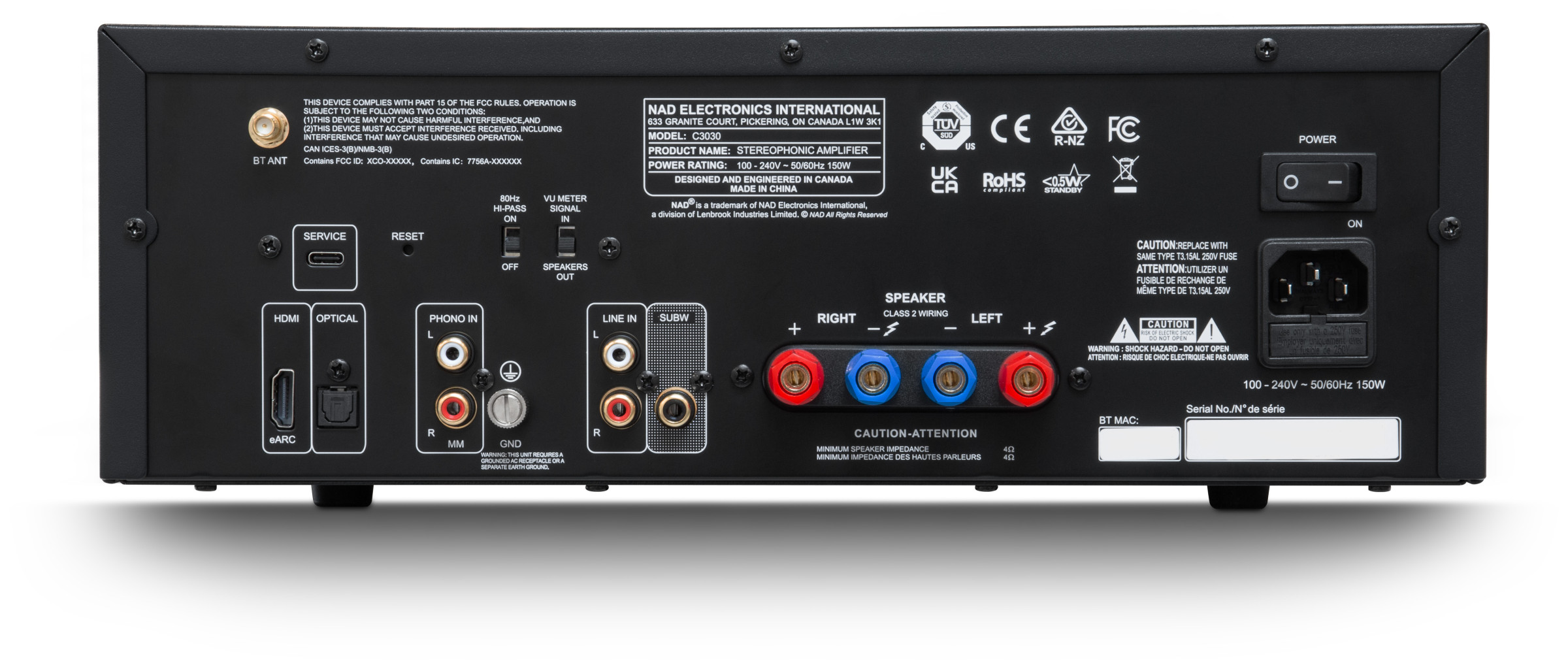

Vinyl enthusiasts will also be pleased: The high-quality phono input allows for the direct connection of a turntable – without any external devices. The connection panel is complemented by analog inputs and Bluetooth with aptX HD for high-quality wireless music listening.

User-friendliness that recedes into the background

The NAD C 3030 follows the principle that technology should serve, not dominate. Operation is intuitive, logically structured, and focused on the essentials. No cluttered menus, no unnecessary gimmicks – instead, a clear structure that keeps the focus on the music. An amplifier that integrates seamlessly into your everyday life and always delivers reliable performance.

Timeless design with attitude

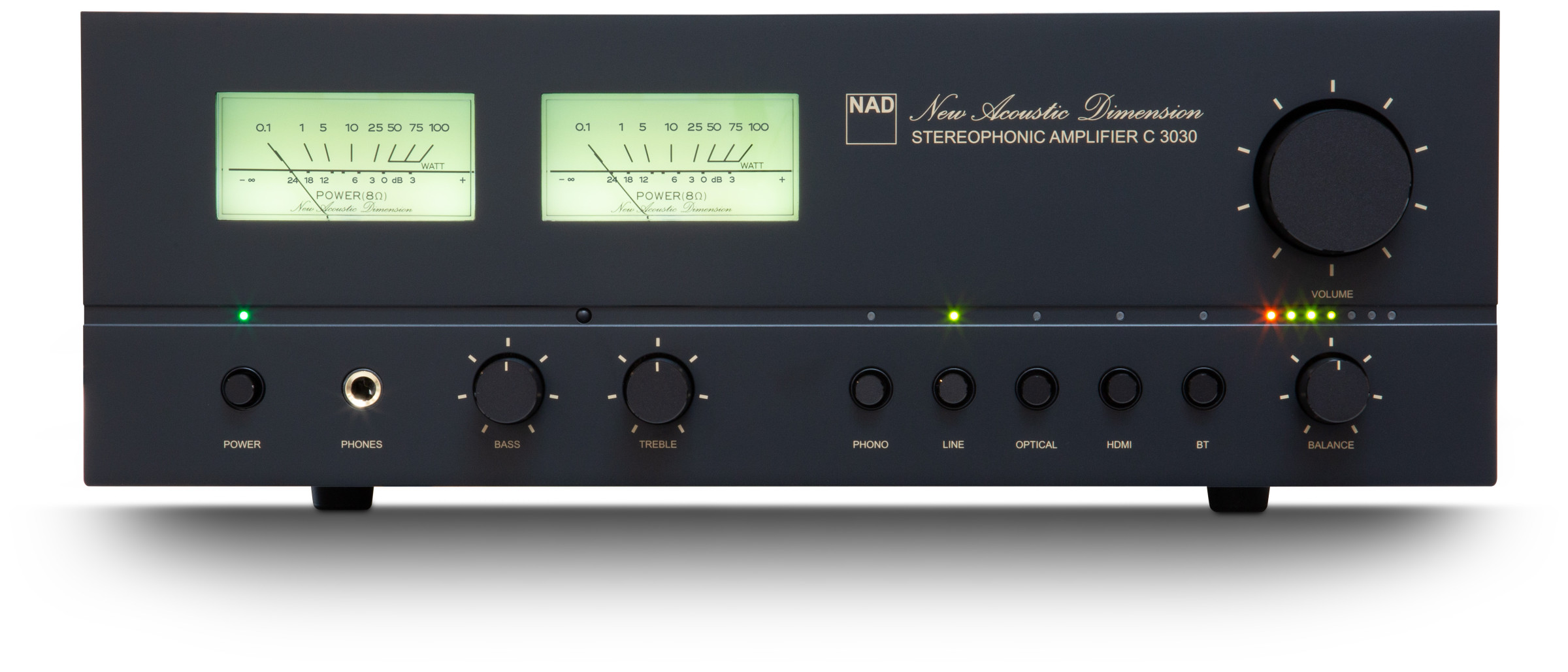

Visually, the C 3030 is typical of NAD: minimalist, understated, and functional. The simple housing blends effortlessly into any living environment and doesn't age – neither stylistically nor technically. Trends were deliberately avoided in favor of a design that stands the test of time.

TECHNICAL DATA

Line input, pre-out

• Total harmonic distortion (THD, 20 Hz – 20 kHz): < 0.005% at 4 V output voltage
• Signal-to-noise ratio: > 90 dB (IHF; A-weighted, 500 mV output, unity gain)
• Input impedance (R and C): 28 kOhm + 360 pF
• Maximum input signal level: > 5.7 Vrms (0.1% THD)
• Output impedance: 345 ohms
• Input sensitivity: 100 mV (500 mV output, maximum volume)
• Frequency response: 20 Hz – 20 kHz (±0.3 dB)
• Maximum output voltage: > 5 V (0.1 % THD)

Line input, headphone output

• Total harmonic distortion (THD, 20 Hz – 20 kHz): < 0.005% at 1 V output voltage
• Signal-to-noise ratio: > 90 dB (32-ohm load; A-weighted, 1 V output, unity gain)
• Frequency response: 20 Hz – 20 kHz (±0.3 dB)
• Channel separation: > 60 dB at 1 kHz
• Output impedance: 2.2 ohms

Line input, speaker output

• Continuous power output at 8 ohms and 4 ohms: 50 W (20 Hz – 20 kHz at nominal THD, both channels operated)
• Total Harmonic Distortion (THD, 20 Hz - 20 kHz): < 0.03% (250 mW to 50 W at 8 ohms and 4 ohms)
• Signal-to-noise ratio: 90 dB (A-weighted, 500 mV input, 1 W output into 8 ohms)
• Clipping performance:
  • 70W (1kHz, 0.1% THD, 4 ohms)
  • 55W (1kHz, 0.1% THD, 8 ohms)
• IHF dynamic performance:
  • 120 W at 8 ohms
  • 250 W at 4 ohms
  • 390 W at 2 ohms
• Maximum output current: > 16 A (1 Ohm, 1 ms)
• Damping factor: > 52 (20 Hz – 6.5 kHz, 50 W at 8 ohms)
• Frequency response: 20 Hz – 20 kHz (±0.3 dB)
• Channel separation:
  • 75 dB at 1 kHz
  • 70 dB at 10 kHz
• Input sensitivity: 750 mV (at 50 W into 8 ohms)
• Frequency band: 2.402 – 2.480 GHz
• Maximum transmit power: 7 dBm ± 2 dBm
• Power consumption in standby mode: 0.5 W

Phono input

• Total harmonic distortion (THD, 20 Hz – 20 kHz): < 0.05% at 50 W output power
• Signal-to-noise ratio: > 82 dB (10 mV input; A-weighted, 1 W output)
• Input impedance (R and C): 46 kOhm / 100 pF
• Input sensitivity: 1.6 mV (20 Hz, 50 W output, maximum volume)
• Frequency response: 20 Hz – 20 kHz (±0.3 dB)
• Maximum output current: > 16 A (1 Ohm, 1 ms)
• Maximum input signal at 1 kHz: > 15 mVrms (0.1% THD)
• Note on RIAA equalization: The RIAA curve corresponds to a pre-equalization that is rolled through a second-order filter at 50 kHz, as used in Neumann cutting lathes.

Dimensions and weight

• Gross dimensions (W × H × D):
  • 356 × 129 × 329 mm
  • 14 1/8 × 5 1/8 × 13 inches
• Net weight: 5.8 kg (12.8 lbs)
• Shipping weight: 7.2 kg (15.9 lbs)
