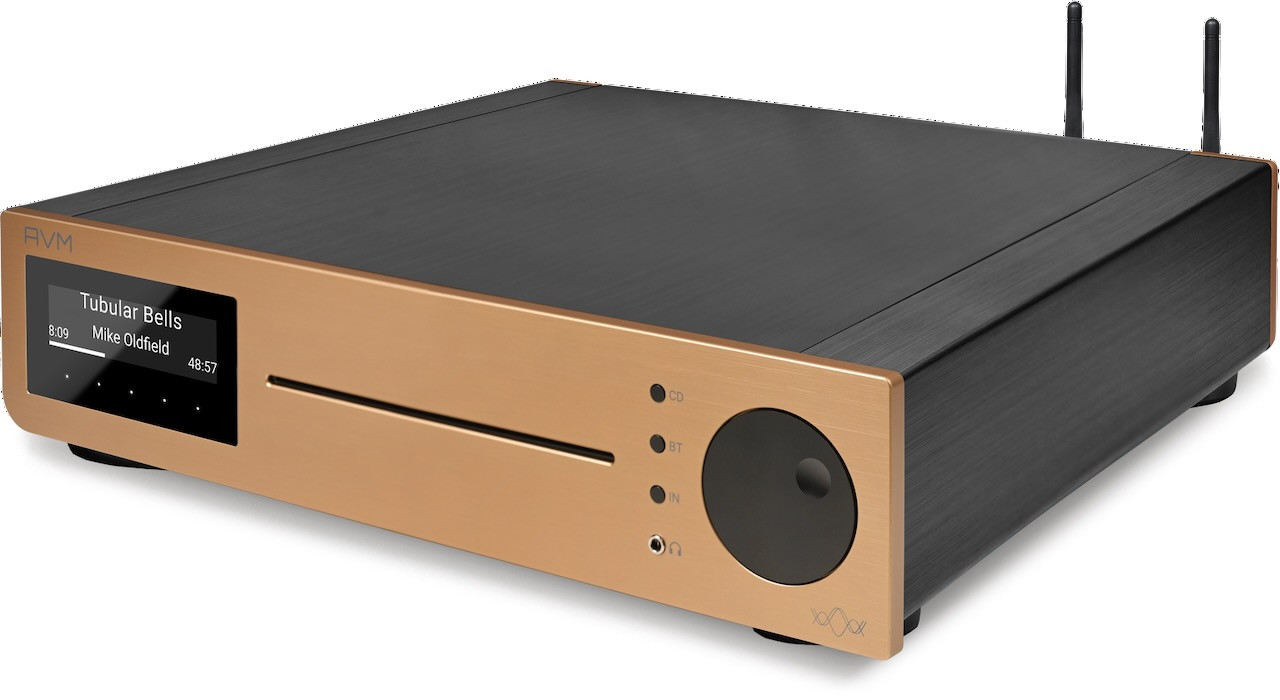

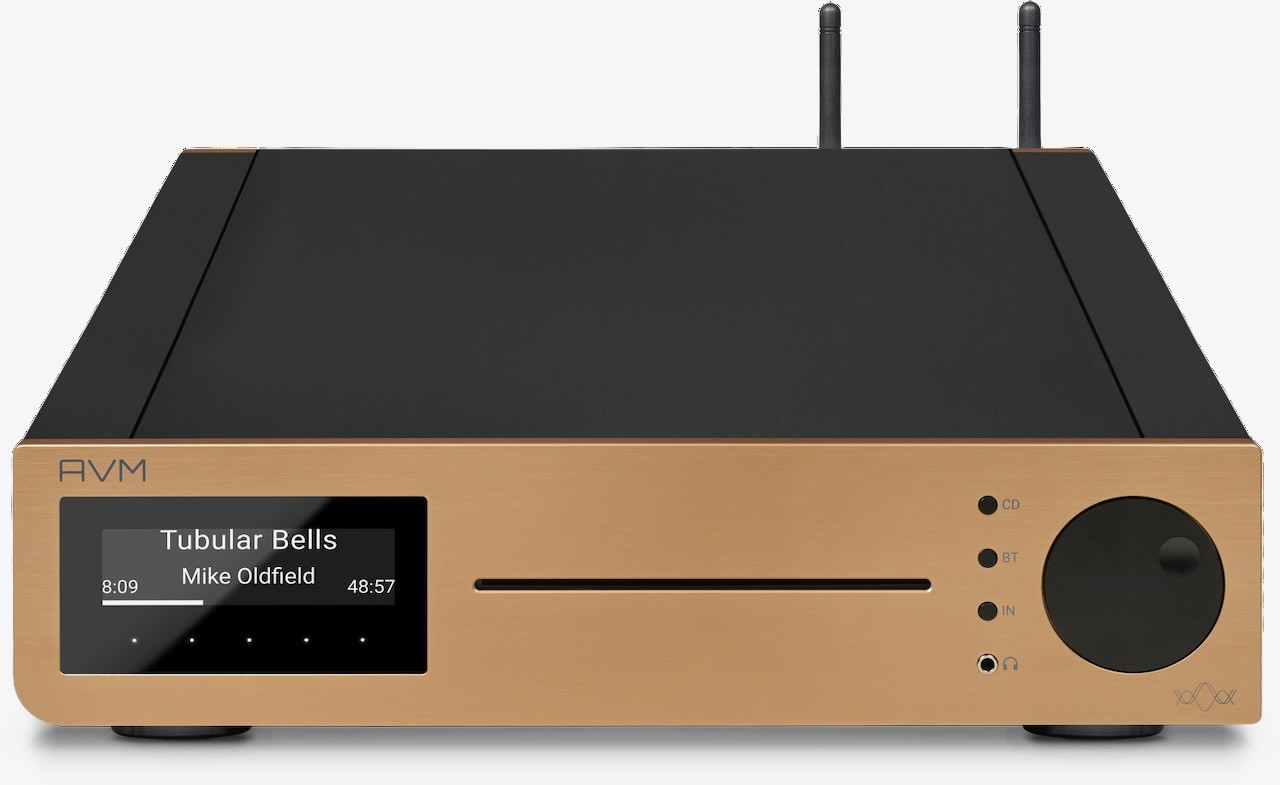

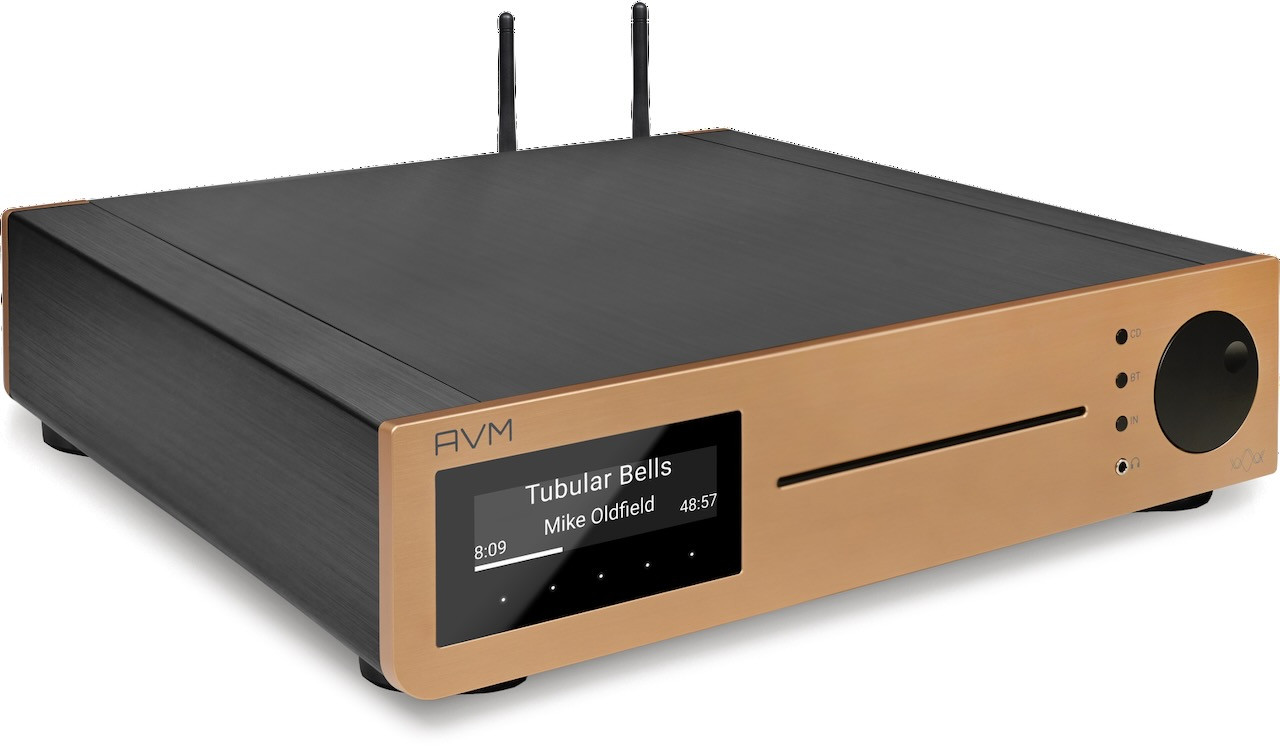

AVM CS 2.3 Streaming CD Receiver with Bluetooth

AVM CS 2.3

AVM X-STREAM Engine® CD receiver with Bluetooth

• 2 x 150 watts at 4 O
• Quad DAC with up to 384/32 and DSD 256 via USB
• Prepared for Spotify, TIDAL, QOBUZ, HIGHRESAUDIO
• Roon, Multiroom, Apple Airplay 2
• Coaxial and optical digital inputs
• Signal sensitive inputs (digital & analogue), ARC HDMI
• Prepared for RC X App (iOS & Android)

The new generation of compact streaming CD receivers

With the CS 2.3, AVM continues its tradition of compact all-in-one devices and elevates them to a new level of performance. Based on the in-house AVM X-Stream Engine®, the system combines state-of-the-art streaming technology with innovative features and a completely redesigned control interface via the RCX app.

The new streaming platform supports all high-resolution formats – including DSD (128) – and, thanks to its pure software architecture, is future-proof and expandable through online updates. In addition to an HDMI (ARC) interface, modern Bluetooth, versatile digital inputs, and a USB-A port, the CS 2.3 also offers a powerful phono preamplifier for MM and MC cartridges. New digital outputs with volume control have also been added.

The CS 2.3 also represents a significant sonic improvement over its predecessor, the CS 2.2. The newly developed amplifier stages are based on those of the larger CS 8.3 and deliver 140 watts of continuous power per channel – powerful enough for any speaker combination. The latest ESS D/A converter (9038 Q2M) is used for digital signal processing, reproducing all high-resolution formats with precision and rich detail.

Visually, the CS 2.3 is available in aluminum silver or black, and optionally as an elegant CELLINI version with a chrome front. Like all AVM Inspiration devices, it is handcrafted in Malsch, Germany. Close collaboration with regional suppliers and intensive quality controls at every stage of production – supplemented by a multi-day break-in period – guarantee maximum reliability. The CS 2.3 comes with a 2-year warranty, which can be extended to 4 years through online registration.

At a glance

• AVM X-STREAM Engine® for HiRes streaming including DSD, controllable via the RC X App
• Prepared for Spotify Connect, Qobuz, Tidal, web radio (expandable)
• 1 high-performance phono input , switchable between MM & MC (impedance matching via included adapter plugs)
• 2 high-level inputs (switchable as home theater thru-put)
• Bluetooth 4.2, AirPlay 2, Roon Ready , prepared for AVM multiroom function
• HDMI (ARC) input , 2 digital inputs (SPDIF, optical) with selected DAC
• USB-A port for external hard drives (NTFS & FAT)
• 2 digital outputs (SPDIF, optical), volume-controlled
• Headphone output on the front
• Slot-loading CD drive (Red Book)
• Signal processing with upsampling to 192 kHz / 24 bit
• Tone control and parametric loudness with bypass function (also via RC X app)
• Dimmable graphic display with touchpoint detection and proximity sensor
• Extensive menu functions (adjustable input sensitivity, individual input naming, etc.)
• Minimal standby power consumption
• Compact design: 34 cm wide, 32 cm deep, 10 cm high
• Housing options: Brushed aluminum silver or black, or as a CELLINI version with chrome front (additional charge)

Technical data

CD drive
TEAC Pure CD drive

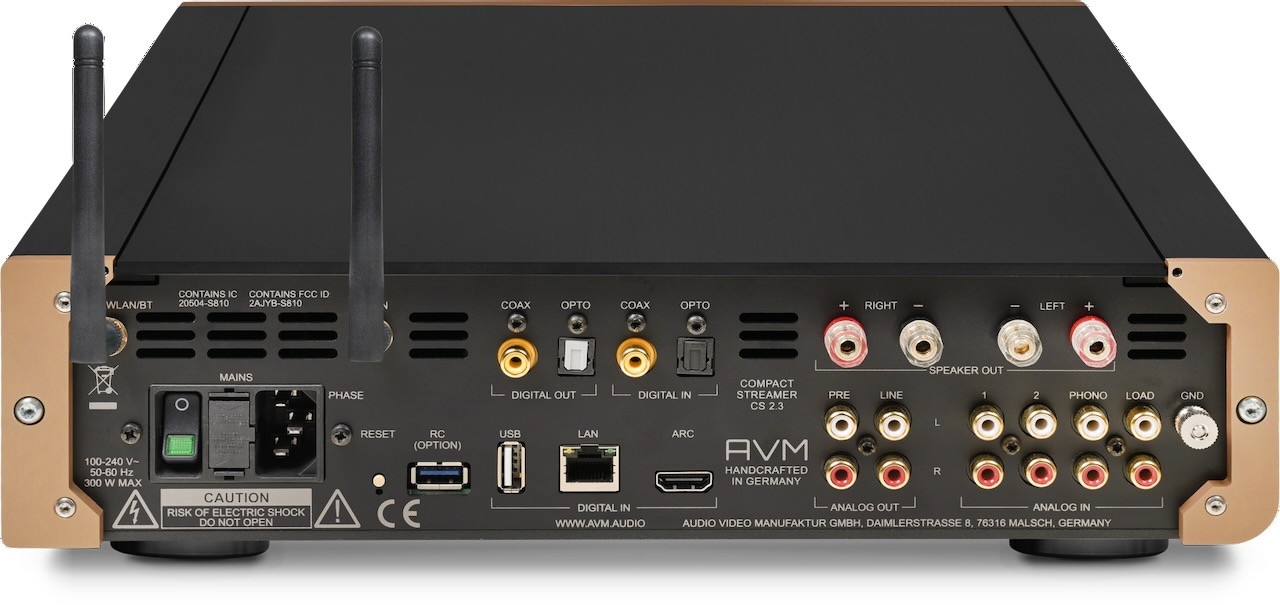

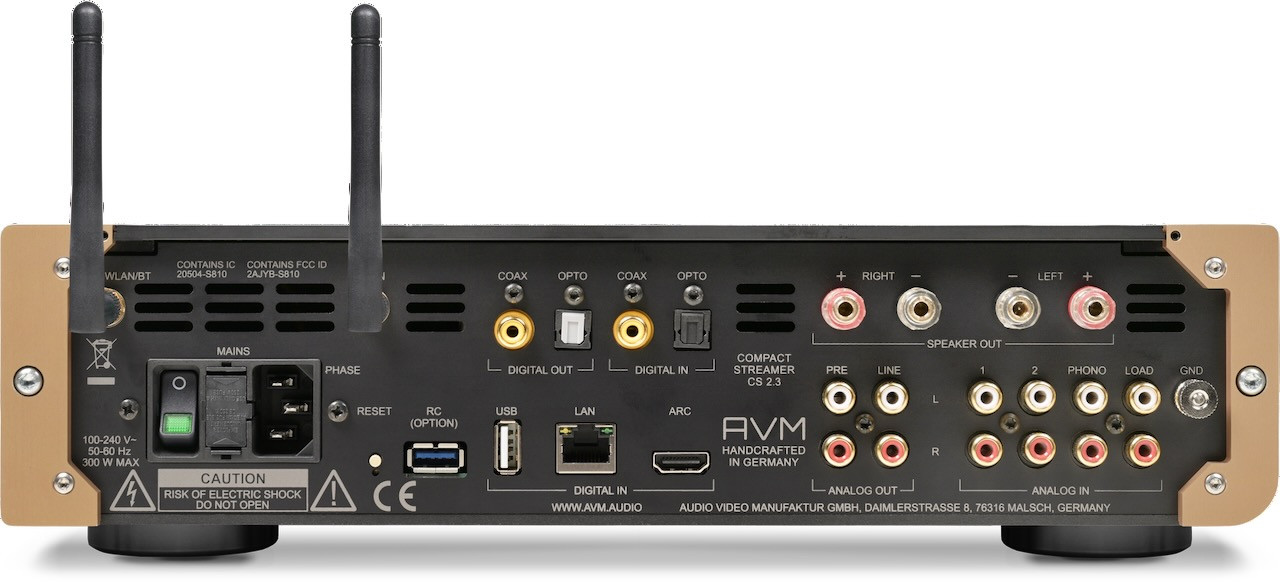

Analog inputs
2 x RCA

Analog outputs
1 x Line/Fix Out RCA, 1 x Pre/Var Out RCA

Digital inputs
1 x S/PDIF Coax, 1 x S/PDIF Optical, 1 x USB A (Stick/HDD)

Digital outputs
1 x S/PDIF Coax, 1 x S/PDIF Optical

Bluetooth
HiFi Bluetooth (4.2 Standard)

Phono input
1 x MM / MC RCA

Music Streaming
AirPlay 2, Roon Ready*, Spotify Connect, HIGHRESAUDIO / QOBUZ / TIDAL (HiRes quality), UPnP

radio
Web radio via Airable Internet Radio Station Database (automatic updates)

network
Ethernet hot pluggable (100Mbps), Wi-Fi (802.11a/b/g/n/ac) 2.4/5GHz, WPS

tone control
Balance, bass, treble, scalable loudness

Output power
2 x 140 W [40]

Headphone output
3.5 mm

Speaker outputs
1 pair

Included remote control
RC X App for iOS & Android

Optional remote controls
RC 9 RF/IR remote control with color display (programmable)

finish
Aluminum Red LaRouge incl. Cadenza Red, Aluminum Silver, Aluminum Black, Cellini Chrome

Product line
INSPIRATION
