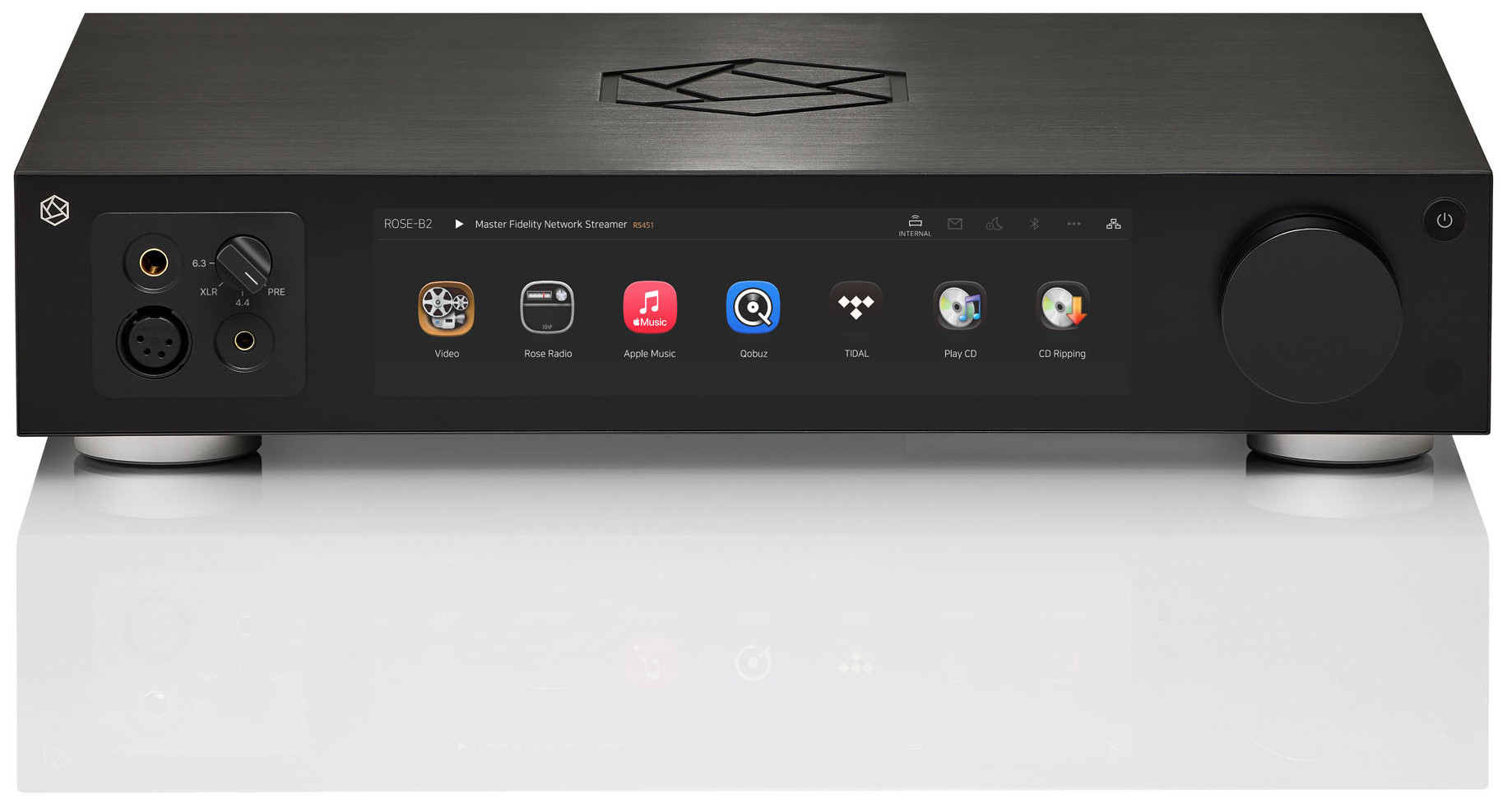

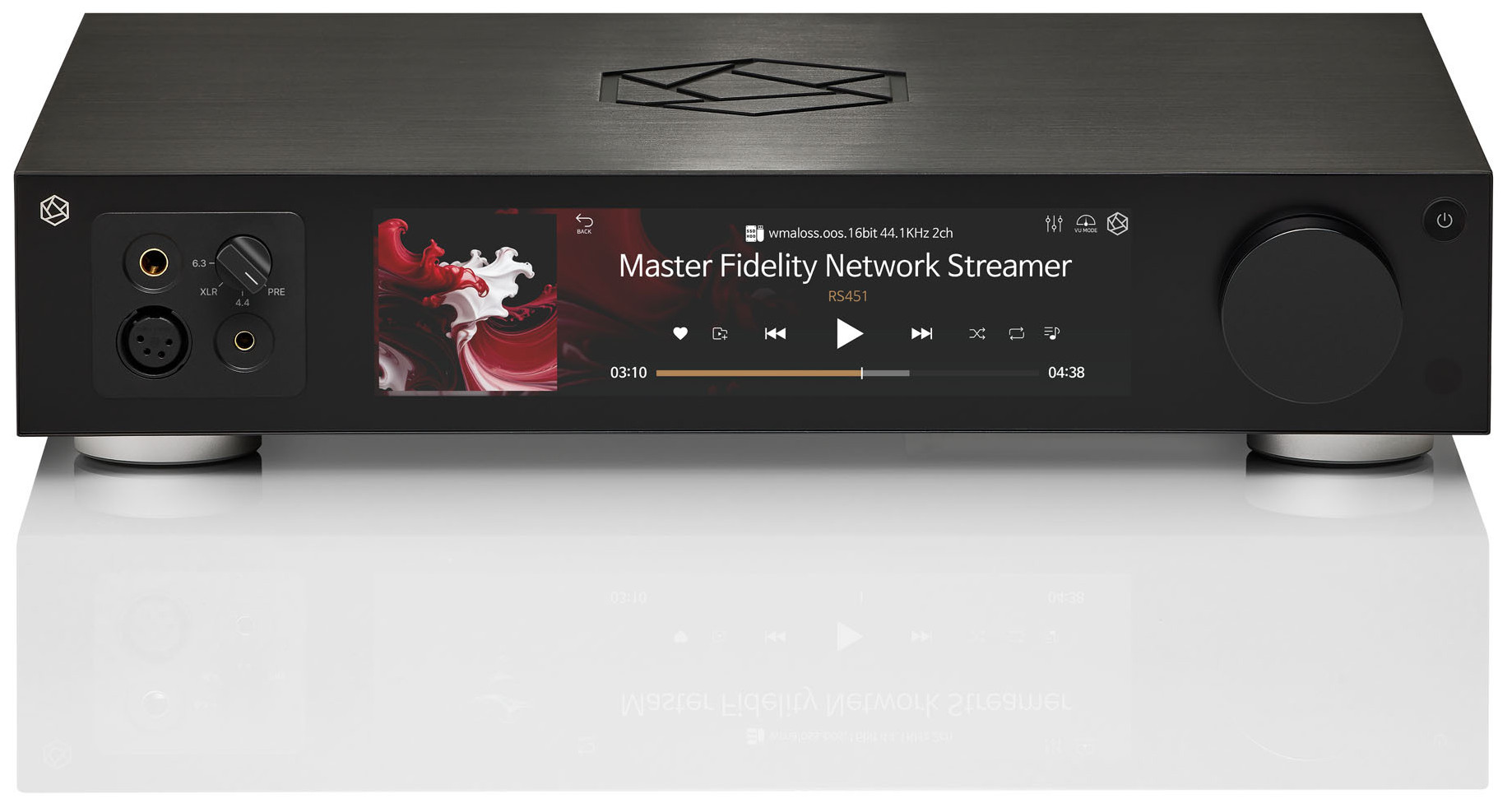

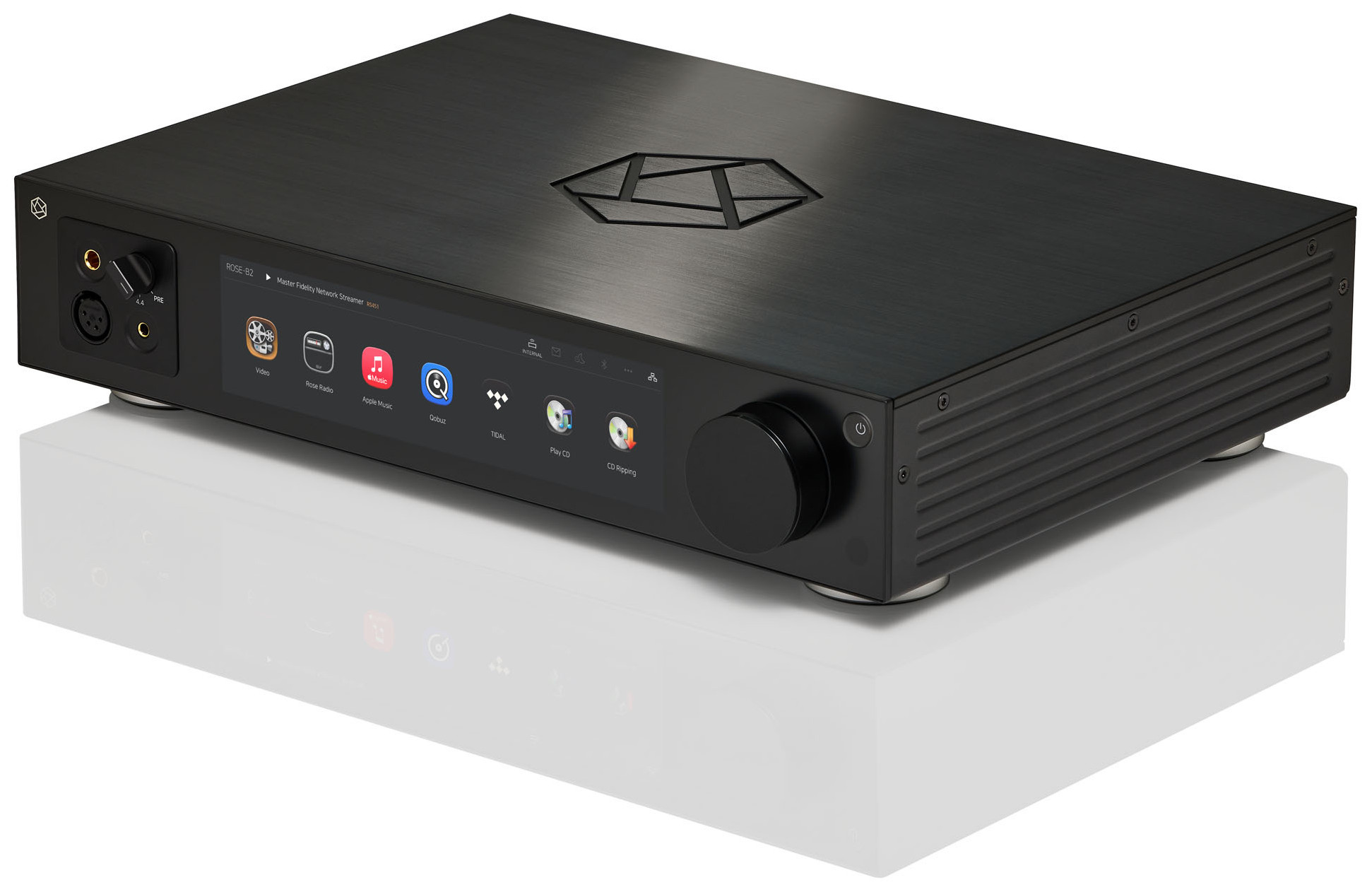

Hifi Rose RS 451 Network Streamer

RS451 Master Fidelity - Network Streamer

The RS451 from HiFi ROSE redefines network streaming: a compact, powerful device that combines cutting-edge digital audio technologies with a clean, user-friendly design. Building on the architecture of the flagship RS151, it presents itself as an ideal solution for desktop setups and demanding audio environments.

At its heart is an ES9027PRO DAC with separate circuits for pre-out and headphone output. This separation guarantees detailed and interference-free playback—whether connected to a high-quality hi-fi system or directly via headphones. Four dedicated amplifiers ensure precise impedance matching, minimal noise levels, and powerful, stable drive.

Important information at a glance

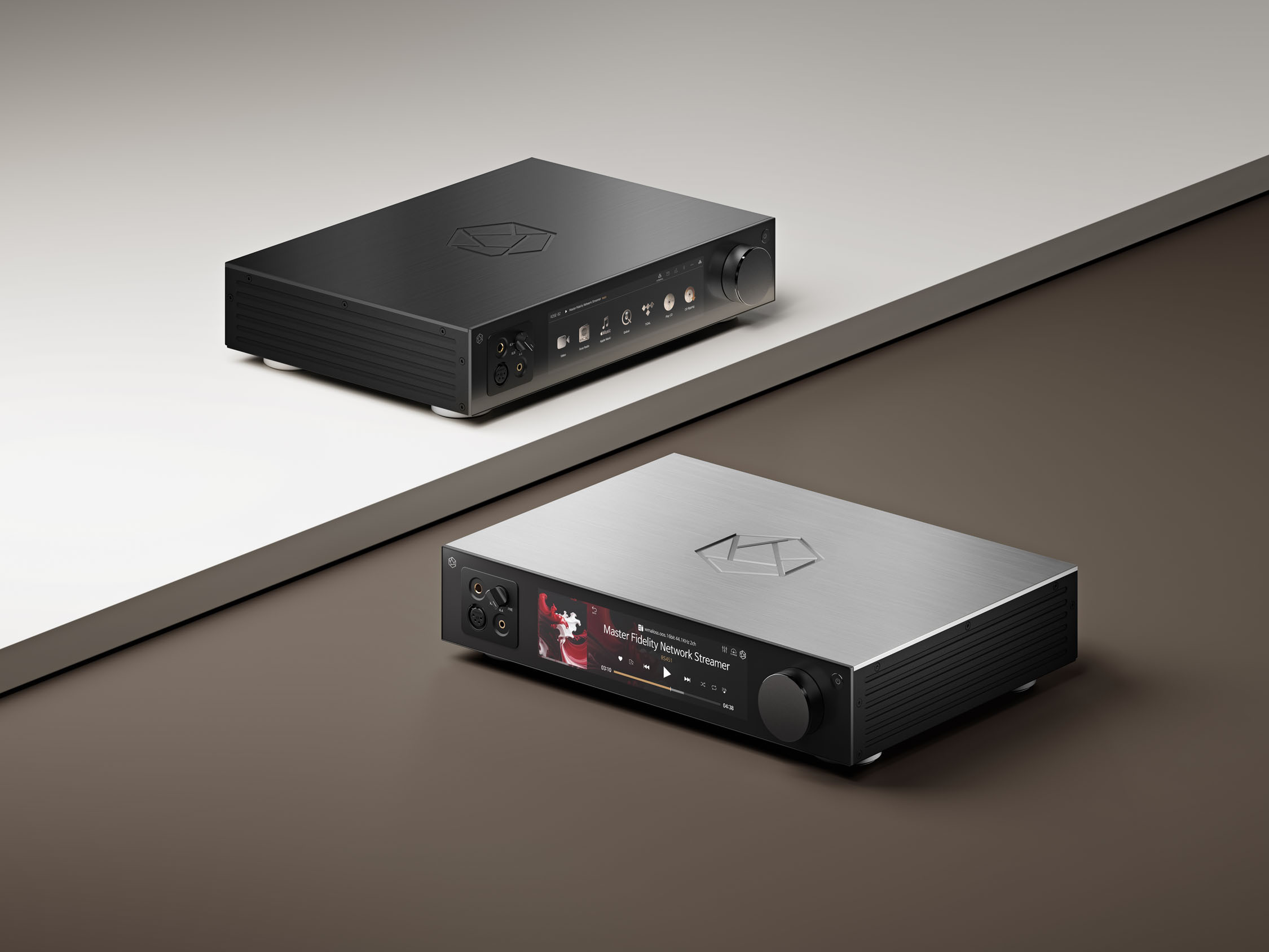

• Compact housing (430 × 337 × 92 mm, 7 kg) in silver or black
• 8.8' IPS touch display for intuitive operation
• RK3588 Octa-core processor, 8GB RAM, 32GB eMMC
• Precise power supply with toroidal linear power supply

High-end headphones in focus

• At the heart of the device is the ES9027PRO DAC from ESS, which supports high-resolution formats up to PCM 32-bit/768 kHz and DSD512.
• Two separate DAC circuits for pre-out and headphone output guarantee maximum signal purity.
• The headphone amplifier uses four high-performance ICs connected in parallel and delivers stable power even with high-impedance headphones above 600 O.
• The ultra-fast slew rate of 1300 V/µs minimizes signal distortion and enables extremely precise, dynamic reproduction.
• The ROSE NRA™ (Noise Reduction Analog) filter eliminates interference and ensures linear frequency response across the entire spectrum.
• Reference level measurements underline the claim:
• THD+N: 0.00025% (Pre-Out), 0.00065% (HP-Out)
• Signal-to-noise ratio: up to 129 dB
• Dynamic range: up to 140 dB

Streaming and Connectivity

The RS451 supports all common platforms: Spotify Connect, TIDAL (incl. MQA), Qobuz, Apple Music, Roon Ready, DLNA/UPnP, Bluetooth 5.4 aptX and AirPlay.

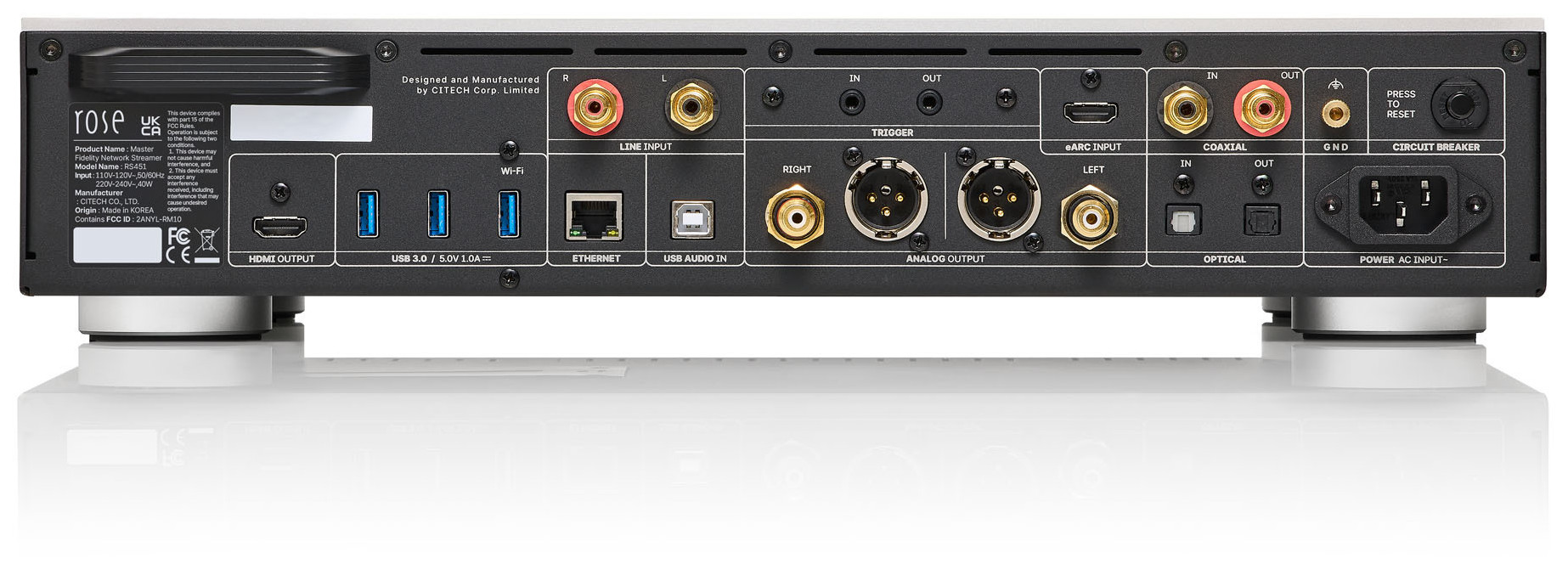

Thanks to HDMI eARC, it can be connected directly to the TV, while USB, optical and coaxial inputs/outputs as well as balanced and unbalanced analog outputs offer maximum flexibility.

Three USB ports and an SSD slot (up to 4 TB) are available for local music libraries, including CD ripping with an external drive.

Advanced DAC architecture

The ES9027PRO is a high-resolution 32-bit DAC optimized for audiophile applications. With a dynamic range of up to +124 dB and a THD+N value of 114 dB, it delivers exceptionally clean sound reproduction. PCM up to 768 kHz and DSD512 are fully supported, while seven digital filters allow for customized sound shaping. The parallel 4-channel stereo configuration maximizes dynamic range and further reduces the noise floor.

Dedicated headphone architecture

A second ES9027PRO DAC is dedicated exclusively to the headphone output. Separate power supplies and grounding for both DACs effectively suppress interference and ensure high-precision signal processing. Four high-performance amplifiers with independent drive deliver stable performance even with high-impedance headphones. The extremely low distortion remains constant across the entire impedance range—for a transparent, detailed soundstage.

Precision at the highest level

With an ultrafast slew rate of 1300 V/µs, the headphone amplifier ensures precise impulse reproduction. Even the finest dynamic differences are clearly reproduced, while consistent linearity ensures pristine music reproduction – regardless of genre or source.

ROSE NRA™ filter

The analog output stage is equipped with the ROSE NRA™ (Noise Reduction Analog) filter , which ensures linear reproduction even in the low-frequency range. This ensures consistent sound characteristics across the entire frequency spectrum—detailed, clear, and free of distracting artifacts.

Next-generation computing power

Powered by the modern RK3588 8-core CPU , the RS451 combines quadruple the processing power with eightfold the graphics performance. With 8 GB of DRAM and 32 GB of eMMC storage, it handles large music files as effortlessly as high-resolution 4K HDR video. The expanded media library offers space for over a million tracks – powerful, fast, and always accessible.

Technical data

Specifications
• Color: Black, Silver

Preamp Outputs
• Output Impedance: 1.5O (XLR), 1.3O (RCA)
• Output Level: 10Vrms (XLR), 5Vrms (RCA)
• THD+N: 0.00025% (XLR, 1 kHz, 10 Vrms), 0.00025% (RCA, 1 kHz, 5 Vrms)
• Signal to Noise Ratio: 129 dB (XLR), 126 dB (RCA)
• Dynamic Range: 130 dB
• Stereo Crosstalk: 140 dB (20 Hz – 20 kHz)
• Frequency Response: 10 Hz – 80 kHz (+/-1 dB)

Headphone Outputs
• Jacks: XLR (Balanced), 4.4 mm (Balanced), 6.35 mm (Unbalanced)
• Output Power:
– 16O: XLR 2700mW, 4.4mm 2600mW, 6.35mm 650mW
– 32O: XLR 2700mW, 4.4mm 2600mW, 6.35mm 650mW
– 300O: XLR 1300mW, 4.4mm 1000mW, 6.35mm 175mW
– 600O: XLR 260mW, 4.4mm 350mW, 6.35mm 90mW
• THD+N: 0.00065% (16O), 0.00060% (32O), 0.00035% (300O), 0.00030% (600O)
• Signal to Noise Ratio: 128 dB (XLR), 128 dB (4.4 mm), 118 dB (6.35 mm)
• Dynamic Range: 140 dB (XLR & 4.4 mm), 120 dB (6.35 mm)
• Frequency Response: 10 Hz – 80 kHz (+/-1 dB)

Technical
• PSU: Toroidal Linear Power Supply
• CPU: Quad-core Cortex-A76 + Quad-core Cortex-A55
• RAM: LPDDR4X 8 GB
• GPU: ARM Mali-G610 MC4 (OpenGL, Vulkan, OpenCL)
• DAC: ES9027 PRO (ESS)
• HP DAC: ES9027 PRO (ESS)
• Oscillator: Highly Precise Femto Clock

Inputs
• Digital:
– USB 2.0 Type-B (PCM 32bit/768kHz, DSD512 22.6 MHz)
– Coaxial (PCM 32bit/384kHz, DSD128 5.6 MHz, DoP)
– Optical (PCM 32bit/192kHz, DSD64 2.8 MHz, DoP)
– HDMI eARC (PCM 24bit/192kHz)
• Analog: Line In
• Service: USB 3.0 Type-C
• Trigger: DC 3.3V – 12V

Outputs
• Digital:
– USB 3.0 Type-A (PCM 32bit/768kHz, DSD512 22.6 MHz)
– Coaxial (PCM 32bit/384kHz, DSD128 5.6 MHz, DoP)
– Optical (PCM 32bit/192kHz, DSD64 2.8 MHz, DoP)
• Analog: Unbalanced, Balanced
• Video: HDMI 2.0 (4K UHD / 60 Hz)
• Trigger: DC 12V

Network Connectivity
• Ethernet: 10/100/1000 BASE-T (1 port)
• WiFi: via USB dongle
• Bluetooth: v5.4, aptX (A2DP1.4, Sink, AVRCP v1.6.2)
• Streaming Protocols: Bluetooth, AirPlay, DLNA/UPnP, Roon Ready, Spotify Connect
• Storage Protocols: SMB, FTP, WebDav

Storage
• External: 3 × USB 3.0 Type-A
• Internal: 1 × 2.5' SSD (SATA 3.0, NTFS, exFAT)
• CD ripping support (via external USB CD drive)

power
• Input Voltage: AC 110-120V, 220-240V, 50/60Hz
• Power Consumption: Standby 0.5W, Idle 5W, Playback 20W
• Protection: 3A Thermal Circuit Breaker

Physical
• Display: 8.8' IPS LCD & Capacitive Touch Screen (MIPI)
• Dimensions: 430 (W) × 337 (D) × 92 (H) mm
• Weight: 7 kg
• Material: Aluminum / Rust-proof Steel / ABS
• Finish: Silver, Black
• IR: 38 kHz IR Receiver
