Luxman DA-07X D/A converter

DA-07X – High-resolution D/A converter with USB

The DA-07X is a modern standalone DAC that adopts the slim housing format of the proven DA-06 and boasts highly advanced digital signal processing.

Based on technologies of the flagship D-10X, the DA-07X offers a central interface for modern HiFi systems with USB and digital inputs.

Precise dual-mono DAC architecture

At its heart is a dual-mono configuration with ROHM BD34301EKV "MUS-IC" DAC chips, which are already used in Luxman's current top-of-the-line models. Each differential output is processed separately, ensuring detailed, dynamic, and spatially precise reproduction.

The USB input supports PCM signals up to 768 kHz / 32-bit and DSD up to 22.5 MHz. S/PDIF supports PCM up to 192 kHz / 24-bit and DSD (DoP) up to 2.8 MHz. Full MQA decoding is integrated. A low-jitter, high-precision clock module ensures a clean digital signal foundation.

Analog output stage

The analog section operates fully symmetrically. Discrete buffer circuits simultaneously handle the low-pass filtering and effortlessly drive subsequent amplifier stages. Separate processing of the channels in dual-mono mode guarantees maximum separation, clarity, and musicality.

Switchable filter modes for PCM/MQA and DSD allow the analog output characteristics to be tailored to personal listening preferences. Additional features such as low-jitter functions, switchable digital outputs, and phase inversion ensure optimal integration into any system.

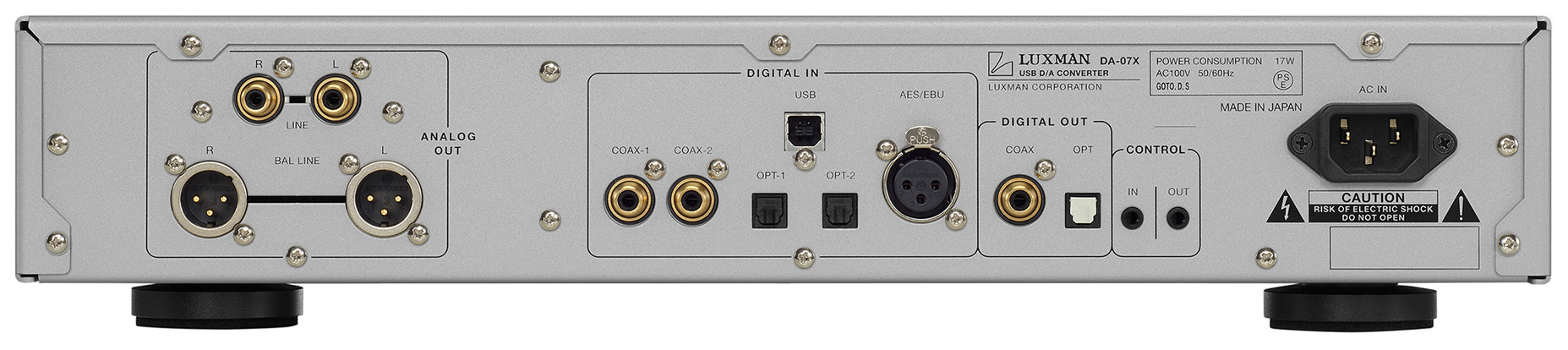

Digital inputs and outputs

• USB input: High-resolution connection to PC, Mac or network transports
• Coaxial: 2×
• Visually: 2×
• AES/EBU XLR: 1× balanced
• Analog outputs: 1× balanced (XLR) / 1× unbalanced (RCA)
• DD converter function: Looping through digital signals to coaxial or optical outputs

The connectors are generously sized to accommodate high-quality cables and support both classic and modern hi-fi systems.

Power supply and building technology

The DA-07X uses a large-dimensioned OI-type mains transformer, separate voltage regulators for individual circuit blocks, and custom-made 10,000 µF filter capacitors. High-purity OFC wiring, straight traces, and selected original components ensure a stable, noise-free power supply.

Housing and ergonomics

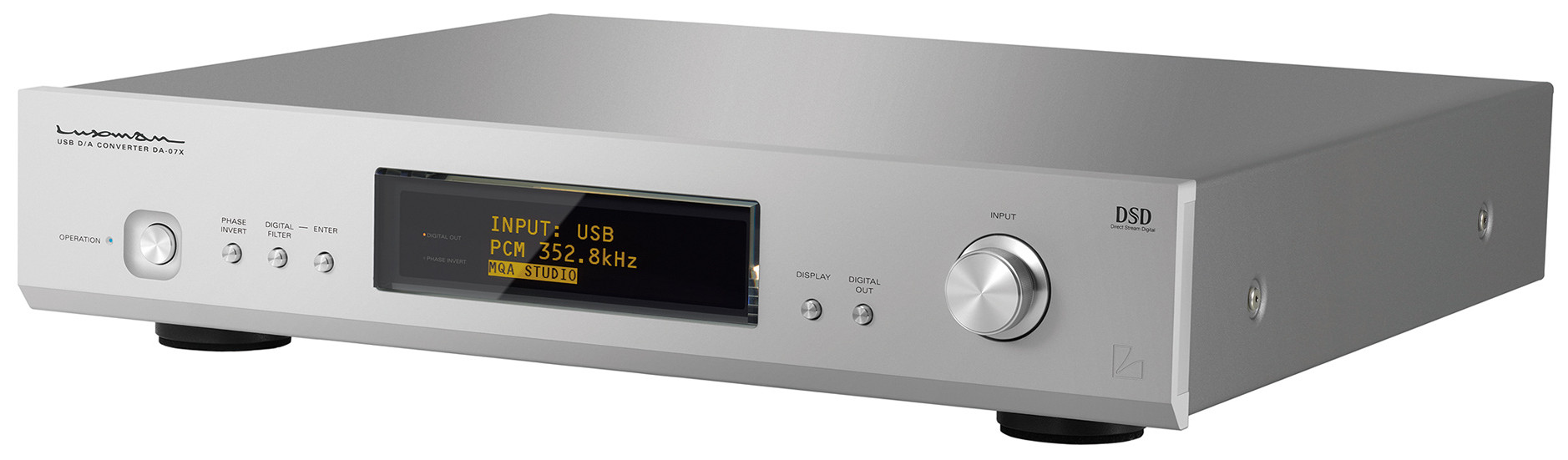

• Front: Sandblasted white with a large, high-resolution OLED display
• Display: 4-step dimmer, auto-off function
• Shielding: Digital and electromagnetic interference is effectively blocked.
• Base plate: Extra thick steel sheet (3.6 mm) for increased mass and stability
• Feet: Cast iron with density gradient for vibration protection
• AC input: Securely mounted for heavy IEC cables

Integration into HiFi systems

The DA-07X is ideal as a central D/A converter for demanding digital playback. It pairs perfectly with network transports like the NT-07X, classic amplifiers, or high-quality headphone amplifiers like the P-750u MKII. Its combination of modern digital signal processing and a meticulously designed analog output stage makes it a key component of future-proof audio systems.

Technical data

• Format: 2-channel D/A converter
• Supported sampling frequencies:

USB (PCM): 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz (16/24/32 bit)

USB (DSD): 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (1 bit)

COAX, OPT, AES/EBU: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (16/20/24 bit)

• Digital inputs: USB x1, COAX x2, OPT x2, balanced (AES/EBU) x1
• Digital outputs: COAX x1, OPT x1
• Analog outputs:

Output voltage: asymmetrical 2.4 V, symmetrical 2.4 V (DSD 2.3 V)

Output impedance: asymmetric 300 Ω, symmetric 600 Ω

• Frequency response: 5 Hz – 20 kHz (+0, -0.4 dB), 5 Hz – 47 kHz (+0, -3.0 dB)
• Total harmonic distortion (THD): 0.001% (asymmetrical/symmetrical)
• Signal-to-noise ratio (S/N): 124 dB (IHF-A)
• DAC IC: ROHM BD34301EKV x2 (dual mono mode)
• Power consumption: 21 W
• Dimensions (W×H×D): 402 × 92 × 40 mm (including 14 mm knob at the front, 8 mm clamp at the back)
• Weight: 12.8 kg
• Accessories: Power cord
