Pro-Ject Pre Box RS2 Digital Preamp with D/A Converter

Pro-Ject Pre Box RS2 Digital

Preamplifier with D/A converter

• Maximum digital compatibility
• Bluetooth and upsampling
• Six digital and two analogue inputs
• Class A transistor/tube output stage

Pro-Jects Bester: Pre Box RS2 Digital – Reference preamp with D/A converter

The preamplifier is the control center of every high-quality stereo system. In the age of digitization, comprehensive digital equipment is essential - and makes perfect sense as an integral part of the preamplifier. The Pro-Ject Pre Box RS2 Digital is the big brother of our award-winning and groundbreaking Pre Box S2 Digital. Based on the principles of this design, we have again expanded the range of functions. The result is a fantastic sounding and very versatile preamp with both digital and analogue inputs. The Pro-Ject Pre Box RS2 Digital is the perfect partner for the crème de la crème of high-end amplifiers and loudspeakers!

The Pre-Box RS2 Digital can be connected to the Pro-Ject CD-Box RS2 T via the HDMI connector via a reliable I 2 S differential bus, with the Pre-Box RS2 Digital also supplying the master clock (16.9344 MHz). This powerful combination makes CDs sound better than ever.

Very practical: the preamp outputs a 12V switching voltage corresponding to the stand-by button. Connected with switching cables, several devices of the RS2 line can be conveniently switched on and off together with a push of a button on the device or with the remote control supplied with the preamplifier. This function is particularly useful in a bi- or tri-amping configuration with RS-Line amplifiers. The preamplifier itself can also be switched on and off remotely using a 12V switching voltage.

The Pro-Ject CD-Box RS2 T and the Pro-Ject Pre Box RS2 Digital have been selected as the best “Digital Source” of the year 2019/2020 at the EISA Awards. It shows that our commitment and passion to redesign what is possible has been recognized by the world's renowned trade press. The two products stand out in their categories because of their impressive diversity.

The brushed aluminum case is available in a silver or black finish.

Note : Bitstream formats such as Dolby Digital ® or DTS ® are not supported.

Technology for good sound

• Remote controllable preamplifier with D/A converter and upsampler.
• Asynchronous USB transmission up to 32Bit/768kHz. DSD playback (up to DSD512) from computer via USB input.
• MQA support (Master Quality Authenticated).
• Bluetooth ® receiver for the wireless connection of Bluetooth ® -enabled sources such as iPhone ® , iPad ® , MP3 players, smartphones, tablets and laptops with a hi-fi system.
• D/A converter: 32-bit D/A converter Saber ESS9038Q2M (two converter chips in differential mode).
• Master clock connection for almost jitter-free signal transmission from the CD Box RS2
• Sampling frequencies/resolution digital inputs: coaxial, balanced: up to 24bit/192kHz, USB input: up to 32bit/768kHz, optical: up to 24bit/96kHz.
• Eight filters to influence the sound individually.
• Roon Tested

Furnishing

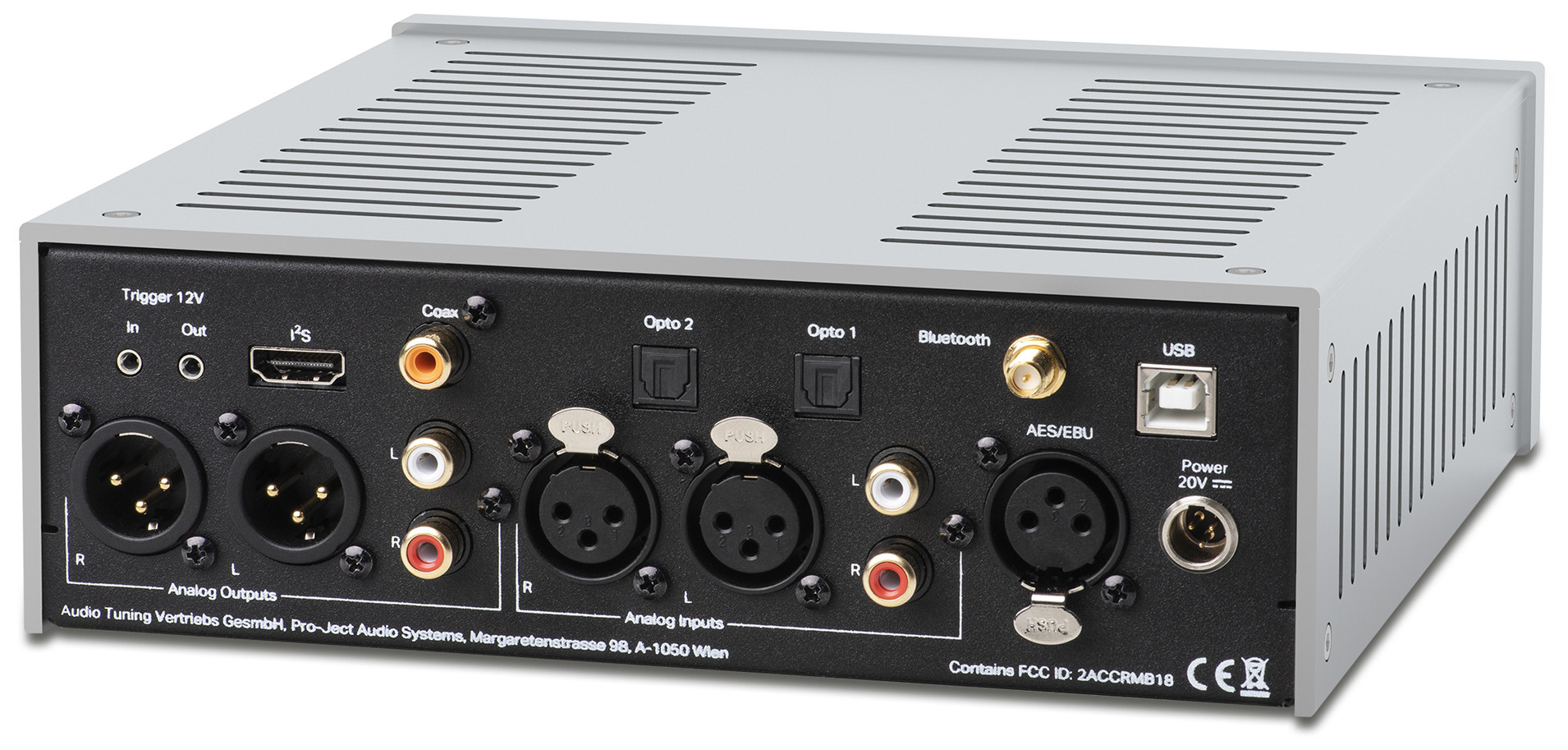

• Two switchable output stages on the front of the device: Class A transistor or tube output stage Headphone connection (jack socket 6.3mm).
• Two analog inputs: 1x RCA/cinch sockets and 3-pin XLR sockets each.
• Six digital inputs: 1x coaxial (S/PDIF), 1x balanced (AES/EBU), 2x optical (TOSlink ® ), 1x I 2 S (HDMI) and 1x USB for connecting a computer to the hi-fi system.
• Unbalanced and balanced high level output.
• Compatibility: Operating systems Windows Vista ® or newer and Mac OS.

option

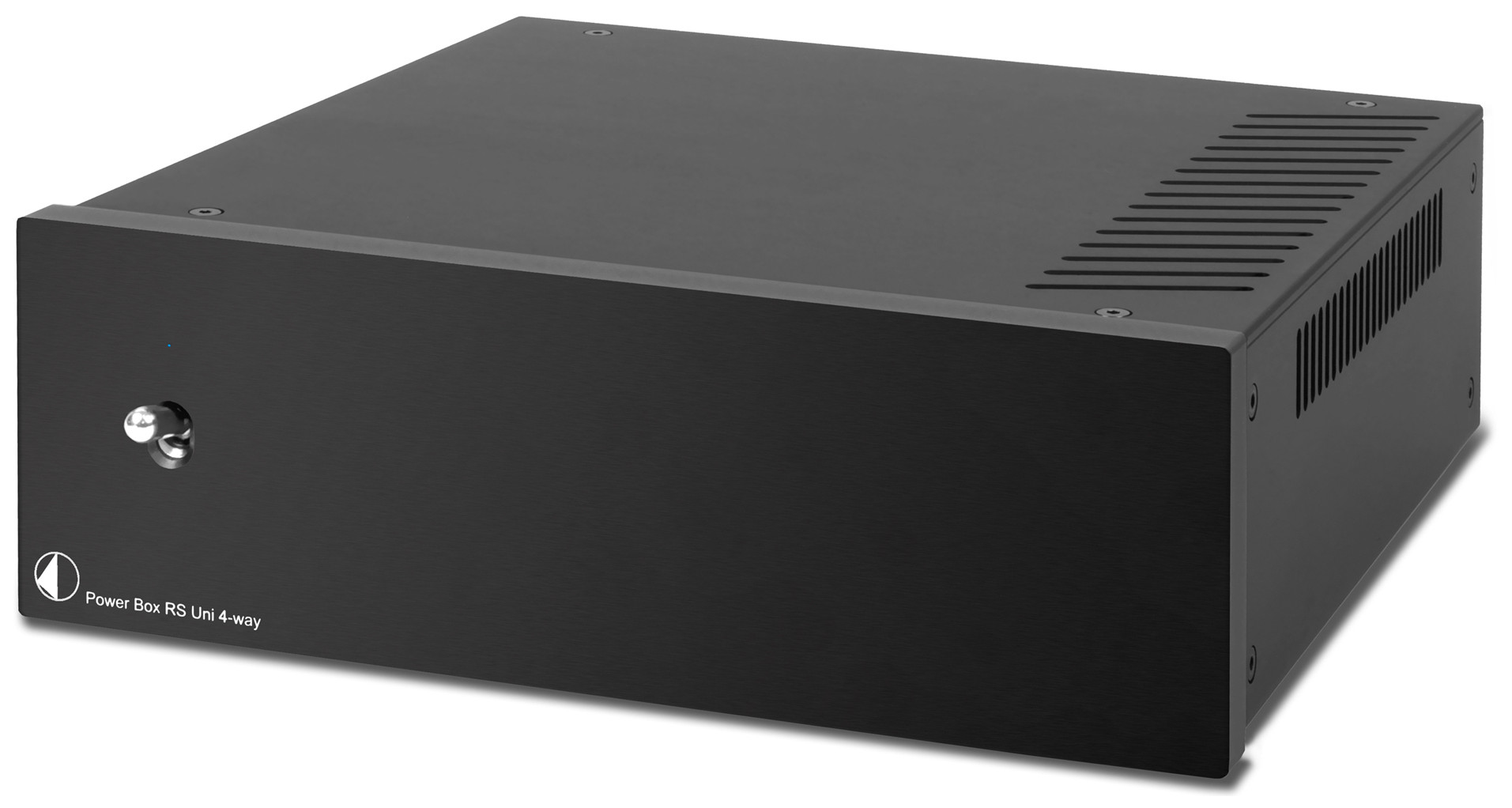

• The optional Power Box RS Uni 1-way linear power supply unit (for one device) or the optional 4-way Power Box RS Uni 4-way linear power supply unit (for up to four devices) available

Dimensions

• Dimensions W x H x D (D with sockets): 206 x 72 x 200 (210) mm
