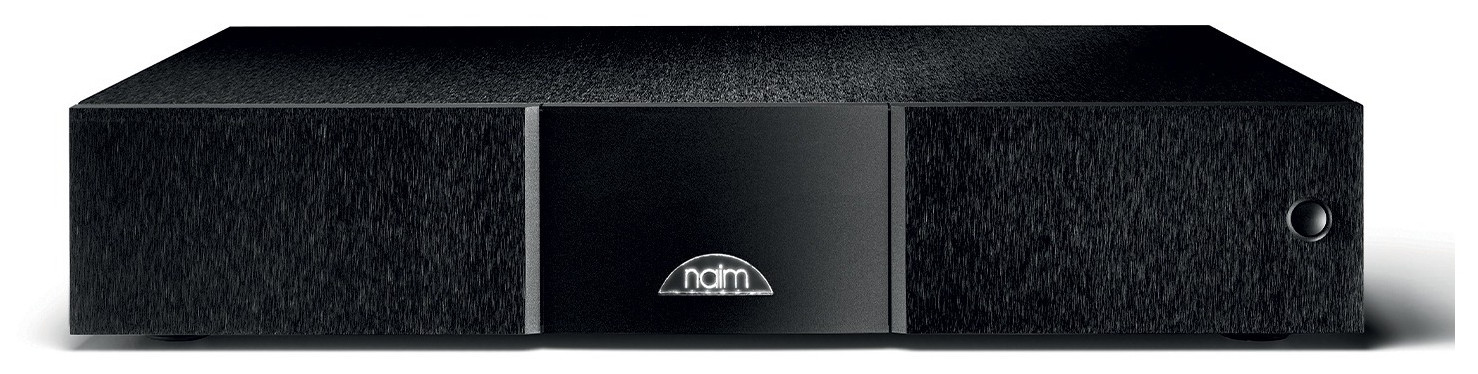

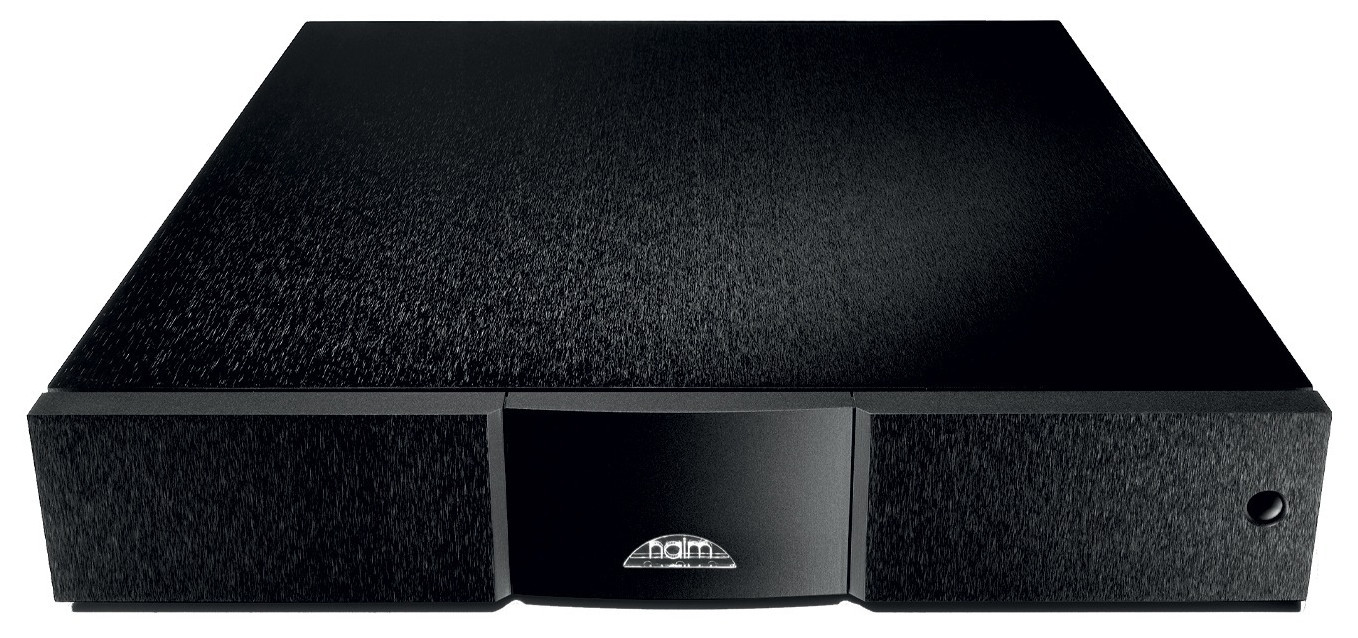

Naim 555 PS NR Power Supply

Not everyone sees hi-fi as Naim does. For them, a smooth, stable, low-noise power supply isn’t just desirable: it’s fundamental to proper hi-fi performance. Nowhere is that belief more clearly exemplified than in Naims reference 555 PS DR, the best power supply in our portfolio.

Originally designed to partner their world-class CD555 CD player, the 555 PS can also be used with our NDS and NDXnetwork players, our HDXhard disk player/ server and our DACdigital to analogue converter as well as the CDX2 CD player. Whatever Naim Audio product it partners, the 555 PS DR will improve every aspect of your favourite music. Voices and instruments become clearer and more natural. Perceived dynamic range increases too, while timing – music’s fundamental sense of rhythm and accuracy – snaps into even greater focus.

Features

• Seven regulated supply voltages, including a separate supply for the CD555 clock circuit
• Low-resonance case with isolating feet
• Massive transformer, 40 percent larger than that fitted to the XPS
• Supplied with Power-Line mains cable as standard
• All-new Discrete Regulator (DR) configuration, delivering Naim Audio’s best-ever standards of stable, low-noise power

Technology & Craft

The 555 PS benefits from both Naims decades of experience and relentless pursuit of superior sound quality. Its massive transformer, some 40 percent larger than that fitted to Naims XPSpower supply, features five separate windings outputting to seven regulated supply voltages, including an output specifically intended for use with the clock circuitry of our CD555.

The 555 PS was updated in 2012 as a result of a two year project to develop a new discrete regulator (DR) for Naim Audio power supplies. The new Naim Audio DR now features, alongside improvements to the wire routing, mechanical decoupling and internal layout. These enhancements, developed through intensive listening tests, significantly raise performance and make music even more communicative and enjoyable.

Product Specification

Finish
Case
Brushed and black anodised

Front
Brushed and black anodised

Outputs
Power Outputs
± 22V, ± 10V, 12V, 2 x 15V

Physical
Shipping Dimensions
240 x 590 x 500 mm

Weight
15.7 kg

Dimensions (HxWxD)
87 x 432 x 314 mm

Power
Mains Supply
100V, 115V, 230V; 50 or 60Hz

Supplied with
Power-Line
