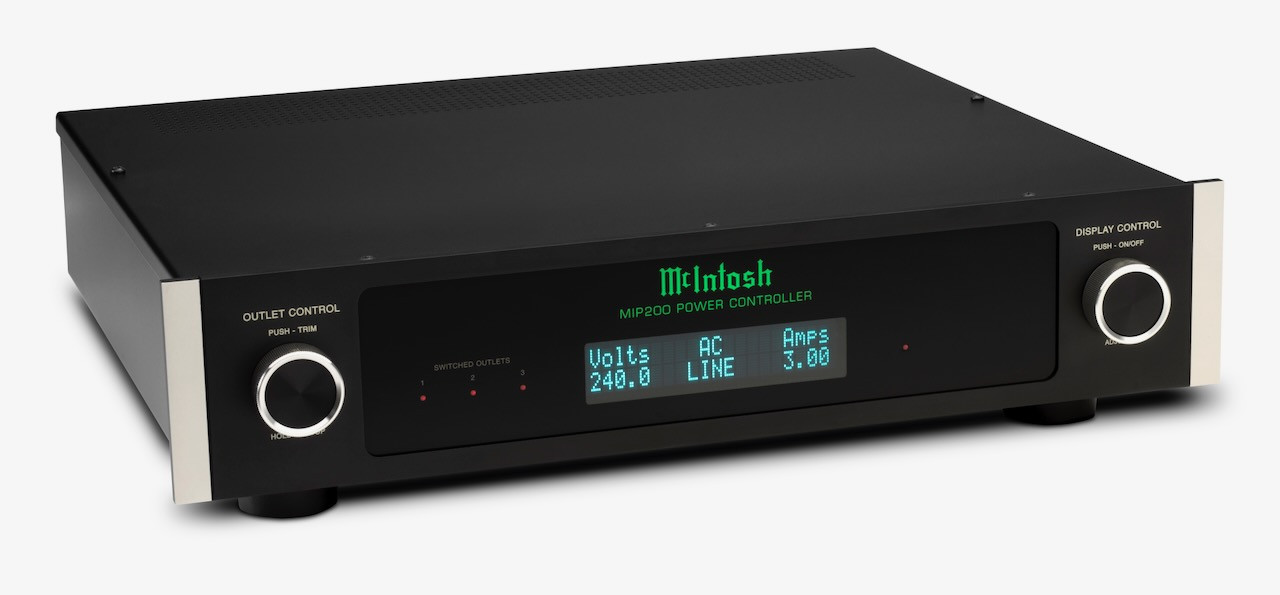

McIntosh MIP200 Power Controller AC

• A sophisticated solution to protect your audio investment from unexpected electrical problems
• Protection against overvoltages in the power line
• Filtering of electromagnetic interference (EMI)
• Programmable over/under voltage protection
• Supports various international power standards
• 2U rack mountable

Protection for your home audio system at the highest level

Protect your premium home audio system with the MIP200 Power Controller - a sophisticated and engineered solution that ensures your valuable audio investment is safe from unexpected electrical problems and malfunctions. A high-quality audio system can be sensitive to voltage fluctuations, and sudden power outages or surges can pose a significant threat. The MIP200 provides you with the optimal protection to ensure your valuable audio components are not damaged by dangerous power spikes or other electrical irregularities, such as those that can occur during lightning strikes, power surges or brownouts. With the MIP200 Power Controller, you no longer have to worry about potentially expensive repairs or replacing damaged equipment.

Advanced technology for maximum safety

What makes the MIP200 Power Controller so special is its advanced technology, which offers much more than conventional power protection systems. At the heart of this system is the Thermally Protected Metal Oxide Varistor (TPMOV), which is specifically designed to bypass the traditional weak points of a normal Metal Oxide Varistor (MOV). The TMPOV responds to voltage disturbances more efficiently, minimizing the risk of failure and damage. This protective layer between phase and neutral ensures that dangerous surges are quickly and safely intercepted before they reach your sensitive equipment. This not only gives you as the user safety, but also the assurance that your system is running under the best possible conditions.

EMI filtering and programmable voltage protection

In addition to surge protection, the MIP200 also offers effective filtering of electromagnetic interference (EMI). In modern homes where numerous electronic devices are operated simultaneously, electromagnetic interference can affect audio quality. By filtering EMI, the MIP200 ensures that such interference does not penetrate your audio system and preserves the sound fidelity of your system. Another key advantage of the MIP200 is the programmable over- and under-voltage protection. This mechanism is particularly valuable because it automatically cuts off the power supply to the sockets as soon as a dangerous voltage fluctuation is detected. Only when the voltage returns to a safe level does the system switch the affected devices back on. This means that your audio system is always protected and is not exposed to unnecessary risks.

International compatibility and flexible control

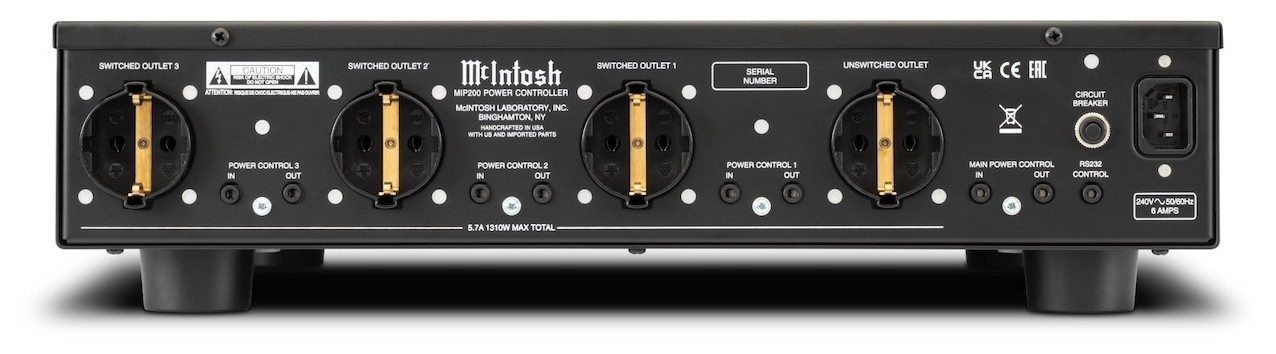

Another aspect that sets the MIP200 apart from many competing products is its international compatibility. The device is available in two versions: one with four Type B1 (NEMA 5-15R) outlets, each with two sockets, and a second version with four Type F1 (CEE 7/3 or “Schuko”) outlets, each with one socket. This versatility means that the MIP200 can be easily used in different countries and regions. In addition, the device has an always-on, non-switchable outlet that provides continuous power - ideal for critical components that require uninterrupted power. The remaining outlets can be controlled via the front panel or remotely through Power Control or RS232 ports, and can even be configured as additional always-on outlets. This flexibility in control makes the MIP200 an ideal solution for a wide range of deployment scenarios.

Programmable delays for a safe start

In addition, the MIP200 has programmable delay functions built into each socket, which minimize the inrush current, ensuring that all connected devices can be put into operation without risk. These delays reduce the sudden surge in current that could occur when all devices are switched on at the same time, significantly reducing the risk of a fuse blowing.

Space-saving, elegant design for individual installations

The MIP200's 2U rack-mountable design allows for effortless installation in custom home theater or multi-room audio systems. The compact size saves valuable space and contributes to a neat and organized system layout, which not only greatly improves the functionality but also the aesthetics of the entire setup. The MIP200 fits seamlessly into the existing McIntosh portfolio and harmonizes perfectly with the MI502, MI254, MI347, MI128 and MI1250 Series amplifiers and the MHT300 and MX200 A/V processors, creating a coherent, elegant overall system that impresses not only with its performance but also with its visual sophistication.

Real-time monitoring for maximum control

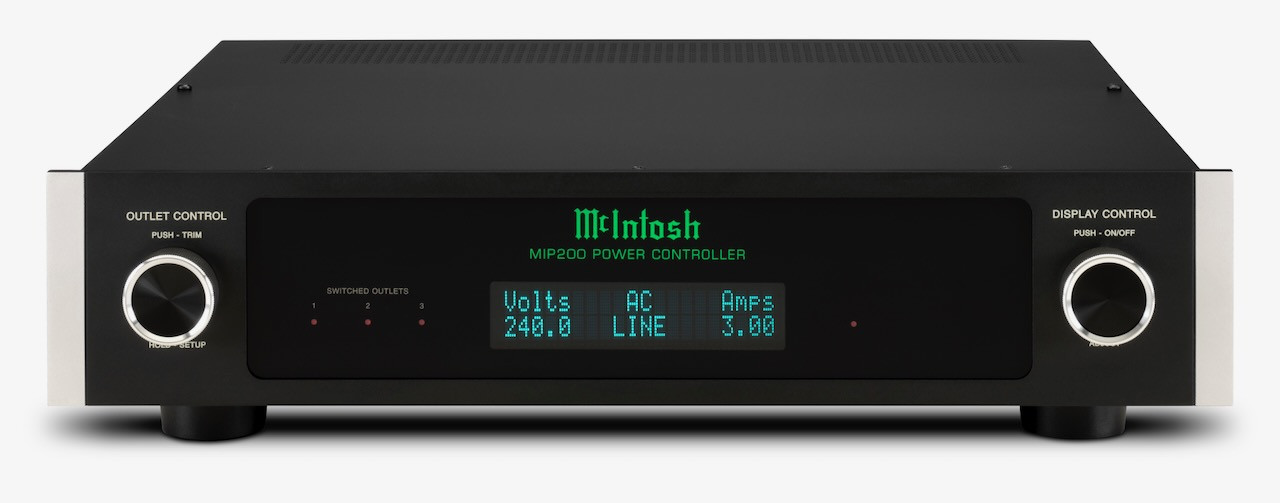

Another highlight of the MIP200 is the AC line monitoring, which is located on the front panel. It shows the input voltage, the current power consumption and the apparent total power in real time. This real-time information not only offers precise control over your system, but also a feeling of security, as you are always informed about the status of the power supply. The MIP200 is embedded in the iconic McIntosh design: the black glass front panel, the aluminum frame, the illuminated logo and the aluminum controls exude luxury and elegance and make the device a real eye-catcher in any high-quality audio system.

The perfect protection for demanding audio components

Overall, the MIP200 Power Controller is the perfect solution for any audio enthusiast who wants to protect their investment in high-quality audio components without sacrificing style and elegance. Thanks to its advanced protection technology, flexible control options and timeless design, the MIP200 offers both functionality and aesthetic sophistication.

ELECTRONIC SPECIFICATIONS

Input value

• With Type B (NEMA 5-15R) sockets:
  100 - 120V 50/60Hz, 12A (max.)
• With type F (CEE 7/3 or “Schuko”) sockets:
  220 - 240V 50/60Hz, 6A (max.)

Initial value

• With Type B (NEMA 5-15R) sockets:
  11.6A (1160W)
• With type F (CEE 7/3 or “Schuko”) sockets:
  5.8A (1275W)

AC surge protection

• 50 kA - 8/20µs line to neutral

Type of AC surge protection

• Thermally Protected Metal Oxide Varistor (TPMOV) for line-to-neutral protection

Number of sockets

• With Type B (NEMA 5-15R) sockets: 8
• With type F (CEE 7/3 or “Schuko”) sockets: 4


Number of permanently active sockets

• With Type B (NEMA 5-15R) sockets: 2
• With type F (CEE 7/3 or “Schuko”) sockets: 1


Number of programmable sockets

• With Type B (NEMA 5-15R) sockets: 6
• With type F (CEE 7/3 or “Schuko”) sockets: 3


Dimensions of the device (W x H x D)

• With Type B (NEMA 5-15R) sockets:
  44.45cm x 11.1cm x 39.5cm
• With type F (CEE 7/3 or “Schuko”) sockets:
  44.45cm x 11.1cm x 39.9cm


Device weight

• 7.7kg


Shipping weight

• 15kg
