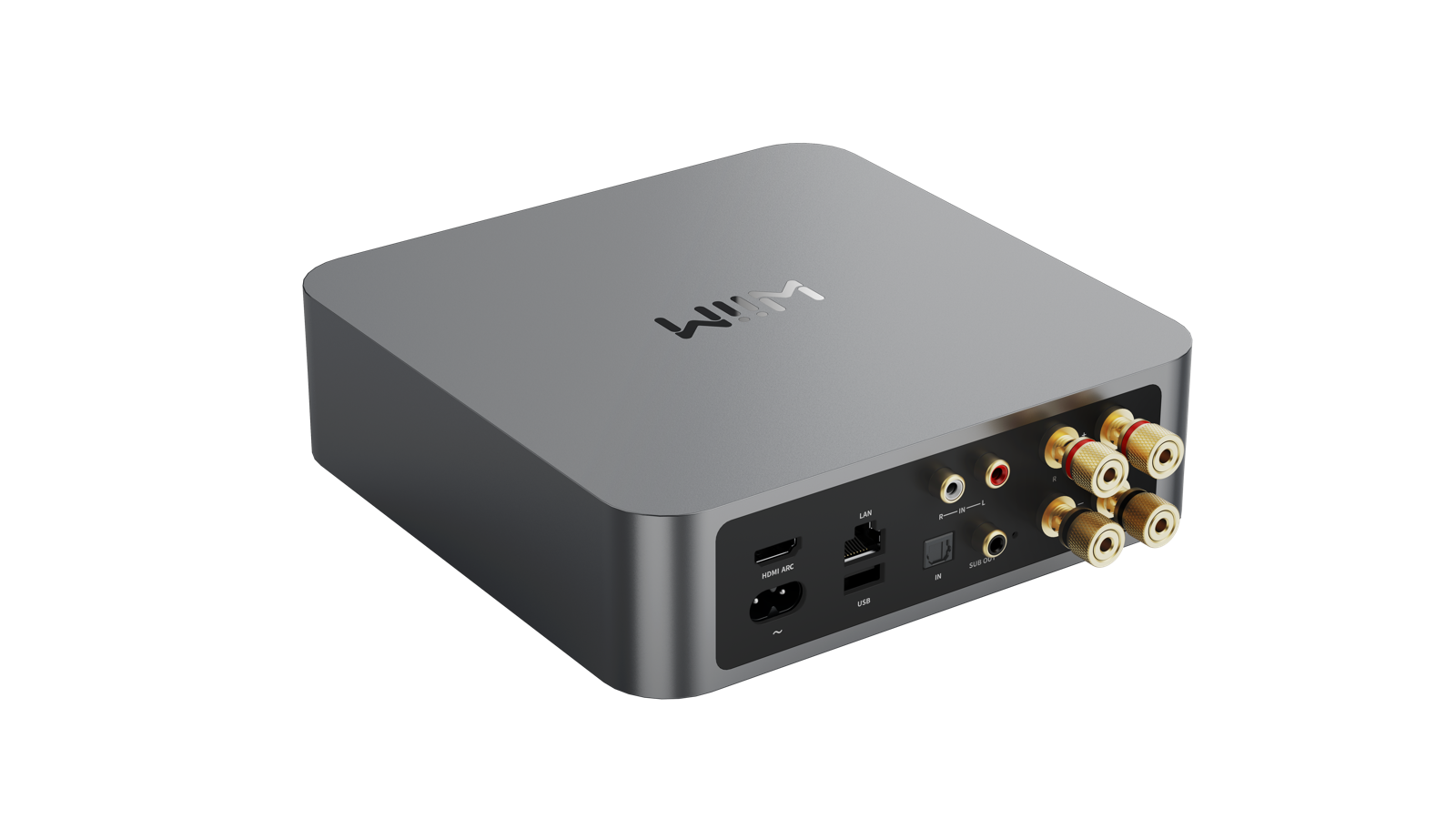

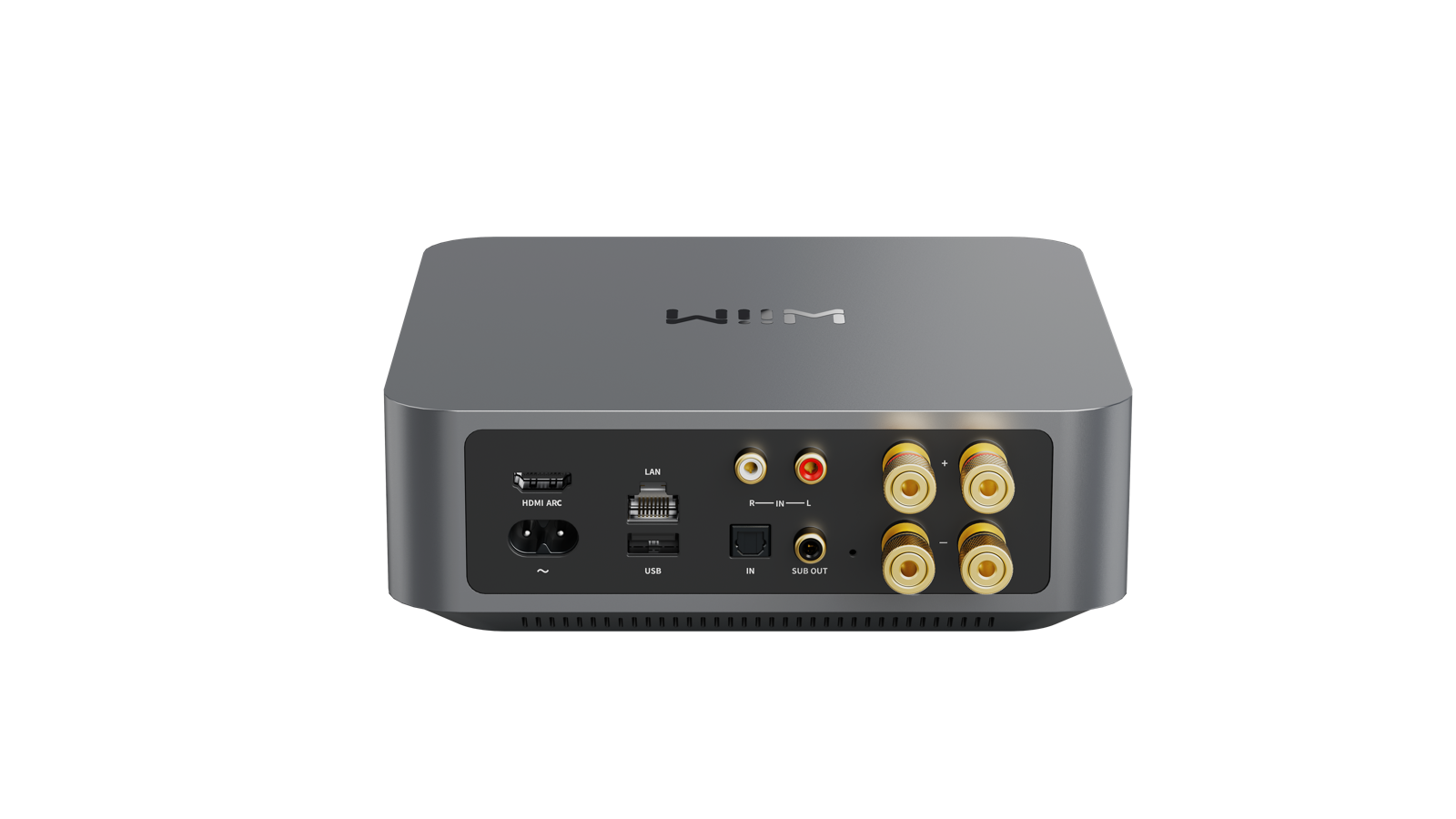

WiiM AMP - Multiroom-Streaming Amplifier

The WiiM Amp is the perfect streaming amplifier for passionate music lovers because it offers the highest level of features, an excellent sound experience with high-resolution quality and enables multi-room functions and easy connection to streaming services at an unbeatable price. You can connect the WiiM Amp to your classic passive speakers and, for example, integrate your record player or CD player into a multiroom system. You can easily stream music directly from a music app using your existing components and even control it using voice commands.

The Class D amplifier with 60 watts per channel (8 ohms) or 120 watts per channel (4 ohms) delivers high-fidelity sound even to demanding speakers. It offers analogue (RCA), digital optical connection, HDMI ARC and seamless playback of high-resolution music at up to 24bit/192kHz to bring your TV, turntable, CD player or other audio source into the digital world . The USB port is used to connect external storage media: access your personal media library and use it as a media server for other WiiM devices. Two pairs of banana plug sockets for the speakers and an RCA/RCA subwoofer output are available as audio output.

Various EQ and parametric EQ options are available to tailor the sound to individual preferences, speakers and different listening environments. Includes 24 preset EQ settings, a 10-band graphic EQ that allows optimal adjustment of any audio source (line-in, BT or network), and a 4-band parametric EQ that allows even finer adjustments. Thanks to the LAN/Ethernet connection with 10M/100 Mbps, Wi-Fi 5 (802.11 b/g/n/ac 2.4 and 5 GHz dual band) and Bluetooth 5.0 with BLE, you can stream everything - and in the best quality . And you can easily connect your TV with HDMI ARC.

The WiiM Amp is aimed at anyone looking to optimize their beloved, decades-old, high-quality audio systems, or those who want to effortlessly use their classic passive speakers with their favorite streaming platforms. By seamlessly connecting your audio devices to the WiiM Amp, you can easily control your streaming preferences using the WiiM Home app. The WiiM Voice Remote Controller offers another alternative for wireless and convenient control of the WiiM Amp.

With the WiiM Amp you can stream your favorite music, TV audio, radio, podcasts and more from iOS, MacBook and Apple TV. It supports Apple AirPlay 2, Google Chromecast, Alexa Music Cast, Deezer, Qobuz, Pandora, DLNA, Spotify Connect and TIDAL HiFi and HiFi+, allowing you to stream YouTube Music, TV audio, radio stations, podcasts and local content directly from your favorite Chromecast -enabled app. Because it works with Siri, Alexa and Google, you can choose your favorite voice assistants to control music selection, volume and playback.

The WiiM Amp will automatically appear in the WiiM Home app. Thanks to the simple in-app instructions and compact size, the device can be set up in under two minutes. Of course, the WiiM Amp also works with the WiiM Voice Remote. The WiiM Amp is constantly learning. With frequent software updates, Roon Ready certification coming soon, and automatic OTA connection, it will only get better with time.

TECHNICAL DATA

• Dimensions and Weight: 7.48" x 7.48" x 2.48' (190mm x 190mm x 63mm), 1.84kg(4.1 lbs)
• Colors: Space Gray
• Surface: aluminum
• Controls: volume control, play/pause and more
• LED: status, volume
• Power: 60 watts/channel at 8 ohms, 120 watts/channel at 4 ohms
• Speaker output: stereo or dual mono sound
• Home theater audio formats: Stereo PCM (Dolby Digital and DTS are not supported)
• Audio input: HDMI Arc, Optical, Line
• Audio output: Passive speaker connections, subwoofer output
• Audio output quality: SNR - 98 dB, THD+N - 0.002% (-92 dB)
• Audio format: MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
• EQ: Preset, 10-band graphic EQ, 4-band parametric EQ
• Subwoofer output: Automatic cable detection, user adjustable 30-200 Hz crossover
• Power supply: 100-240V 50/60Hz AC
• Network: IEEE 802.11 b/g/n/ac dual band, 10/100 Mbps LAN
• Bluetooth: BT 5.1, A2DP Sink and Source, AVRCP, BLE HID
• Supported streaming protocols: AirPlay 2, Chromecast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA
