Lyngdorf Audio CS-2 Built-in loudspeaker mat black
€699.00
per Piece incl. VAT / incl. Shipping
Available in 7 days, delivery time 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
Lyngdorf CS-2
built-in speakers

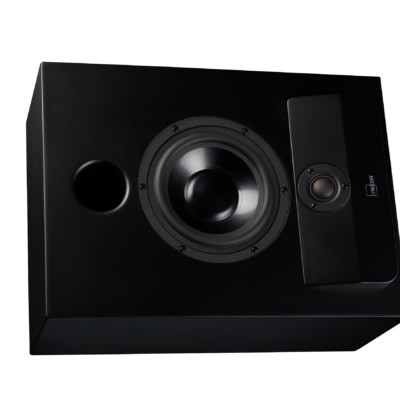

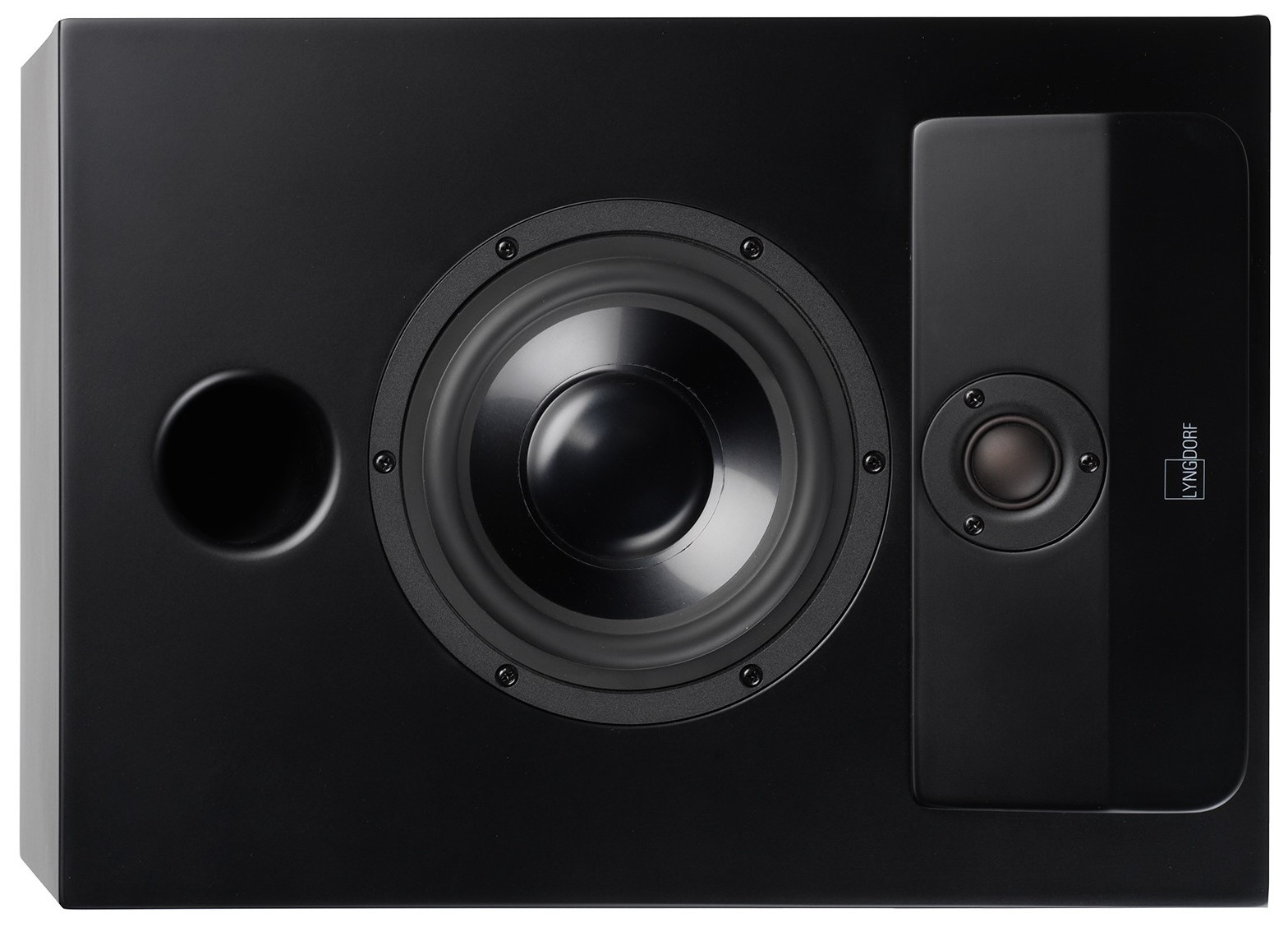

With a front ported bass reflex port, an angled and raised tweeter and no grille, the CS-2 speaker has been specifically designed to provide the best possible sound quality in sideboards and other audio furniture, such as under a television.

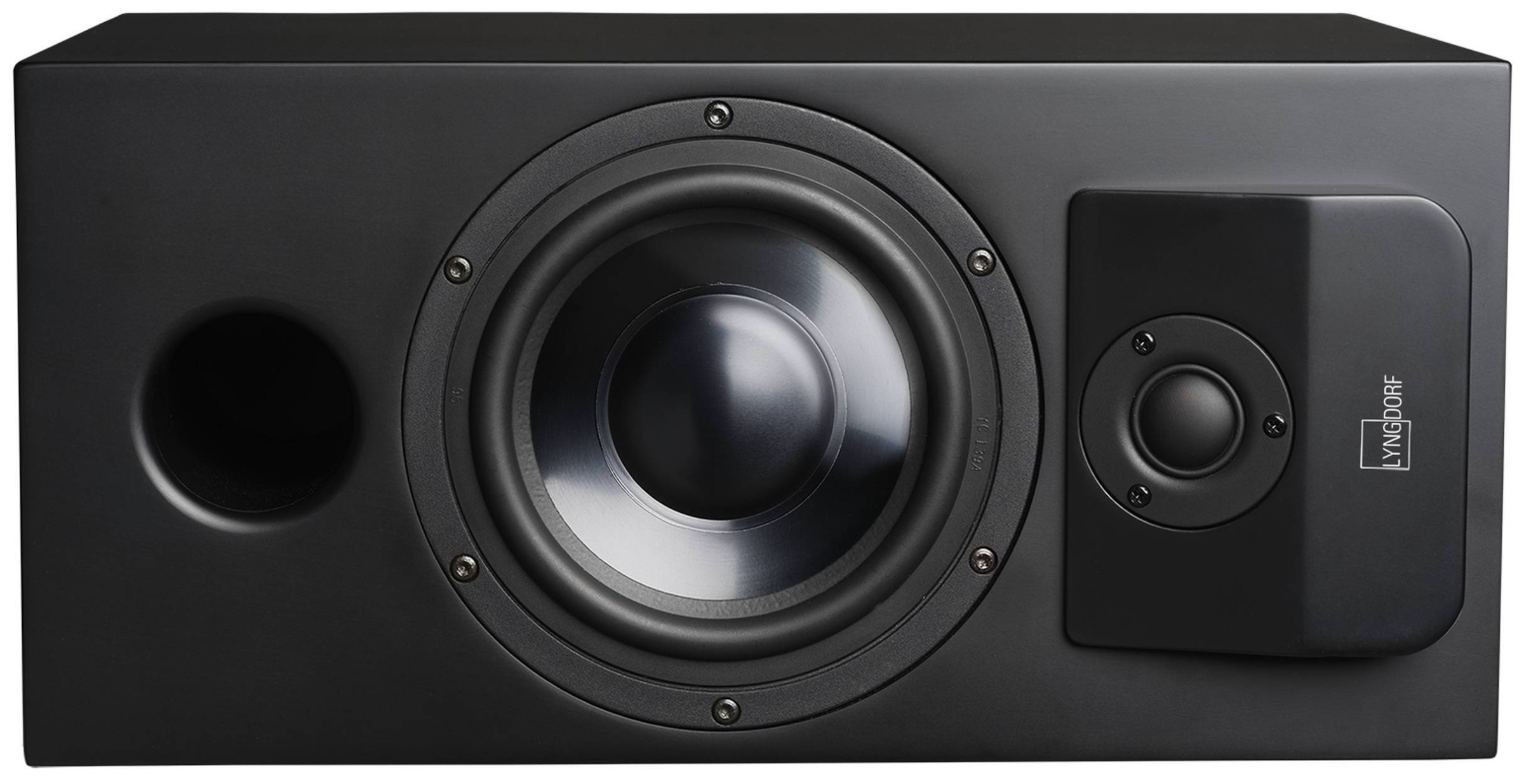

The new CS-2 is an addition to the existing CS-1 model and was specially developed for flat furniture.
Best sound quality also with sideboards
For the best possible sound quality, the Lyngdorf CS-2 is based on the same mid/woofer and tweeter as the successful CS-1, with a construction and sound tuning specifically for placement in furniture. Thanks to the bass reflex on the front and a frequency range that is linear up to 42 Hz, the CS-2 does not require the support of a subwoofer. The powerful 6.5 inch / 16.5 cm woofer/midrange driver is equipped with a strong magnet and together with the bass reflex tuning the bass reproduction is surprisingly powerful for such a small speaker.
Elevated and sloped tweeter for stereo angling

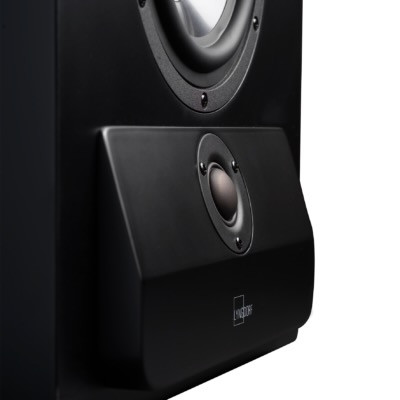

The fabric dome tweeter is both raised and slightly angled. This special placement of the tweeter reduces sound diffraction at the edges within a piece of furniture and also improves the sound radiation towards the listening area, corresponding to the typical angling of conventional free-standing stereo loudspeakers.
Flat housing for easier furniture integration
The Lyngdorf CS-2 is based on the CS-1 but with different case dimensions to fit into flatter furniture. While both speakers offer the same sound quality, the new CS-2 has a shallower cabinet, measuring just 20cm compared to the CS-1's 30cm.

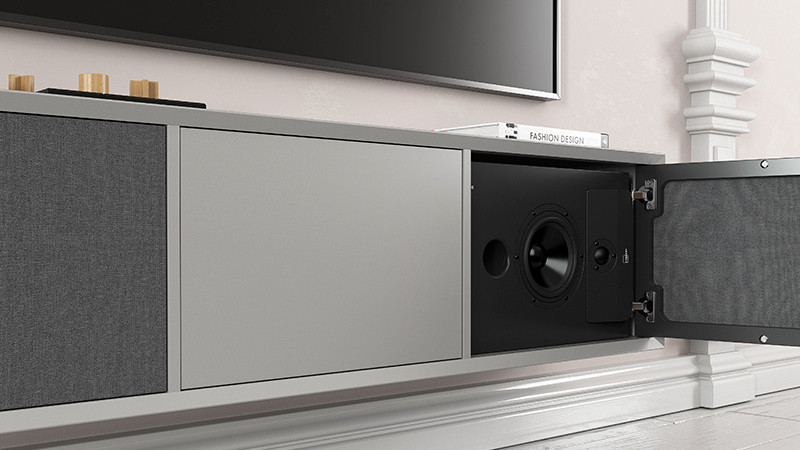

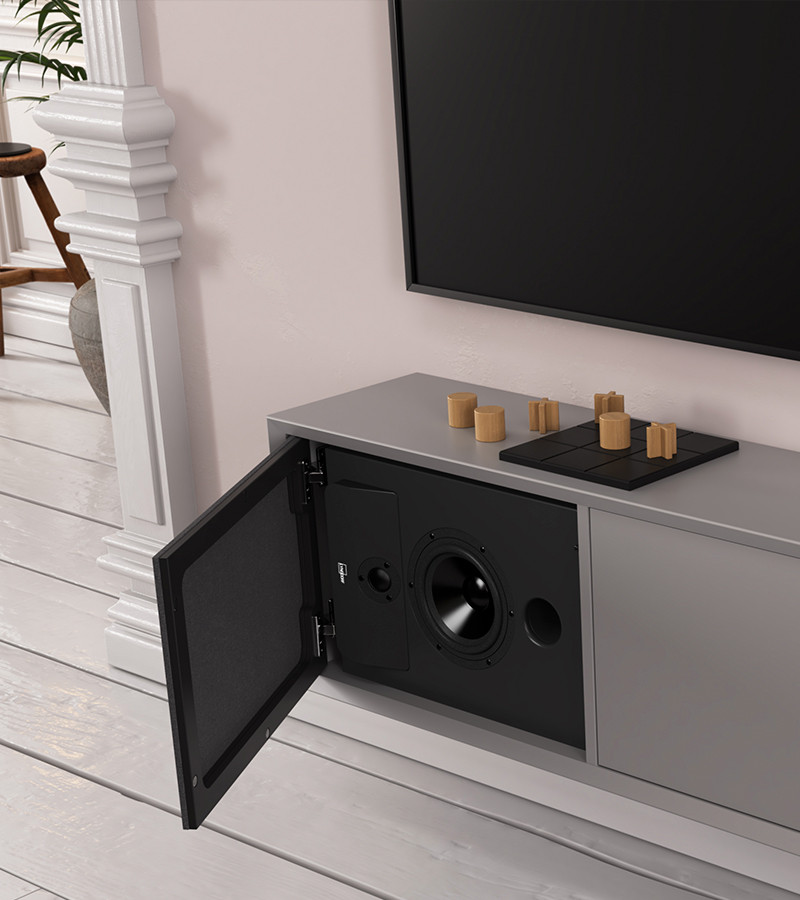

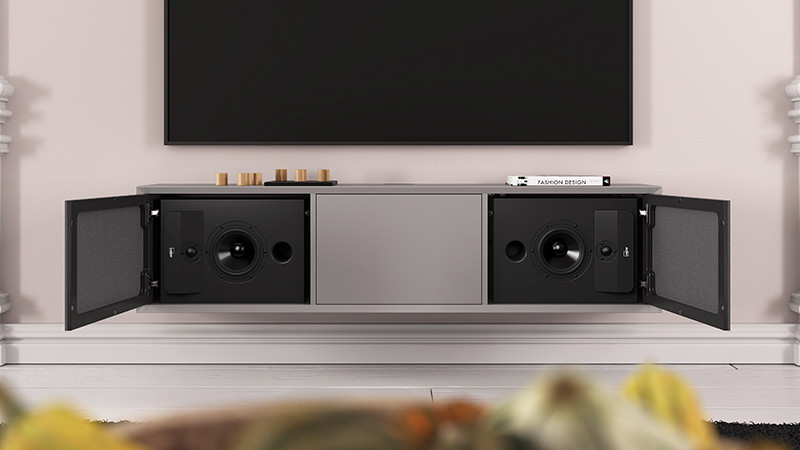

The cabinet is a low-resonance MDF construction with a durable and easy-to-clean matte black finish. Self-adhesive rubber pads are included to avoid scratching the furniture surface and to absorb resonance between the furniture and the speaker. The CS-2 is supplied without its own front skin to allow for the clearest music reproduction when placed behind the fabric doors of TV sideboards and other audio furniture such as Clic.
TECHNICAL SPECIFICATIONS
Description: 2-way speaker with angled tweeter and front bass reflex ports
Load capacity: 100W
Tweeter: 1' Soft Textile Dome
PTC protection
Midrange/Woofer: Size: 6.5'
35mm voice coil
Cone Material: Aluminum
die-cast basket
Vented magnet
Frequency response: 42 - 22000 Hz (-3dB)
Housing: bass reflex, with front opening
Full MDF construction
Volume: 15 liters
Nominal impedance: 4 ohms
Sensitivity: 88dB (2.83V/1m)
Crossover frequency: 2.2 kHz

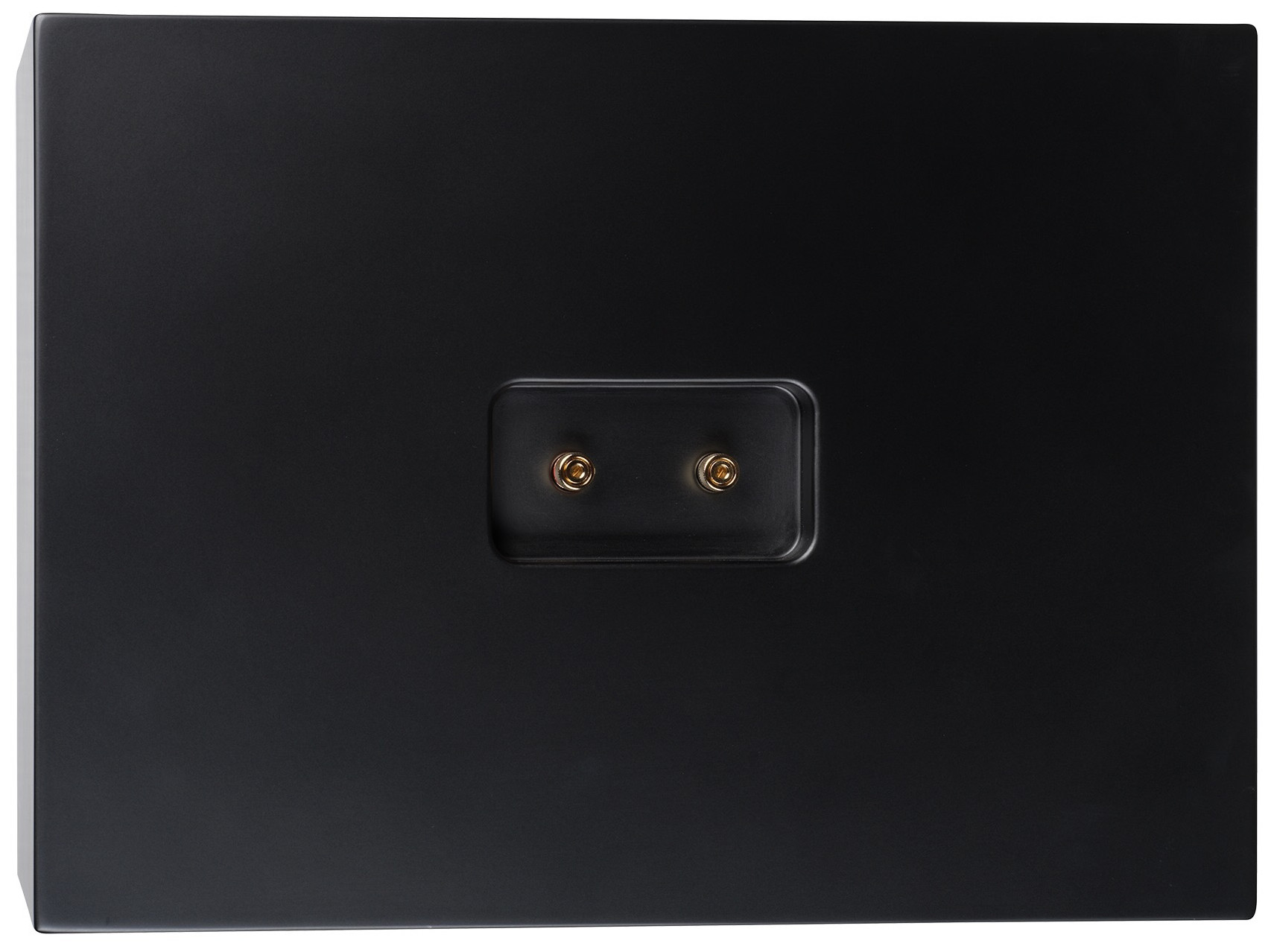

Connections: binding posts
Placement: Horizontal, in furniture and closets
Dimensions (W x H x D):
42.0 x 30.7 x 20 cm
16.5 x 12.1 x 7.9 inches
Weight: 8.1kg / 17.4lb
Version: matt black
| Color: | black Matt |
|---|---|
| Condition: | new item |
| Device depth mm: | 104 |
| Device height mm: | 646 |
| Device width mm: | 388 |
| Efficiency: | 92 |
| Frequency response: | 80-22,000Hz |
| Impedance in ohms: | 4th |
| Number of paths: | 2 |
| Product type: | built-in speakers |
| Total power W: | 200 |
Manufacturer
SL Audio A/S
Rævevej 3
DK-7800 Skive
Denmark
contact@lyngdorf.com
EU Representative
Drei H Vertriebs GmbH
Stormsweg 8
22085 Hamburg
Germany
info@3-h.de
Safety Information
Product-specific safety instructions can be found in the operating manual.
