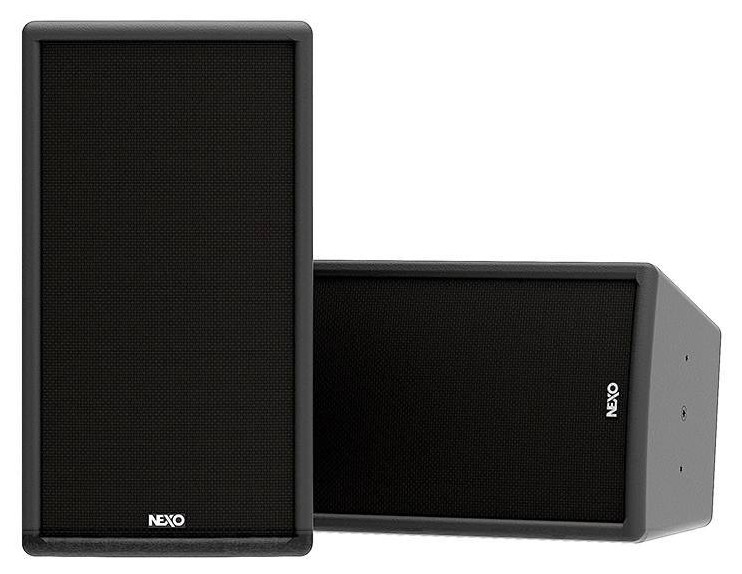

Nexo EPS6 6 Inch Speaker

Nexo speaker EPS6

speaker

note note:

Please remember that a controller is required for optimal use of the speakers and subwoofers. Without a controller, the Nexo guarantee is also void. Please ask when purchasing.

EPS SERIES

Building on NEXO's industry-standard PS platform, the ePS Series offers a new no-frills IP54 rated speaker range that brings legendary NEXO engineering and performance to a wider range of projects.

EPS6

Measuring 365 mm (H) x 198 mm (W) x 181 mm (D) and weighing 7.1 kg, the ePS6 combines a long-excursion 6-inch woofer with a 1.4-inch tweeter in one trapezoidal cabinet in a closed acoustic design made of 15 mm Baltic birch plywood. With a peak SPL of 125 dB and a frequency range of 90 Hz to 20 kHz, the ePS6 model offers a rotatable asymmetrical horn, practical mounting brackets for rigging on the top, bottom and left and right, and two pairs of input/output connectors as standard screw terminals with an IP protection cover.

KEY FEATURES

• High-performance point source loudspeakers (125 dB peak level) for fixed installations
• Lightweight construction (7.1 kg)
• Robust housing made of 15 mm birch plywood
• Asymmetrical Dispersion Constant Directivity horn from NEXO ("PS" horn), rotatable
• IP55 protection class
• Comprehensive range of accessories for deployment in a wide range of possible fixed installation applications
• Black surface or individual RAL coloring possible

SPECIFICATIONS

Frequency Response @ -6dB 90Hz - 20kHz
Sensitivity 1W @ 1m 98dB SPL nominal
Peak sound pressure @ 1 m 125 dB
Vertical coverage +25°/-30°
Horizontal radiation 50° to 100° asymmetrical
Crossover frequency 90 Hz, 120 Hz
Nominal impedance 8 O
Recommended power 310 to 490 watts / 8 ohms

FEATURES

Number of ways 2 ways passive
LF Component 6' 8 Ohms long excursion driver
HF Component 1.4' diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion ("PS") horn
Connectors 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles)
Compatible cables section Cables from 0.75 mm² to 3.3 mm² (AWG 18 to 12) copper section
Compatible cables outside diameter Cable with maximum outside diameter of 9 mm
Rigging points 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot)
Material 15mm thick birch plywood body and galvanized grille
Finish Black structural paint (RAL9005 or Custom RAL upon request)
Front Finish UV & Fire resistant acoustic fabric
Height x Width x Depth 365mm x 198mm x 181mm (14.4' x 7.8' x 7.1')
Weight: Net 7.1 kg (15.7 lbs)
Operating temperature range 0°C - 40°C (32°F - 104°F)
Storage temperature range -20°C - 60°C (-4°F - 140°F)
IP Rating IP55
system operations
Recommended powering solution NXAMP4x1mk2 Powered TDcontroller: Up to 4 x ePS6 per channel
Optional powering solutions DTDcontroller + DTDAMP4x0.7 : Up to 2 x ePS6 per channel
DTDcontroller + DTDAMP4x1.3 : Up to 2 x ePS6 per channel
NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS6 per channel
NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS6 per channel
