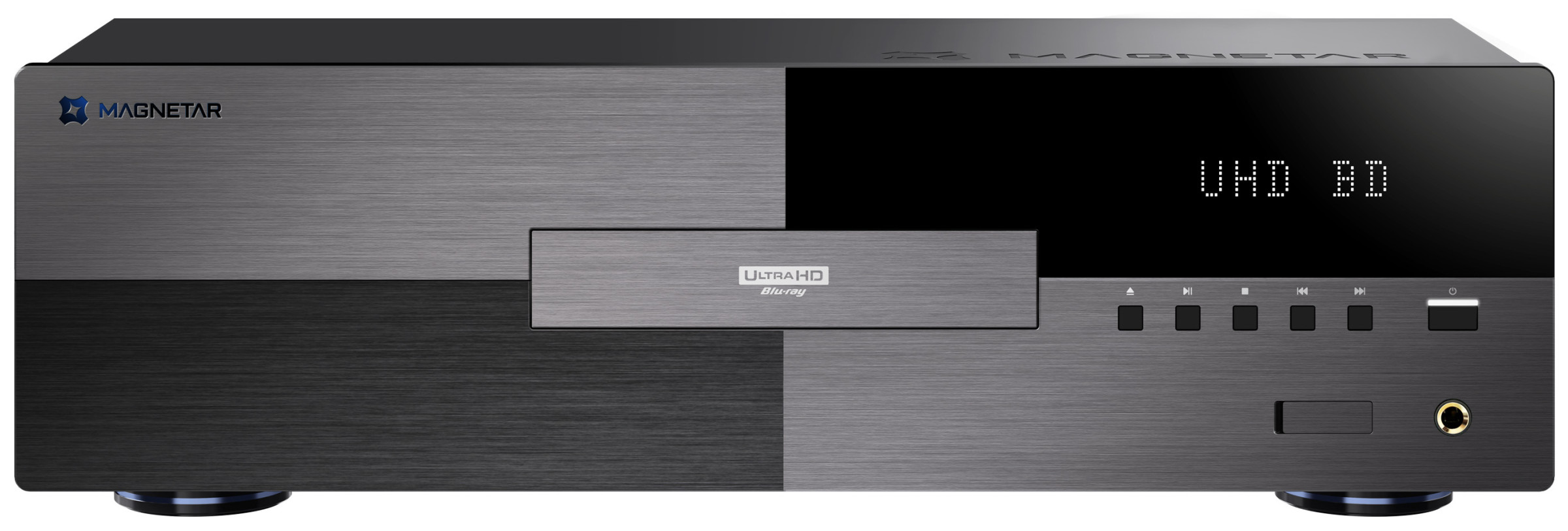

Magnetar-Audio UDP 900 MK II 4K UHD Universal Blu-Ray Player
€3,790.00
per Piece incl. VAT / incl. Shipping
Available in 7 days, delivery time 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
UDP900 MKII – 4K UHD Blu-ray Player
The UDP900 MKII stands for uncompromising sound and picture quality. With a completely redesigned audio architecture, state-of-the-art signal processing, and high-quality components, this high-end device sets new standards in audiovisual playback.
Code & Region Free
Additionally, the UDP 900 is also available as a code and region-free version, enabling playback of discs from all over the world. This option can be purchased for a small additional fee.
Highlights
- Dual ESS9038PRO DACs for the highest audio quality
- TMDS retiming on HDMI audio port
- XMOS USB Audio with PCM768/DSD512 support
- Improved USB 3.0 interface with isolated power supply
- High-quality copper cabling and brand-name connectors (Amphenol/JST)
- Control4 & Crestron Support
- Wake-on-LAN function
- Roon Ready (in certification)
Outstanding audio quality
At the heart of the UDP900 MKII are two ESS9038PRO digital-to-analog converters (DACs), enabling both stereo and multi-channel outputs with exceptional precision. The integrated XMOS USB audio input supports formats up to PCM768 and DSD512, ensuring that even the finest sonic nuances are reproduced with rich detail.
The TMDS retiming function on the HDMI audio port also ensures precise signal transmission and significantly improves sound purity.
Optimized USB 3.0 technology
The redesigned USB 3.0 system, featuring a new hub chip and isolated power supply, offers improved compatibility and stability when using USB flash drives and external hard drives. Enhanced data transfer speeds not only enable faster access but also deliver an even better audio and video experience.
High-quality components for maximum stability
The entire device uses copper core cables as well as JST and Amphenol connectors. These ensure reliable signal transmission and long-lasting operational reliability.
Smart Integration
The UDP900 MKII offers full support for Control4 and Crestron systems and is also Wake-on-LAN capable, making it perfectly integrated into modern smart home environments. Roon Ready certification is in preparation to enable seamless high-resolution streaming.
Technical specifications – UDP900 MKII
Disc formats
- UHD Blu-ray
- Blu-ray
- Blu-ray 3D
- DVD-Video
- DVD-Audio
- AVCHD
- SACD
- CD
- Kodak Picture CD
- CD-R / CD-RW
- DVD±R / DVD±RW
- DVD±R DL
- BD-R / BD-RE
Analog audio outputs
- 7.1-channel RCA
- 2-channel RCA
- 2-channel balanced (XLR)
Digital audio outputs
- Optical (Toslink)
- Coaxial (S/PDIF)
- HDMI
HDMI audio
- Up to 7.1 channel / 192 kHz PCM
- Up to 5.1 channel DSD
- Bitstream output
HDMI video
- UHD: 23,976 / 25 / 30 / 50 / 59.94 / 60Hz
- 1080i/p, 720p, 576i/p, 480i/p
- Source Direct mode
Analog audio characteristics (2-channel)
- Frequency range: 20 Hz – 50 kHz (±0.01 dB)
- Signal-to-noise ratio: 120 dB (RCA); 130 dB (XLR)
- THD+Noise (THD+N): =0.0005%
- Output level: RCA =3 Vrms; XLR =6 Vrms
- Dynamic range: ≥120 dB (RCA); ≥130 dB (XLR)
- Channel separation: =110 dB (RCA); =130dB (XLR)
Analog audio characteristics (7.1 channel)
- Frequency range: 20 Hz – 50 kHz (±0.01 dB)
- Signal-to-noise ratio: =120 dB
- THD+Noise (THD+N): =0.0005%
- Output level: =3 Vrms
- Dynamic range: ≥120 dB
- Channel separation: =110 dB
General Specifications
- Power supply:
AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz - Power consumption: <40 W (operation), <0.5 W (standby)
- Dimensions (W × D × H): 445 × 321 × 133 mm
- Weight: 15.4 kg
- Operating temperature: 5°C – 35°C (41°F – 95°F)
- Operating humidity: 15% – 75%
| Color: | black |
|---|---|
| Condition: | new item |
| Configuration: | standard version |
| Device depth mm: | 133 |
| Device height mm: | 321 |
| Device width mm: | 445 |
| Frequency response: | 20 Hz–80 kHz (±0.05 dB) |
| Inputs: | LAN, USB |
| Outputs: | Analog RCA, Analog XLR, Digital RCA, Digital Toslink, HDMI |
| Playable media: | CD, CDRW, SACD |
| Product type: | Blu-ray player |
| Surface: | aluminum |
Safety Information
Product-specific safety instructions can be found in the operating manual.
