Trinnov Audio Trinnov Amplitude 8 8-Channel Cinema Poweramp.

Feel the Power

The two linear power supplies based on heavy-duty toroidal power transformers allow every module of the Amplitude8 to deliver 225W into 8 ohms, 375W into 4 ohms and 500W into 2 ohms.

State of the art performance

The amplification stage of the Amplitude8 also features the industry’s lowest distortion and noise specifications, and its performance is frequency-independent.

Integration

The Amplitude8 integrates seamlessly with your Altitude32 A/V preamp, both visually and technically. The Amplitude8’s input level perfectly matches the Altitude32’s output level, ensuring an optimal use of the dynamic range at the amplification stage; the Altitude32’s outputs can easily be connected to the Amplitude8’s input via D-Sub or XLR cables; the Amplitude8’s front panel was designed to match the Altitude32’s facade and will look magnificent in your home theater’s rack. A/V preamp, both visually and technically.

Details

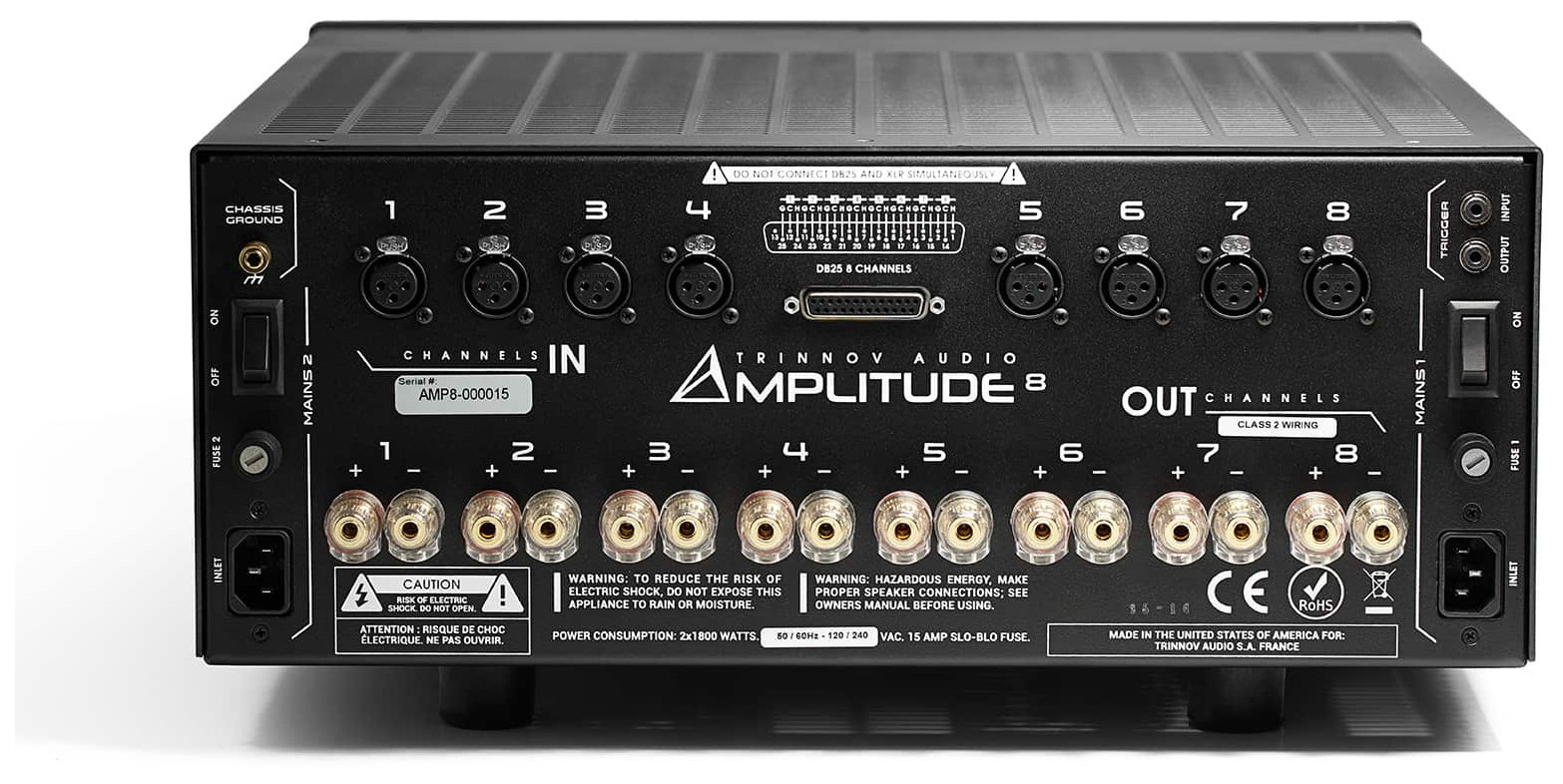

ANALOG AUDIO INPUTS
CONNECTORS:
1 Balanced (XLR) per channel on each module.
INPUT IMPEDANCE:
47 kOhms, each phase.
INPUT SENSITIVITY:
6.15V RMS balanced input (+18dBu) for 225W into 8 ohms.GAIN 19.2dB.
POLARITY:
Pin-2 = Positive, Pin-3 = Negative for Non-Inverting Output.

ANALOG AUDIO OUTPUTS
CONNECTORS:
One balanced output with 5-way binding posts per channel.

POWER OUTPUT
8 ohms:
225W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz
4 ohms:
375W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz
2 ohms:
500W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz

AUDIOPHILE GRADE PERFORMANCE
Frequency Response:
+-0.5Db From 0Hz To 20 Khz, Load Independent
Damping Factor:
> 6000 At 100 Hz; > 2000 At Any Frequency Up To And Including 20 Khz
Signal To Noise Ratio:
125Db Referenced To Rated Output (A-Weighted)
Crosstalk :85 Db

POWER CHARACTERISTICS
Power requirements:
117V AC, 15A Slo Blo main fuse; 230V AC 8A Slo Blo main fuse; 50/60 Hz
Power consumptions:
less than 1W at Standby; less than 80W at idle; 1500W maximum by 2 when fully loaded

MISCELLANEOUS
Trigger input :
5 to 12V DC; Steady State.
Dimensions:
(W x H x D) 443 x 186,5 x 502 mm
