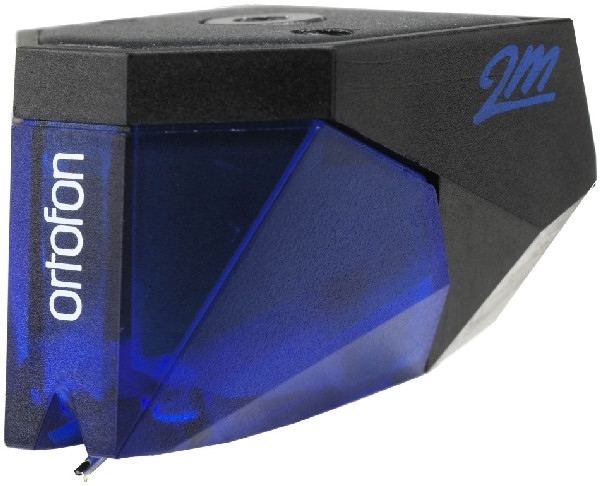

Ortofon 2M Blue Replacement Stylus
€149.00
per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
ORTOFON
2M BLUE SPARE NEEDLE
Technical specifications
Pickup Type: MM (Moving Magnet)
Output voltage: 5.5mV
Amplifier connection: Phono MM
Channel deviation at 1 kHz: 1.5dB
Crosstalk attenuation at 1kHz: 25dB
Crosstalk at 15kHz: 15dB
Frequency range: 20-25,000Hz
Frequency Response: 20-20,000Hz ±1.5dB
Scanning capability at 315Hz: 80µm
Needle compliance: 20µm/mN
recommended Tonearm type: light and medium weight
Scanning diamond: elliptical, naked
Rounding: r/R 8/18µm
Tracking force range: 16-20mN (1.6-2.0g)
recommended Tracking force: 18mN (1.8g)
Scanning angle: 20 degrees
DC resistance: 1.3kOhm
Inductance: 700mH
recommended Terminating resistor: 47kOhm
recommended Termination Capacitance: 150-300pF
Weight: 7.2g
| Condition: | new item |
|---|---|
| Product type: | Accesories |
Manufacturer
Ortofon A/S
Stavangervej 9
DK-4900 Nakskov
Denmark
