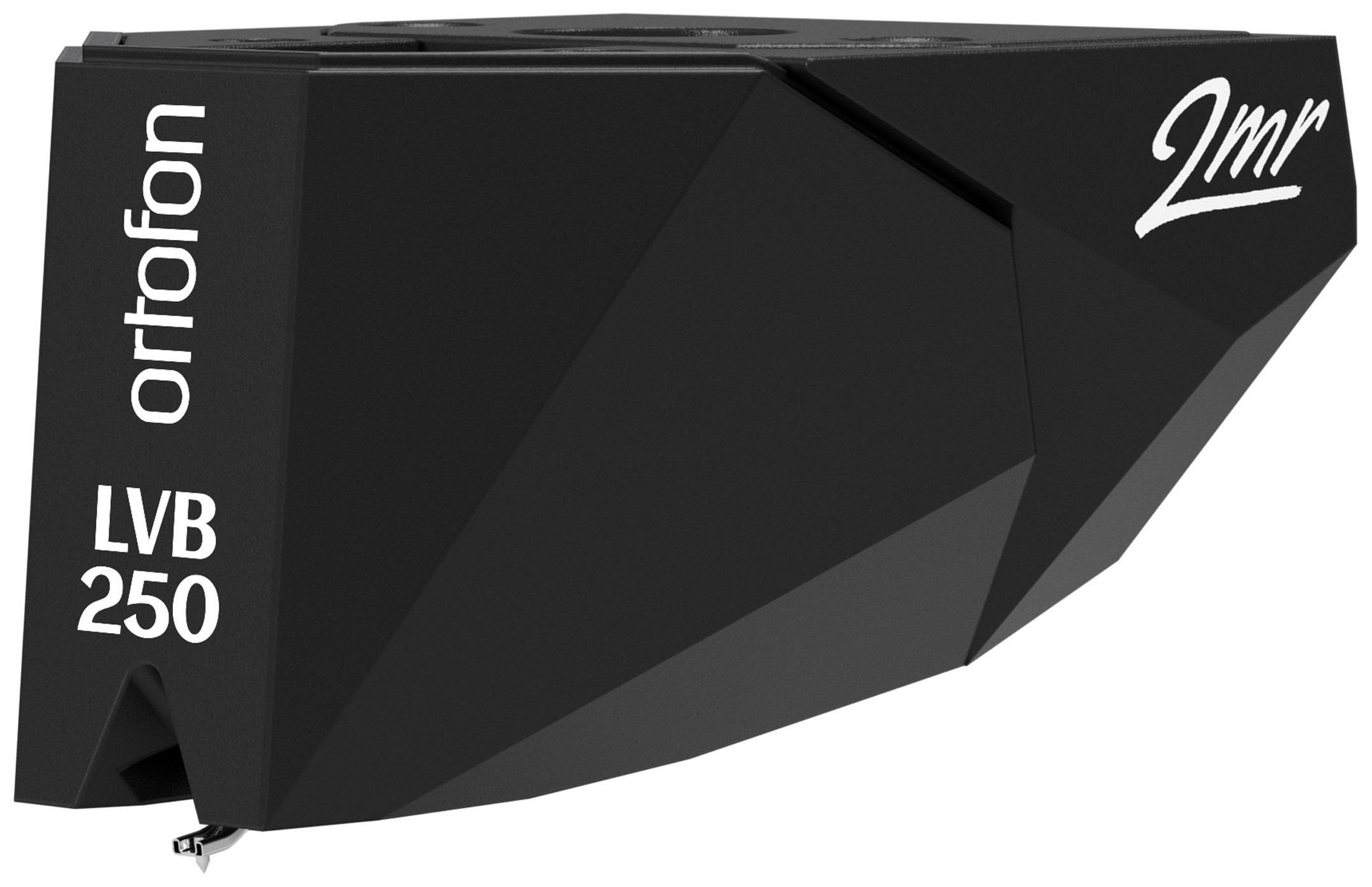

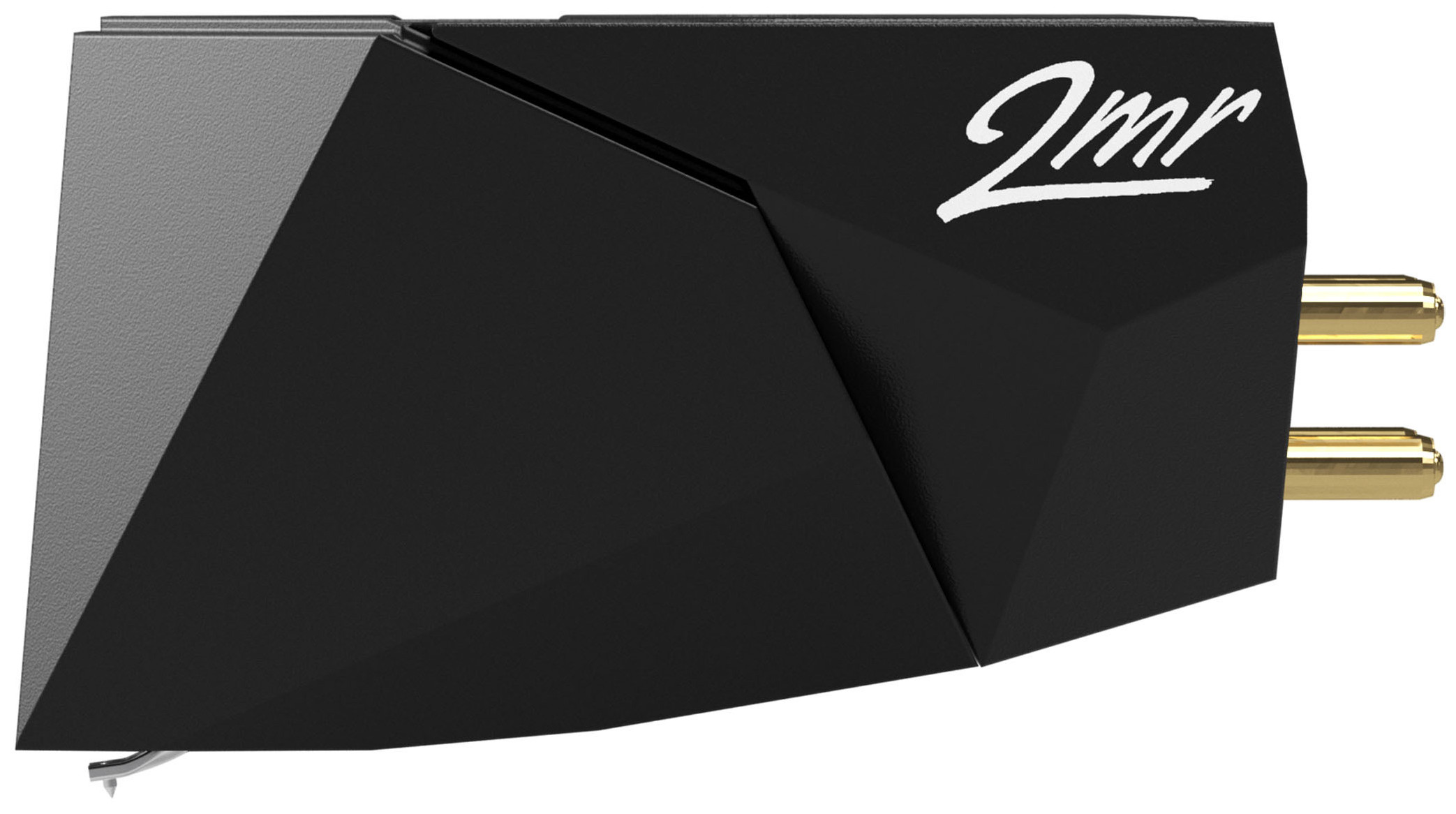

Ortofon 2MR Black LVP 250 Cartridge

2M Black LVB 250

The 2M Black LVB 250 cartridge expands the great construction of the 2M Black with a boron cantilever and Ortofon's proprietary Nano-Tube suspension system. The result is a sound so precise and detailed that you'll feel like you've let the artist into your home and are hearing him playing right in your living room.

Features: The 2M Black LVB 250 uses a Nude Shibata diamond on a Boron cantilever, a combination known from the acclaimed MC Cadenza Black pickup. The use of an extremely stiff and lightweight boron cantilever ensures remarkable transparency, speed and responsiveness. The Nude Shibata stylus's slim, highly polished profile allows for an exceptionally wide contact area with the groove walls, ensuring remarkably detailed reproduction across the entire frequency spectrum, including the highest frequencies.

The 2M Black LVB was released to celebrate the 250th anniversary of LudwigvanBeethoven 's birth in December 2020.

Technical data:

• Output voltage at 1000 Hz, 5 cm/sec: 5 mV
• Channel balance at 1 kHz: < 1 dB
• Channel separation at 1 kHz: > 27 dB
• Channel separation at 15 kHz: 15 dB
• Frequency response: 20-20,000 + 2 / - 1 dB
• Scanning capability at 315 Hz with recommended tracking force: 80 µm
• Compliance, dynamic, lateral: 22 µm/mN
• Pen Type: Nude Shibata
• Pen tip radius: r/R 6/50 µm
• Cantilever material: Boron
• Tracking force range: 1.5-1.7 g (15-17 mN)
• Recommended tracking force: 1.6 g (16 mN)
• Scanning angle: 20°
• Internal impedance, DC resistance: 1.2 kOhm
• Internal conductivity: 630 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacity: 150-300 pF
• Pickup color, housing/stylus: black/black
• 2MR cartridge weight: 6g
• 2M and 2M Verso pickup weight: 7.2 g
• Pre-assembled 2M cartridge weight: 16.7 g

Replacement pen module: 2M Black LVB 250Interchangeable stylus units: 2M Black and 2M Bronze

Pen Life: With proper care, up to 1000 hours is possible without degradation in performance. Please see our FAQ section on pen maintenance.

Interchangeability of the 2M series pins: The motors, coils and magnet configurations of the 2M series are not identical: red and blue are identical, as are bronze and black as well as the true mono variants 2M Mono and 2M 78. Likewise, 2M series pins are identical. Pins interchangeable within the following combinations:

• 2M Red, 2M Blue and 2M Silver
• 2M Bronze and 2M Black
• 2M Mono and 2M 78
