Clearaudio Concept Signature Turntable

CONCEPT SIGNATURE

Facilities

• Concept Signature Black drive

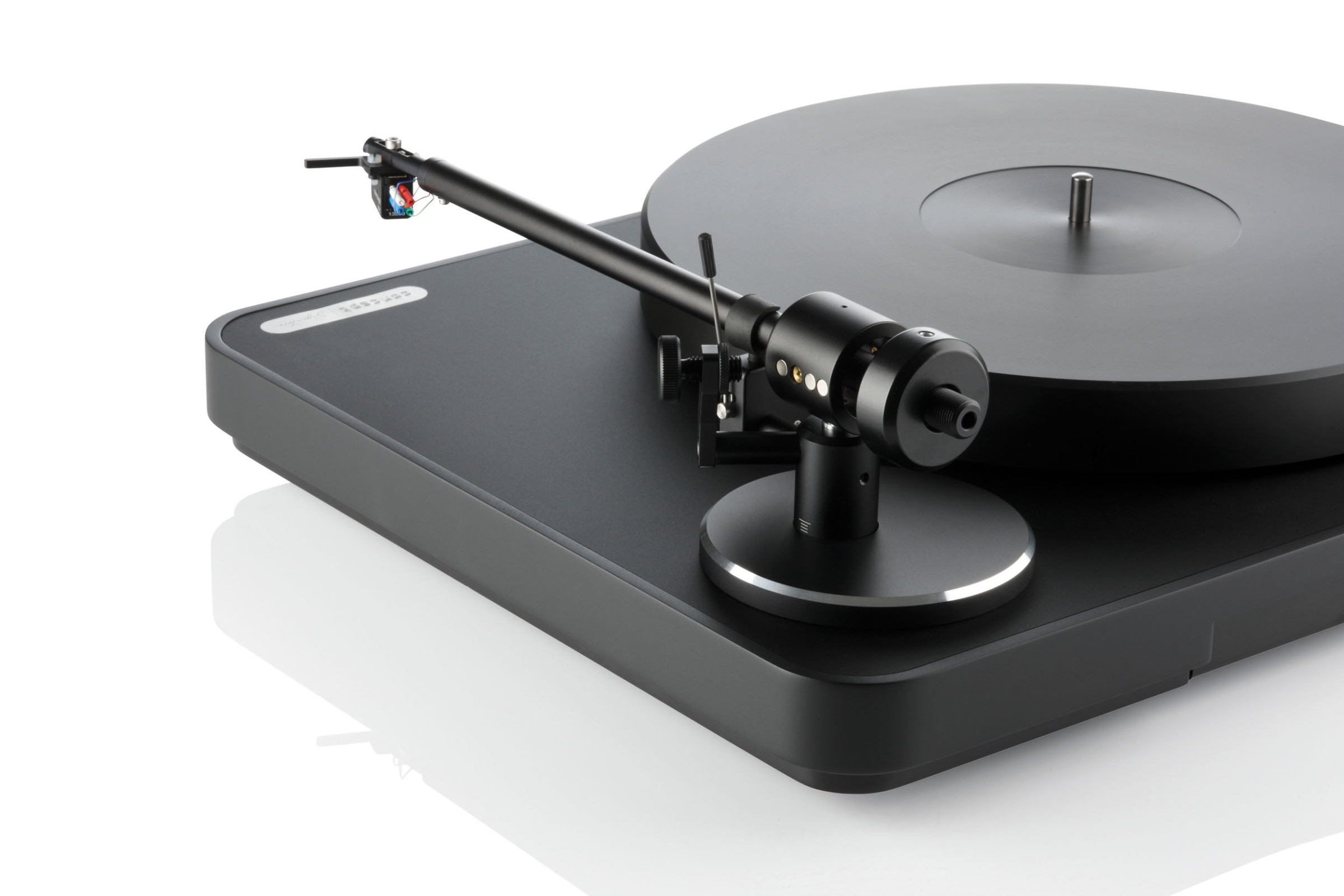

• Satisfy Signature tonearm

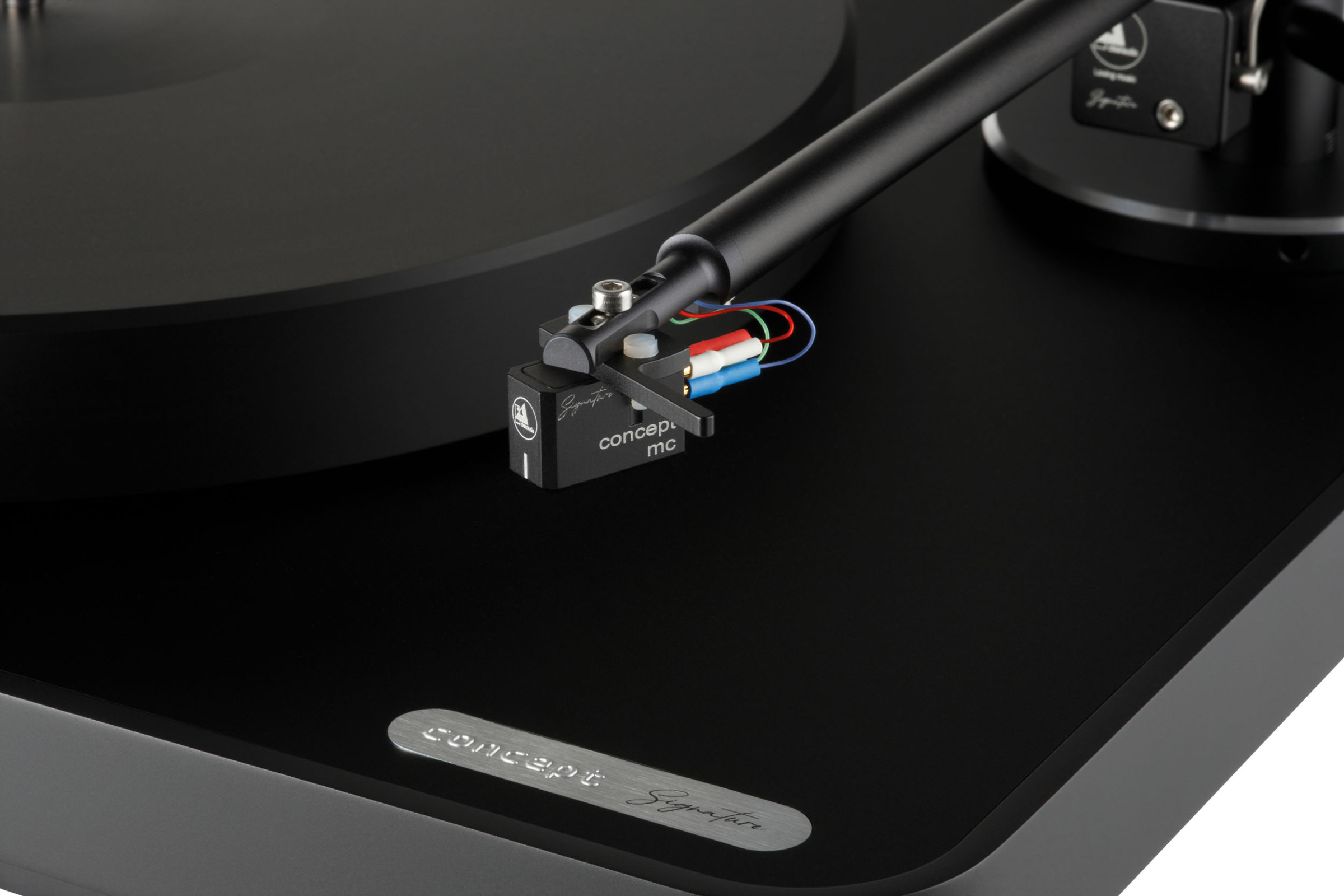

• Concept MC Signature

The pursuit of perfection is an unshakable core philosophy for Clearaudio. The high-end manufacturer from Erlangen stands for outstanding quality. The Concept Signature is no exception.

Revolutionary sound, timeless design

As an entry-level package with a specially developed tonearm and cartridge, the concept set new standards in terms of sound quality, pricing and design. After over 10 years of constant consistency, Clearaudio presents the concept Signature, which offers further increased performance and advanced features through several updates. The basic idea remains purpose-oriented and user-friendly - all parameters are perfectly set at the factory.

Material innovation and precision design

The drive body of the concept Signature consists of medium-density wood fiber or alternatively solid wood layers bonded under high pressure. The upper layer is made of specially satin-finished plastic, which not only ensures a perfect look but also minimizes resonances. The turntable is driven by a ground flat belt, which is operated by a completely decoupled DC motor. The power is supplied via a generously sized, highly stable and external power supply.

Innovative control technology for superior performance

The newly developed control technology of the concept Signature includes integrated auto-calibration, expanded setting options and the innovative Tacho Speed Control (“TSC”). This function continuously monitors the speed of the drive and provides real-time feedback to the control electronics. This means that the system reacts immediately to changing influences such as decreasing belt tension, friction of the turntable bearing or temperature fluctuations. Manual recalibration is possible at the push of a button on the back of the drive.

Design, modularity and recommendations

The concept Signature impresses not only in terms of sound but also aesthetically. The design sets new accents, especially through the newly designed surface with illuminated touch controls for intuitive operation. The large selection of Clearaudio tonearms and cartridges allows for individual adjustment.

TECHNICAL INFORMATION

Construction and materials

• Resonance-optimized chassis construction for minimal vibrations
• Cover plate made of specially satin-finished plastic for a perfect look
• Drive body made of medium density wood fiber or solid wood layers for stability and sound quality
• Height-adjustable drive feet for flexible adjustment

Drive:

• Decoupled and extremely quiet running 12 volt DC motor for smooth performance
• Drive with ground flat belt to minimize noise
• Plug-in power supply for worldwide use with automatic voltage adjustment
• 'IMS light' (Innovative Motor Suspension) for effective decoupling of engine vibrations

Control technology:

• New control technology with integrated auto-calibration for optimal settings
• Tacho Speed Control (“TSC”) for even better measured values in synchronization and impulse stability
• Real-time speed monitoring for immediate adaptation to changing influences
• Manual re-calibration at the push of a button on the back of the drive

Motor mount and encoder:

• Improved engine suspension (“IMS light”) for effective decoupling of engine vibrations and resonances
• Multiple O-rings improve the decoupled engine mounting
• The new encoder forms the basis for future functions and expansion stages

Design and operation:

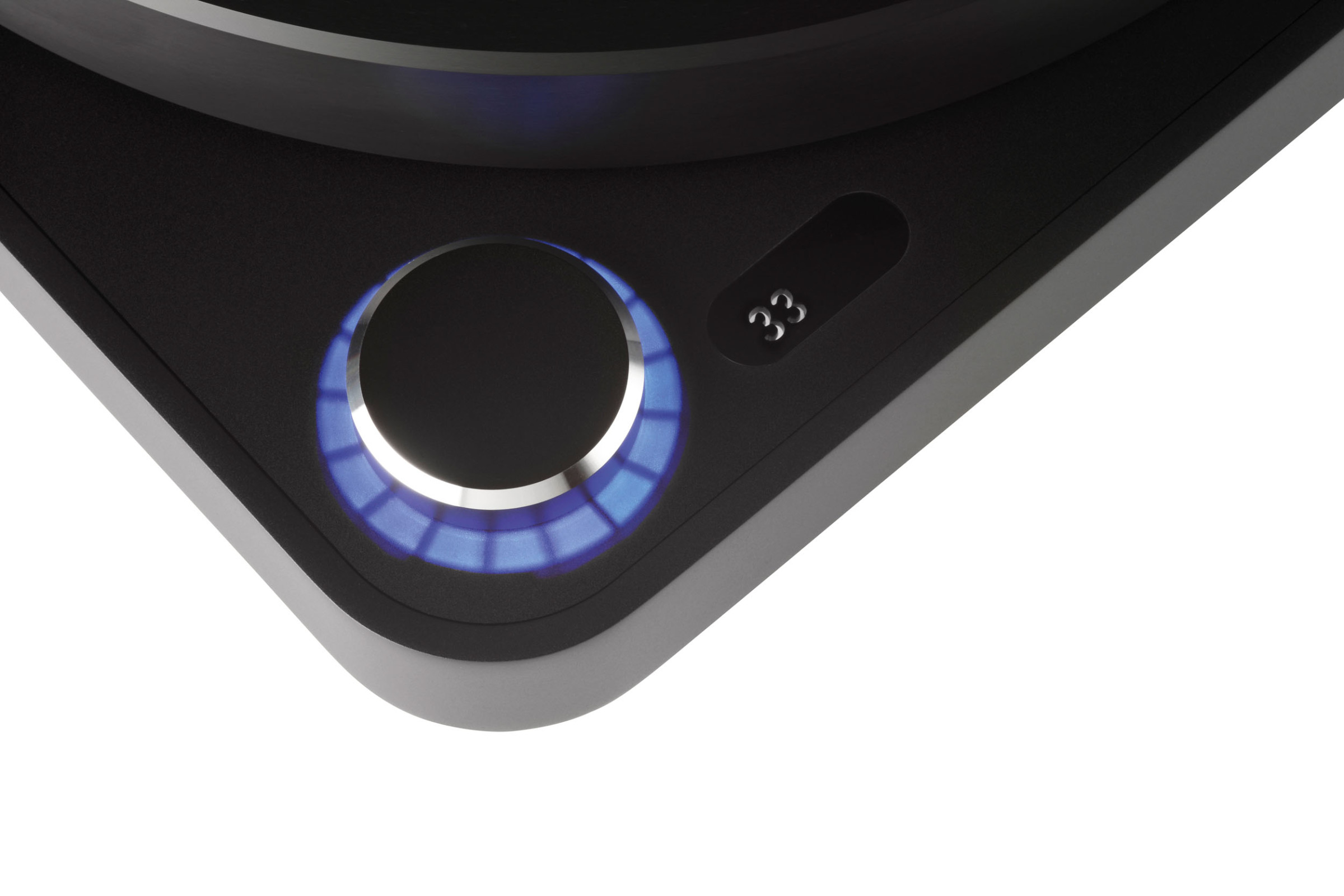

• Newly designed interface with illuminated touch control for intuitive operation
• Unique design sets new accents in terms of aesthetics
• Large selection of Clearaudio tonearms and cartridges for maximum modularity

Technical data (summary):

• Construction principle: Resonance-optimized chassis construction
• Cover plate: Special satin plastic material
• Drive body: Medium density wood fiber or solid wood layers compressed under high pressure
• Base plate: medium density wood fiber
• Speed range: 33 1/3, 45 rpm
• Drive: Decoupled and smooth-running 12 volt DC motor with ground flat belt
• Bearing: Polished and hardened steel axle in a bronze bushing, runs on a Teflon mirror
• Platter: 30mm platter made of high density engineering plastics and CNC precision machined aluminum sub-platter
• Synchronization (weighted): ± 0.05%
• Power consumption: Max. 3.6 watts / In operation: 1.92 watts / Standby: 0.74 watts / Switched off: 0.0 watts (set the toggle switch on the back of the device to “0”)
• Weight: approx. 7.5 kg (including tonearm and cartridge)
• Dimensions (W/D/H): approx. 420 x 350 x 125 mm (with tonearm)

Perfect combinations and recommendations:

• Compatible with all MM and MC pickups from concept mc to Talisman V2 Gold
• Ideal in combination with Clearaudio tonearms from concept to Profiler
• Recommended: concept clamp, acrylic cover, nano phono V2 / smart phono V2 phono stage, upgrade power supplies Professional Power 12V / smart power 12V
