Future Automation Picture Split 42
€1,689.00
% €4,500.00 RRP (€2,811.00 saved)per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
Note: This offer is for a used device. The device may have minor scratches, but this does not affect its functionality – it is in perfect sound and technical condition.

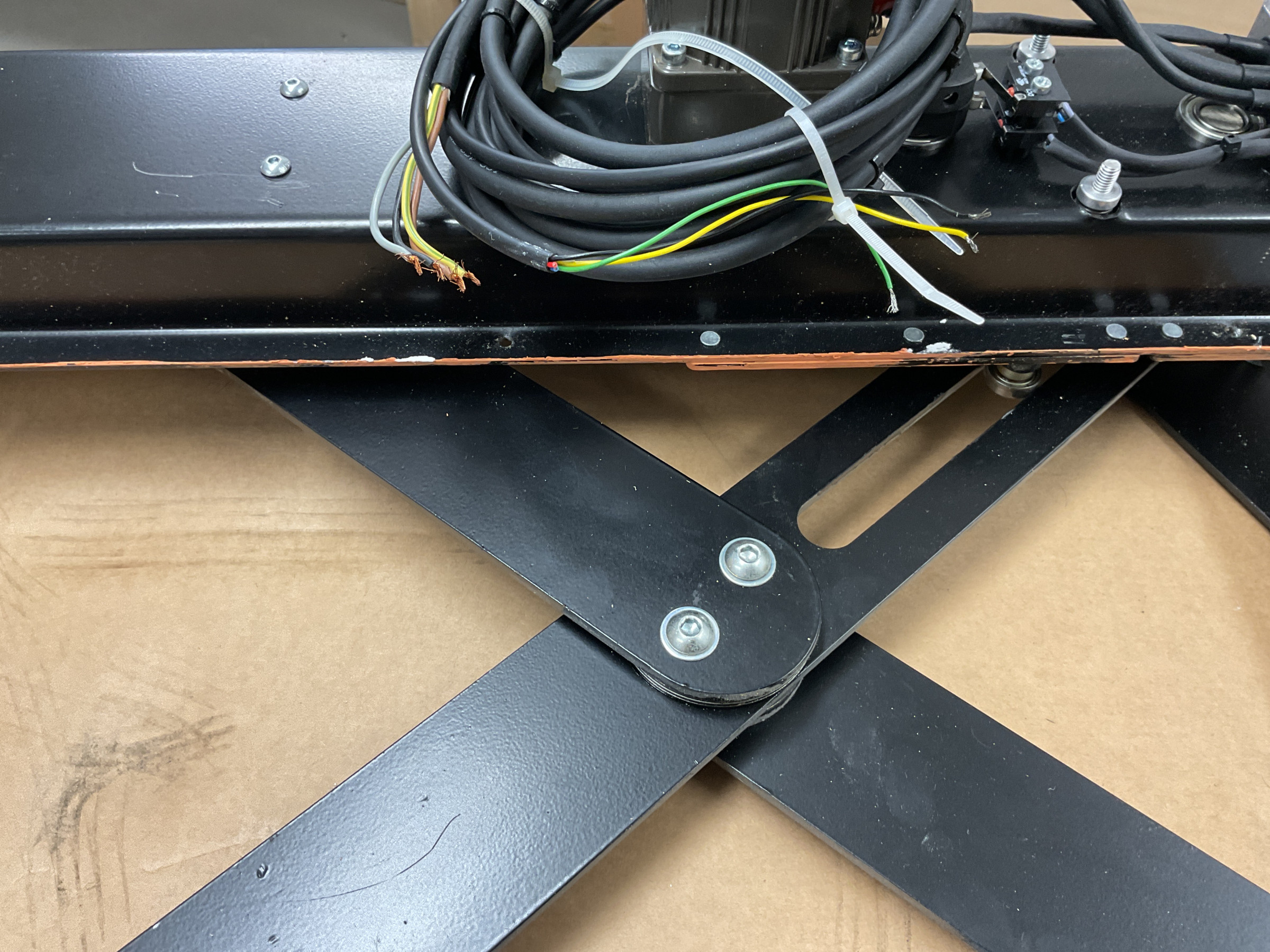

PIC-SPLIT image splitting mechanism – Elegant TV integration with motorized image panels
The PIC-SPLIT image splitting mechanism offers an elegant way to conceal televisions or monitors behind two movable image panels. Especially where vertical installation height is limited, the system is ideally suited as an alternative to traditional image lift mechanisms.

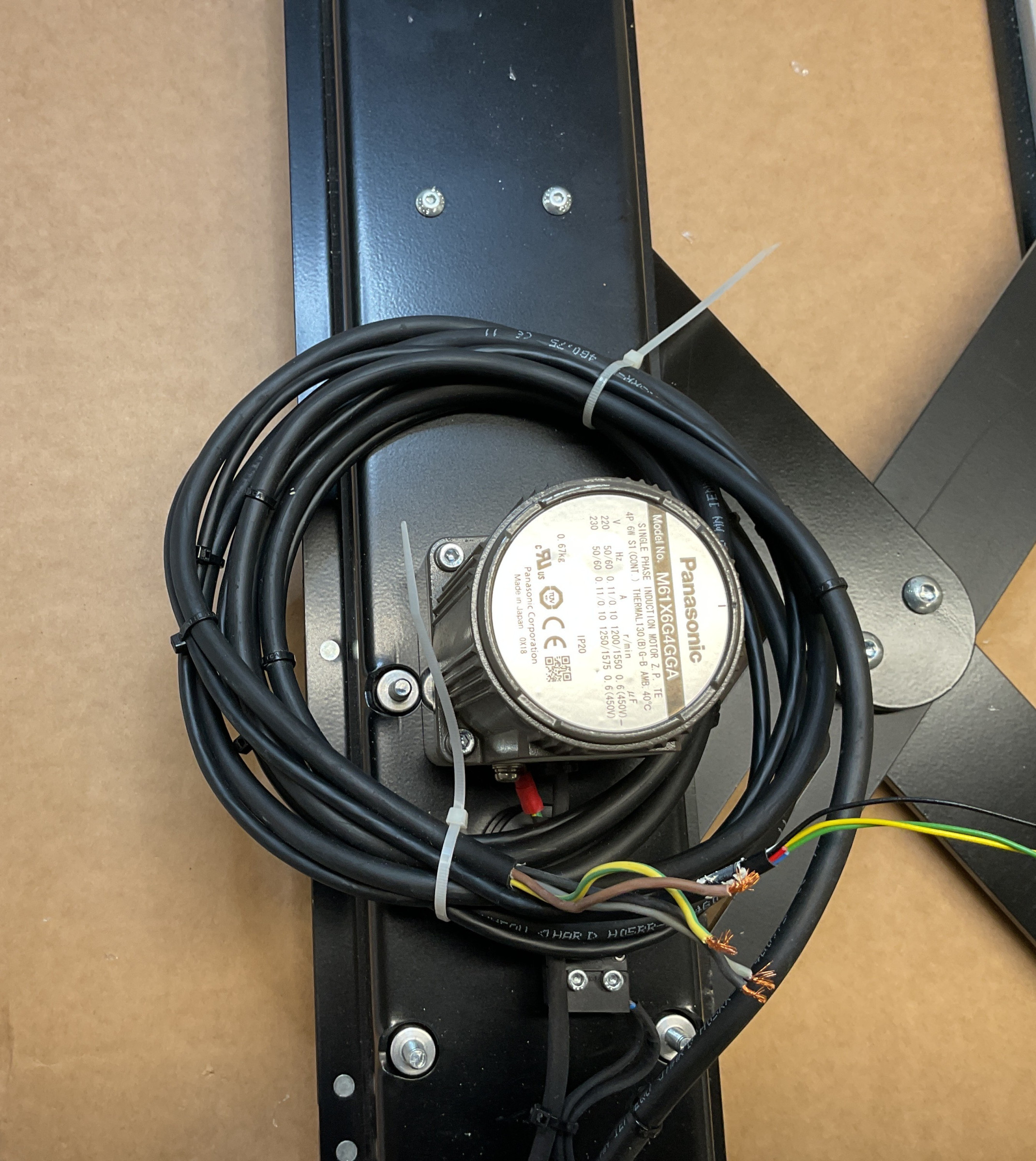

The integrated motors move the panels apart quietly, precisely, and synchronously, conveniently revealing the screen behind them. Thanks to the smooth start and end profiles, the movement is smooth and high-quality. Additionally, vibration-isolated components ensure quiet operation.
Existing graphics or custom designs can be easily integrated. This makes the PIC-SPLIT ideal for living rooms, meeting rooms, or exclusive presentation areas.
Technical data
- Maximum screen size: 42 inches
- Maximum installation width: 1150 mm
- Maximum panel weight: 15 kg per panel
- Maximum speed: 120 mm/s
- Maximum travel distance: 1150 mm
- Wall clearance / installation depth: 50 mm
- Type of movement: motorized
- Noise level: approx. 47 dB
- Power supply: 110V – 240V AC
- Power consumption: 110 W
- Standby power consumption: 3 W
- Product weight: approx. 15 kg per mechanism
Features & Special Features
- Quiet and smooth movement with soft start/stop
- Synchronized movement of both panels
- Vibration-isolated construction
- Anti-pinch protection through intelligent electronics
- Surface mountable for simplified installation
- Suitable for concealed integration of TVs behind artworks or wall panels
Information on used equipment
| Number of previous owners | |
| Year of construction | 2011 |
| Original packaging | no |
| First purchase in the auditorium | Yes |
| Price for initial purchase | |
| Condition assessment | Acceptable - fully functional, with noticeable signs of wear (scratches, dents) |
Accessories

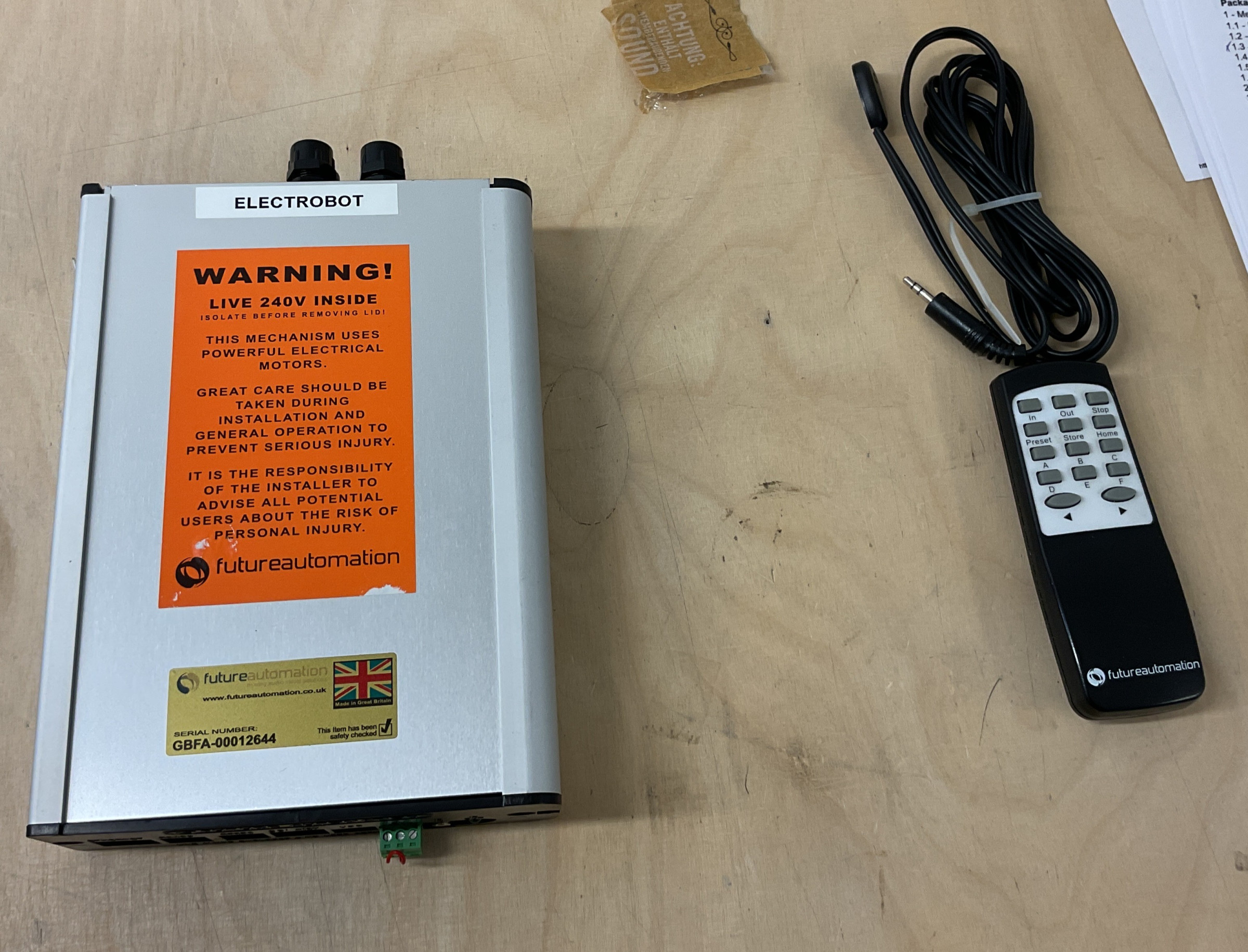

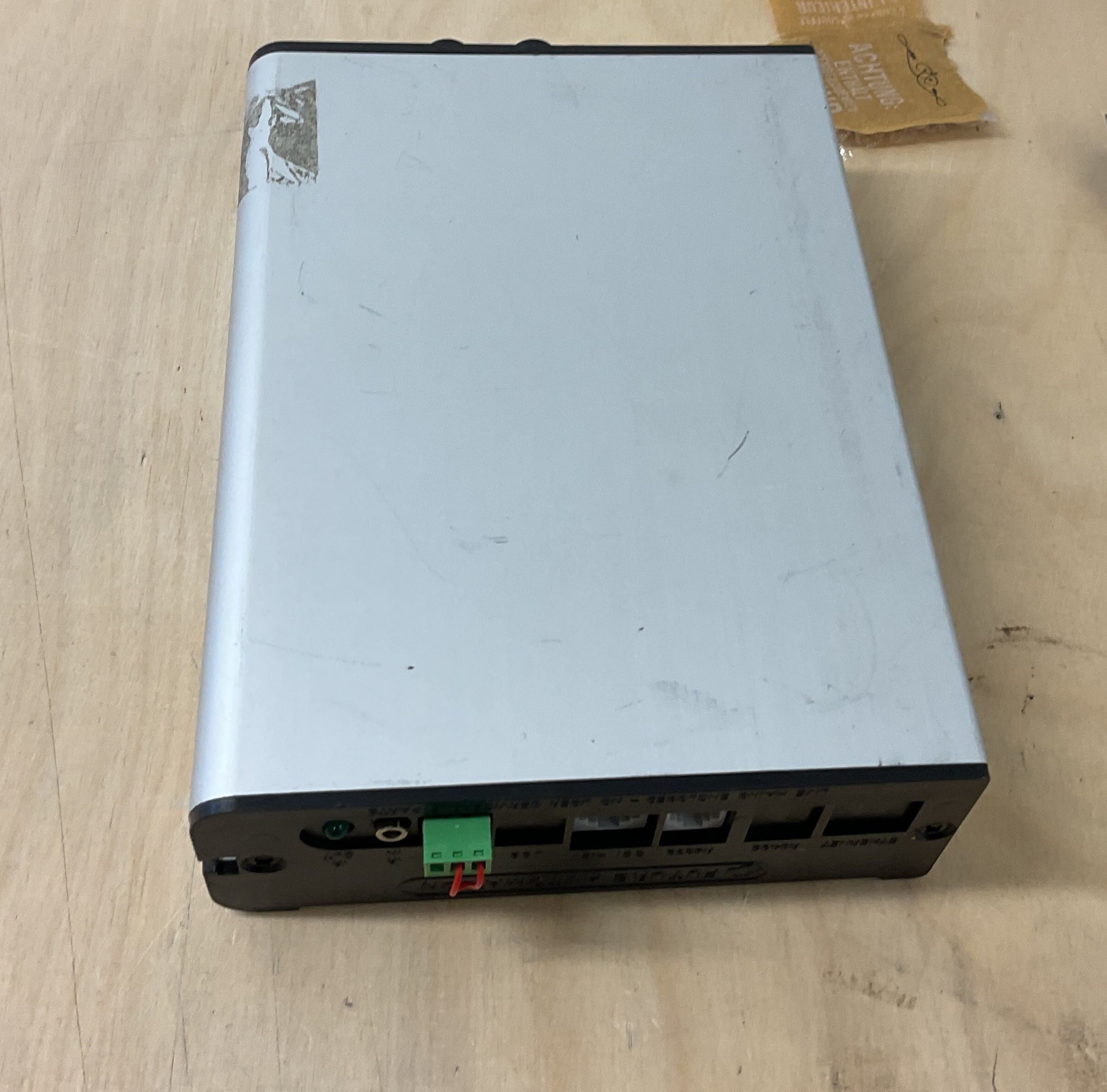

Module, control unit, FB
| Condition: | Used equipment |
|---|---|
| Condition assessment: | Acceptable - fully functional, with noticeable signs of wear (scratches, dents) |
| Device depth mm: | 50 |
| Device width mm: | 1150 |
| Diagonal inch: | 42 |
| Initially purchased from Auditorium: | Yes |
| Original packaging: | no |
| Year of manufacture: | 2011 |
Accessories
Module, control unit, FB
Safety Information
Product-specific safety instructions can be found in the operating manual.
