Luxman P-100 Centennial headphone amplifier

P-100 CENTENNIAL Headphone Amplifier

To celebrate its 100th anniversary, Luxman presents the P-100 CENTENNIAL, a headphone amplifier that unites tradition, technological innovation, and musical perfection. It is the first model in the new CENTENNIAL series, which celebrates a century of audiophile experience while setting standards for the next century.

This flagship model reveals the full sound spectrum of the headphones: from the faintest whisper to the powerful crescendo, with the finest details, deep spatial depth and an emotional musicality that brings every recording to life.

Historical roots – a century of audio innovation

Luxman's story began in 1925 with the development of an experimental radio receiver and an accompanying technical manual. Since then, the company has developed radio tuners, amplifiers, and loudspeakers, thus significantly shaping the modern audio world. With the P-100 CENTENNIAL, Luxman combines this heritage with state-of-the-art technology and forward-looking amplifier architecture – a headphone amplifier that makes both history and the future tangible.

LIFES amplifier architecture – the evolution of ODNF

At the heart of the P-100 CENTENNIAL is the newly developed LIFES amplifier concept, a consistent evolution of the proven ODNF (Only Distortion Negative Feedback) technology. For over 20 years, ODNF has been selectively minimizing distortion and preserving natural musicality. LIFES takes it a step further:

• Fully symmetrical power amplifier architecture with four discrete amplifier blocks
• Selected high-performance components for maximum sound purity
• New FETs in the voltage amplification stage for even lower distortion.
• Output distortion halved, signal-to-noise ratio improved by more than 3dB

The result: an extremely quiet, detailed amplifier that precisely reproduces every nuance, every impulse and every dynamic of the music.

Precise volume control – LECUA-EX

• The LECUA-EX digital volume control enables extremely fine, precise control, which is crucial for headphones:
• 200 levels in 0.5dB increments
• Three sensitivity levels for different headphone impedances
• Left/right balance in 0.5dB increments
• Six volume limits to protect ears and headphones
• Large 3-digit LED display for clear level indication
• This allows the P-100 to be optimally adapted to a wide variety of headphones – without loss of sound quality or distortion.

Fully symmetrical power amplifiers and flexible connection options

• The P-100 CENTENNIAL offers both unbalanced and balanced outputs:
• Balanced-Out (BTL configuration): better channel separation, lower distortion, stable current flow
• Unbalanced-Out: high current delivery capability for power-hungry headphones
• Dual P-100 operation: two devices in parallel for maximum performance and control

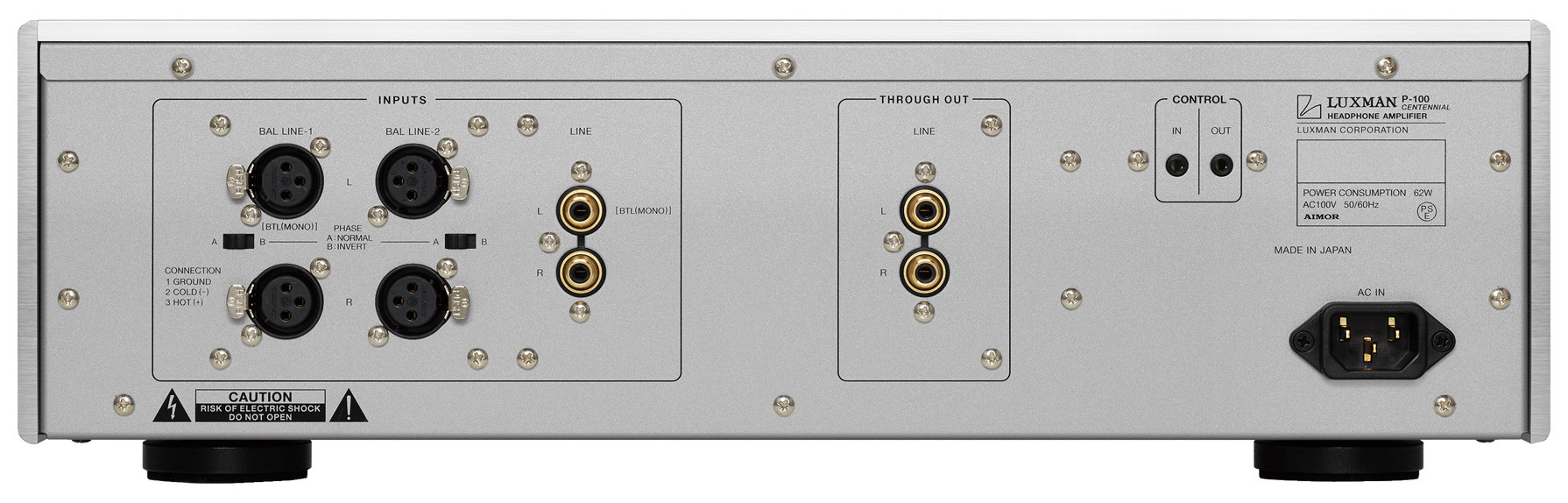

• Connection options: 6.3mm jack, 4-pin XLR, 4.4mm Pentaconn, 3-pin XLR (dual operation)
• This architecture ensures perfect adaptation to any headphone impedance, highest localization precision and maximum dynamic range.

High-quality construction & design

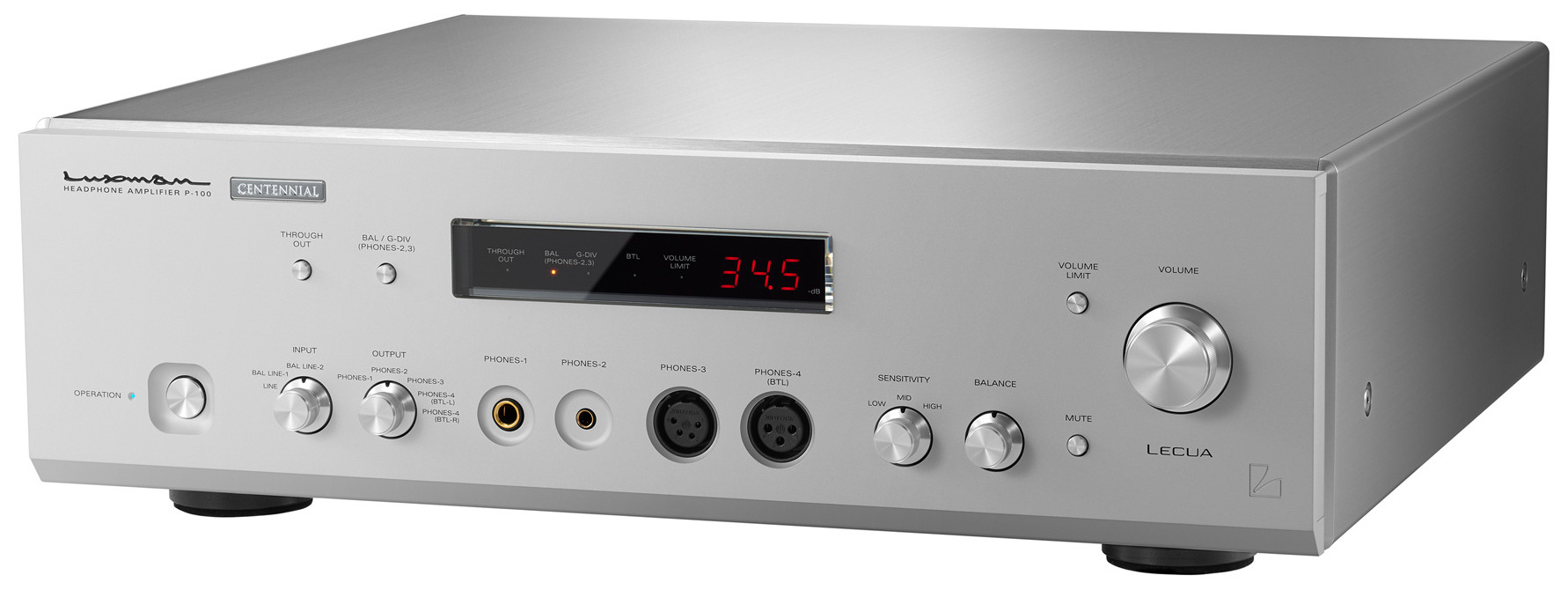

• Front panel with platinum-like CENTENNIAL plaque
• Solid, resonance-optimized housing with 4.1mm base plate
• Cast iron feet with density gradient to minimize vibrations

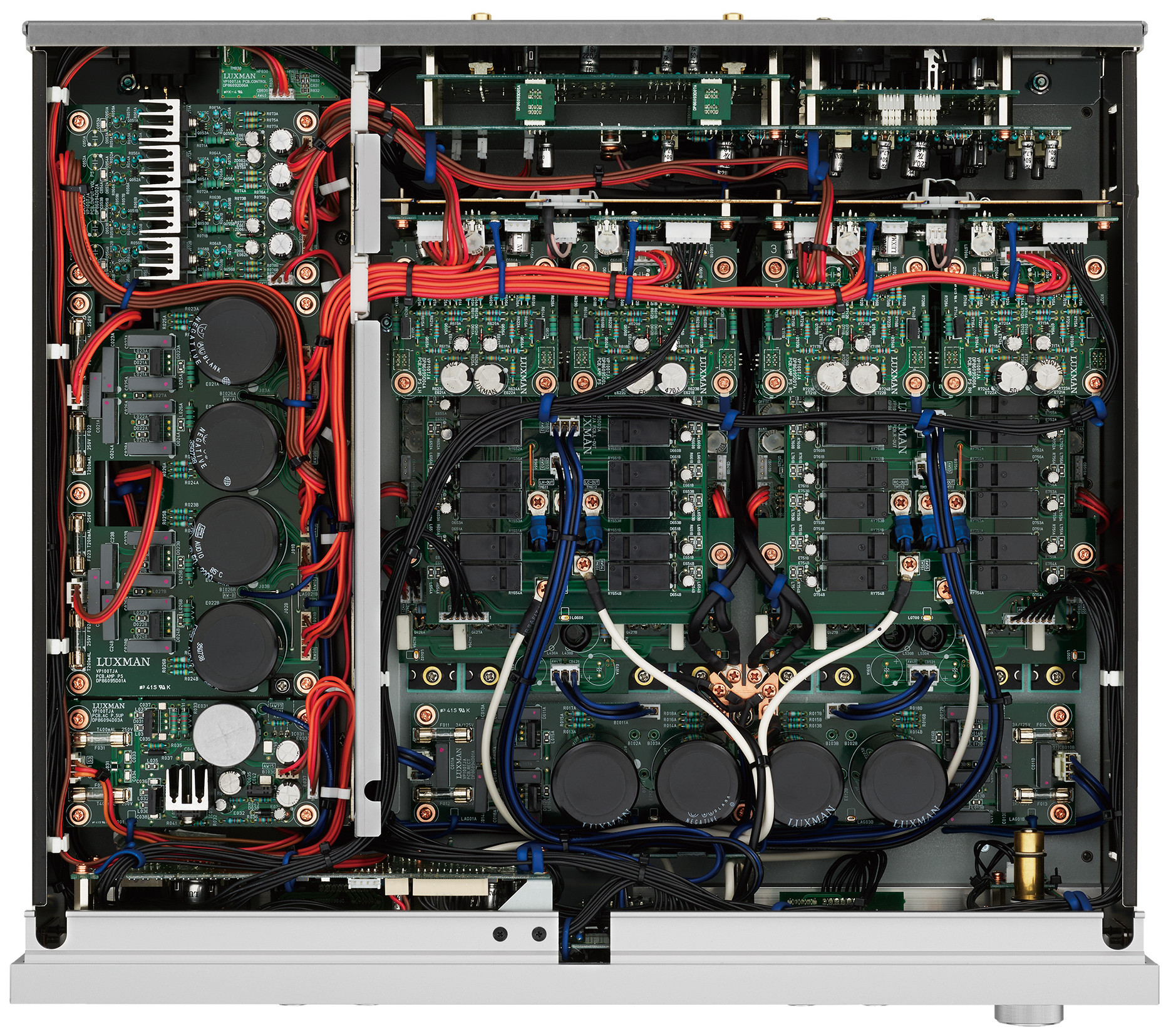

• Separate high-performance power supplies per channel (OI transformer L/R) and EI transformer for control logic
• Large filter capacitance: 10,000µF per channel in the power amplifier, 3,300µF in the driver stage
• OFC cabling with spiral shielding and untinned conductors

The robust housing and precisely manufactured front panel combine stability, functionality and aesthetic elegance – a true flagship amplifier for the highest demands.

Technical specifications – P-100 CENTENNIAL

• Nominal output:

  Unbalanced: 4W + 4W (8O), 2W + 2W (16O), 1W + 1W (32O), 53mW + 53mW (600O)

  Symmetrical: 8W + 8W (16O), 4W + 4W (32O), 213mW + 213mW (600O)
• Maximum output power: Unbalanced 5W + 5W (8O), Balanced 20W + 20W (8O)
• Input sensitivity / impedance: Unbalanced 1.0V / 14kΩ, Balanced 2.0V / 28kΩ
• Frequency response: 20Hz – 20kHz (+0, -0.1dB), 10Hz – 175kHz (+0, -3dB)
• Total harmonic distortion (THD): Asymmetric 0.0025%, Symmetric 0.0015%
• Signal-to-noise ratio: Unbalanced 117dB, Balanced 119dB
• Mains transformers: 2x OI type (L/R), 1x EI type (auxiliary circuit)
• Mains voltage: 230V~ / 50Hz, 115V~ / 60Hz
• Power consumption: 67W (47W without signal)
• Dimensions (W × H × D): 446 × 136 × 401mm (incl. front knob and rear connection)
• Weight: 19.7 kg
• Accessories: Power cord

The Luxman P-100 CENTENNIAL is a headphone amplifier for discerning music lovers who want to experience every nuance and impulse of their recordings – an anniversary model that perfectly combines tradition and innovation.
