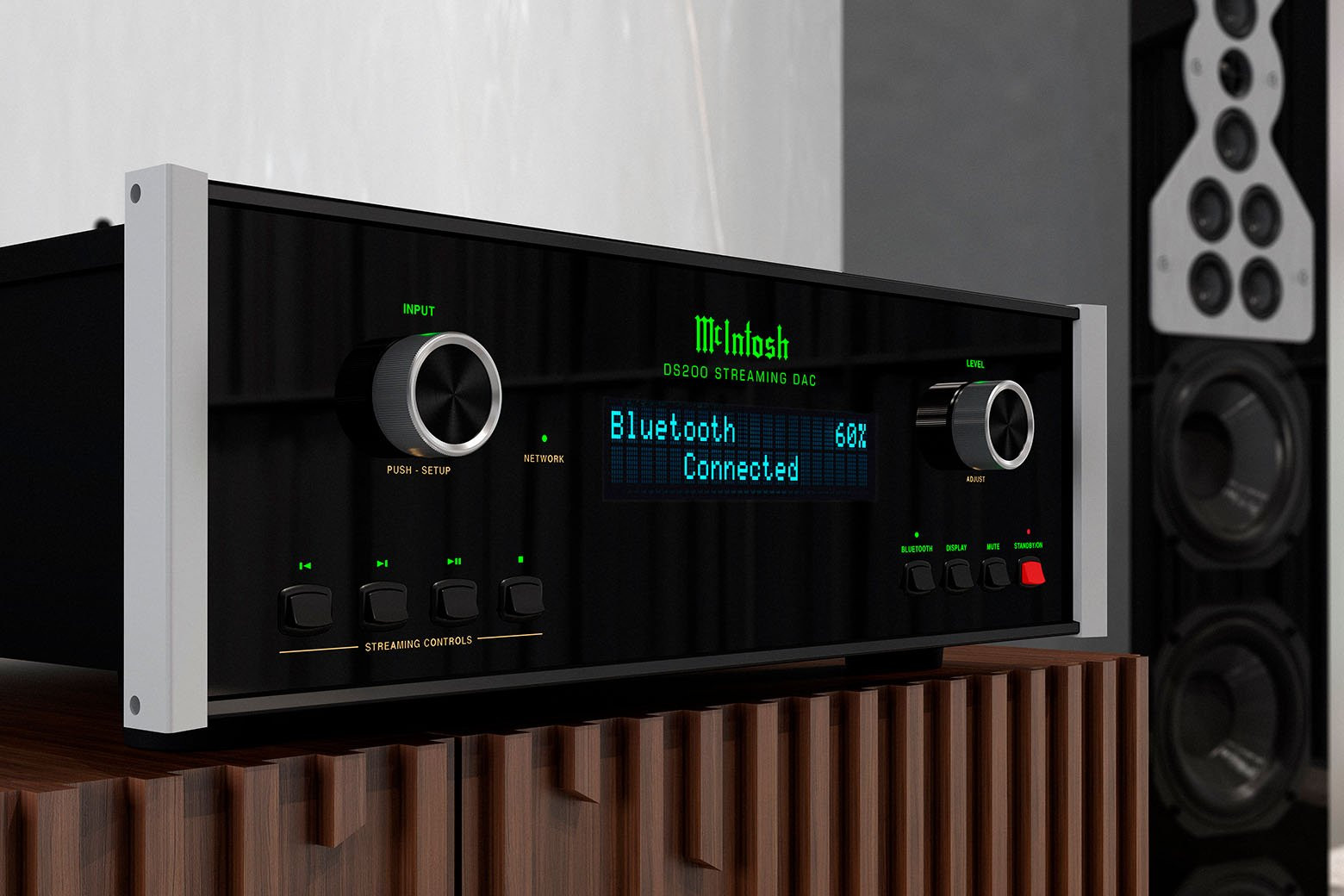

McIntosh DS200 Streaming DAC

McIntosh DS200 Streaming DAC

High-end music enjoyment

With the DS200 Streaming DAC, you can experience music in outstanding sound quality without the need for any technical knowledge or special apps. The DS200 is designed to let you stream your favorite music directly from your smart device to your home audio system. Thanks to the integrated, high-quality digital-to-analog converter (DAC), a first-class sound experience is guaranteed.

Simple and flexible streaming options

The DS200 supports Spotify® Connect and TIDAL® Connect, allowing you to stream your music directly from the cloud. TIDAL HiFi Lossless Quality users can continue using their favorite streaming app on their smartphone or tablet while listening through the DS200. Your mobile device serves as a convenient remote control for controlling volume, track selection, and other playback options.

Apple® AirPlay®, Bluetooth®, and Google Cast™ are also available as alternative streaming options. This makes it particularly easy to allow guests to play their favorite music on the DS200 – ideal for family gatherings or parties.

To ensure a stable wireless connection, the DS200 features two Wi-Fi antennas and a Bluetooth antenna. Alternatively, the device can be connected via Ethernet cable. The DS200 is also compatible with Google Assistant, allowing you to conveniently operate it via voice control.

For Bluetooth streaming, the DS200 uses modern Bluetooth 5.0 technology and high-quality audio codecs such as Advanced Audio Coding (AAC) and Qualcomm® aptX™ HD. Qualcomm aptX Low Latency is also integrated to ensure lag-free synchronization with videos.

High-end digital-to-analog converter for audiophile sound quality

At the heart of the DS200 is its next-generation Quad Balanced 8-channel 32-bit DAC, which converts digital audio signals into analog signals with exceptional precision. This enables enormous dynamic range and minimizes distortion for flawless sound reproduction.

The DS200 is also a Roon Ready endpoint, compatible with Roon music management software. Roon not only brings your entire music collection together, but also provides additional information such as biographies, reviews, photos, lyrics, and concert dates. Thanks to Roon Tested certification, the DS200 is easy to set up and integrate into your daily routine.

Extensive connection options

In addition to streaming, the DS200 offers eight digital audio inputs that allow you to connect CD players or tuners. Support for high-resolution formats ensures first-class playback quality: The USB input supports native DSD512 and DXD playback up to 384 kHz, while the coaxial and optical inputs can process audio data up to 24-bit/192 kHz.

An HDMI (ARC) input ensures you can enjoy your favorite movies and TV shows with audio quality unmatched by conventional TV speakers or soundbars. Dolby and DTS multichannel formats are converted into high-quality two-channel sound for optimal playback.

For integration into your existing audio system, the DS200 features balanced and unbalanced analog outputs that can be connected to a preamplifier or integrated amplifier. It ships in fixed-output mode, but can be switched to variable-output mode for direct connection to a power amplifier and volume control via the DS200.

Elegant design and McIntosh-typical workmanship

The DS200 remains true to the legendary McIntosh design language and impresses with a sophisticated black glass front, illuminated logo, precise rotary controls, and high-quality aluminum end caps. It features a Data IN port and power control ports for seamless integration with other McIntosh components. An RS232 control port offers additional options for sophisticated installations. A remote control is included.

McIntosh DS200 – The perfect combination of tradition and innovation

With the DS200 Streaming DAC, you'll experience high-end audio quality at its finest. Be inspired by the unique combination of cutting-edge technology, premium sound, and elegant design. Visit your local McIntosh dealer and discover the fascination of the DS200.

TECHNICAL DATA

Electronic specifications

Frequency response:

+/-0.5 dB from 20 Hz to 20 kHz

+0.5/-3 dB from 5 Hz to 60 kHz (depending on the source)

Total Harmonic Distortion (THD): 0.005%

Fixed output level:

2.0 Vrms unbalanced

4.0 Vrms symmetrical

Adjustable output level:

0 - 8.0 Vrms unbalanced

0 - 16.0 Vrms symmetrical

Signal-to-noise ratio: 100 dB

Dynamic range: 100 dB

Output impedance: 100 Ohm unbalanced and balanced

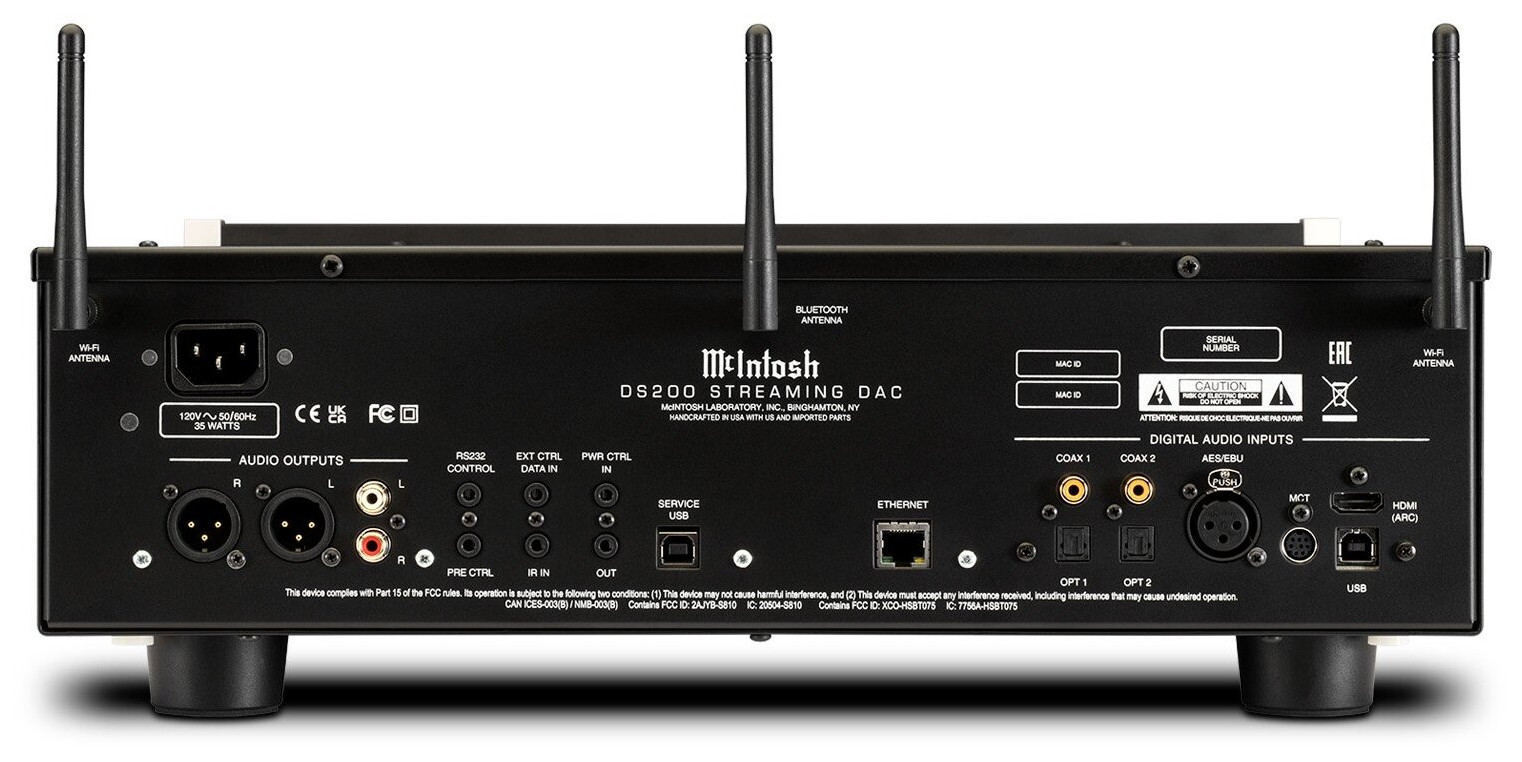

Connectivity

Digital inputs:

2x digital coaxial

2x Digital Optical

1x Digital USB

1x Digital MCT

1x Digital AES/EBU

1x HDMI (ARC)

Wireless inputs:

Wi-Fi: a, b, g, n, ac; 2.4/5GHz

Bluetooth 5.0: AVRCP, A2DP, aptX, aptX HD, aptX LL

Streaming support:

Apple AirPlay, Google Cast, Roon, Spotify Connect, Tidal Connect

Outputs:

1x Symmetrical (fixed or variably adjustable)

1x Asymmetrical (fixed or variably adjustable)

Network connection: 1x Ethernet

Digital audio specifications

DAC Type: 8-Channel, 32-Bit/384kHz PCM/DSD, Quad Balanced

Digital input sample rates:

Coaxial: 24-bit/44.1 kHz to 192 kHz

Optical: 24-bit/44.1 kHz to 192 kHz

MCT: 16-bit/44.1kHz (CD), DSD64 (SACD)

USB: 32-bit/44.1kHz to 384kHz (PCM), DSD64, DSD128, DSD256, DSD512, DXD 352.8kHz, DXD 384kHz

steering

Power Control Inputs: 1

Power Control Outputs: 1

Rear panel data input: 1

Rear IR sensor input: 1

RS232 control input: 1

Weight & Dimensions

Device dimensions (W x H x D): 44.5 cm x 15.2 cm x 43.2 cm

Device weight: 9.3 kg

Shipping weight: 12.5 kg
