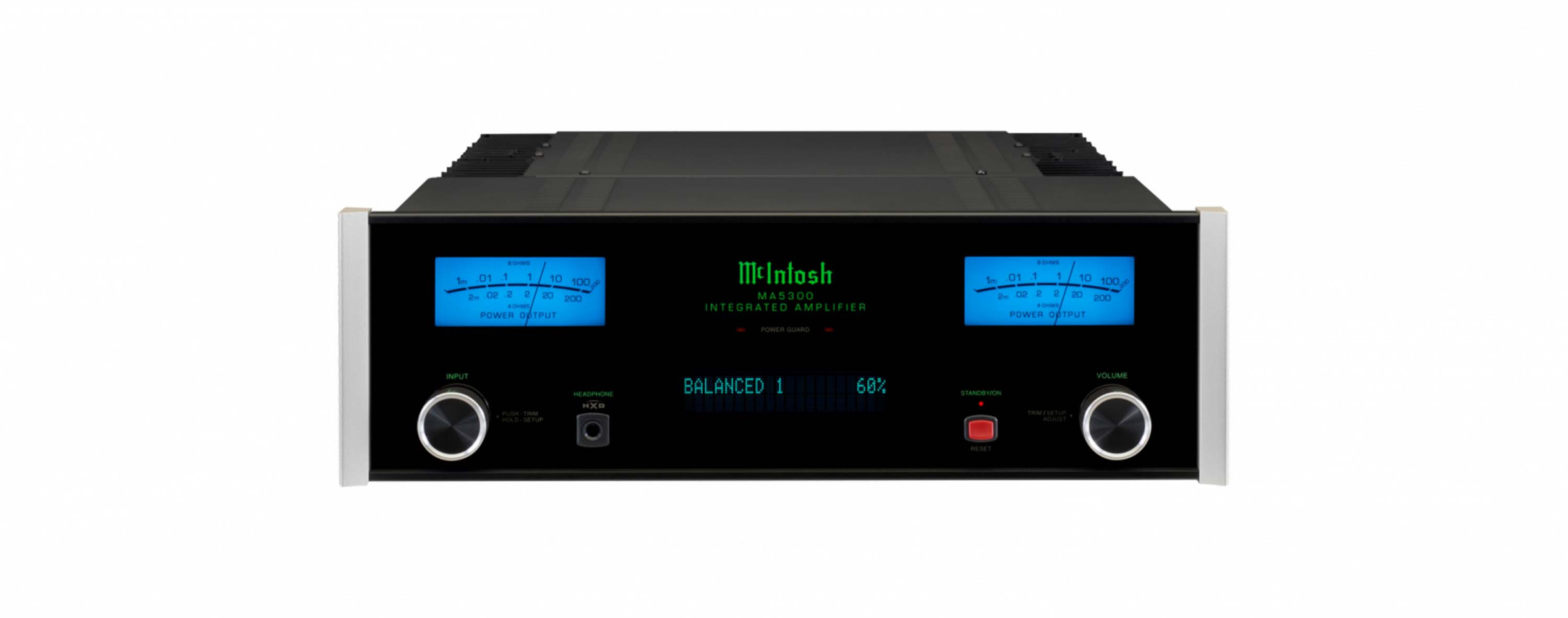

McIntosh MA5300 AC Anniversary 45 AC Integrated Amplifier

McIntosh MA5300 ANNIVERSARY 45 AC Integrated Amplifier

FOR THE 45TH ANNIVERSARY OF THE GERMAN MCINTOSH DISTRIBUTION COMPANY AUDIO COMPONENTS: SPECIAL MODEL INCLUDING THE SIGNATURE OF CHARLES RANDALL, PRESIDENT OF MCINTOSH LABS. THE MA5300 ANNIVERSARY 45 AC IS LIMITED TO 45 PIECES.

Complete amplifier solution with integrated state-of-the-art converter

The MA5300 Anniversary 45 AC integrated amplifier is McIntosh's proof that big sound can be made available in a compact space. As the smallest integrated amplifier in terms of output power and physical size, it is an ideal choice for smaller rooms, or for someone just starting to immerse themselves in the McIntosh sound world.

The MA5300 Anniversary 45 AC is a direct coupled amplifier that delivers 100 watts of McPower per channel to 8 ohm speakers or 160 watts to 4 ohm speakers. New dual scale VU meters provide an accurate display of output power for 4 and 8 ohm impedances. Like its newly launched integrated amplifier brothers, it features the very effective 'McIntosh Monogrammed Heatsinks™', with the molded Mc logo.

With its - at 8 ohms - up to 160 watts of McPower per channel, it is powerful enough to drive a wide variety of loudspeakers with accurate sound and extremely dynamic performance.

The MA5300 Anniversary 45 AC can easily be upgraded with the DA2 DAC module.

Other McIntosh features in the MA5300 Anniversary 45 AC include:

PowerGuard®?
Monitors signal levels at the speed of light and adjusts them as necessary to prevent speaker damage in the event of high distortion and clipping.

SentryMonitor™
McIntosh's short circuit protection circuit that turns off the power amplifier before current exceeds normal operating levels and automatically resets when operating conditions return to normal.

Home Theater PassThru , which enables seamless integration into a home theater system. This turns the MA5300 Anniversary 45 AC into a pure power amplifier, the volume of which is controlled by the AV processor or AV receiver.

High Drive headphone amplifier with Crossfeed Director (HXD® ), which can give the headphones an additional sound dimension.

Corrosion-resistant, gold-plated speaker connectors ensure that a high-quality signal is always sent to the speakers

The MA5300 Anniversary 45 AC also features the timeless McIntosh aesthetic, with blue illuminated VU meters, black glass front panel, and elegant matte aluminum trim strips.

Technical data

• Minimum continuous power: 2x 100 Watt McPower at 8 Ohm, 2x 160 Watt at 8 Ohm
• Distortion: 0.005%
• Frequency response: 20Hz - 20,000Hz (+0 to -0.5dB), 10Hz - 100kHz (0 to -3dB)
• Signal-to-noise ratio: High level: 95dB, Phono (MM): 82dB, Power amplifier: 110dB
• Damping factor: > 200 (8 Ohm), > 100 (4 Ohm)
• High level inputs: 4x stereo RCA, 1x stereo XLR, Phono inputs: 1 x MM
• Digital inputs: 2x Coax / 2x Optical / 1x USB / 1x MCT
• Dimensions (WxHxD): 44.5 x 15.3 x 47.6 cm
• Weight: 17.2 kg (25.2 kg including packaging)
