T+A PA 2500 R V 1.3 Integrated Amplifier

€11,300.00

per Piece incl. VAT / incl. Shipping

Color

black

silver

We only need a few details to provide you with an offer. Request trade-in

We grant a cash discount when paying by advance transfer.

Available + Self pickup

Hamm

Stock 1

Hamburg

Stock 0

Münster

Stock 0

Premium Installation

After placing your order, your Account Manager will contact you to schedule delivery and installation.
We deliver your new devices in Germany and Austria personally to the place of installation - no courier, no forwarding agency.
The Auditorium Team installs your new devices professionally and connects them to existing components.

Learn more

Product number: 273487

Consultation

Appointments

Our consultants will be happy to help you if you need product advice, a demonstration appointment in the auditorium of your choice or questions about our online shop.

+49 2381 / 9339-71 Contact Form

Accessories

T+A Triax (Carbon) RCA 0.7m

€0.00

Details

Premium Installation

Auditorium T+A PA 3100 HV Vollverstärker mit VU-Meter 279361 - 1

T+A PA 3100 HV V 1.0 Integrated amplifier with VU-Meter

Variants from

€0.00

3+ Variants silver titanium new item

Details

Transparent Cable ULTRA Balanced XLR Interconnect

Variants from

€0.00

8+ Variants new item 1.0 1.5 4.5 2.0 7.5 6.0 3.0

Details

Auditorium T+A Vakuumröhre CV 278 ST für M 40 Endstufe zertifiziert 289110 - 1

T+A Vacuum tube CV278 ST certified for M40 power amplier

€0.00

Details

Transparent Cable Reference Balanced XLR Interconnect

Variants from

€0.00

6+ Variants 1.0 6.0 4.5 3.0 2.0 7.5

Details

Productinformation

Product information PA 2500 R V 1.3 Integrated Amplifier

Productnumber

273487 Twice as high, a higher output power and even more connection options - the PA 2500 R outperforms the PA 2000 R in many disciplines, without being even remotely inferior to its smaller counterpart in terms of sound quality. This cannot be taken for granted, as very powerful amplifiers often lose their fine dynamics and clarity. This is not the case with our PA 2500 R integrated amplifier. It has the identical basic circuit and even identical circuit board layouts as the PA 2000 R. However, it has a heat sink that is twice as large and two of the high-performance power supplies, so that more than 260 watts of continuous power per channel are available on 4-ohm speakers. Even loudspeakers that are extremely phase and impedance critical can easily be controlled. The PA 2500 is even more powerful with the same dynamics and sound culture.

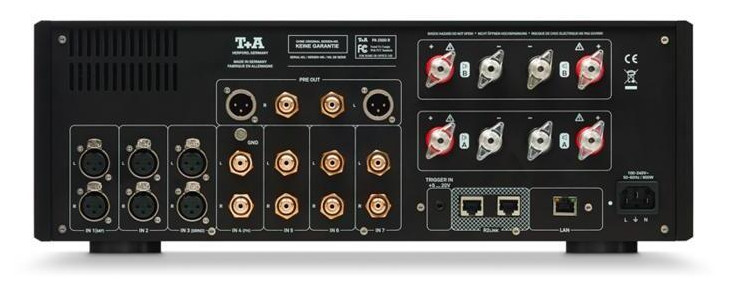

The PA 2500 R has three professional balanced inputs (XLR), one of which can be configured as Surround Pass Through, four high-quality cinch inputs (RCA), a pre-amplifier output in symmetrical (XLR) and asymmetrical design (RCA) and two pairs of speaker outputs with heavy-duty connection terminals made of non-magnetic pure brass and rhodium-plated contact surfaces. The connection socket for headphones is on the front.

Prepress
Frequency response + 0 / -3dB	0.5 Hz-300 kHz
External / noise voltage ratios	105 / 109dB
Harmonic distortion / intermodulation	<0.001% / <0.001%
Channel separation	> 90dB
Loudness	Can be switched off, adjustable to loudspeaker efficiency
Tone control	Can be switched off, channel-separated Bass -6. + 8dB Heights -6. + 8dB
Input sensitivity nominal
High level (RCA)	4 × 250mV. 4 Veff / 20 kOhm
Balanced (XLR)	3 × 500mV. 8 Veff / 5 kOhm
Phono-MM (optional *)	1-5mV, 16 capacities
Phono-MC (optional *)	60-1000µV, 16 impedances
* Phonomodul replaces a high level input
Outputs
headphone	50 ohms
PRE out RCA	Nom 1Veff, Max 9.5Veff, 75Ohm
PRE out XLR	Nom 1.45Veff, Max 19.6Veff, 75Ohm
Power amplifier
Nominal power per channel	at 8 ohms 140 watts 280 watts at 4 ohms at 2 ohms 560 watts
Frequency response + 0 / -3dB	1Hz-150kHz
Slew rate	60 V / µs
Damping factor	> 65
Distortion factor	<0.02%
Sieving	120000µF
More information
Control interface	R2 link
remote control	FM2000
Mains connection	Automatic mains voltage switching, 100-120V, 200-240V, 50-60Hz Max. 2000 watts
Standby	<0.5W
Additional equipment	Trigger input + 5V.20V via adapter plug for remote switch-on Input 3 (symmetrical) or 5 (asymmetrical) configurable as Surround Pass Through
Dimensions (H × W × D)	16.5 × 46 × 405cm
Weight	14.5kg
Executions	Silver anodized aluminum (43), black anodized aluminum (42), brushed
Technical changes reserved.

Color:	silver
Condition:	New product
Product type:	amplifier

Product number 273487 Twice as high, a higher output power and even more connection options - the PA 2500 R outperforms the PA 2000 R in many disciplines, without being even remotely inferior to its smaller counterpart in terms of sound quality. This cannot be taken for granted, as very powerful amplifiers often lose their fine dynamics and clarity. This is not the case with our PA 2500 R integrated amplifier. It has the identical basic circuit and even identical circuit board layouts as the PA 2000 R. However, it has a heat sink that is twice as large and two of the high-performance power supplies, so that more than 260 watts of continuous power per channel are available on 4-ohm speakers. Even loudspeakers that are extremely phase and impedance critical can easily be controlled. The PA 2500 is even more powerful with the same dynamics and sound culture.
The PA 2500 R has three professional balanced inputs (XLR), one of which can be configured as Surround Pass Through, four high-quality cinch inputs (RCA), a pre-amplifier output in symmetrical (XLR) and asymmetrical design (RCA) and two pairs of speaker outputs with heavy-duty connection terminals made of non-magnetic pure brass and rhodium-plated contact surfaces. The connection socket for headphones is on the front.

Prepress
Frequency response + 0 / -3dB	0.5 Hz-300 kHz
External / noise voltage ratios	105 / 109dB
Harmonic distortion / intermodulation	<0.001% / <0.001%
Channel separation	> 90dB
Loudness	Can be switched off, adjustable to loudspeaker efficiency
Tone control	Can be switched off, channel-separated Bass -6. + 8dB Heights -6. + 8dB
Input sensitivity nominal
High level (RCA)	4 × 250mV. 4 Veff / 20 kOhm
Balanced (XLR)	3 × 500mV. 8 Veff / 5 kOhm
Phono-MM (optional *)	1-5mV, 16 capacities
Phono-MC (optional *)	60-1000µV, 16 impedances
* Phonomodul replaces a high level input
Outputs
headphone	50 ohms
PRE out RCA	Nom 1Veff, Max 9.5Veff, 75Ohm
PRE out XLR	Nom 1.45Veff, Max 19.6Veff, 75Ohm
Power amplifier
Nominal power per channel	at 8 ohms 140 watts 280 watts at 4 ohms at 2 ohms 560 watts
Frequency response + 0 / -3dB	1Hz-150kHz
Slew rate	60 V / µs
Damping factor	> 65
Distortion factor	<0.02%
Sieving	120000µF
More information
Control interface	R2 link
remote control	FM2000
Mains connection	Automatic mains voltage switching, 100-120V, 200-240V, 50-60Hz Max. 2000 watts
Standby	<0.5W
Additional equipment	Trigger input + 5V.20V via adapter plug for remote switch-on Input 3 (symmetrical) or 5 (asymmetrical) configurable as Surround Pass Through
Dimensions (H × W × D)	16.5 × 46 × 405cm
Weight	14.5kg
Executions	Silver anodized aluminum (43), black anodized aluminum (42), brushed
Technical changes reserved.

Mains voltage

If your mains voltage is not 230 volts, please specify the desired voltage for the device in the comment field of your order. We will have the device configured accordingly by the manufacturer.
