The McIntosh MSA5500 Streaming Integrated Amplifier: All-in-One Audio Solution for Music Lovers

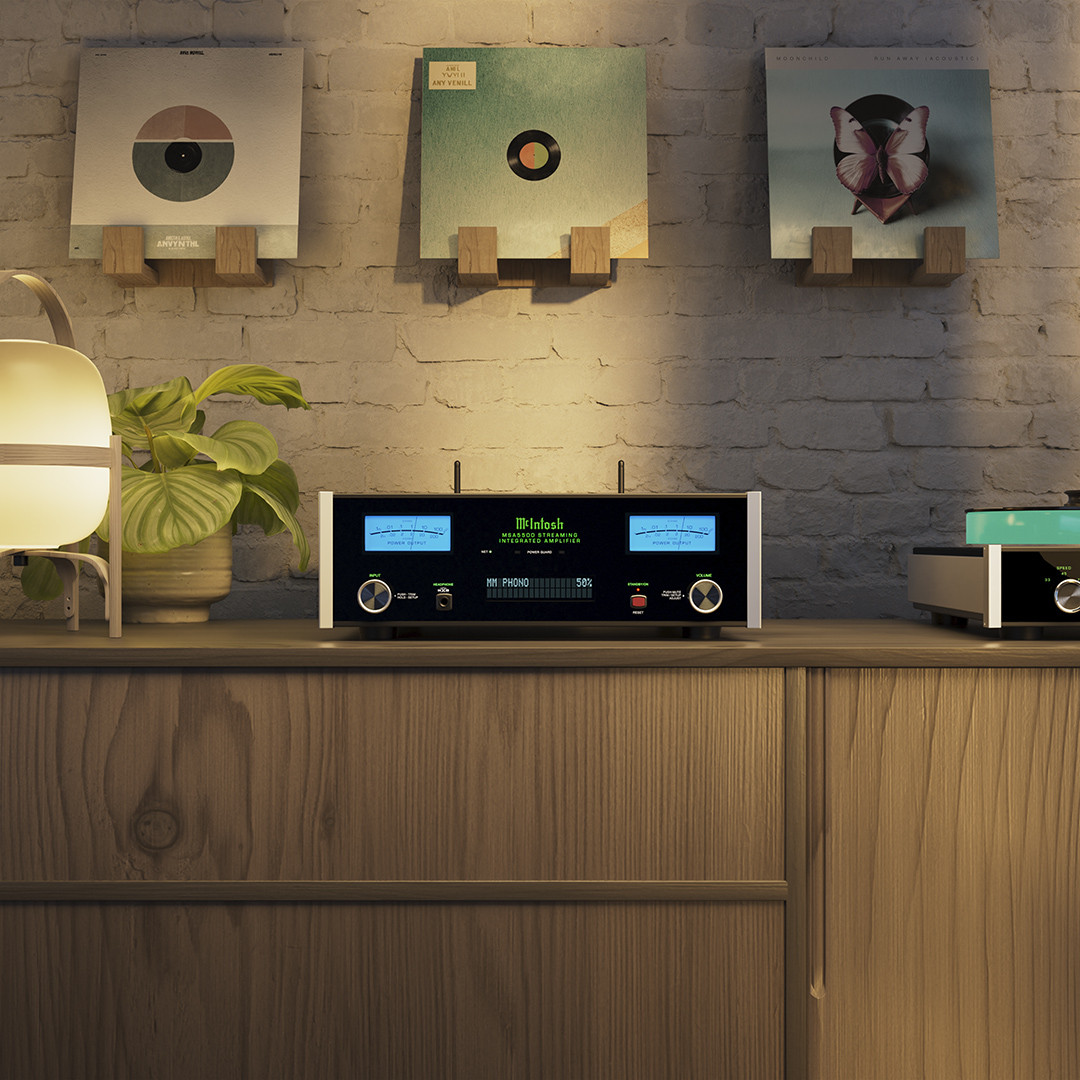

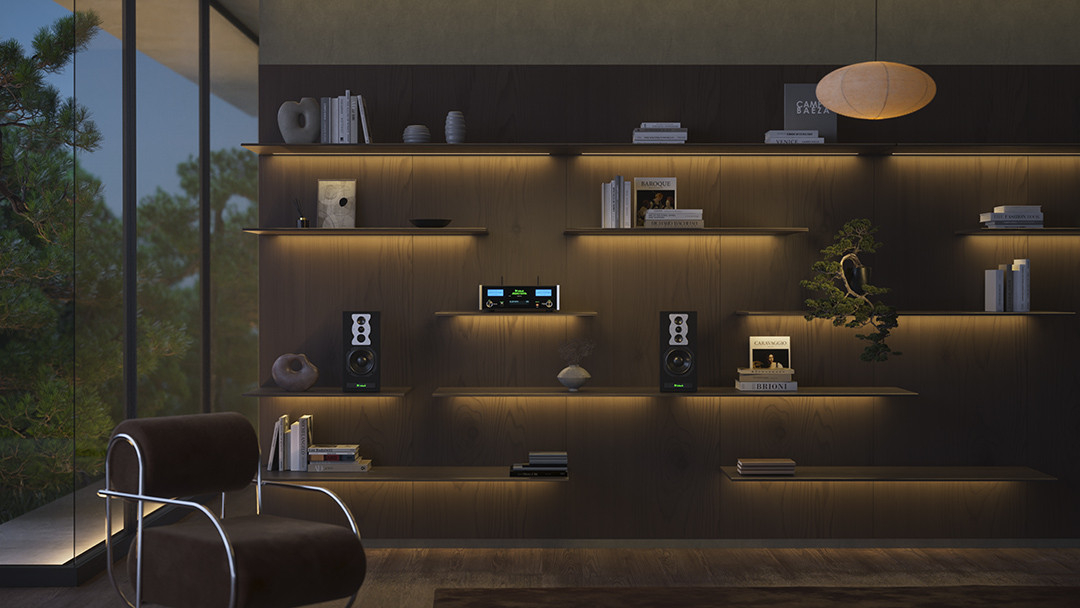

The McIntosh MSA5500 Streaming Integrated Amplifier combines a high-quality music streamer and a powerful amplifier in one compact device. Whether as an entry into the world of high-fidelity audio, as a supplement to your existing system or for use in the office or holiday home - the MSA5500 is versatile and perfectly tailored to modern living spaces. Despite its small size, it delivers outstanding audio quality and is ideal for demanding listeners in confined spaces.
Versatile streaming and easy use
The MSA5500 supports a wide range of leading streaming technologies and platforms such as Apple® AirPlay® , Bluetooth® , Google Cast™ , Spotify® Connect and TIDAL® Connect (including TIDAL HiFi Lossless). No special app is required - you can simply stream your favorite music directly from your smart device. Thanks to Bluetooth 5.0, aptX™ HD and Wi-Fi 6 antennas, wireless connections are stable and reliable. An Ethernet port is also available for wired connections.
Excellent sound quality
The MSA5500 uses an audiophile Quad Balanced 8-channel 32-bit digital-to-analog converter (DAC) that converts digital signals into analog audio data. The result: an incredibly dynamic sound with minimal distortion. Roon Ready support ensures perfect integration with the Roon music player and offers additional access to detailed metadata such as artist biographies, song lyrics and reviews.
Flexibility in connections
With 7 digital and 5 analogue inputs, the MSA5500 is a true connectivity wonder. In addition to a phono input for turntables, it also offers USB, coaxial and optical inputs for high-resolution digital audio. Thanks to the HDMI ARC input, you can connect your TV and enjoy TV sound in unmatched quality, while a subwoofer output enables additional depth.
Powerful amplification
The integrated power amplifier of the MSA5500 delivers 100 watts per channel to 8-ohm speakers or 160 watts to 4-ohm speakers . The iconic blue watt meters display the power in real time. Technological features such as Power Guard® , Sentry Monitor™ and Monogrammed Heatsinks™ protect the device from overload and ensure longevity and reliability.
An investment in the future
The MSA5500 is future-proof: If your power requirements increase, the internal amplifier can be supplemented by an external one, while the streaming and preamplifier section continues to be used. This means that the device adapts to your changing needs and remains a long-lasting partner in your audio world.
Iconic McIntosh design

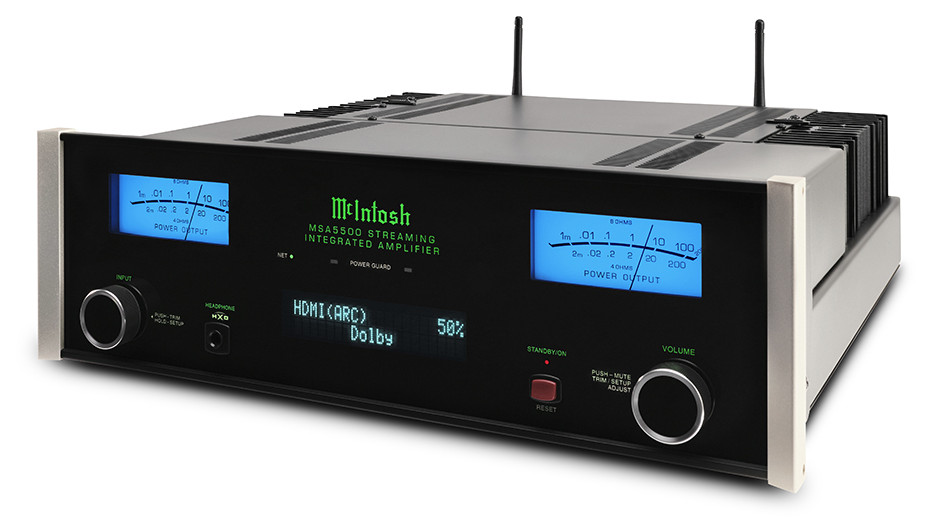

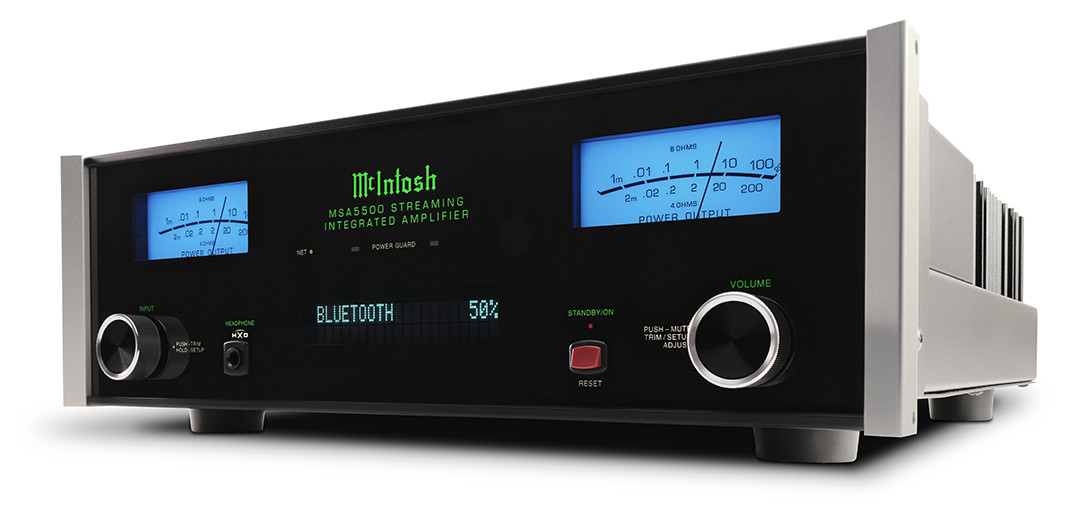

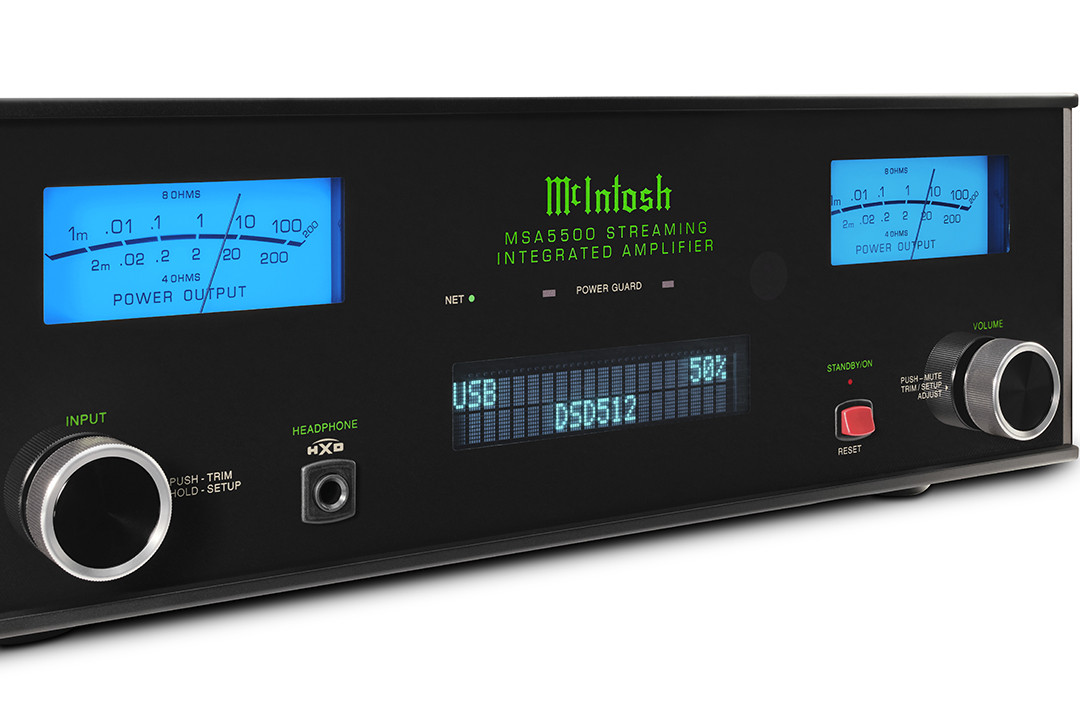

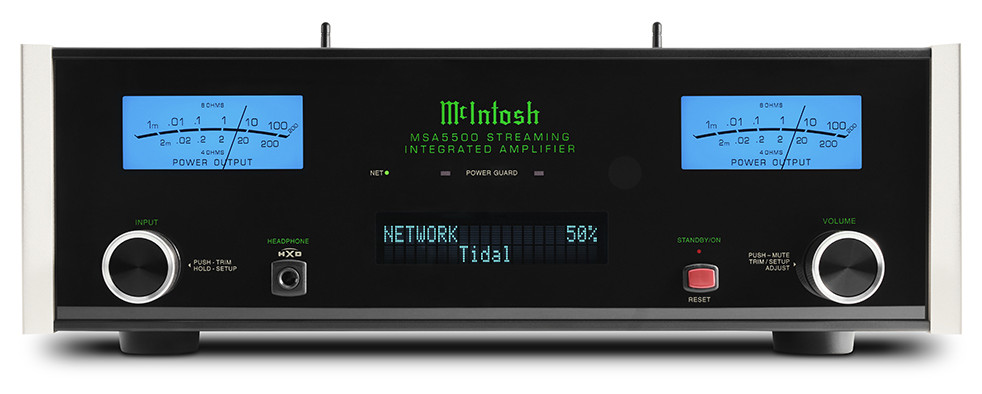

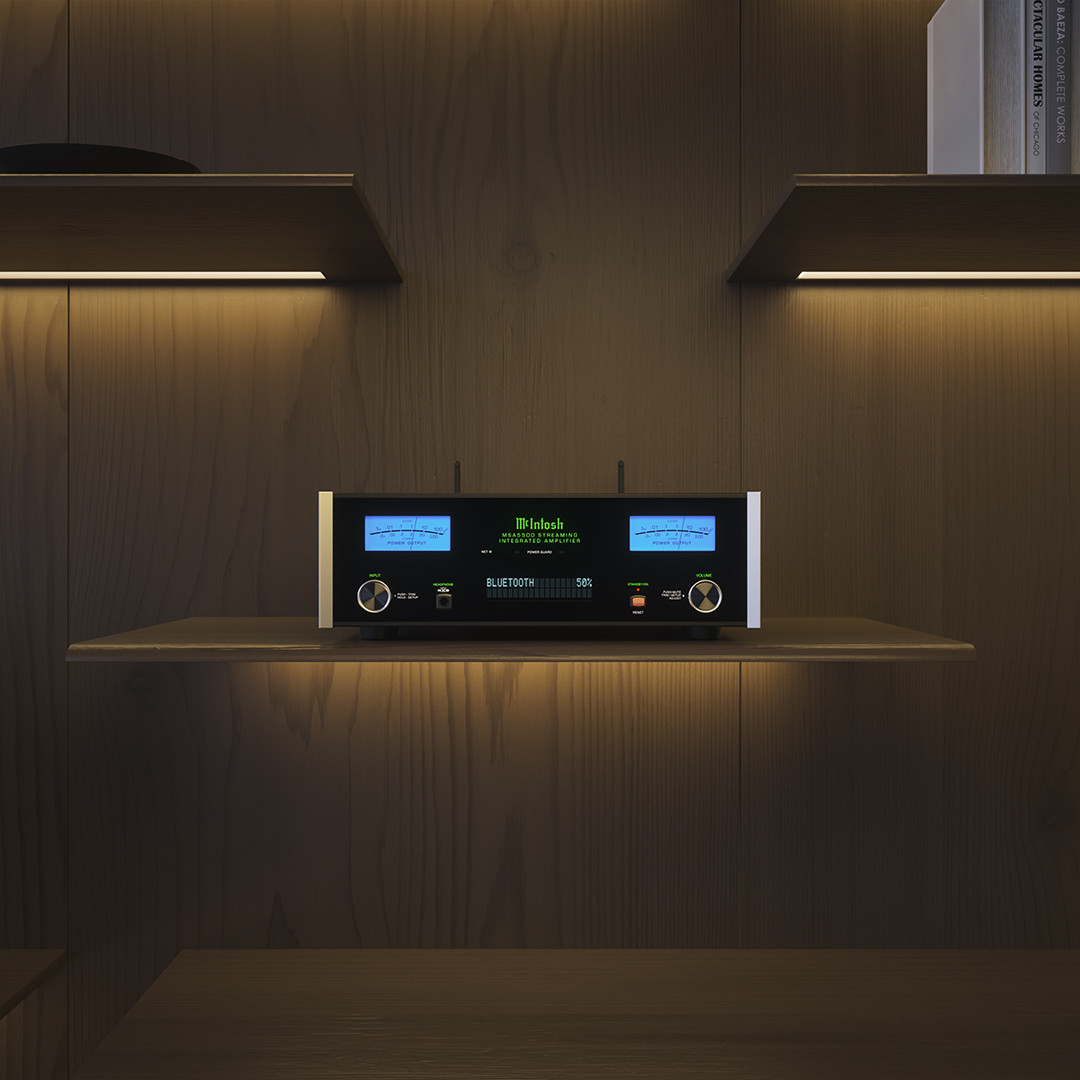

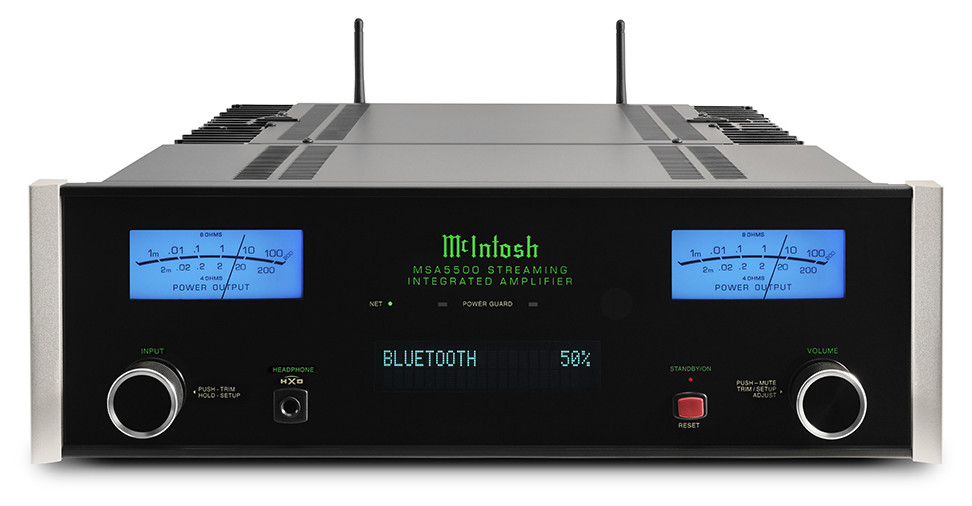

The MSA5500's elegant design combines classic McIntosh features such as blue watt meters, a black glass front panel and illuminated logos with modern audio technology. Contact your McIntosh dealer to discover the full potential of your audio experience.
Technical data
Electronic Specifications
- Power (FTC) : 100 W
- Performance per channel :
- 100 W at 8 Ohm
- 160 W at 4 Ohm
- Channels : 2
- Power range : 20 Hz to 20 kHz
- Total Harmonic Distortion (THD) : 0.005%
- Dynamic headroom : 1.8 dB
- Frequency response :
- +0, -0.5 dB: 20 Hz to 20 kHz
- +0, -3 dB: 10 Hz to 100 kHz
- Input sensitivity :
- Phono (MM): 2.5 mV
- High level (balanced/unbalanced): 0.5 V / 0.25 V
- Power amplifier input: 1 V
- Signal-to-noise ratio :
- Phono (MM): 82 dB
- high level: 95 dB
- power amplifier input: 110 dB
- Input impedance :
- Balanced/Unbalanced: 20 kOhm
- Damping factor :
- 8 Ohm: >200
- 4 Ohm: >100
- Maximum output voltage (Symmetrical/Unsymmetrical) : 8 V unbalanced
connections

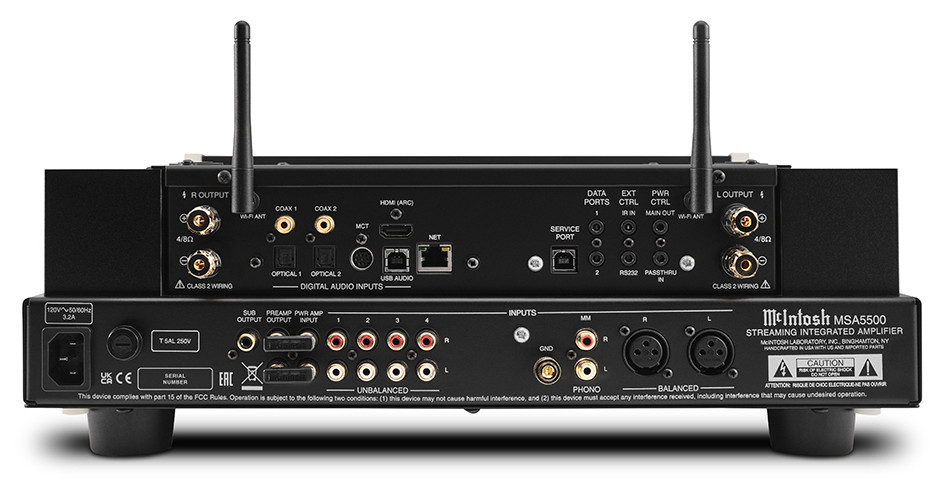

- Inputs :
- Symmetrical: 1
- Unbalanced: 4
- Phono (MM): 1 (fixed load)
- Digital Coaxial: 2
- Digital Optical: 2
- Digital MCT: 1
- Digital USB: 1
- HDMI (ARC): 1
- Outputs :
- Asymmetric Variable: 1
- Subwoofer: 1
- Headphones: 1/4' with Headphone Crossfeed Director (HXD®)
- Additional functions :
- Home Theater PassThru: Yes
- Service port: 1
- Power Control Output: 1 Main
- Data ports (rear): 2
- IR sensor input (rear): Yes
Digital Audio Specifications
- DAC Type : 8-Channel, 32-Bit/384kHz PCM/DSD, Quad Balanced
- Max. sampling rates :
- Coaxial and Optical: 24-bit, 44.1 kHz to 192 kHz
- USB: 32-bit, 44.1 kHz to 384 kHz (PCM); DSD64, DSD128, DSD256; DXD352.8kHz, DXD384kHz
- MCT: 16-bit/44.1kHz (CD); DSD64 (SACD)
steering
- Tone control : Bass and Treble
- Bypass and input assignment : Yes
- RS232 control input : Yes
- Input level adjustment : Yes
General Specifications
- Technology : Transistor (Solid State)
- Output type : Direct coupled
- Power meter : Yes
- Chassis : Dual-layer, black painted steel
- Cooling : McIntosh Monogrammed Heatsinks™
- Power consumption :
- 100 V to 240 V, 50/60 Hz, depending on voltage 1.6 to 3.7 A
- Standby power : <0.25 watts
dimensions and weight
- Dimensions (W x H x D) :
- 44.45 cm x 15.2 cm (20.6 cm with vertical antenna) x 47.6 cm (56.5 cm with horizontal antenna)
- Weight :
- Device: 17.2 kg
| Condition: | new item |
|---|---|
| Product type: | amplifier |
Safety Information
Product-specific safety instructions can be found in the operating manual.
