Marantz AMP 10 16 channel power amplifier
€7,300.00
per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.

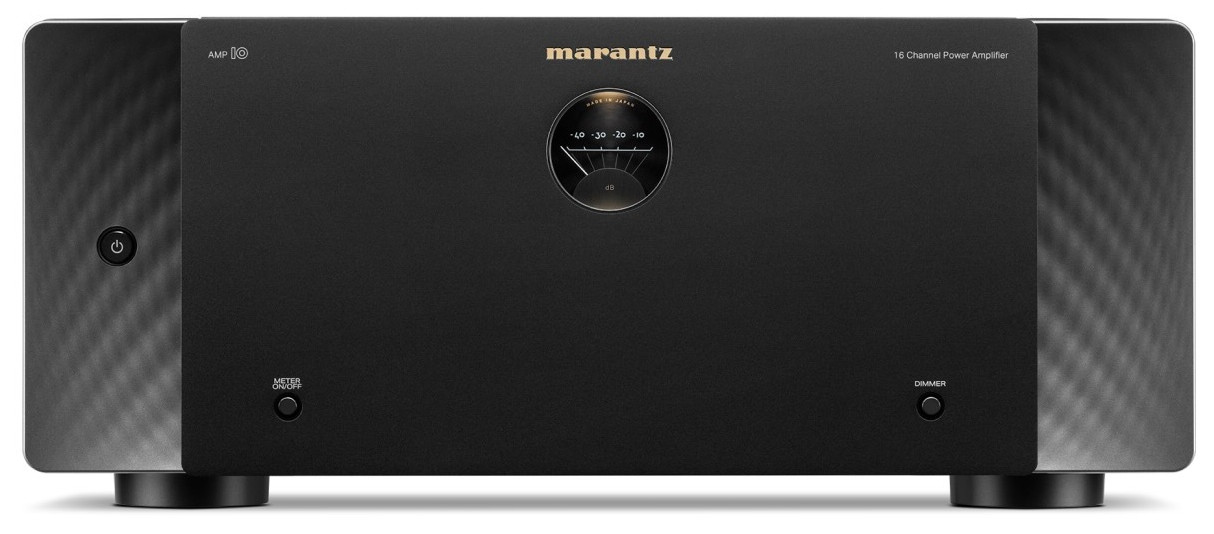

Marantz AMP 10
REFERENCE-CLASS 16-CHANNEL AMPLIFIER WITH 200 WATTS PER CHANNEL
Reference-class 16-channel amplifier with 200 watts per channel. Premium combination with the AV 10 possible. Featuring Marantz HDAM, current feedback amplification and balanced line-level input.
Technical specifications
Multiroom / Installer
Control via IP / RS-232C / web browser / app:
No / Yes / No / No
IR Flasher Input: Yes
Marantz Remote Bus: Yes
DC Trigger Input/Output: 1 / 1
FL Display: Level Meter
Firmware Update by Network / USB / RS232C:
No no no
Auto Power Off: Yes
Inputs/Outputs
Main Amplifier in Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker terminal SPKT-1+
Number of speaker terminals: 16
Bi-Amp Drive /BTL Drive: Yes / Yes
Level meters: Yes
Chassis: Copper Plated
Number of power stages: 16
Power Output (8 ohms, 1 kHz, 0.05% 2ch Drive) Normal / BTL: 200W / 400W
Power Output (4 ohms, 1 kHz, 0.7% 2ch Drive) Normal: 400W
Power Output (8 ohms, 1 kHz, 0.7% 5ch Drive) Normal: 200W
70% Guarantee(Normal/Bi-Amp/BTL): Yes
100% Guarantee(Normal/Bi-Amp): Yes
General data
Metal front: Yes
Preprogrammed / Learning / LCD Display:
No no no
Power consumption in W: 500
Idle power consumption (ECO on / off) in watts:
No / 140W
Standby power consumption in W: 0.2
maximum dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm:
No x No x No ( No x No x No )
443x489x189
Weight in kg: 19.8
Scope of delivery: Main unit, quick start guide, AC cord,
Amp control cable, remote control cable, SP terminal wrench
| Color: | black |
|---|---|
| Condition: | New goods |
| Device depth mm: | 189 |
| Device height mm: | 489 |
| Device width mm: | 443 |
| Product type: | Power amplifier |
Manufacturer
D&M Holdings Inc. 2-1 Nisshin-cho
Kawasaki-ku
Kawasaki-shi
Kanagawa 210-8569
Japan
EU Representative
D&M Europe BV
Oude Stadsgracht 1
Eindhoven ES 5611 DD
The Netherlands
logistics-eu@soundunited.com
Safety Information
Product-specific safety instructions can be found in the operating manual.
