Marantz LINK 10n Network-Audioplayer

The LINK 10n from Marantz combines decades of knowledge and experience in audio technology to create an outstanding product that sets new standards in both technical and visual terms. From the three-layer aluminum chassis with copper coating to the high-quality multilayer circuit boards to the innovative HDAM modules and the isolated chambers - every detail of this digital player is designed for the highest sound quality and precision. The result is a device that offers incomparable sound reproduction and is characterized by its excellent workmanship.

High-quality materials for optimal sound quality

The LINK 10n's three-layer aluminum chassis is not only aesthetically pleasing, but also serves to reduce electromagnetic interference. The copper plating provides even greater shielding, which means the sound remains pure and unadulterated. The use of multilayer boards is another key element in the LINK 10n's design. These boards minimize signal loss and ensure that the audio signal is routed through the circuitry in the most direct way possible, enabling greater sound fidelity.

Additionally, the LINK 10n's internal chambers are isolated, preventing interference between the various circuits. These design decisions contribute significantly to the device's top-notch sound quality and ensure that the listener can enjoy every detail of the music unadulterated.

HDAM modules: The heart of the LINK 10n

A particularly notable feature of the LINK 10n is the HDAM (Hyper Dynamic Amplifier Module), which is known for its extremely fast and precise signal processing. These modules are Marantz's own development and play a crucial role in achieving the unit's exceptionally high sound quality. They are designed to minimize noise and distortion, resulting in clearer and more detailed music reproduction.

Marantz made no compromises in developing the LINK 10n and selected every element with the utmost care. This is particularly evident in the HDAM modules, which were personally selected by the Marantz Soundmaster after extensive listening tests. These tests guarantee that the components used meet the brand's high standards and enable sound reproduction that is second to none.

user-friendliness and modern design

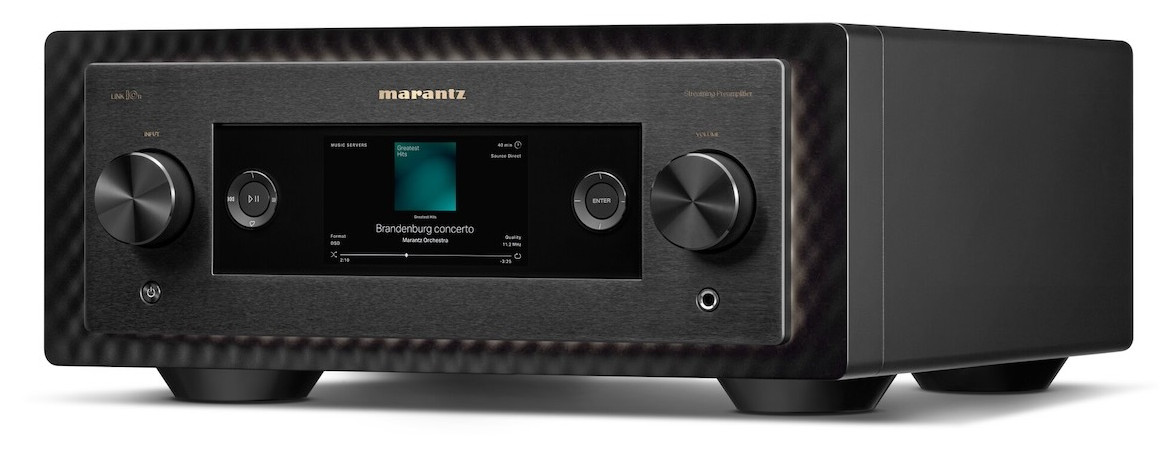

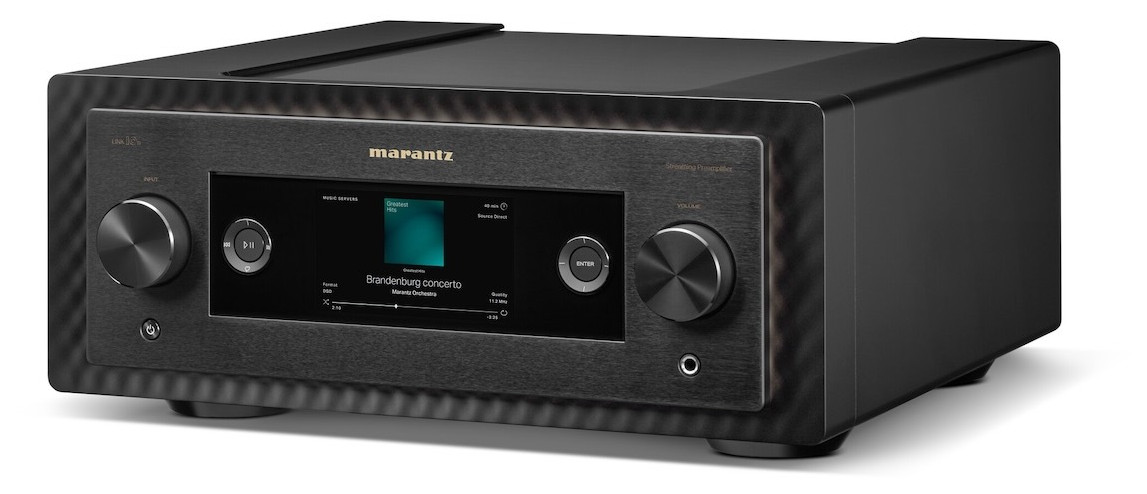

The LINK 10n is not only technically up to date, but also offers extremely user-friendly operation. The large, high-resolution color display clearly shows all relevant information such as source, title and playback mode. The intuitively arranged arrow buttons allow users to effortlessly navigate through the menus and select the desired input.

A special feature is the integration of HEOS, which can be accessed directly on the display via a QR code. With this technology, users can conveniently control the LINK 10n via app and access music from various streaming services. The combination of the latest technology and ease of use makes the LINK 10n a versatile and convenient device for everyday use.

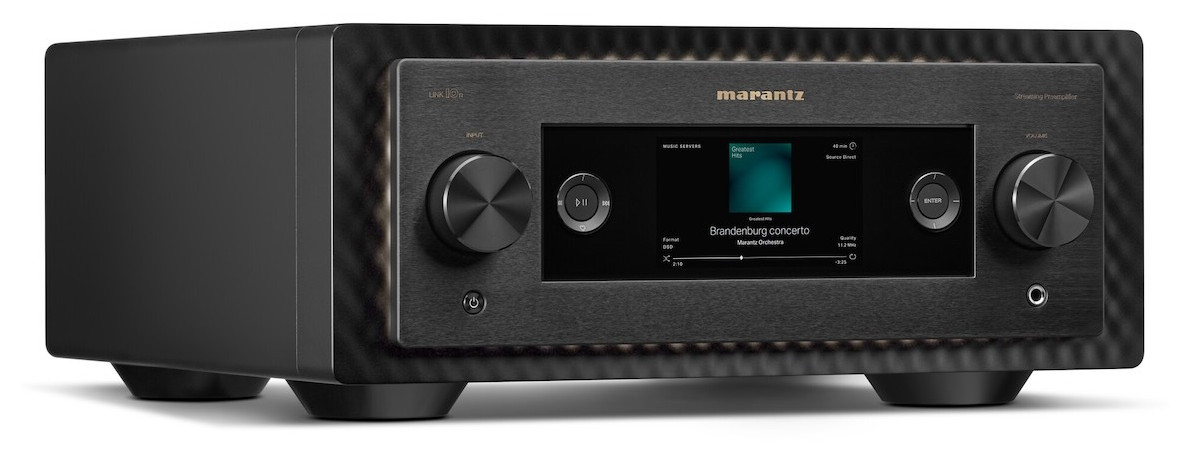

The design of the LINK 10n combines classic Marantz elements with modern accents. The brushed aluminum control panel and the solid aluminum front panel give the device a timeless elegance that fits harmoniously into any high-quality hi-fi system. The controls milled from solid metal and the structured surfaces underline the high quality of workmanship and ensure a pleasant operating experience.

Versatile connection options for maximum flexibility

The LINK 10n can be used not only as a digital player, but also as a complete preamplifier front end for a high-end audio system. With unbalanced and balanced analog inputs as well as digital inputs, the device offers numerous connection options to integrate into almost any audio system. This makes the LINK 10n an extremely flexible device that works excellently with both modern digital and classic analog sources.

Of particular note is the integrated Marantz Premium Phono EQ stage, which supports both MM and MC cartridges, making the LINK 10n an ideal choice for vinyl lovers who want to enjoy their record collection in the highest quality. This phono EQ stage is another example of the attention to detail that has gone into the development of this product and shows that Marantz considers the needs of both modern and traditional music lovers.

Innovative audio experience for the highest demands

With the LINK 10n, Marantz is setting a new standard in the world of high-end audio technology. The combination of advanced technology, high-quality materials and excellent workmanship means that the LINK 10n offers unrivalled sound reproduction that will impress even the most demanding listeners. Whether as a digital player or as a complete preamplifier front end, the LINK 10n meets all the requirements of a modern audio system and offers an incomparable sound experience that brings music to life in all its facets.

TECHNICAL DATA

General Specifications

• Dimensions of the device (W × H × D in mm): 440 × 192 × 472 (with antenna)
• Case size (W × H × D in mm): 440 × 192 × 422
• Net weight: 33.3 kg
• Packaging dimensions (W × H × D in mm): 600 × 379 × 540
• Gross weight of the package: 38.7 g
• Box design: Solid color (material color: brown, print: black)
• Front panel color: Black / Marantz Champagne
• Front panel material: aluminum
• Back panel material: aluminum
• Front panel lighting: Yes (all sides, dimmer)
• Side cover: aluminum (thickness: max. 15.8 mm)
• Ventilation holes on the top: None
• Interior lighting: No
• Back panel: Three-layer copper-coated plate
• Chassis material: Copper-plated
• Base plate / lower layer: copper-coated
• Volume control: Solid aluminum (ball bearing construction)
• Input selector switch: Solid aluminum (ball bearing construction)
• Feet: Solid aluminum with copper

audio specifications

• Frequency response: PCM 2Hz–50kHz (-3 dB)
• Total Harmonic Distortion (THD): PCM 0.0004%
• Signal-to-noise ratio (S/N): PCM 0.0004%
• Dynamic range: PCM 0.0004%
• Line output level:
  • UNBALANCED: 2.0 Vrms
  • SYMMETRICAL: 4.0 Vrms
• Headphone output level: 130 mW / 32 Ohm
• Frequency response (analog input): 5 Hz–100 kHz (+0 dB / -3 dB)
• Total harmonic distortion (analog input): 0.001% (20 Hz–20 kHz)
• Signal-to-noise ratio (S/N):
  • PHONO (MC): 76 dB
  • PHONO (MM): 88 dB
  • SYMMETRICAL: 122 dB
  • LINE: 122 dB
• Phono input sensitivity:
  • MM: 8 mV
  • MC: 80 mV
• Phono input impedance:
  • MC Low: 32 Ohm
  • MC Mid: 100 Ohm
  • MC High: 390 Ohm
  • MM: 39 kOhm
• Power consumption:
  • Normal operation: 7 W
  • Standby: Less than 0.3 W
  • Network control (Bluetooth, Ethernet, Wi-Fi, USB): Less than 2 W

audio functions

• Output circuit: New HDAM
• Power transformer: Toroidal
• Preamplifier circuit: New HDAM High Grade, fully balanced
• Volume control: Electric (MUSES 72323), variable gain
• Tone control:
  • Bass: Yes
  • Heights: Yes
  • Mitten: No
  • Balance: Yes
• Tone control type: Electric
• Headphone amplifier circuit: Discrete
• Headphone gain adjustment: Yes (Low / Mid / High)
• Automatic shutdown of the headphone output: Yes (when in use)
• DAC circuit: New MMM conversion
• Dither: MMM stream (Dither 1, 2, Off)
• Noise shaper: MMM stream (Balanced, Natural, Dynamic Music, Dynamic Voice)
• Digital filter: MMM stream (filter 1, 2 selectable)
• Jitter reducer: Yes
• DAC Master Clock Design (without network playback support): Yes
• Asynchronous mode (USB-B input): Yes
• Isolator (USB-B input): Yes (Full Isolation System Duo)

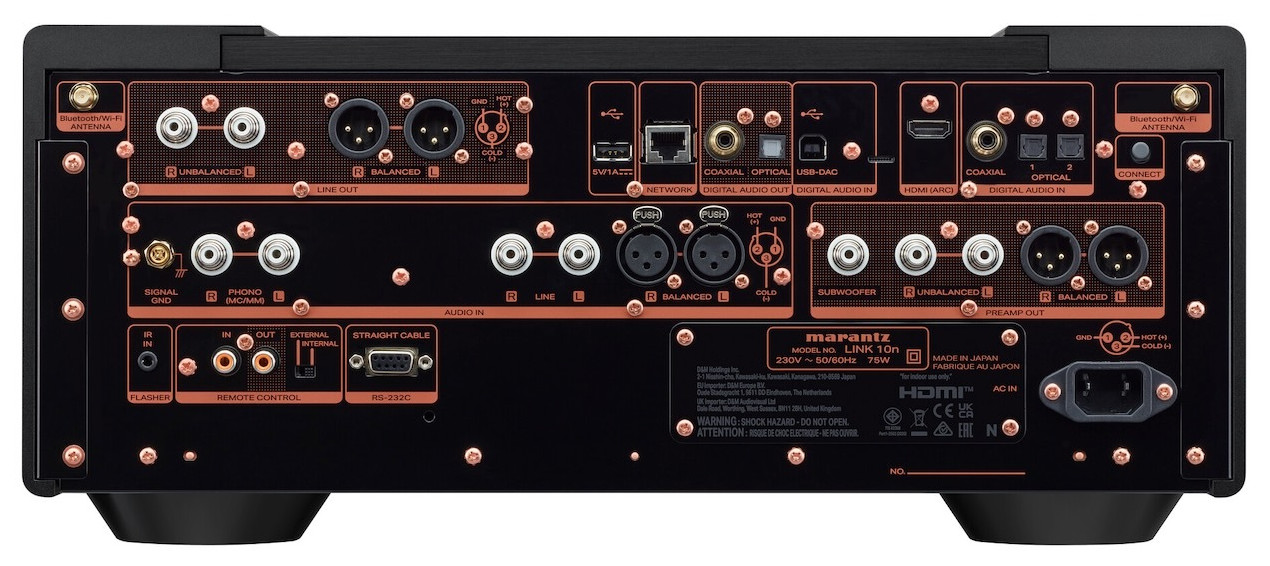

• Fixed analog output (RCA): Cinch × 1 (thick, nickel-plated, independent terminals)
• Pre-/variable analog output (RCA): Cinch × 1 (thick, nickel-plated, independent terminals)
• Fixed balanced XLR output: Yes (1 pair)
• Pre-/variable balanced XLR output: Yes (1 pair)
• RCA input: Cinch × 1 (thick, nickel-plated, independent terminals)
• Balanced XLR input: Yes (1 pair)
• Phono input: Yes (MM / MC)
  • Phono EQ: Marantz Musical Premium Phono EQ with selectable MC impedance (3 positions)
  • Phono Terminals: Thick, nickel-plated, independent terminals
• Optical input / output (max. support): 2 / 1 (switchable), 44.1 kHz–192 kHz
• Coaxial input / output (max. support): 1 / 1 (switchable), 44.1 kHz–192 kHz
• HDMI input / output: No / Yes (ARC)
• Headphone output: Yes (F6.3 × 1)
• Subwoofer output: Yes, with adjustable low-pass filter

user-friendliness

• App control: HEOS app
• Remote control: Universal remote control of the 10 series
• Front display: New HD TFT color display
• Display languages:
  • N: English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian
  • U: English, French, Spanish
  • K: Simplified Chinese, English
  • F: Japanese, English
• Dimmer for front display: 20 levels
• Level display: No
• Volume display: 0–100 / 0.5 step (default) to infinity / -99.5 dB to 0 dB (switchable)
• voice assistants:
  • Apple Siri
  • Google Assistant
• Control via app (network player): No
• Control of external amplifiers via app: Yes
• Synchronized power on and input selection (Remote Control Bus): Yes
• HDMI CEC support: Yes
• Remote control: RC004PMND
• Batteries for remote control: Yes (AAA × 2)
• Power cable: Yes (Audio grade for all regions: OFC)
• Additional accessories:
  • Stereo RCA cable × 1
  • remote control connection cable × 1
  • CoA card
