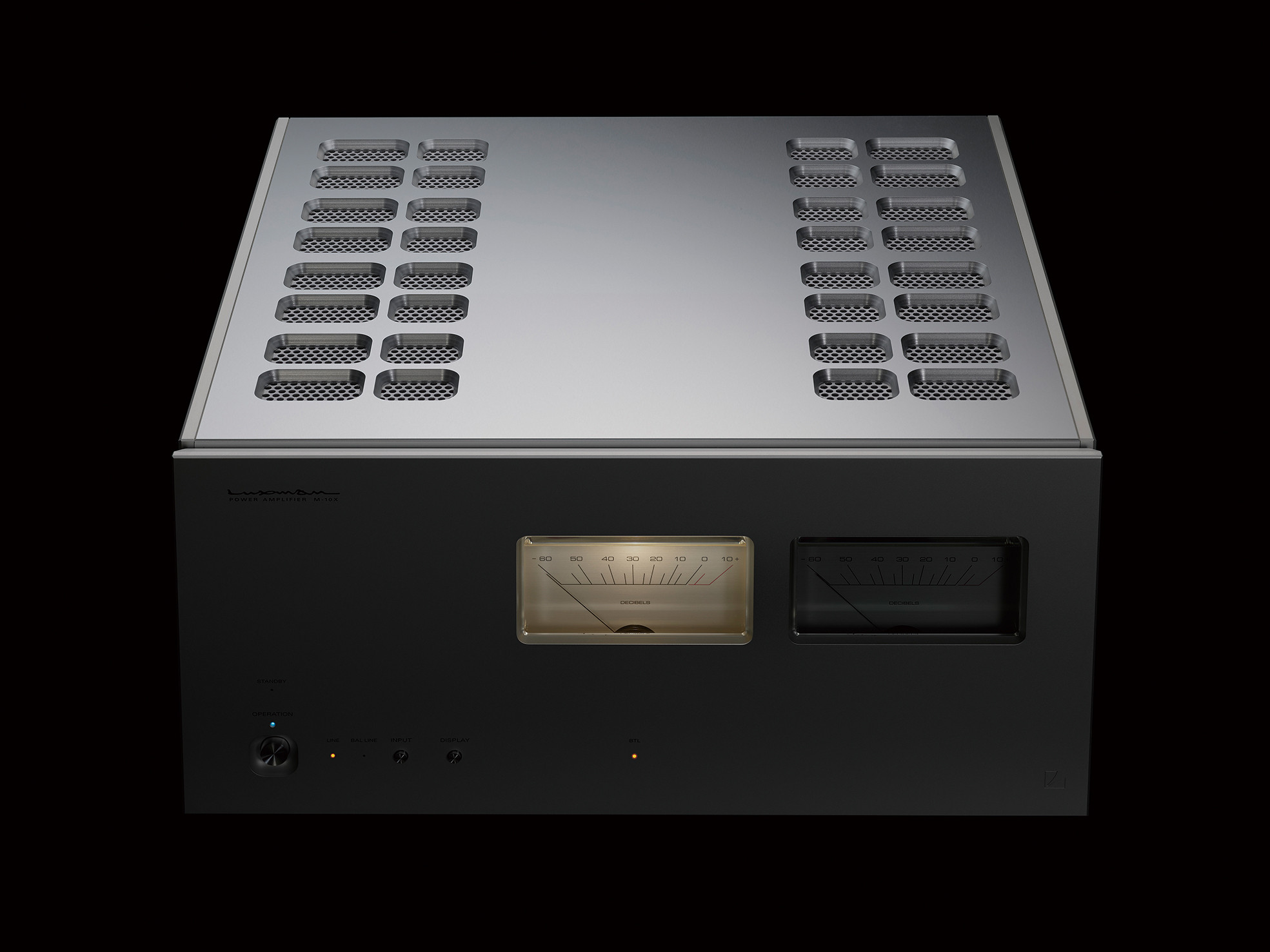

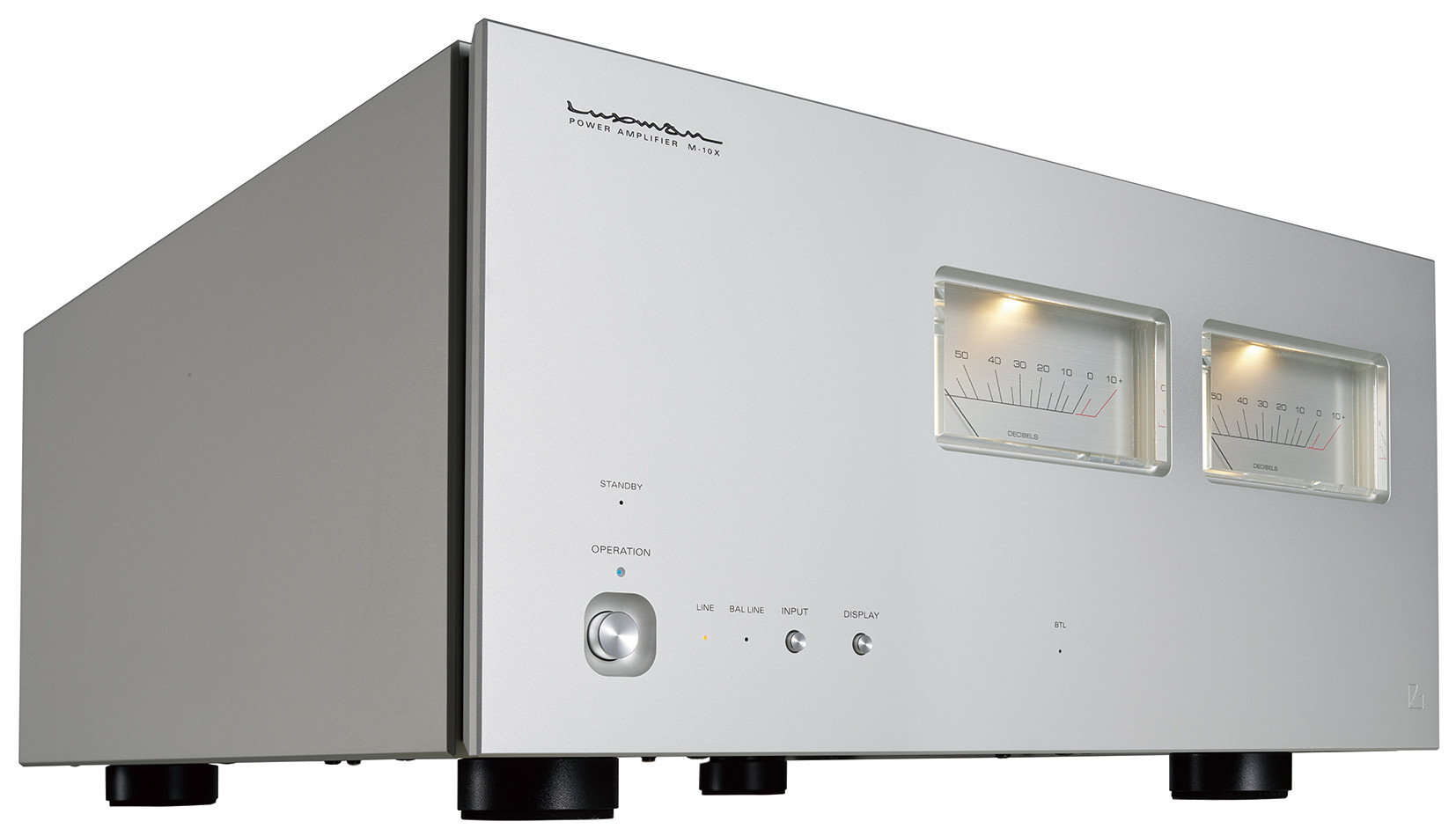

Luxman M-10X stereo power amplifier

Luxman M-10X

Flagship power amplifier for ultimate sound fidelity

With the M-10X, LUXMAN presents its latest generation of stereo power amplifiers – a flagship model that embodies over 100 years of audio engineering expertise. The unit combines enormous power reserves, outstanding linearity, and precise sound reproduction with an elegant, modern design. Developed for uncompromising music lovers, the M-10X sets new standards for amplifier performance and musicality.

Superior amplifier technology – LIFES 1.0

The new LUXMAN Integrated Feedback Engine System (LIFES) Version 1.0 is based on the proven ODNF technology but has been completely redesigned. LIFES drastically reduces distortion without restoring the original input signal, resulting in remarkably natural sound quality that lends transparency, detail, and vitality to the music.

The amplifier architecture allows maximum output power of up to 1200 W per channel (1 Ω) in stereo mode and 2400 W (2 Ω) in mono mode, while Class A operation down to 12 W guarantees exceptional sonic density. The combination of Darlington stages, quadruple parallel push-pull circuits, and newly developed constant-voltage circuits ensures high stability under any load.

Performance features & sound quality

• Extreme power reserves for any loudspeaker load
• Superior linearity and minimal distortion
• Class-A operation for the finest sound details up to 12W

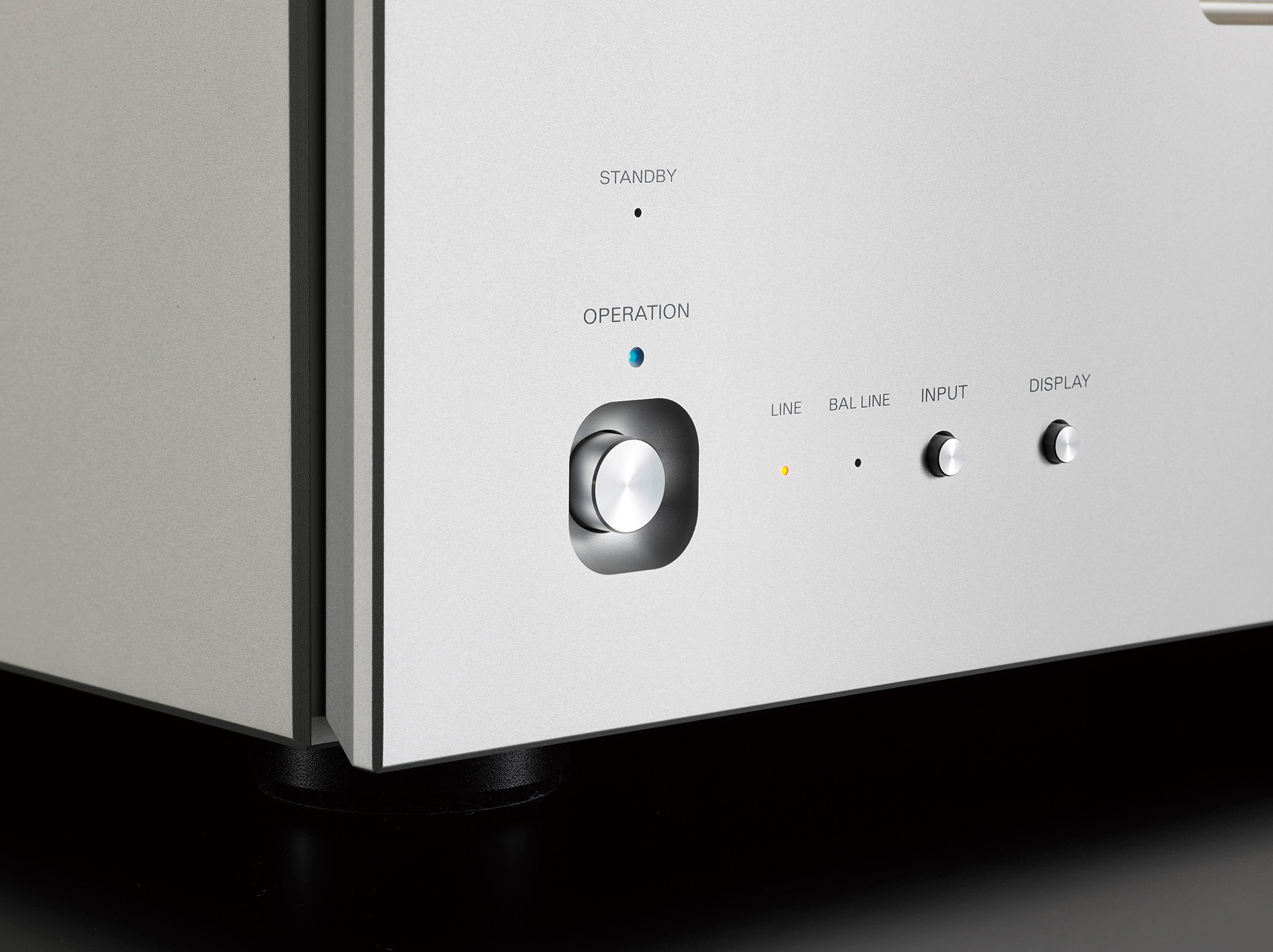

• Analog level meters for left and right channels, visible from the listening position.
• High-voltage EL-type power transformer: 1250 VA (max. 2500 VA)
• Custom-designed original components: capacitors, resistors and connectors for maximum sound fidelity
• Vibration-damping cast iron feet and a loopless chassis minimize external and internal interference.

Design & Ease of Use

• Elegant case with a blasted white surface
• Three-dimensional chassis design with beveled edges for presence and stability
• Analog level indicators with LED backlighting
• High-quality RCA and AC connectors for optimal signal transmission
• Loopless design to avoid ground loops and magnetic field interference

Technical data

• Rated power: 150?W + 150?W (8?O stereo), 300?W + 300?W (4?O stereo), 600?W (8?O mono)
• Maximum power: 1200?W + 1200?W (1?O stereo), 2400?W (2?O mono)
• Input sensitivity: 1.24V / 150W (8Ω)
• Gain: 29 dB
• Input impedance: unbalanced 51 kΩ / balanced 28 kΩ
• Frequency response: 20 Hz – 20 kHz (+0, -0.1 dB), 1 Hz – 130 kHz (+0, -3 dB)
• Total harmonic distortion: 0.003% (1 kHz / 8 Ω), 0.04% (20 Hz – 20 kHz / 8 Ω)
• Signal-to-noise ratio: 117 dB (IHF-A)
• Amplifier circuit: LIFES 1.0
• Output configuration: 3-stage Darlington, 4 parallel push-pull circuits
• Damping factor: 600
• Power consumption: 540W, 290W (without signal), 1W (standby)
• Dimensions: 440 × 224 × 488 mm (W × H × D) including front knob 2 mm and rear connection 38 mm
• Weight: 48.4 kg
• Accessories: Trigger cable (3.5 mm monaural, modular), power cable

The M-10X is the ultimate power amplifier for discerning audiophiles seeking powerful performance, crystal-clear detail, and vibrant musicality. With its innovative LIFES technology, massively dimensioned power supplies, and uncompromising build quality, it delivers every nuance of music with authentic depth and dynamics – a true benchmark for the next generation of amplifiers.
