Pro-Ject Pre Box RS Digital Preamp with D/A Converter

Pro-Ject Pre Box RS Digital

Preamplifier with D/A converter

• Asynchronous USB up to 384kHz/32bit
• DSD to DSD128 via USB
• master clock connector
• Nine digital inputs including I 2 S
• An analog input
• Integrated headphone amplifier
• Texas Instruments PCM1792 D/A Converter

Universal and future-proof

The Pro-Ject Pre Box RS Digital combines all the properties of the Pro-Ject DAC Box RS with an extremely linear preamplifier, which has a switchable output stage in transistor and tube technology. It is a high-end preamplifier, universal D/A converter and flexible headphone amplifier in one.

As in all digital products of its top class, Pro-Ject uses the PCM1792 DACs from Texas Instruments, which are used here twice in dual differential mode. As a unique feature, you can alternatively switch to a 384kHz/32-bit converter chip (also from Texas Instruments). The integrated high-quality headphone amplifier allows you to switch the output impedance for optimal matching to any headphone.

The Pre Box Digital RS offers three-dimensional spatial imaging, great fine dynamic reproduction and excellent resolution with the option of connecting a variety of digital and one analogue source. Especially in combination with the Pro-Ject CD Box RS drive, the Pre Box RS Digital can show its qualities, as an I²S interface (via RJ45) ensures maximum jitter-free playback. The separate high-end power supply unit Power Box RS Uni 1-way enables even better sound quality as an upgrade option.

Note : Bitstream formats such as Dolby Digital ® or DTS ® are not supported.

Technology for good sound

• Solid aluminum housing protects against electromagnetic interference and vibrations (microphony)
• Asynchronous USB transmission up to 384kHz/32Bit
• DSD64 and DSD128 playback from computer via USB input
• Two filters: frequency response and phase optimized
• Two output stages: Class A transistor or tube output stage (2x double triode E88CC / 6922)
• Two D/A converters: Texas Instruments PCM1792 24Bit/192kHz (two converter chips in differential mode) and Texas Instruments PCM5102 384/32 for 384kHz/32bit resolution
• Discrete headphone amplifier in Class A technology. Switchable impedance (5, 20 and 50 ohms) to adapt to the headphones used.
• Master clock connection and I 2 S digital input for almost jitter-free signal transmission with the CD Box RS
• Hard gold plated XLR and RCA/Cinch sockets
• External power supply (included)

Features

• Brushed aluminum housing in silver or black
• Remote controllable
• Compact, space-saving design

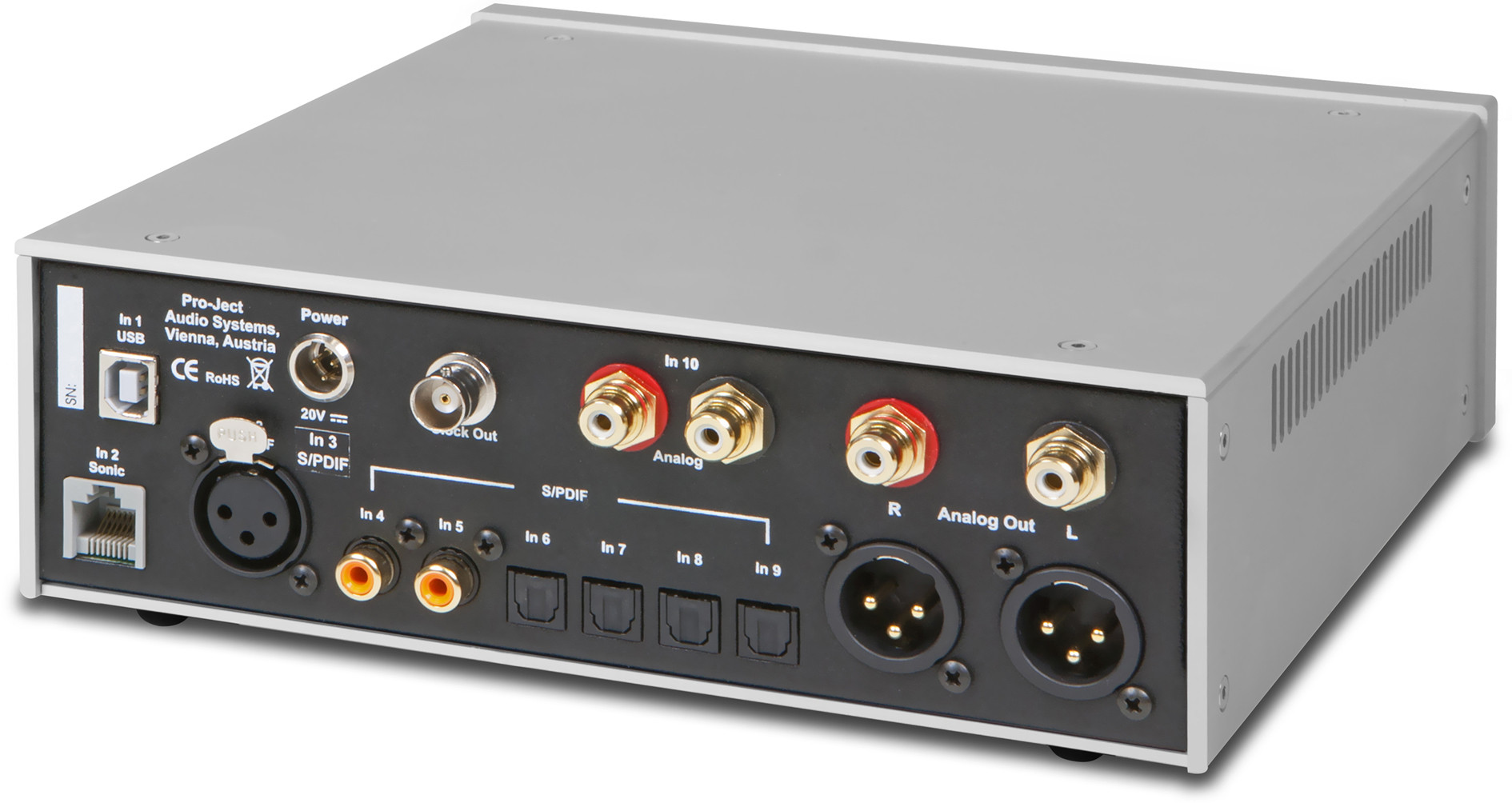

• One analogue input, nine digital inputs: 2x coaxial (S/PDIF), 1x balanced (AES/EBU), 4x optical (TOSlink ® ), 1x I 2 S (RJ45 socket) and 1x USB for connecting a computer to the hi-fi system .
• Balanced and unbalanced preamp output
• Suitable for the operating systems Windows XP ® , Windows Vista ® , Windows 7 ® , Windows 8 ® and Mac OS
• To operate with a Windows ® operating system, the USB driver included on the CD must be installed. Mac OS operating systems do not require an additional driver.

option

• The optional Power Box RS Uni 1-way linear power supply unit (for one device) or the optional 4-way Power Box RS Uni 4-way linear power supply unit (for up to four devices) available

Technical specifications

• Dimensions W x H x D: 206 x 72 x 210mm, with sockets
• Weight: 1,950g (without power supply)
