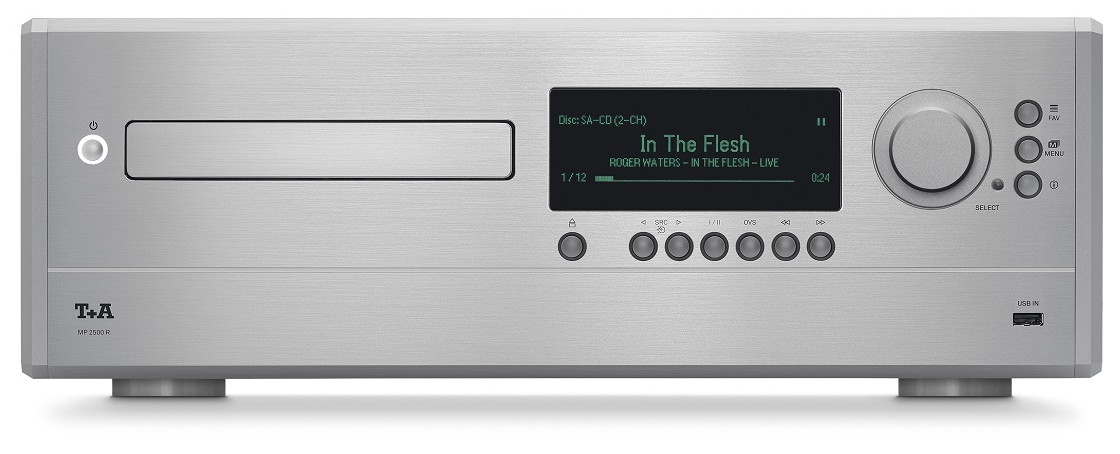

T+A MP 2500 R G3 Mulit Source SACD-Player

The MP 2500 R G3 is one of the most complex and sophisticated multi-source players ever developed by T+A. It was specially designed for the uncompromising playback of high-resolution audio data and offers a state-of-the-art SACD drive as well as numerous other functions for the ultimate high-end music experience.

SACD drive and connection options

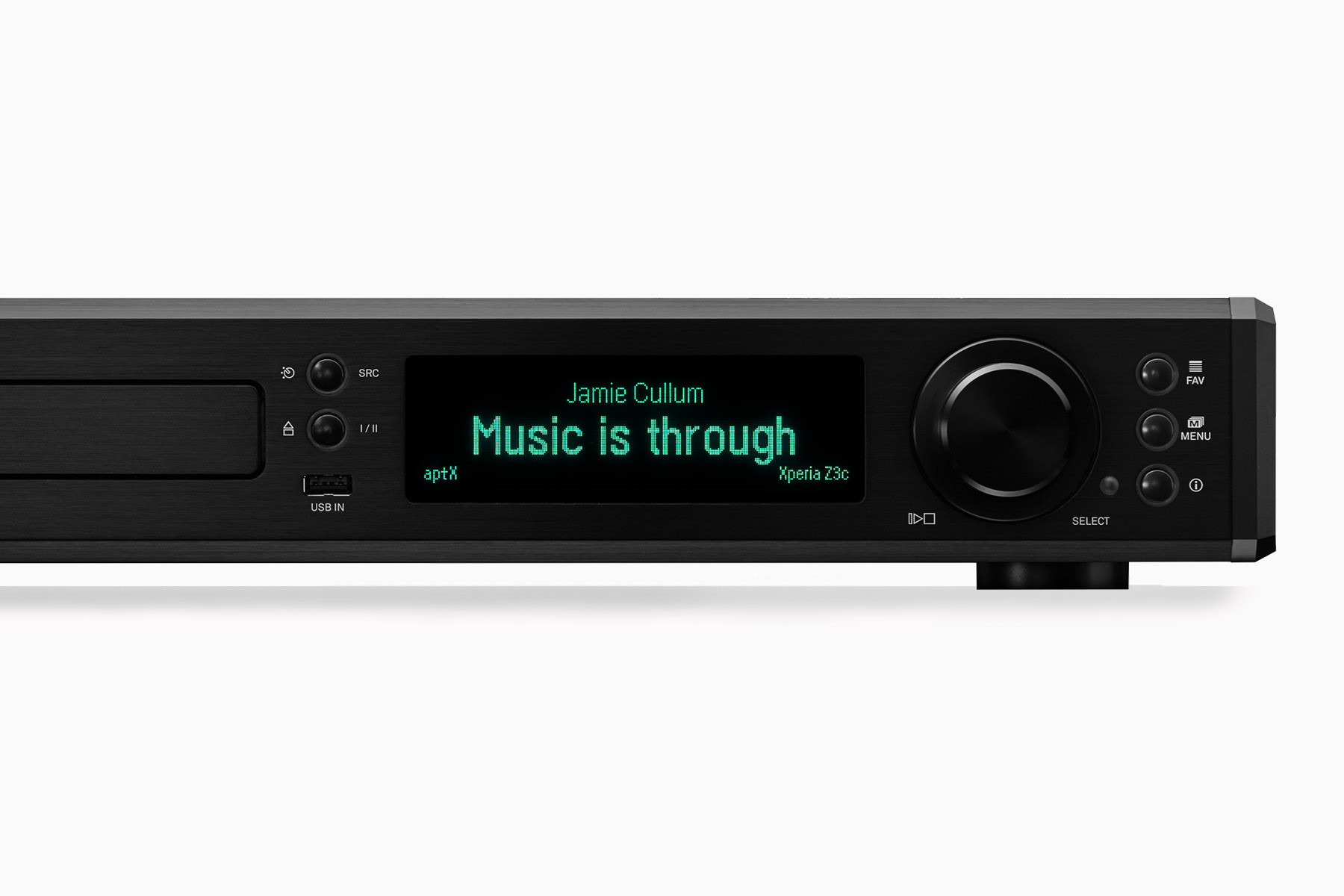

Compared to its predecessor, the MP 2000 R, the MP 2500 R G3 has an advanced SACD drive that enables more precise playback. In addition, it integrates numerous SP-DIF connections, an FM/FM-HD and DAB+ tuner, Internet radio and modern streaming services such as Apple AirPlay 2 and Connect functions.

Path Separation Technology

A special feature of the MP 2500 R G3 is the Path Separation Technology, which ensures separate signal processing for different audio formats. Dedicated converters for PCM and DSD signals enable precise processing of this data, resulting in optimal sound quality.

T+A Digital-Analog Separation System (DAS)

To minimize interference, T+A has developed the Digital-Analog Separation System (DAS), which ensures complete separation of the digital and analog units. This contributes to interference-free signal transmission via balanced (XLR) or unbalanced (RCA) outputs.

User comfort and control options

The MP 2500 R G3 offers a high level of user convenience thanks to the SRC 2 system remote control and the T+A MusicNavigator G3 app. This enables intuitive control of the player and connected amplifiers from the T+A R series.

Audiophile streaming architecture (ASA G3)

The third generation Audiophile Streaming Architecture maximizes the sound potential and supports a wide range of sources, including Wi-Fi, LAN and USB Master Mode sources. It enables access to streaming services and playback of DSD files directly from the network.

De-jitter master clocking system

The two-stage de-jitter master clocking system eliminates the smallest interference signals (jitter) and ensures that the audio data is passed on to the digital-to-analog converter in perfect sync. This significantly improves the sound quality.

Powerful PCM and DSD converter

For PCM data, the MP 2500 R G3 uses a quadruple converter with a 56-bit signal processor and four 32-bit converter chips per channel. The True 1-bit converter handles native processing of DSD data, ensuring faithful reproduction.

High-end SACD drive

Despite the declining market share of SACDs and CDs, T+A remains true to the technology and offers a high-quality SACD drive with short access times, excellent error correction and interference-free playback. This enables CDs and SACDs to be played in the highest quality.

TECHNICAL DATA

SACD player

• Drive: Precision linear drive, double laser system (SACD: 650 nm, CD: 785 nm)
• Formats: SACD Stereo, CD/DA, CD-R, CD-RW, SACD/CD Text
• Frequency response and dynamics: SACD: 2 Hz - 44 kHz / 110 dB, CD: 2 Hz - 20 kHz / 100 dB

Streaming Client

• Formats: MP3, AAC, OGG-Vorbis, FLAC, WAV, AIFF, ALAC, DFF, DSF, PCM 32 - 384 kHz, 16/24 Bit, MP3 up to 320 kBit, DSD64, DSD128, DSD256
• Supported media servers: UPnP 1.1, UPnP AV, DLNA compatible servers, Microsoft Windows Media Connect Server
• Supported streaming services: airable radio, Podcasts, Tidal, Qobuz, Deezer, Amazon Music HD, highresaudio, Tidal connect, Spotify connect, Apple AirPlay2, Audirvana, Roon
• Features: Auto Network Config., Internet Radio Station Database (automatic updates)

LAN connections

• Fast Ethernet 10/100Base-T

Connections WLAN

• IEEE 802.11a/b/g/n/ac/ax 2x2 MIMO
• 2.412 – 2.472 GHz (13 channels)
• 5.180-5.825 GHz (24 channels)

Connections USB

• 2 x USB 2.0 master mode

Digital Connecting Board

• Digital inputs S/P-DIF: 1x Coax, 2x BNC, 2x TOS-Link
• USB Device Mode: 1x asynchron
• USB Master Mode: 2x for USB mass storage

FM tuner

• Reception standard: FM, FM-HD
• Frequency range: 87.5 - 108 MHz
• Sensitivity (>65 dBA S/N): 1 µV
• Overload resistance: 103 dB uV
• Distortion factor: 0.1%
• Signal-to-noise ratio (mono/stereo): 72/62 dB
• Stereo channel separation: 50 dB
• Deemphasis (Europe/US version): 50/75 µs
• Data services: RDS/RDBS, station name (PS), program type (PTY), radio text (RT)

DAB tuner

• Reception standard: DAB, DAB+
• Frequency range: 168 - 240 MHz
• Sensitivity (BER = 10 – 4): 2.0 µV
• Overload resistance: 103 dB uV

Bluetooth

• Bluetooth: A2DP (Audio), AVRCP 1.4 (Control), aptX®, MP3, SBC

Connections

• Analogue high level outputs (RCA): 2.5 Veff / 50 Ohm
• Outputs analogue balanced (XLR): 5.0 Veff / 50 Ohm
• Digital outputs: 1x coax, IEC 60958 S/P-DIF (LPCM)

D/A converter

• PCM: Double differential quadruple converter, 4 D/A converters per channel, 32-bit Sigma Delta, 352.8 kSps / 384 kSps
• DSD: T+A True-1Bit DSD D/A converter up to DSD 512 (22 MHz)
• Frequency response:
  • PCM 44.1kSps: 2Hz - 20kHz
  • PCM 48 kSps / DSD 64: 2 Hz – 22 kHz / 2 Hz – 44 kHz
  • PCM 96 kSps / DSD 128: 2 Hz - 40 kHz / 2 Hz - 60 kHz
  • PCM 192 kSps / DSD 256: 2 Hz - 80 kHz / 2 Hz - 80 kHz
  • PCM 384 kSps / DSD 512: 2 Hz – 100 kHz / 2 Hz – 100 kHz
• Analogue filter: Symmetrical, phase-linear Bessel filter 3rd order 100 kHz
• Distortion factor: < 0.001 %
• Signal-to-noise ratio: 116 dB
• Channel separation: 110 dB

Connection/Accessories/Dimensions

• Control interface: R2-Link
• Remote control: SRC 1, T+A MusicNavigator APP
• Mains connection: 100-240 V, 50-60 Hz
• Power consumption max.: 40 watts
• ECO standby: 0.3 watts
• Auto power-off function: Yes (after 90 minutes without audio signal)
• Optional accessories: Power Three HD (Carbon), Power Bar, Audio Quad (Carbon), Audio Triax (Carbon), IP control

Dimensions and weight

• Dimensions (H × W × D): 16.5 × 46 × 40 cm
• Weight: 11.3 kg
• Finishes: Aluminium silver (43), aluminium black (42), brushed
