Luxman D-10X SACD-Player
€16,990.00
per Piece incl. VAT / incl. Shipping
Available in 7 days, delivery time 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.

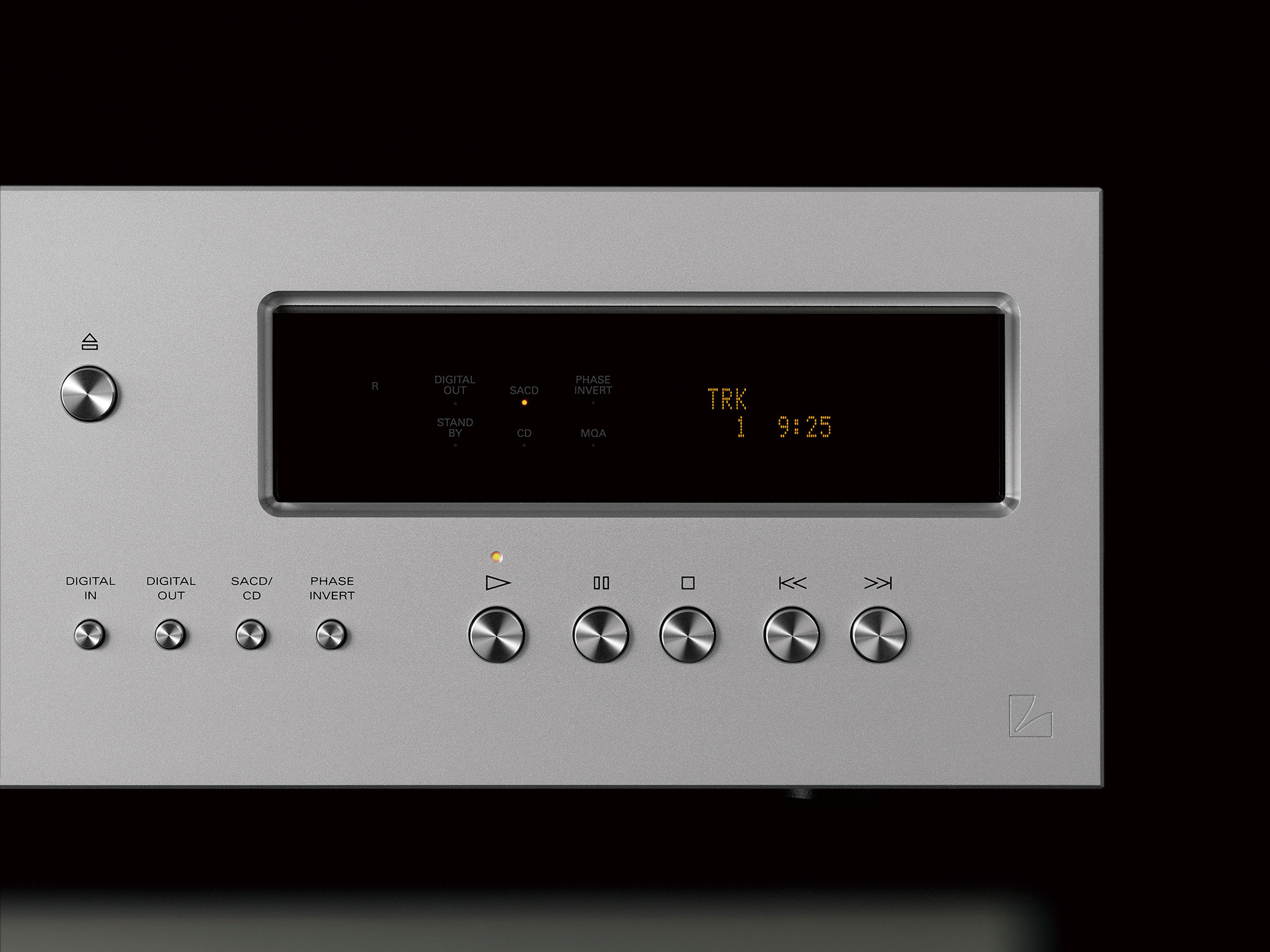

D-10X – State-of-the-art CD / SACD player & D/A converter with DSD and MQA
The Luxman D-10X is a reference CD and SACD player with integrated D/A conversion, meeting the highest demands for precision, resolution, and musicality. Weighing in at 22.4 kg, it is not only a visual but also a sonic giant in the hi-fi sector.
Mechanics and drive
The D-10X utilizes the new LxDTM-i transport mechanism with a highly rigid box and steel plate construction that minimizes vibrations and ensures the highest read accuracy. 8 mm thick aluminum side walls and a 5 mm thick steel plate protect the drive and provide stable, quiet operation. The mechanism is dustproof and sealed for maximum stability and durability.
High-performance DAC and digital signal processing
At its core are two ROHM BD34301EKV "MUS-IC" DAC chips in mono mode, capable of processing PCM up to 768 kHz / 32-bit and DSD up to 22.4 MHz / 1-bit. The D-10X supports full MQA decoding, ensuring accurate playback of both MQA CDs and high-resolution files. A high-precision clock module with extremely low phase noise minimizes jitter and guarantees clean, noise-free signal processing.
Analog output stage
The discrete, fully symmetrical ODNF-u output amplifiers deliver a balanced output voltage of 2.4 V / 300 Ω. Each analog section is dual-mono, ensuring detailed, transparent, and dynamic reproduction.
power supply

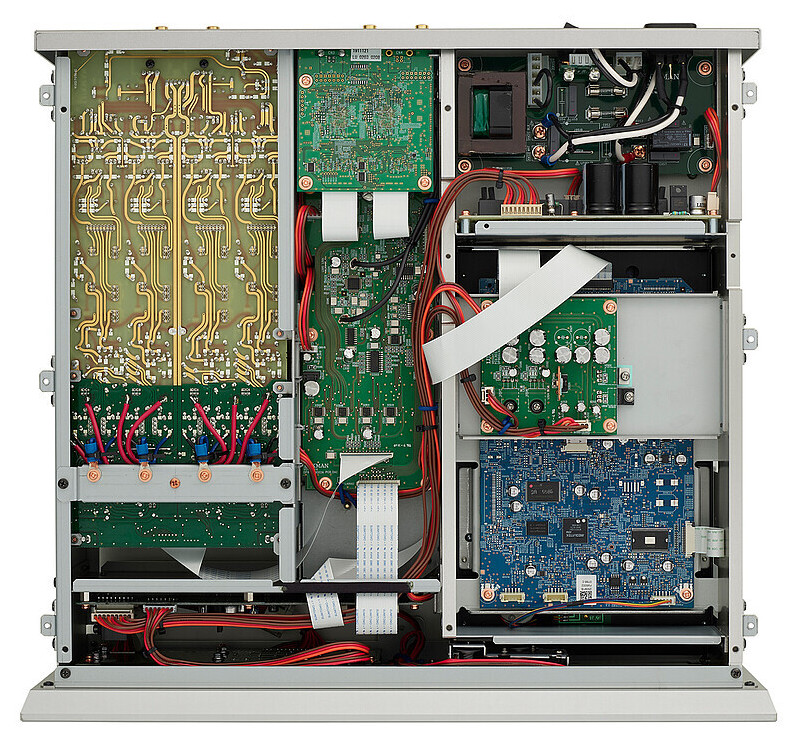

The D-10X features large power transformers with 27% higher capacity compared to previous models, independent voltage regulators for each circuit, and generous filter capacitors. The chassis protects against magnetic fields, grounding issues, and digital noise, ensuring an optimal signal path from disc to output: Read – Convert – Output.

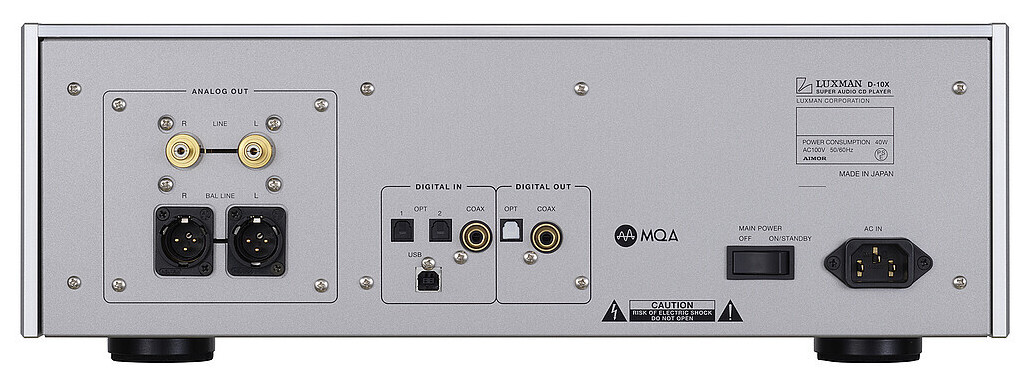

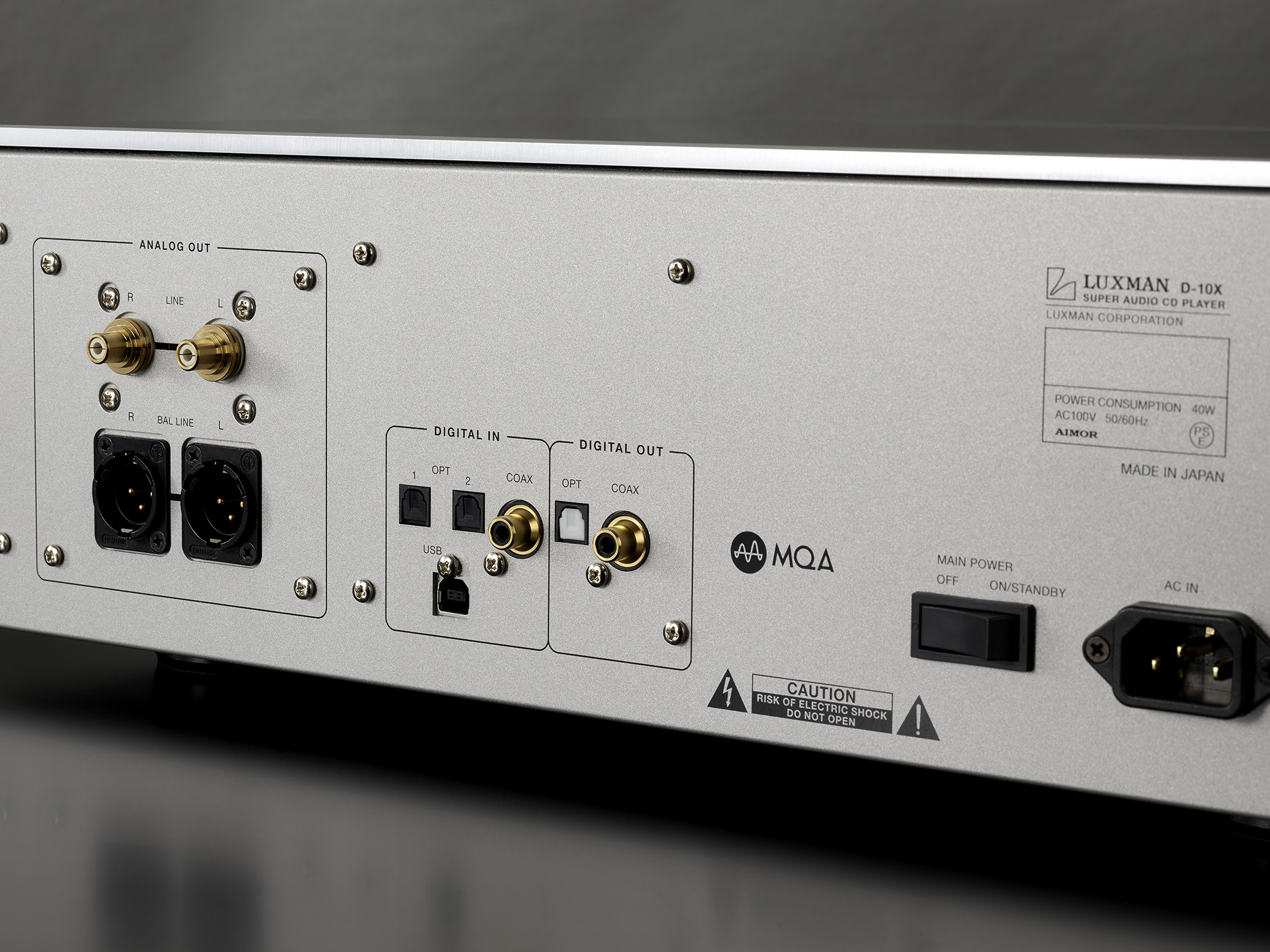

Connections
- Analog outputs: 1 pair of RCA (copper/brass alloy), 1 pair of XLR
- Digital outputs: 1× optical, 1× coaxial
- Digital inputs: 2× optical, 1× coaxial, 1× USB
- USB input: PCM up to 768 kHz / 32 bit, DSD up to 22.4 MHz / 1 bit, MQA compatible
Technical data
- Supported media: CD, SACD
- Supported sampling frequencies:
USB (PCM): 44.1 - 768 kHz (16/24/32 bit)
USB (DSD): 2.8 – 22.4 MHz (1 bit)
COAX / OPT: 44.1 – 192 kHz (16/20/24 bit)
- Frequency response: CD 5 Hz - 20 kHz (-1.0 dB), SACD 5 Hz - 38 kHz (-3 dB), COAX/OPT/USB 5 Hz - 47 kHz (-3 dB)
- Harmonic Distortion (THD): CD 0.0018%, SACD 0.001%, COAX/OPT/USB 0.0015%
- Signal-to-noise ratio (S/N, IHF-A): CD 125 dB, SACD 121 dB, USB 125 dB
- DA converter: 2× ROHM BD34301EKV (mono)
- Analog output voltage / impedance: 2.4 V / 300 Ω balanced, 600 Ω unbalanced, DSD 1.3 V
- Power consumption: 40 W
- Dimensions: not explicitly stated
- Weight: 22.4 kg
| Condition: | New product |
|---|---|
| Product type: | CD player |
Manufacturer
LUXMAN CORPORATION
1-2-1.Shinyokohama
Kouhouku-ku Yokohama-Shi
Kanagawa 222-0033 Japan
EU Representative
IAD GmbH
Johann-Georg-Halske-Straße 11
41352 Korschenbroich
Deutschland
ce-rep@iad-gmbh.de
Safety Information
Product-specific safety instructions can be found in the operating manual.
