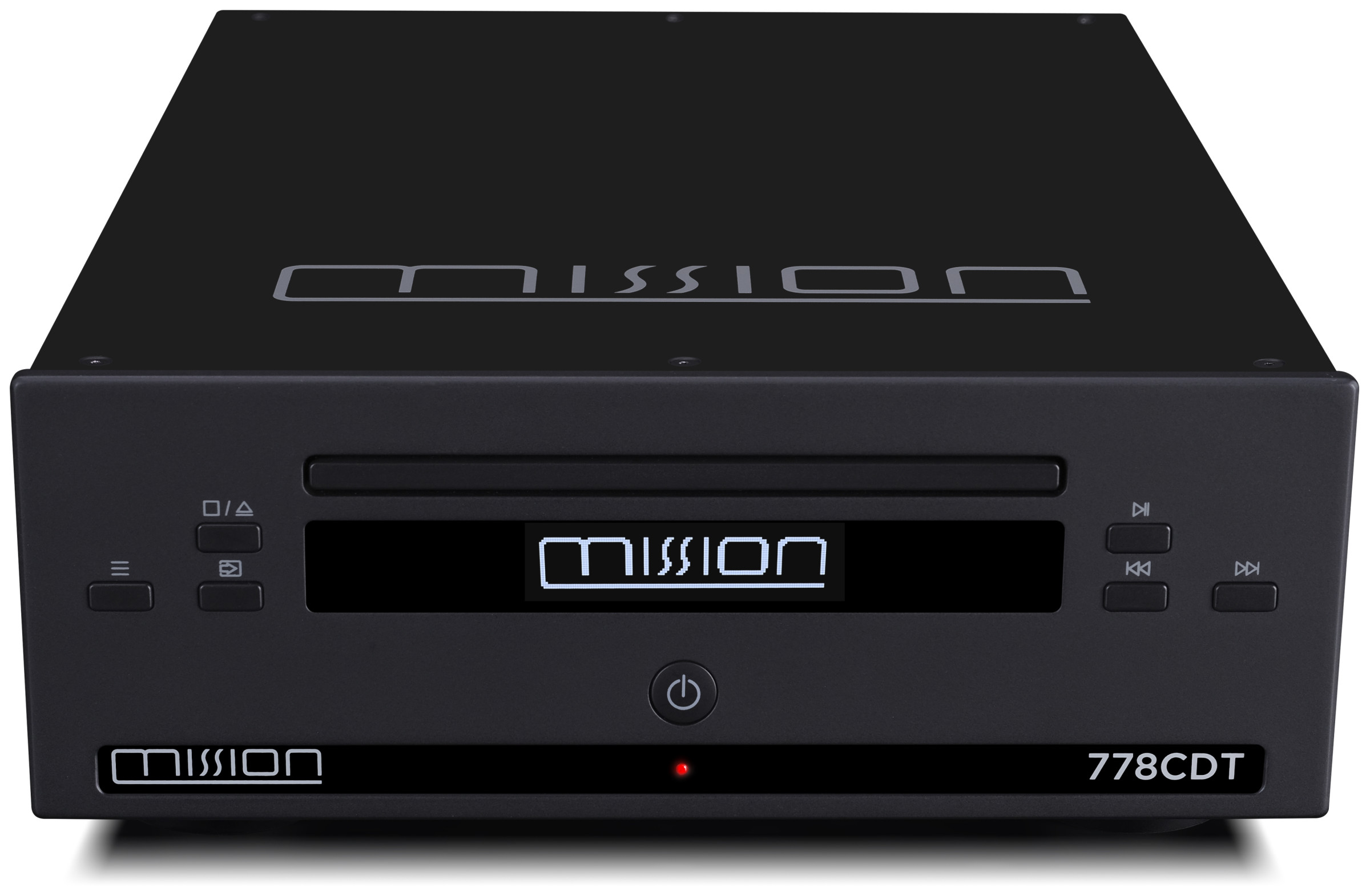

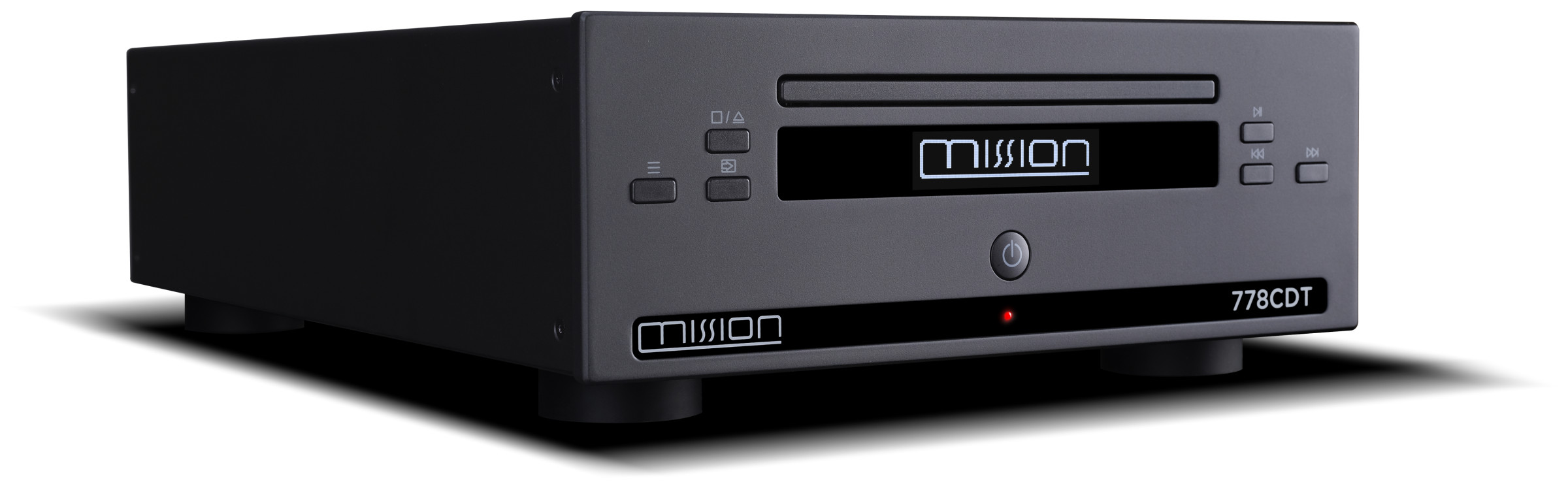

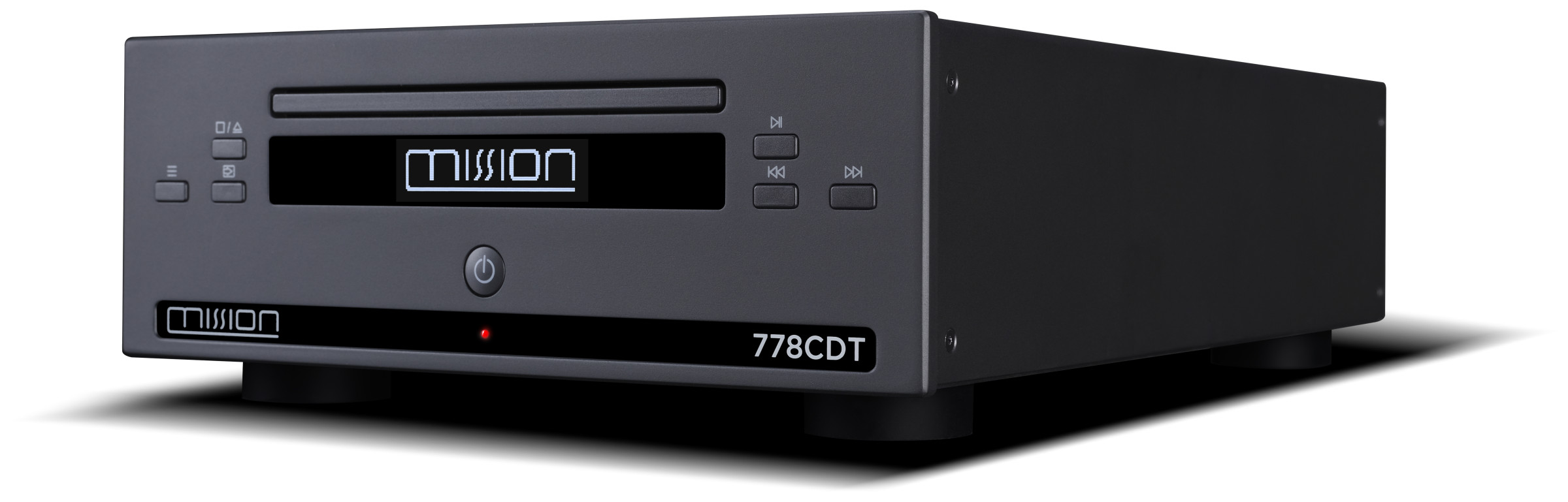

Mission 778CDT CD Transport

778CDT CD Transport

The Mission 778CDT is a high-precision CD transport designed for digital signal purity and maximum musicality. As the perfect complement to the components of the 778 series – the 778X integrated amplifier and the 778S streamer – it combines compact dimensions, iconic half-width design, and modern technology into a modular hi-fi system for discerning music lovers.

Design and construction

The elegant, retro-inspired chassis, which also characterized the 778X, houses a meticulously engineered CD drive. Precise servo mechanisms ensure stable rotation, accurate tracking, and effective error correction. A temperature-compensated clock generator (TCXO) minimizes jitter and guarantees a particularly clean and stable SPDIF signal for external DACs.

Mission follows a clear philosophy: components such as transport, laser, decoder, and clock control have their own low-noise power supplies. Unnecessary complexity is avoided, ensuring that the digital output signal remains free of interference and the music is reproduced faithfully.

Digital flexibility

The 778CDT offers coaxial and optical SPDIF digital outputs for direct connection to the 778X's internal DAC or other high-quality converters. It also supports playback of high-resolution music files from USB storage devices. Formats such as FLAC, WAV, MP3, WMA, and APE are processed with the same precision as audio CDs, thanks to identical clock architecture and signal routing.

Integration into a modular hi-fi system

As part of the Mission 778 series, the 778CDT can be stacked with the 778X and 778S. The result is a complete, compact hi-fi system that combines analog and digital sources at the highest level.

As with all Mission components, technical specifications are just the beginning. What matters is what you hear – the musicality, the timing, and the emotional connection to the recording that make the Mission 778CDT an indispensable partner for CD enthusiasts.

Technical data

• Device type
  CD transport
• Compatible media
  CD, CD-R, CD-RW, data CDs, USB storage media
• Supported audio formats (USB)
  FLAC, WAV, MP3, WMA, AAC, APE
• USB file systems
  FAT16, FAT32, exFAT
• drive
  Precision CD mechanism with optical system and servo control
• Display
  OLED display with CD text support
• remote control
  Fully functional, compatible with 778X and 778S

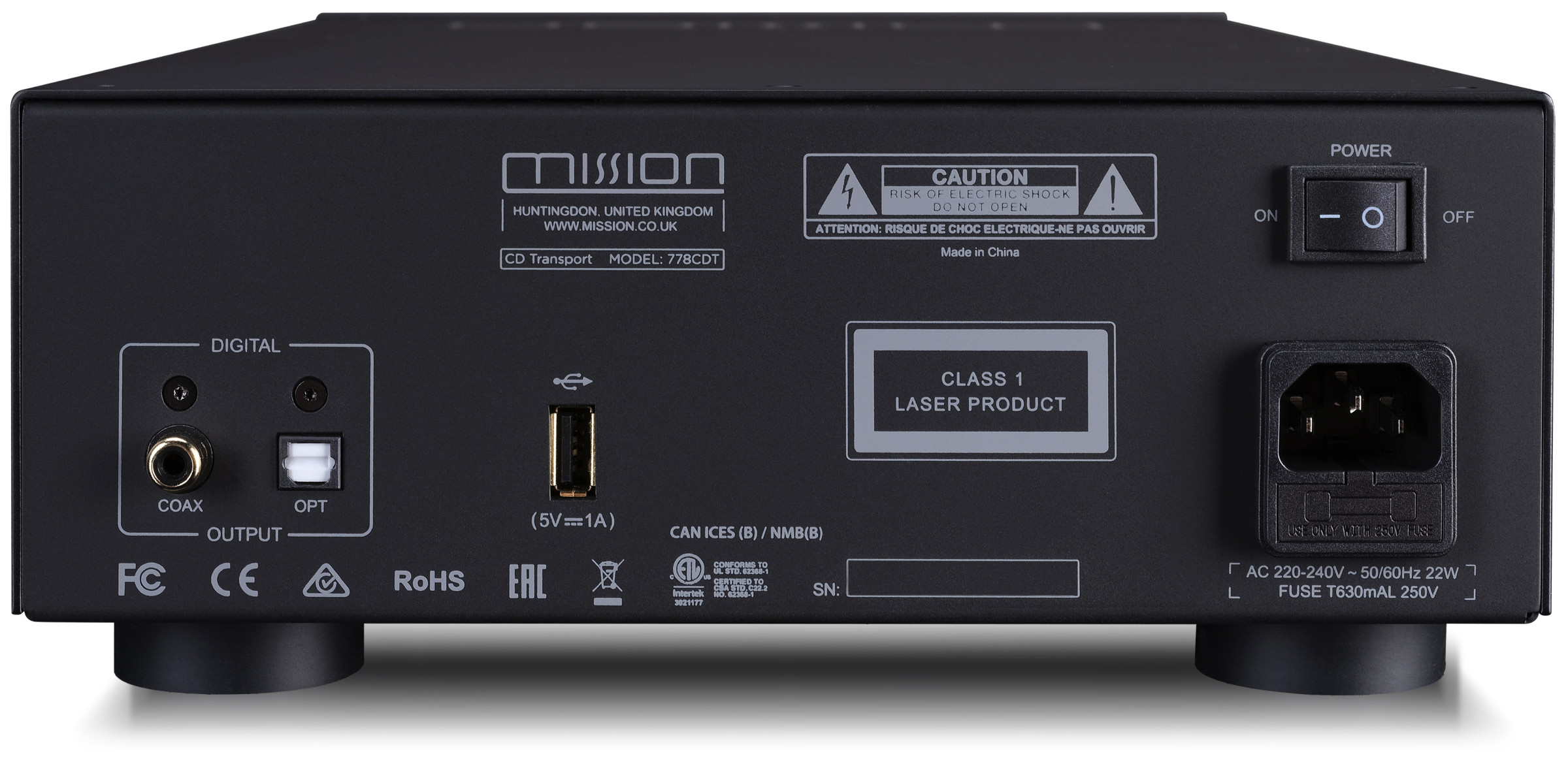

• Digital outputs
  1 × Coaxial (SPDIF)
  1 × Optical (Toslink)
• Sampling rate (CD)
  44.1 kHz
• Frequency response
  -0.01 dB (20 Hz – 20 kHz, ref. 1 kHz)
• Output level (digital)
  500 ±50 mVpp
• Output impedance
  75 ohms
• Power consumption (standby)
  < 0.5 W
• Mains voltage (depending on region)
  220-240V/50-60Hz or 100-120V/50-60Hz
• Dimensions (W × H × D)
  236 × 96 × 357 mm
• Weight
  5.04 kg (net) / 6.74 kg (gross)
• Colors
  Silver / Black
