Isotek V5 Titan 3-way line filter with Premier Cable 1.5m C19
€4,999.00
per Piece incl. VAT / incl. Shipping
Available in 7 days, delivery time 1-3 days
Germany We only ship this item to the following countries: GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.

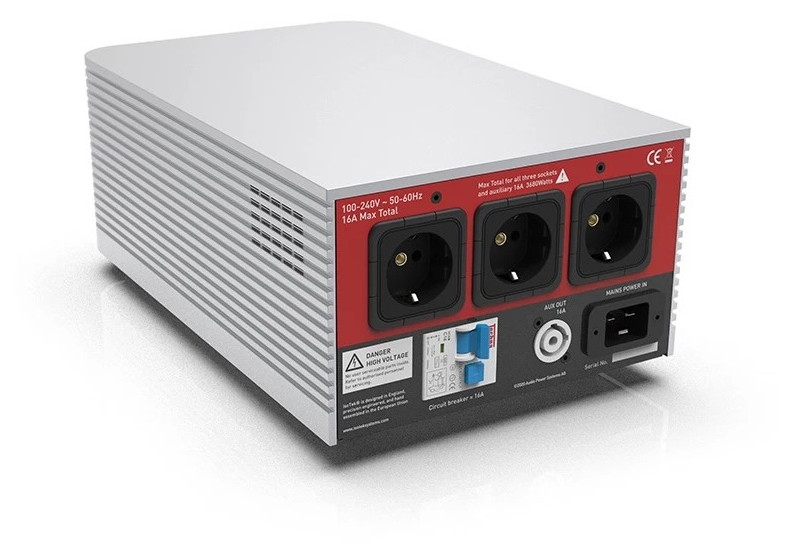

V5 TITAN 3-WAY MESH FILTER
The original Titan set a new standard for high current power filters when it was launched in late 2004 and was voted Hi-Fi News Power Purification Product of the Year in 2005, along with numerous other international awards.
The new V5 model offers an additional third output socket as well as a new 'System Link' output, allowing multiple IsoTek devices to be connected to a single wall socket via a star earth connection. The legendary Titan Direct Coupled© circuit has been redesigned, bringing the ideal of zero ohms much closer to the use of 50% more copper on the board and the resulting unlimited power. This significantly improves current and reduces resistance. The new circuit also offers twice the inductance with 80% more current conductivity. Surge protection is also increased to 153,000A instantaneous and 75,000A continuous, making it the most robust protection system IsoTek has offered in this range to date.
FEATURES
- Suitable for high-current devices in audio or AV systems
- Reduces radio interference (RFI) by 85 dB up to 5 Hz
- Optimized power conditioning stages eliminate common-mode and differential-mode interference
- 3 independent outputs for power amplifiers, active subwoofers and active speakers etc. (16A)
- Easy reset RCBO fusing system
- 153,000 A instantaneous short-circuit protection, 75,000 A continuous
- Star-shaped ground wiring
- Internal wiring made of silver-plated oxygen-free Ohno continuous cast copper (OCC), FEP jacket and virtual air dielectric
- SYSTEM LINK output for extending the outputs while maintaining a star-shaped ground wiring
- EVO3 PREMIER power cable included
TECHNICAL DATA
NUMBER OF OUTPUTS 3 + System Link
AVAILABLE OUTPUTS UK, EU, US, AU & CH
MAINS CONNECTION 16 A IEC C20
OPERATING VOLTAGE 100-240 V / 50-60 Hz
HIGH CURRENT - 230V x3 (16 A 3,680 W total)
HIGH CURRENT - 115V x3 (16 A 1,840 W total)
SYSTEM LINK x1
OVERVOLTAGE PROTECTION 153,000 A
DIMENSIONS (W x H x D) 220 x 147 x 350 mm
WEIGHT 12 kg
| Color: | silver |
|---|---|
| Condition: | new item |
| Connector type: | IEC-C19 |
| Lengths in meters: | 1.5 |
| Product type: | cable |
Safety Information
Product-specific safety instructions can be found in the operating manual.
