Nexo Nexo Conference & Live Music Set

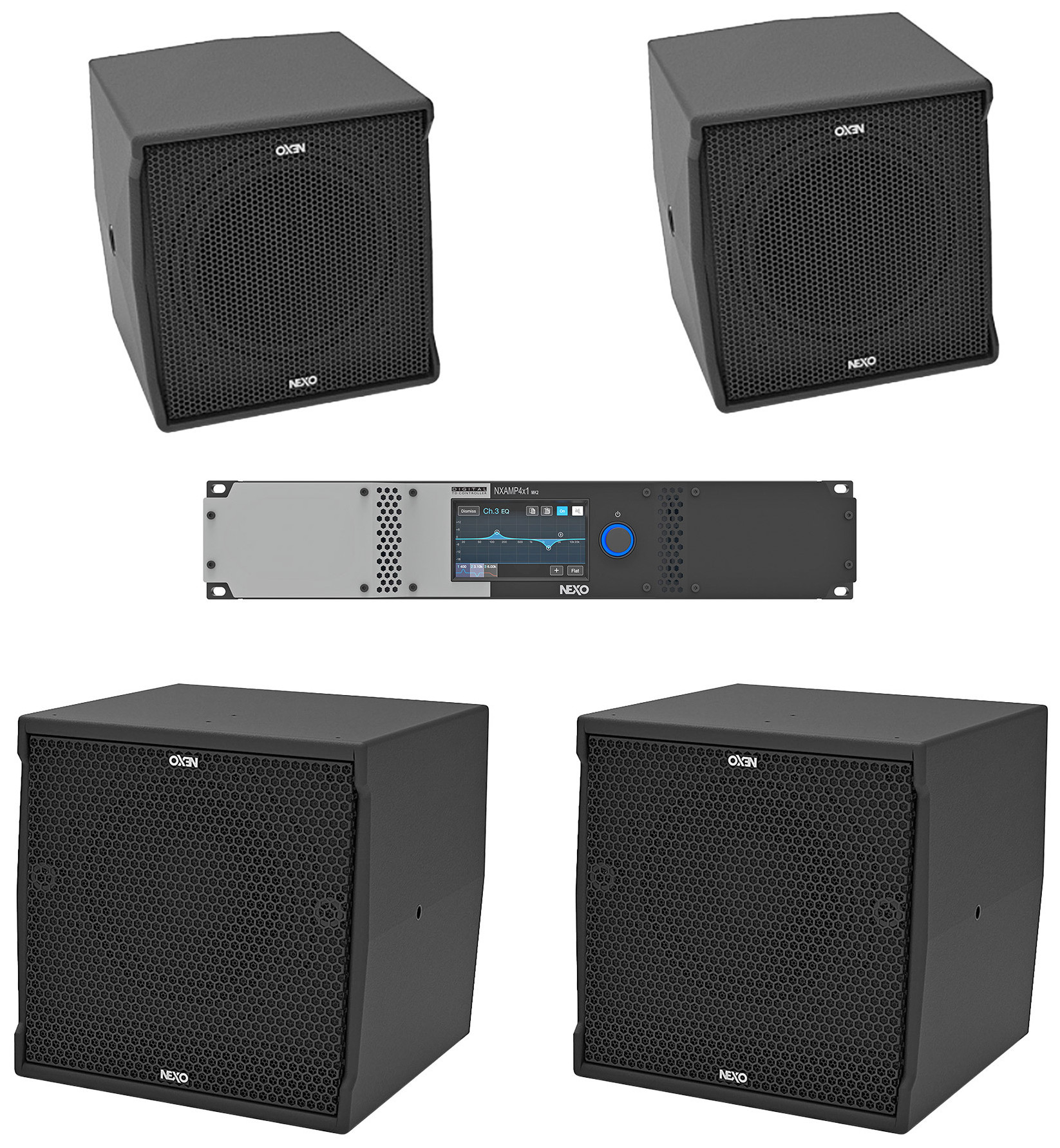

Nexo set for conferences & meetings

Set for conferences

note note:

Please remember that a controller is required for optimal use of the speakers and subwoofers. Without a controller, the Nexo guarantee is also void. Please ask when purchasing.

Loudspeaker ID.14-T100100

The ID14 is a super-compact, full-range cabinet with a custom-built 1.3-inch voice-coil coaxial driver for the 4-inch LF component and a 1.4-inch diaphragm for the HF drive, delivering a smooth, clean sound Sound and considerable volume.

The touring version is available in black, white or custom RAL color and offers a Magnelis steel grille and Speakon connectors.

Thanks to its fully symmetrical design, there are no left/right versions of the ID14, all speakers in inventory can be the same. For maximum versatility, the ID14 can be specified with 100° x 100° or 90° x 140° HF radiation patterns.

Key features

• Compact loudspeaker for high-performance sound reinforcement
• 116 dB peak sound pressure level
• Small dimensions: 130 mm W x 130 mm H x 120 mm D
• Available in the radiation characteristics 100° x 100° and 90° x 140° HF
• Touring version with Magnelis steel grille and Speakon connectors
• In black, white and custom RAL color

Specs

Frequency Response @-6dB 120Hz to 20kHz
Sensitivity 1W@1m 95dB
Peak SPL@1m 116dB
Available crossover frequencies 120, 150 Hz
HF dispersion (upon ordering) 100° x 100° or 90° x 140°
Nominal impedance 16 ohms
Recommended Power 110 to 180 Watts / 16 Ohms (requires a 220 to 360 Watts / 8 Ohms amplifier)

features

Number of ways 2 ways passive
Components 1 x Coaxial Neodymium LF 4” long excursion & HF 1.4” diaphragm
Connectors 2 x NL4, 4 poles connectors (1+/1- Through / 2+/2- ID14)
Rigging points 1 x M10 on each side for dedicated U bracket + 2 x M6 / 73 mm pitch at the back
Construction polyurethanes
Finish Black: Raw sandblasted polyurethane / White: Structural paint
Front Finish Magnelis® front grill with back mesh
Operating temperature range 0°C - 40°C (32°F - 104°F)
Storage temperature range -20°C - 60°C (-4°F - 140°F)
Height x Width x Depth 130mm x 130mm x 120mm (5.1” x 5.1” x 4.7”)
Weight: Net 1.7kg (3.7lbs)
system operations
Recommended powering solution DTDcontroller + DTDAMP4x0.7 : up to 4 x ID14 per channel
Optional powering solution DTDcontroller + DTDAMP4x1.3 : up to 4 x ID14 per channel
NXAMP4x1mk2 Powered TDcontroller: up to 8 x ID14 per channel
NXAMP4x2mk2 Powered TDcontroller: up to 8 x ID14 per channel
NXAMP4x4mk2 Powered TDcontroller: up to 8 x ID14 per channel

Subwoofer IDS.108

The matching sub for the ID14 measures only 305 mm x 305 mm x 305 mm and weighs only 8 kg. It uses a high-efficiency bass reflex design and an 8-inch large-excursion neodymium driver. The touring version offers a connection panel with two Speakon® sockets and a Magnelis steel grille in front of the baffle.

Key features

• A very powerful compact sub that can be stacked or hung with or without the associated ID14 full-range speaker
• Lightweight and easy to hang with the right angle
• Touring version with Magnelis steel grille and Speakon connectors
• Extensive range of accessories for using the IDS108 in a variety of applications

Specs

Frequency Response @-6dB 50Hz to 150Hz
Sensitivity 1W@1m 95dB
Peak SPL@1m 122dB
Available Crossover Frequencies 50-120Hz, 50-150Hz
Nominal impedance 8 ohms
Recommended power 300 to 500 watts / 8 ohms

features

Component 1 x 8” 8 Ohms long excursion neodymium driver
Connectors 2 x NL4, 4 poles connectors (1+/1- IDS108 / 2+/2- Through)
Rigging points 2x M10 threaded inserts + 2x M6 threaded inserts
Construction Baltic Birch Plywood
Finish Black or White structural paint
Front Finish Magnelis® front grill with back mesh
Operating temperature range 0°C - 40°C (32°F - 104°F)
Storage temperature range -20°C - 60°C (-4°F - 140°F)
Height x Width x Depth 305mm x 307mm x 305mm (12.0” x 12.1” x 12.0”)
Weight: Net 8kg / 17.6lbs
system operations
Recommended powering solution DTDcontroller + DTDAMP4x0.7 : up to 2 x IDS108 per channel
Optional powering solution DTDcontroller + DTDAMP4x1.3 : up to 2 x IDS108 per channel
NXAMP4x1mk2 Powered TDcontroller: up to 3 x IDS108 per channel
NXAMP4x2mk2 Powered TDcontroller: up to 4 x IDS108 per channel
NXAMP4x4mk2 Powered TDcontroller: up to 4 x IDS108 per channel

Amplifier NXAMP4X1MK2

The NXAMPMK2 is available in three different versions, either with 4 x 1300 watts, 4 x 2500 watts or 4 x 4500 watts.
