Bowers & Wilkins 805 Diamond D4 Signature Compact Loudspeaker
€13,500.00
per Pair incl. VAT / incl. Shipping
- After placing your order, your Account Manager will contact you to schedule delivery and installation.
- We deliver your new devices in Germany and Austria personally to the place of installation - no courier, no forwarding agency.
- The Auditorium Team installs your new devices professionally and connects them to existing components.
About signatures
The designation 'Signature' is one of the noblest and most important in the Bowers & Wilkins repertoire. It is used sparingly and with care - and only when the product concept conceived by B&W fully corresponds to the narrative of the signature models. Each Signature model has its very own identity, although it always has certain things in common with its predecessor: uncompromising performance, unique and unmistakable aesthetics and the highest level of exclusivity. Signature is a step above the best: Bowers & Wilkins' entire skill set at its finest.
Craftsmanship, finishing touches, perfection. The 800 Series Signature
Models are based on the pioneering foundations of the most advanced B&W speaker series. Innovative technologies, timeless design and unique properties combine to create top-class loudspeakers. The 800 Series Signature models are speakers like no other. They are the culmination of Bowers & Wilkins' enduring commitment to performance and elegance.

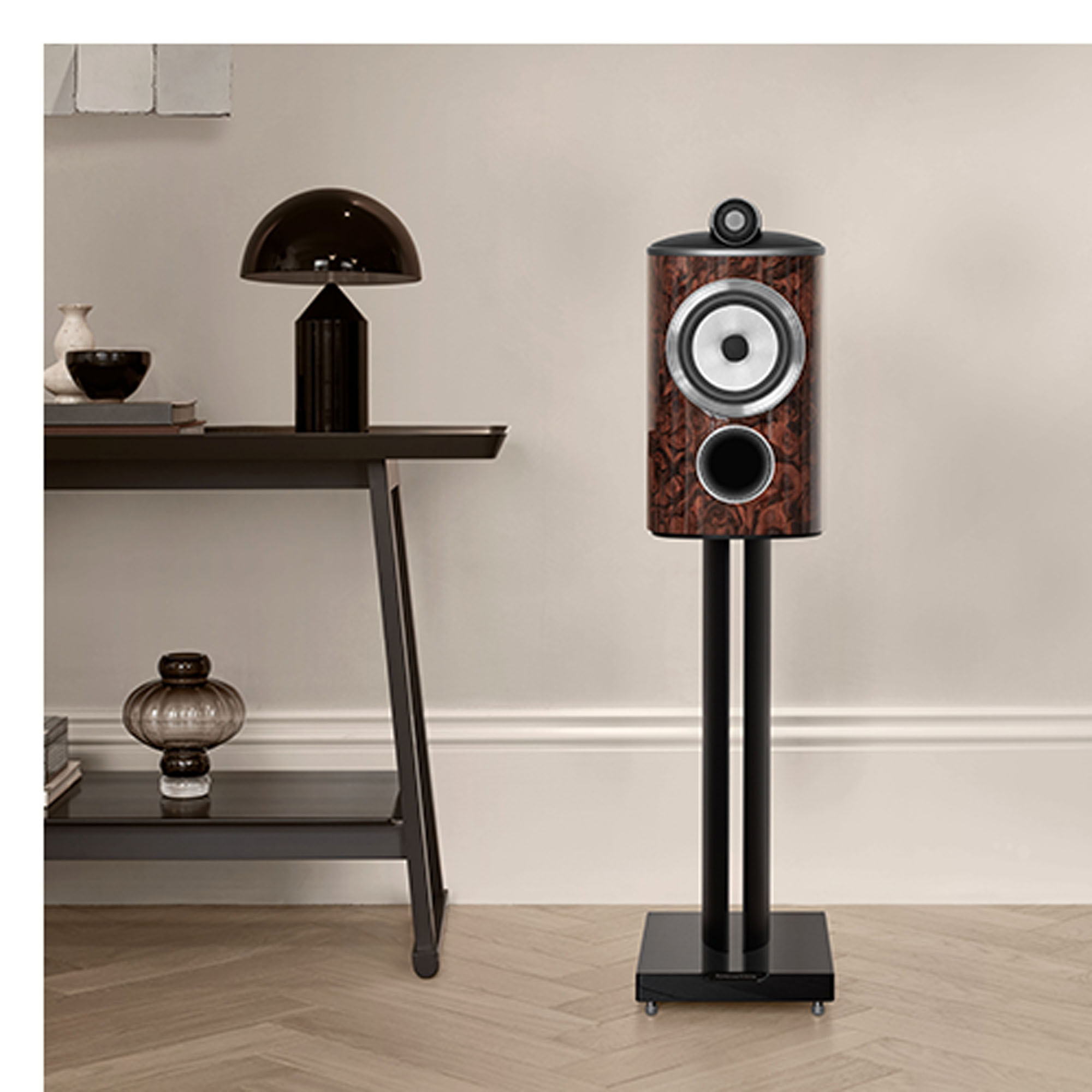

805 D4 Signature
The 805 D4 Signature is compact and powerful. It features extensively optimized technologies, including the all-important diamond dome tweeter and the massive tweeter-on-top enclosure. And it is proof that small can always be more beautiful.

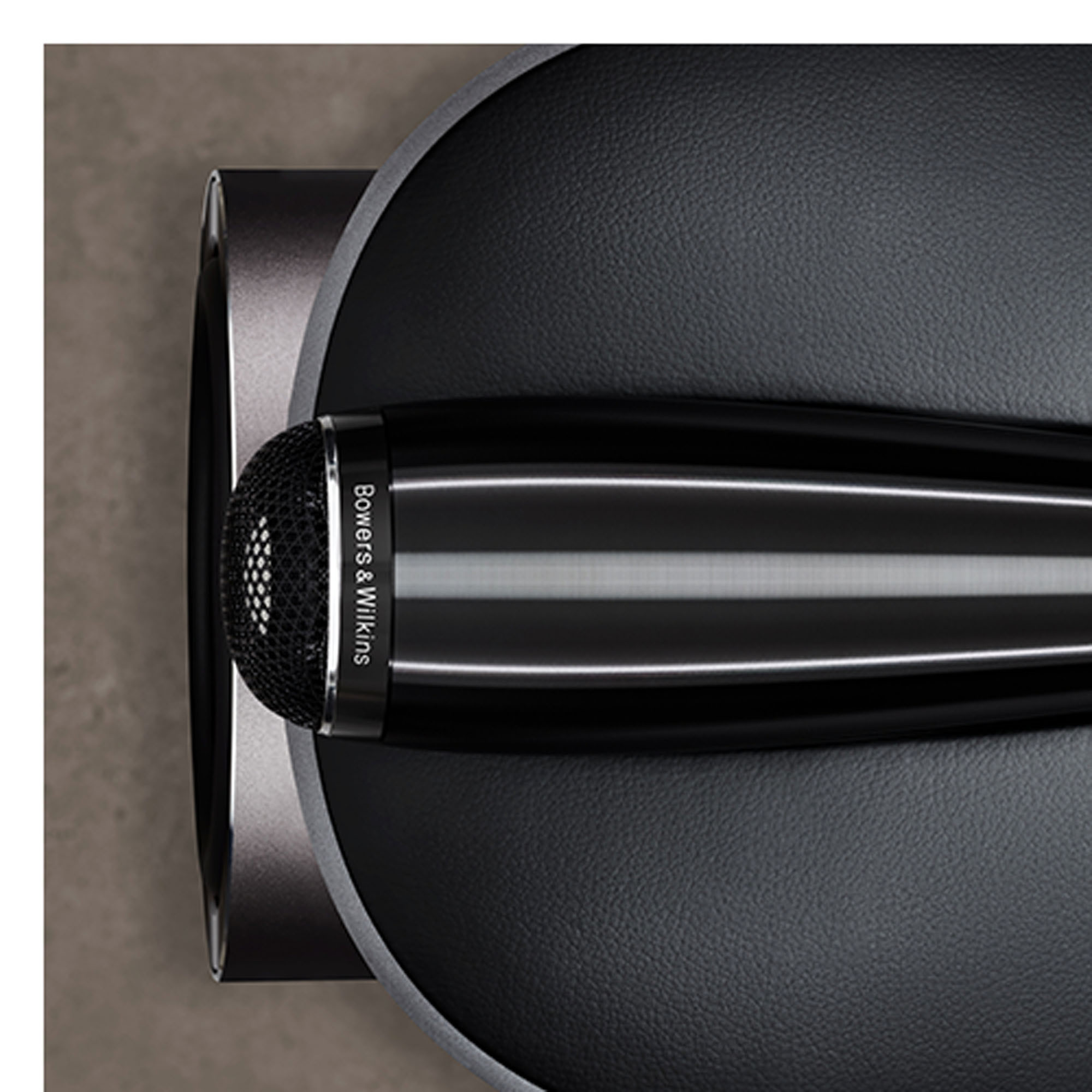

Ultra stable tweeter housing
The latest version of the legendary, ultra-stable B&W tweeter-on-top housing is characterized by a stretched shape with a longer tube system and a redesigned tweeter cover that makes the sound in the high-frequency range seem even freer and more open. The carefully decoupled housing is still milled from a single block of solid aluminum to optimally counteract resonances.
Inverted housing
Instead of the usual speaker shape with a flat front and curved back, the 800 series enclosures consist of a one-piece rigid shell with a solid aluminum back panel. Fewer joints result in a stiffer, more acoustically neutral structure, while the curved baffle reduces clutter around the drivers. This improves the sound radiation and reduces the housing reflection.
Continuum™ membrane
Thanks to its special construction, the Continuum TM cone prevents abrupt movement transitions that can affect the performance of conventional drivers. This contributes to a more open, neutral performance. Voices and instruments are reproduced with great precision and transparency.
Technical specifications
characteristics
- Diamond dome tweeter
- Solid body tweeter-on-top design
- ContinuumTM woofer/midrange driver
- MatrixTM
- anti-resonance plug
- FlowportTM
Description
- 2-way bass reflex system
chassis
- 1x ø25mm diamond dome tweeter
- 1x ø165mm ContinuumTM woofer/midrange driver
frequency range
- 34Hz - 35kHz
Frequency Response (+/-3dB)
- 42Hz - 28kHz
Sensitivity (2.83Vrms, 1m)
- 88dB
harmonic distortion
- 2nd and 3rd harmonic (90dB, 1m) <1% 90Hz - 20kHz
<0.3% 120Hz - 20kHz
Impedance (nominal)
- 8O (minimum 3O)
Recommended amplifier power
- 50W - 120W at 8O (undistorted)
Max. recommended cable impedance
- 0.1O
Dimensions
- Height: 440 mm
- Width: 240mm
- Depth: 373mm
net weight
- 15.6kg
finishes
- California Burl Gloss
- Midnight Blue Metallic
| Color: | California Burl Gloss |
|---|---|
| Condition: | new item |
| Device depth mm: | 373 |
| Device height mm: | 440 |
| Device width mm: | 240 |
| Efficiency: | 88 |
| Frequency response: | 42Hz - 28kHz (+/- 3dB) |
| Impedance in ohms: | 8th |
| Number of paths: | 2 |
| Product type: | Floorstanding speakers |
| Series: | 800 D4 |
Manufacturer
B&W Group Ltd.
Dale Road
Worthing
West Sussex
BN11 2BH
United Kingdom
safetyandregulatory@soundunited.com
EU Representative
D&M Europe B.V.
Oude Stadsgracht 1
5611 DD Eindhoven
The Netherlands
GPSR@masimo.com
Safety Information
Product-specific safety instructions can be found in the operating manual.
