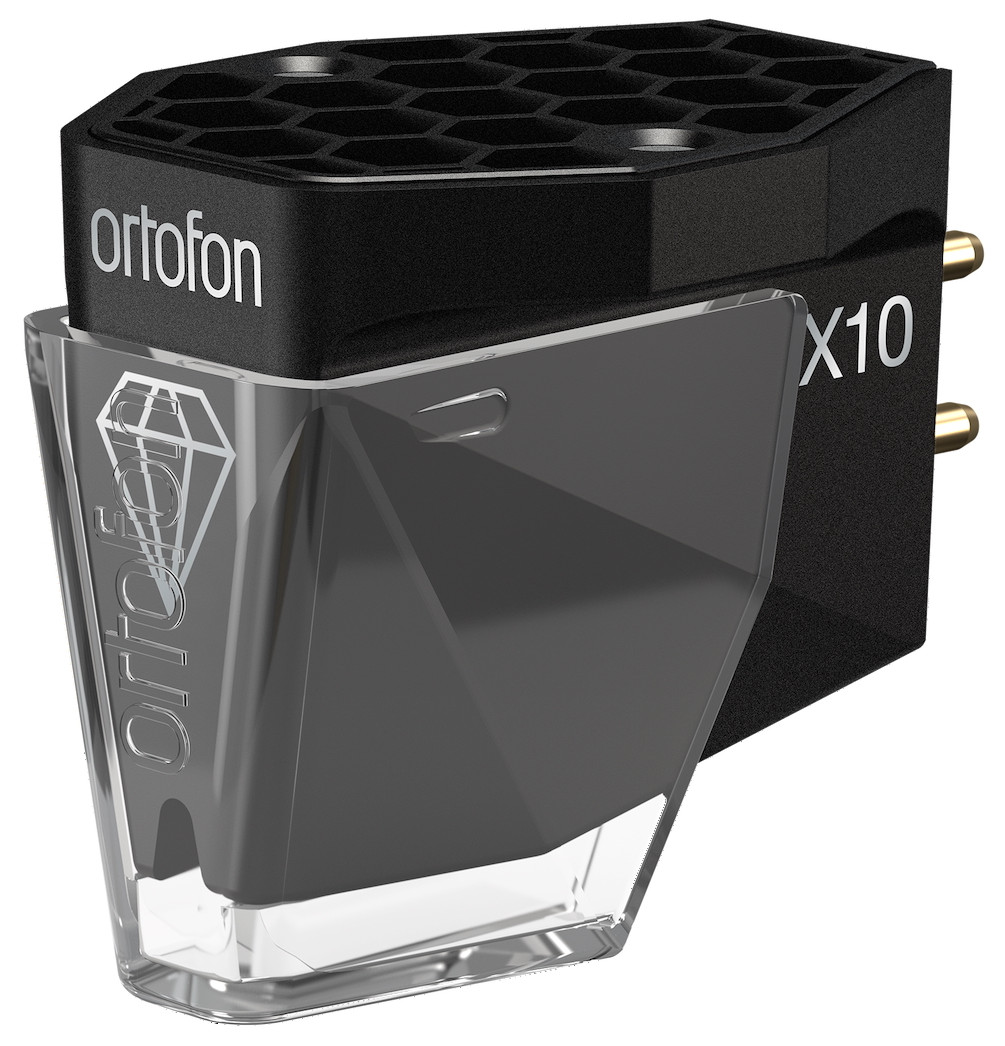

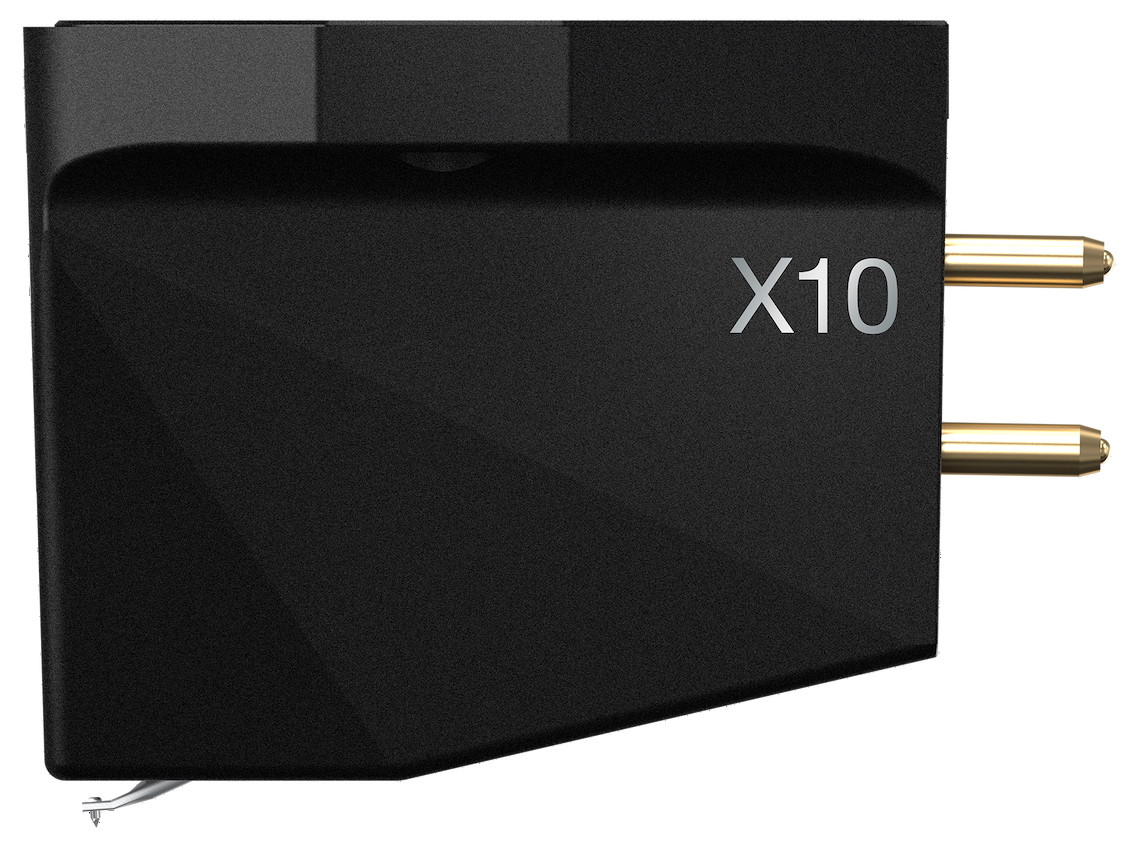

Ortofon MC X10 Cartridge

Ortofon MC X10 – The entry into audiophile perfection

The Ortofon MC X10 is the ideal entry into the world of high-fidelity sound. Featuring a finely ground elliptical diamond cartridge, it delivers impressive clarity, rich detail, and precision—bringing your records to life. For anyone seeking an exceptional listening experience, the MC X10 is the perfect starting point.

A new benchmark for analog sound reproduction

At the heart of every turntable system is the cartridge – and this is where the magic begins. The MC X series from Ortofon sets new standards in the world of moving coil (MC) cartridges , taking analog sound technology to a whole new level.

Signal purity – silver wire for maximum sound fidelity

A standout feature of the MC X10 is the high-purity silver wire coil system , which is used in all models of the MC X series. Thanks to this premium component, the MC X10 impresses with excellent signal purity, minimal loss, and sound quality that faithfully reproduces every musical detail.

Optimized magnetic efficiency for powerful sound

The MC X10 features a newly developed magnet system with a continuous pole cylinder integrated into a rear magnetic yoke construction. Combined with the silver wire coils, this creates a powerful and clean signal flow – for a sonic performance of the highest standard.

Precision through perfect damping

To minimize vibration and maximize stylus tracking stability, Ortofon uses custom-designed and manufactured rubber dampers . This targeted damping ensures precise coil movement , excellent tracking, and low distortion—a guarantee of musical accuracy.

Innovative MIM technology for structural stability

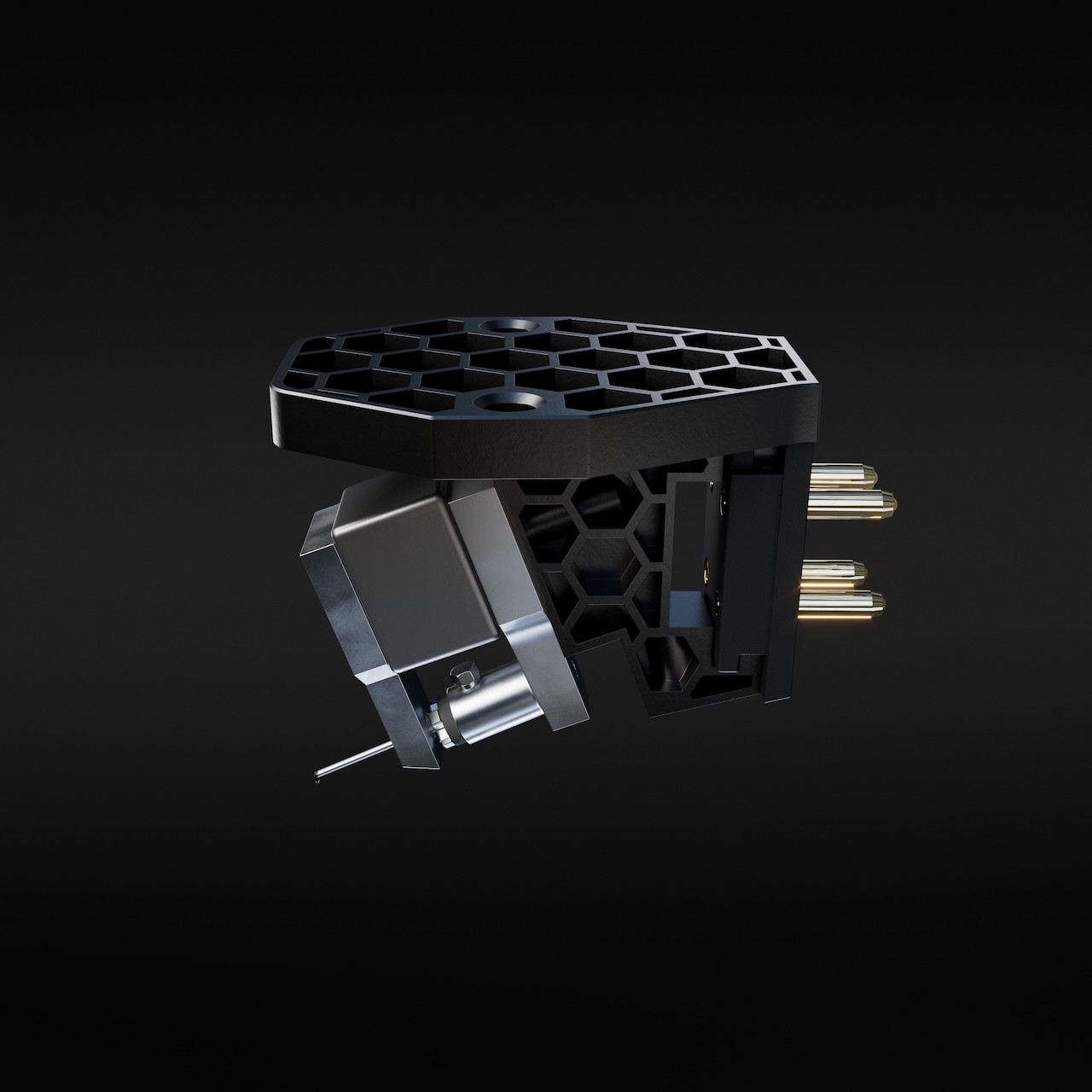

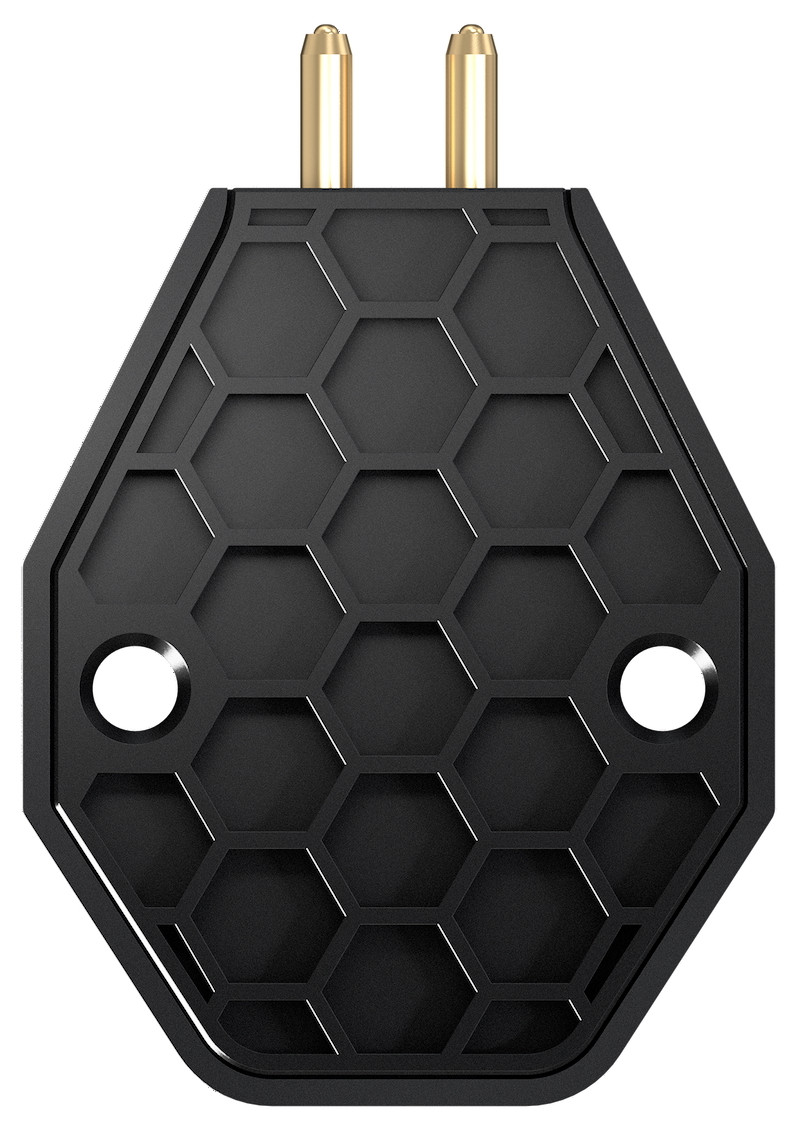

The mechanical heart of the MC X10 is a honeycomb-like stainless steel frame , manufactured using Metal Injection Molding (MIM) . This construction not only offers maximum stability but is also optimal for precise sound reproduction. Additionally, a PVD surface finish ensures durability and a high-quality appearance.

Elegance meets function – A design that speaks sound

The MC X10 impresses not only acoustically but also visually: With its modern, minimalist design, it blends harmoniously into any hi-fi system. The combination of technical sophistication and timeless aesthetics makes it a stylish eye-catcher on any turntable.

Conclusion: Ortofon MC X10 – More than just a cartridge

With the MC X10, you'll experience your vinyl collection in a new way – with sound quality otherwise only found in significantly higher price ranges. Thanks to advanced technologies, high-quality materials, and the signature Ortofon design, this MC cartridge is the ideal choice for discerning music lovers.

Technical data

Channel balance at 1 kHz: 0.5 dB

Output voltage at 1 kHz, 5 cm/s: 0.4 mV

Channel separation at 1 kHz: 24 dB

Frequency response (20 Hz – 20 kHz): ±2 dB

Needle compliance, dynamic, lateral: 13 µm/mN

Needle carrier material: aluminum

Needle type: Elliptical

Needle tip radius: r/R 8/18 µm

Needle suspension: Exclusively from Ortofon

Coil system: Quad coils

Recommended tracking force: 2.0 grams

Internal impedance / DC resistance: 6 O

Coil wire material: High purity silver

System weight: 8.6 grams

Recommended termination resistance: > 50 O
