Ortofon MC X40 Cartridge
€999.00
per Piece incl. VAT / incl. Shipping
Available in 7 days, delivery time 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
Ortofon MC X40 – Precision without compromise
The Ortofon MC X40 is the flagship of the MC X series – a cartridge for listeners who want to experience not just music, but precision and authenticity. Designed for discerning vinyl enthusiasts, the MC X40 combines state-of-the-art technology with consistent material selection. The result: a cartridge that doesn't sugarcoat anything, but rather reproduces the entire musical spectrum honestly and with impressive detail.
Key benefits at a glance:
Precise signal transmission through silver coils
The MC X40 uses coils made of high-purity silver wire. This material transmits the signal with exceptional clarity, ensuring that fine details are as present as dynamic peaks – without any sonic coloration.
Stable mechanics for precise scanning
The cartridge features a specially developed rubber mount that suppresses unwanted vibrations and ensures precise movement. This enables particularly smooth, distortion-free playback—even with complex material.
Efficient magnet design for high energy yield
A newly designed magnet system with a continuous pole core maximizes the magnetic flux – a crucial factor for clean signal acquisition and high fidelity.
Boron needle carrier and Shibata cut
The ultra-light, rigid boron cantilever carries a naked Shibata diamond. This combination allows for extremely fine groove tracking and fast impulse response, resulting in natural spatial imaging and excellent high-frequency response.

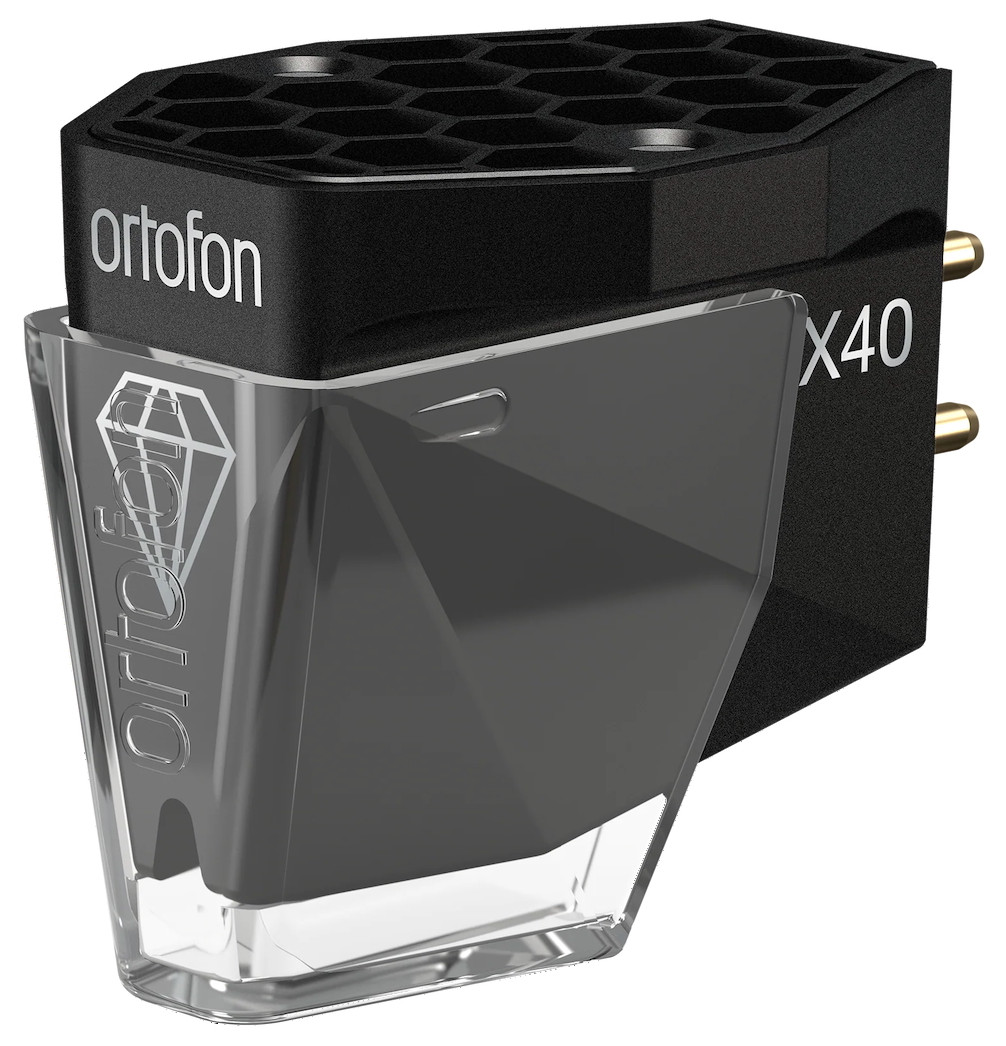

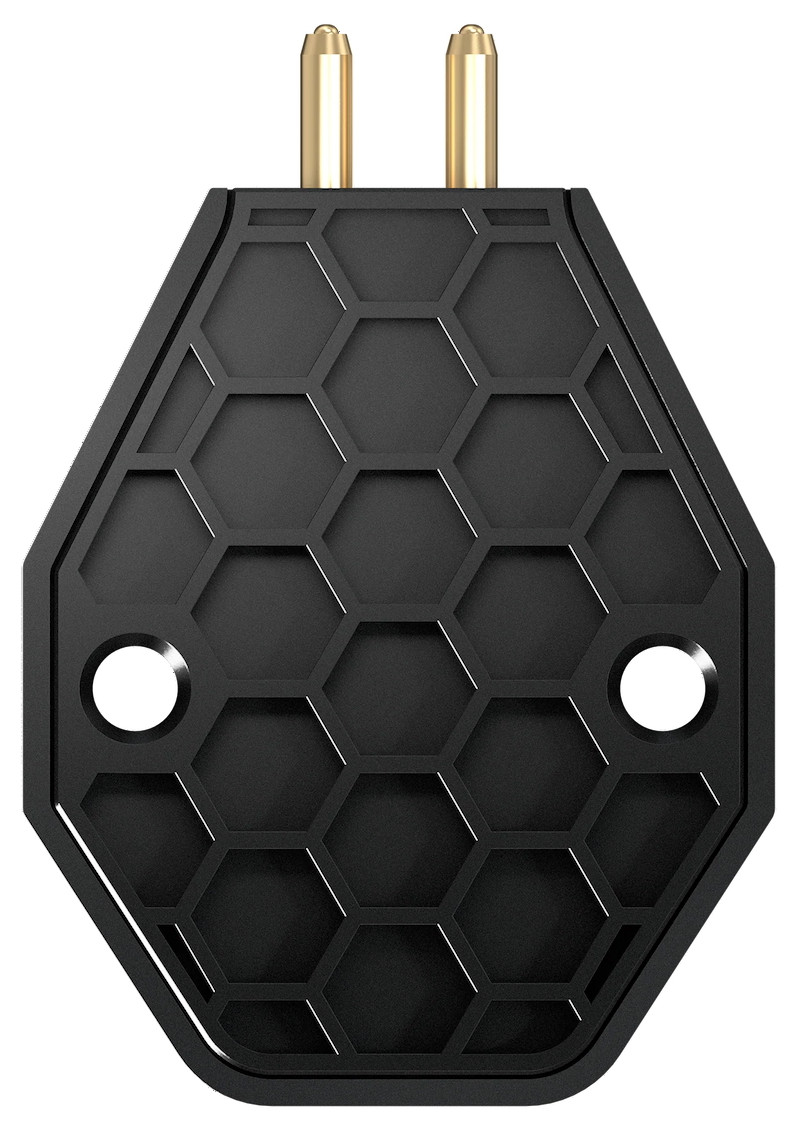

MIM-manufactured stainless steel case with honeycomb structure
The MC X40's enclosure is manufactured using a metal injection molding process. The honeycomb structure ensures high mechanical stability while remaining lightweight—guaranteeing smooth, precise sound reproduction.
Technical data of the Ortofon MC X40
| feature | specification |
|---|---|
| Channel balance at 1 kHz | 0.5 dB |
| Output voltage at 1 kHz, 5 cm/s | 0.4 mV |
| Channel separation at 1 kHz | 26 dB |
| Frequency response (20 Hz – 20 kHz) | ±1 dB |
| Compliance, dynamic, lateral | 15 µm/mN |
| Needle carrier material | Boron |
| Needle type | Nude Shibata |
| Needle tip radius | r/R 6/50 µm |
| suspension | Developed exclusively for Ortofon |
| Coil system | Quad coil |
| Recommended tracking force | 2.0 g |
| Internal resistance (DC) | 6 ohms |
| Coil material | High-purity silver |
| Pickup weight | 8.6 g |
| Recommended termination impedance | > 50 ohms |
| Cartridge type: | MC |
|---|---|
| Condition: | new goods |
| Output voltage in mV: | 0.4 |
| Product type: | MC pickup |
| Series: | MC X |
| Tracking force in g: | 2.0 |
Safety Information
Product-specific safety instructions can be found in the operating manual.
