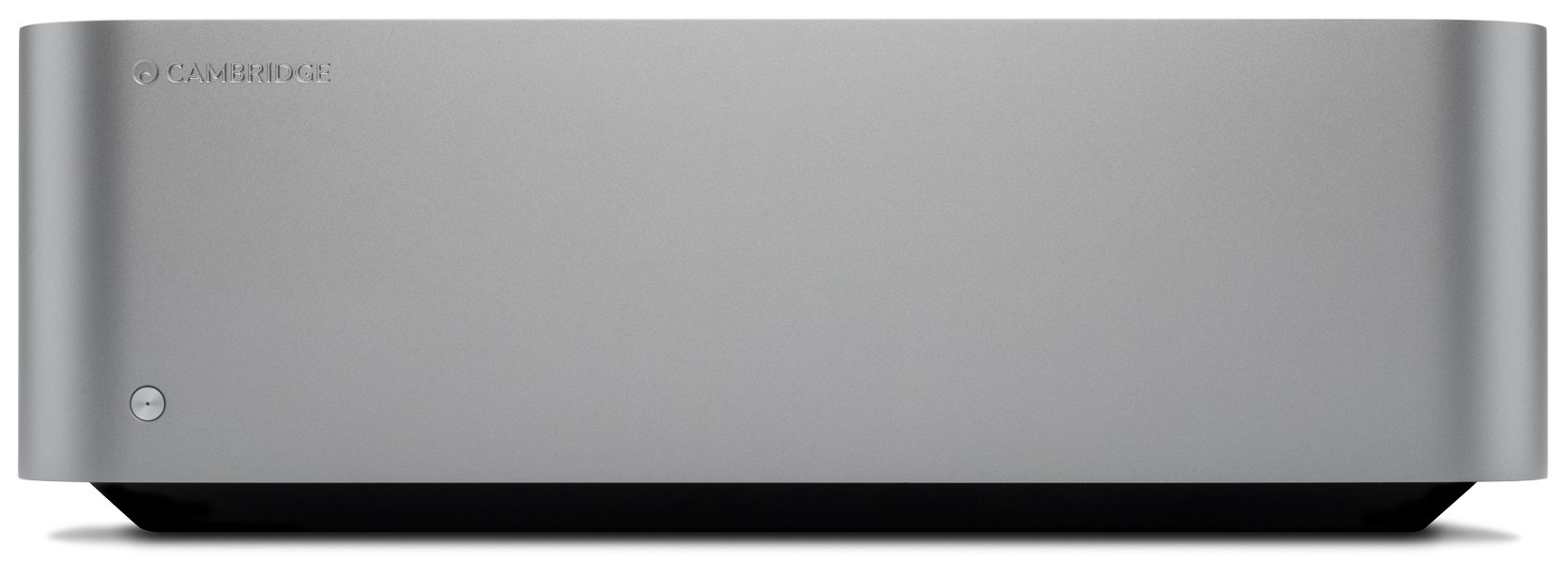

Cambridge Audio Edge W Premium Power Amplifier

The best power amplifier Cambridge has ever made.

The Edge W is designed to produce volume. When you turn up the knob, you can expect dynamic, powerful sound that reproduces every detail of your song. With just 14 carefully selected components, the Edge W delivers the cleanest signal available. You get a stunning, unadulterated British sound – nothing added, nothing taken away.

High-performance and detailed.

Despite its power, the Edge W boasts exceptional detail. The sound is remarkably balanced, producing musical depth and clarity with every note. Its secret lies in the selection of its components – we made no compromises based on price, specifications, or measured performance. We listened intently. Our system consists of components that deliver the best possible sound. The result is a power amplifier that brings the original recording to life like no other device.

Only 14 components in the signal path.

Despite its minimalist exterior design, the Edge W houses sophisticated audio technology. To eliminate barriers between you and your music, we paid close attention to using the fewest possible components in the signal path. As a result, the Edge W faithfully reproduces the original recording with impressively detailed, three-dimensional sound, as well as striking presentation and focus.

Greater detail in music.

Cambridge pioneered the use of toroidal transformers in amplifiers, which contributed to improved performance. With Edge, they take this a step further, employing oppositely symmetrical dual toroidal transformers. This eliminates electromagnetic interference while delivering outstanding power and consistent tone, regardless of volume.

Effortless performance without distortion.

A standard Class A amplifier wasn't efficient enough for the Edge W. Cambridge instead augmented a conventional Class AB amplifier with a bias voltage to reduce distortion to an inaudible level. This specific configuration also generates less heat, making the entire system significantly more powerful.

Perfect partners.

Edge Systems prioritizes perfect synchronization. Combine the Edge W with the versatile preamplifier/network player (Edge NQ) for a hi-fi system with unparalleled sound reproduction and design.

Technical data:

Continuous output power

100W QMW into 8 ohms; 200W QMW at 4 ohms

Total harmonic distortion (unweighted)

< 0.002% 1 kHz at rated power (8 ohms); < 0.02% 20 Hz – 20 kHz at rated power (8 ohms)

Frequency response

< 3 Hz – > 80 kHz +/- 1 dB

Signal-to-noise ratio (at 1 W into 8 ohms)

> 93 d

Crosstalk at 1 kHz

< -100 dB

Signal-to-noise ratio (at full power)

> 113 dB

Input sensitivity

Input A1-A2 (unbalanced) 1.09 V QMW

Input impedances

Input A3 (balanced) 47k ohms; Input A1-A2 (unbalanced) 47k ohms

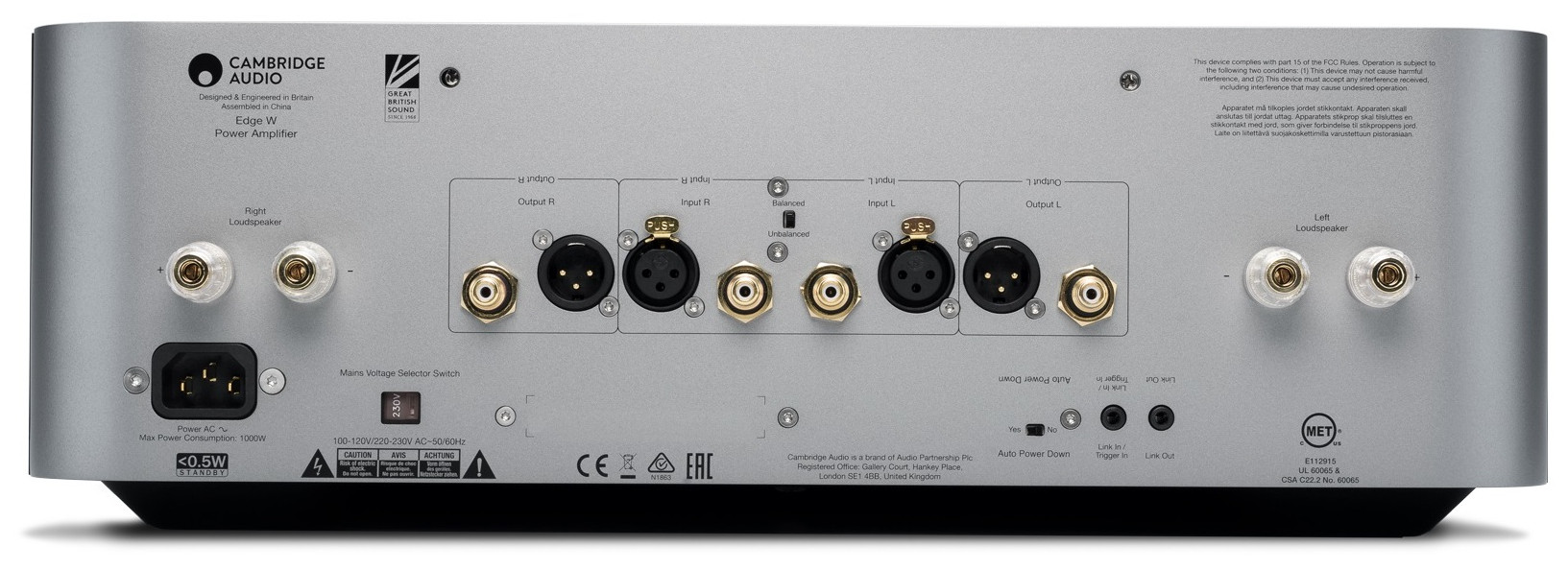

Entrances

Symmetrical, Asymmetrical

Exits

Speakers, loop outputs

Maximum power consumption

1000 W

Standby power consumption

< 0.5 W

Mass

150 x 460 x 405 mm

Weight

23.6 kg
