McIntosh MI1250 12-Channel Digital-Amplifier
MI1250 12 Channel Digital Amplifier
The versatile MI1250 12-channel digital amplifier can distribute pristine music reproduction to multiple rooms in your home. It delivers 50 watts into 8 ohm speakers or 90 watts into 4 ohm speakers via sophisticated closed-loop digital switching amplifiers paired with extremely robust power supplies to achieve levels of performance rarely achieved in distributed audio.
The amplifier has rack-friendly dimensions and can be mounted in a 2U rack using the supplied mounting ears (the mounting ears are removable for non-rack installations). Because it's a highly efficient Class-D amplifier, noisy fans are required to maintain operating temperature.

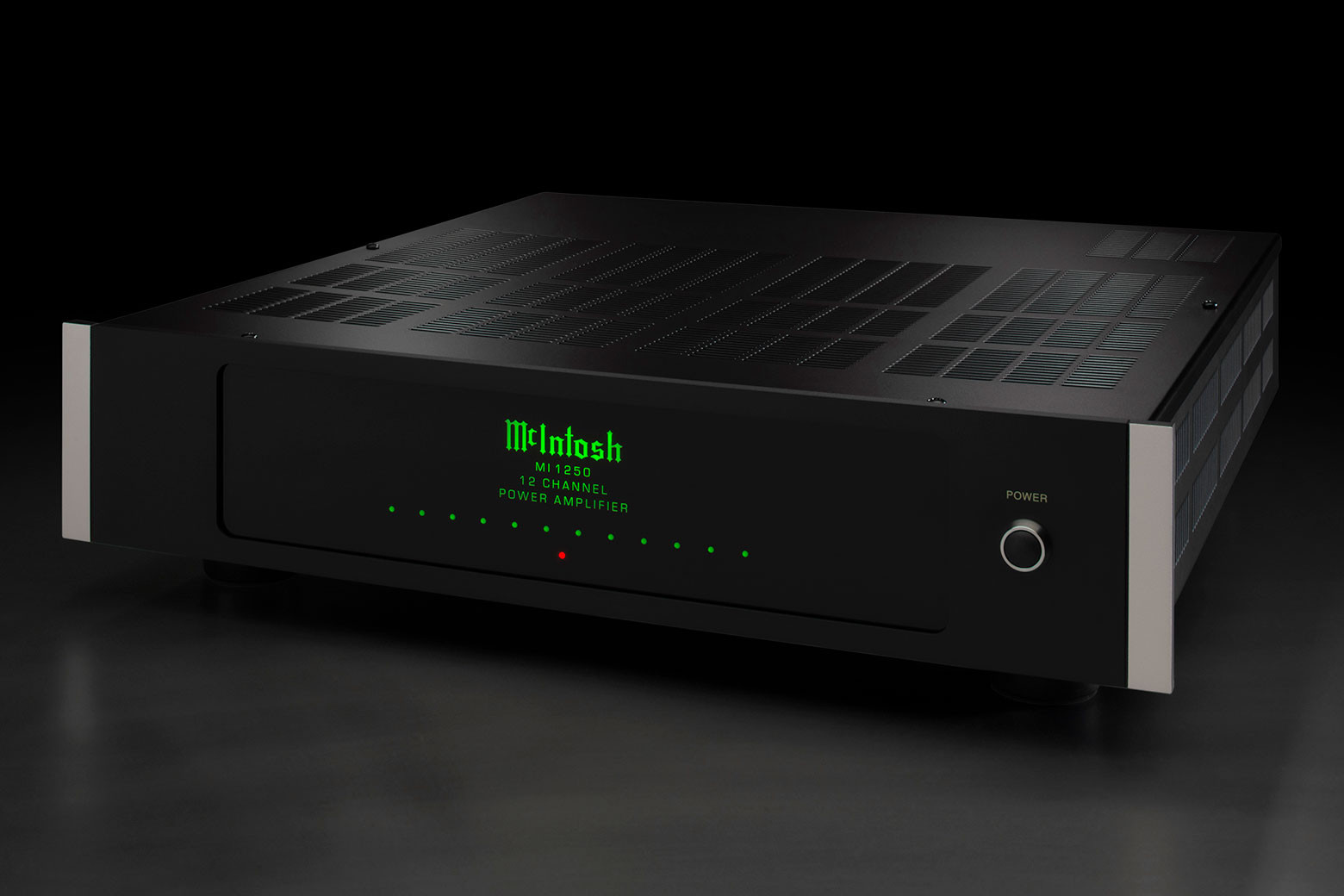

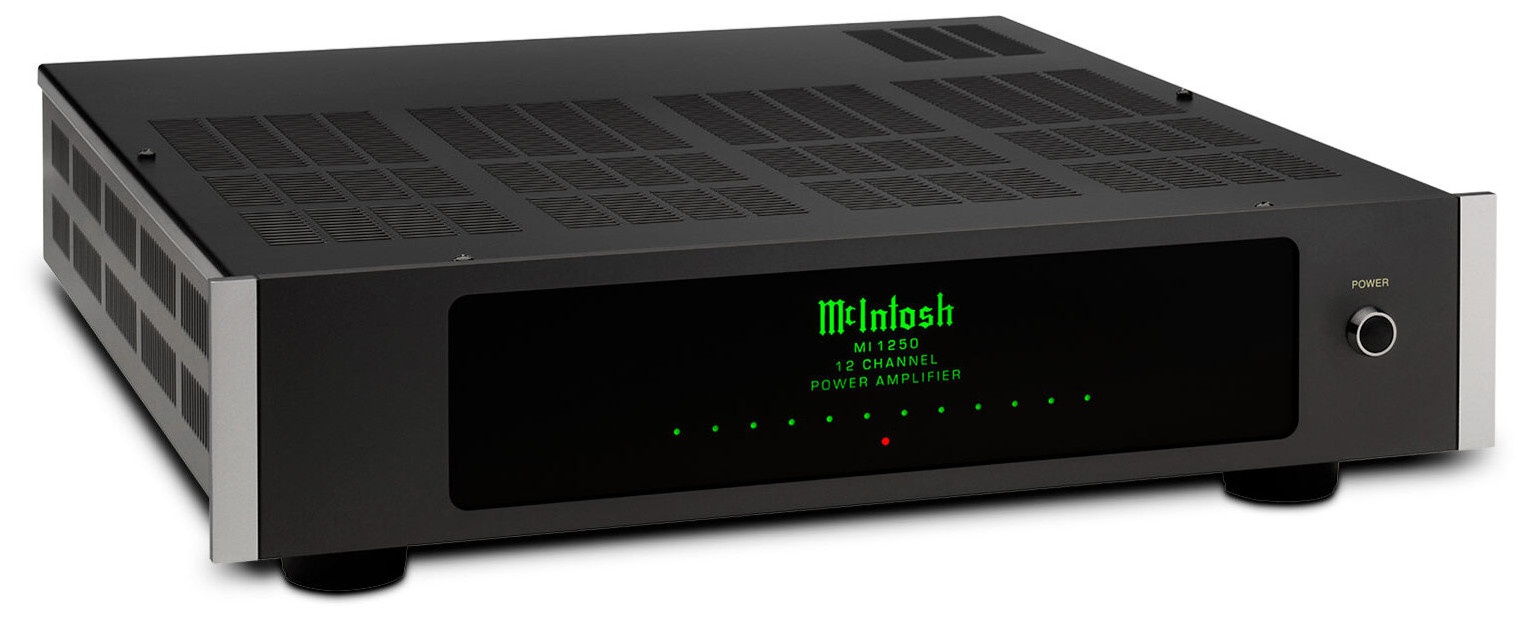

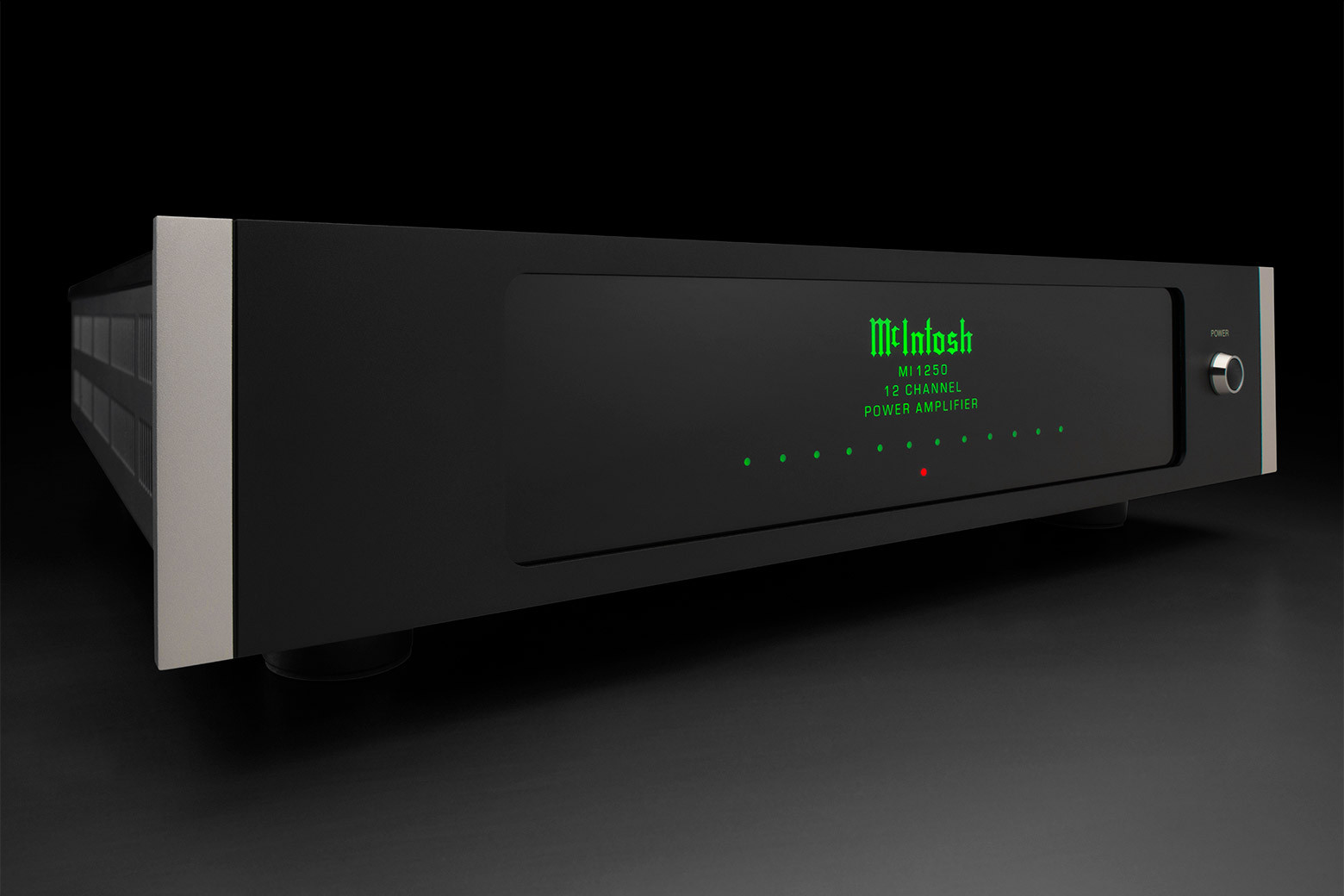

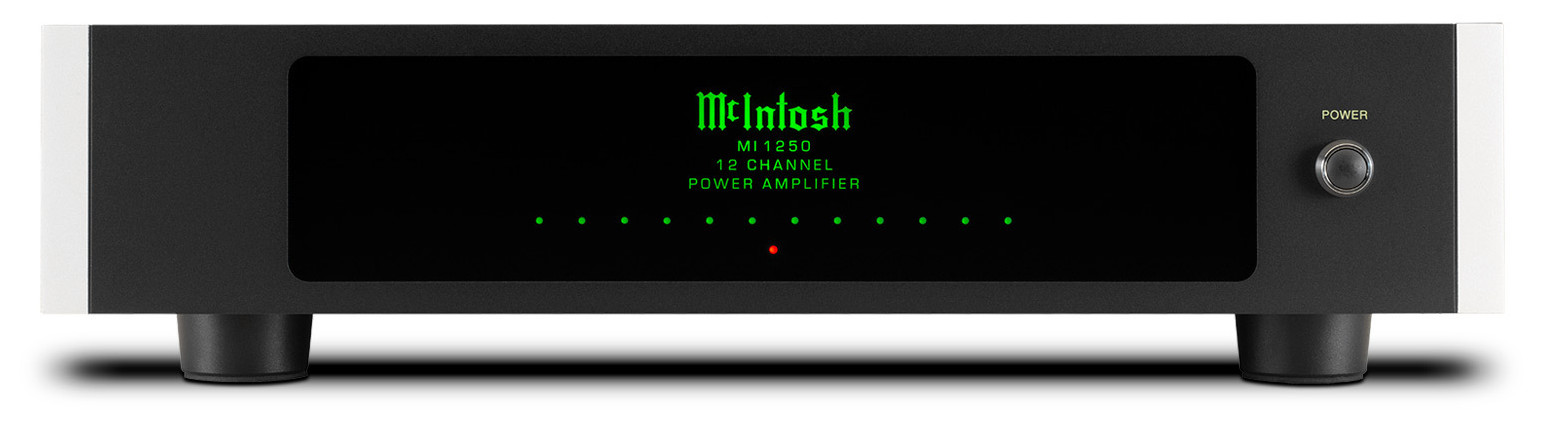

On the front, multicolored LED indicators show the status of each channel.

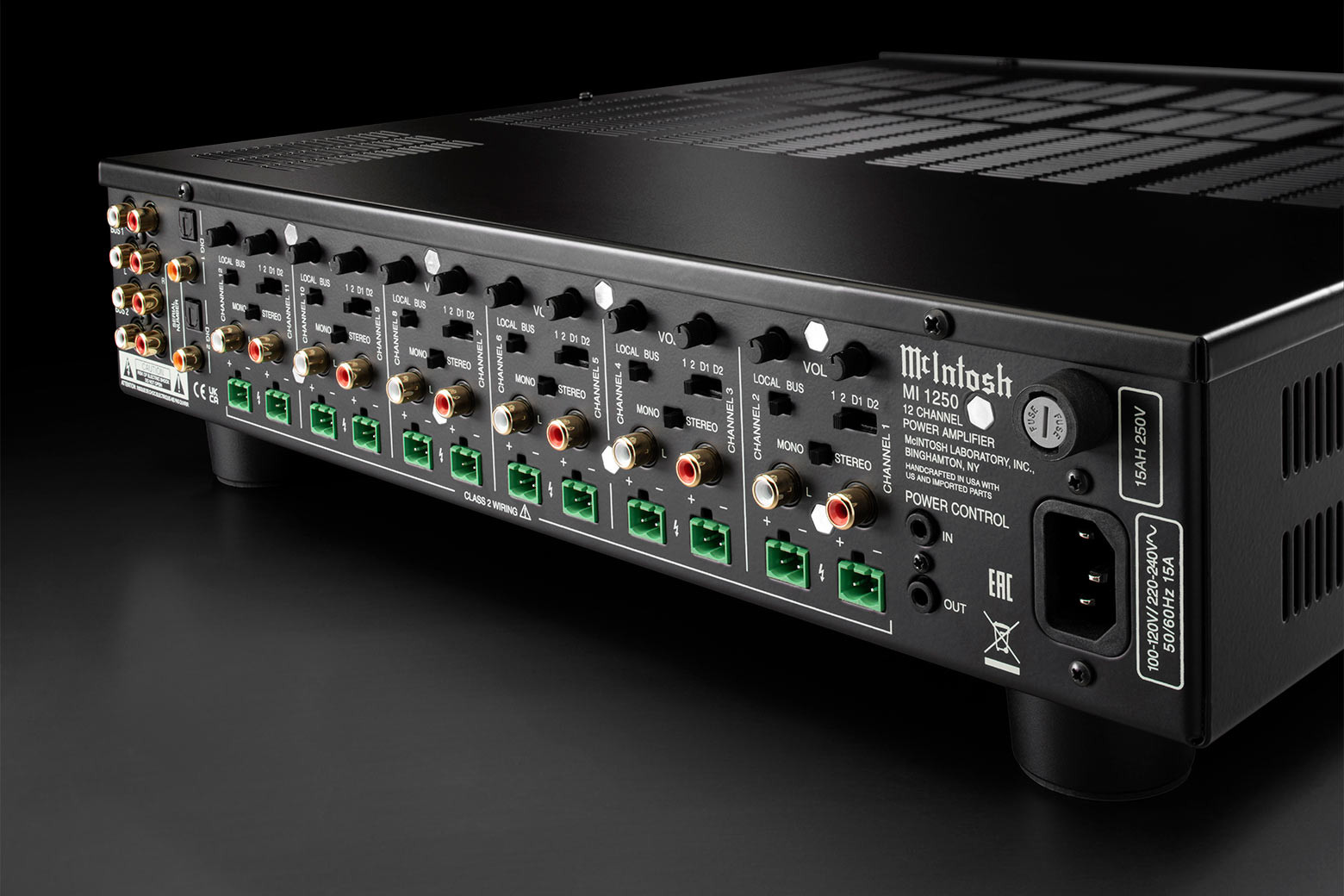

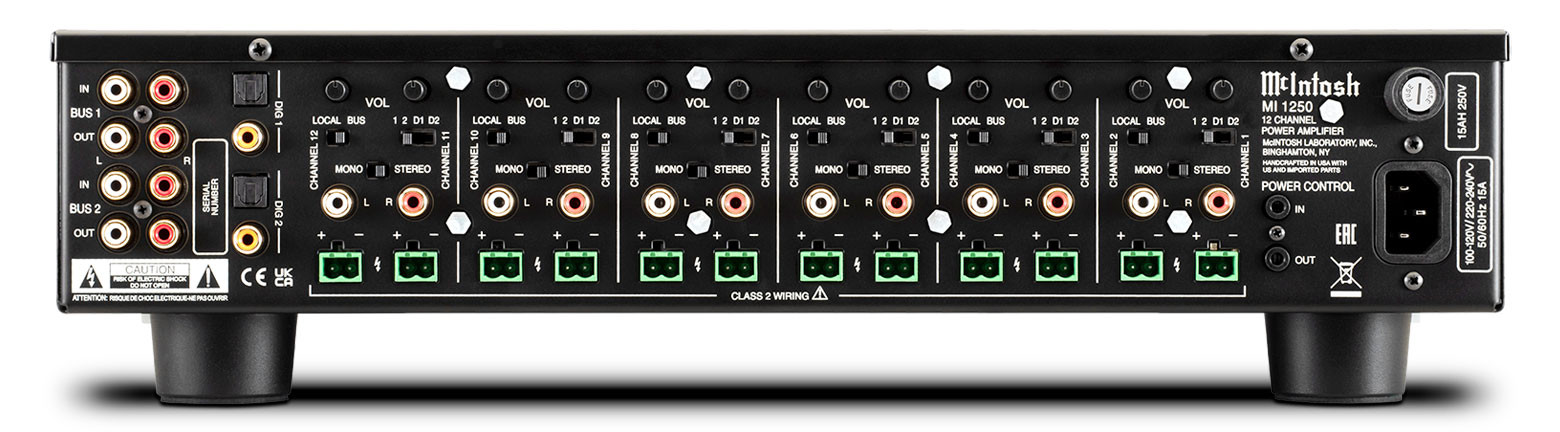

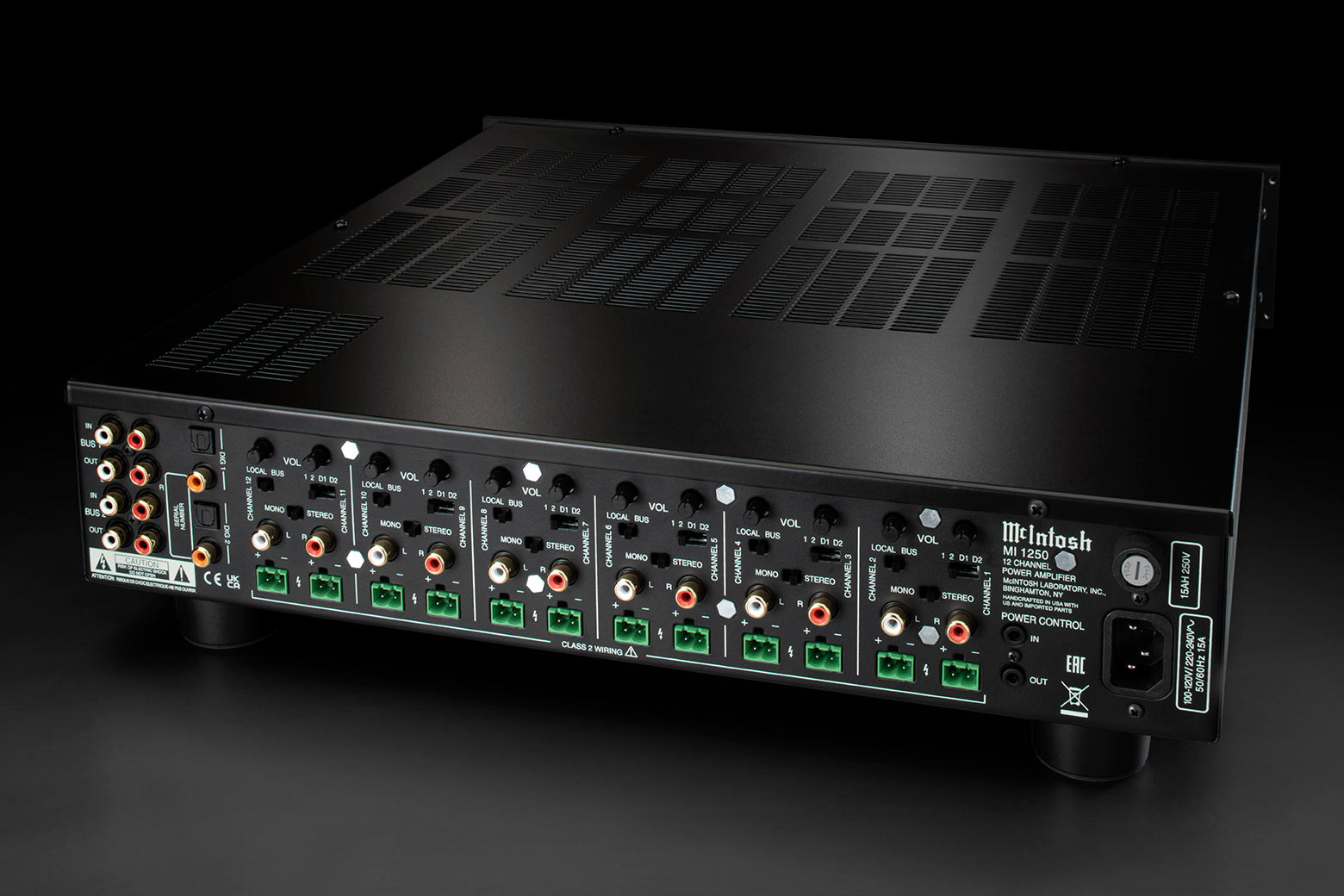

The rear panel features unbalanced inputs, as well as 2-pin Phoenix push-in speaker terminals for each channel. Also on the rear panel are volume controls for volume adjustment, as well as 2 digital audio inputs (either coaxial or optical) that can be bussed together, and channel summing circuits for easy mono signal distribution.
Other features of the MI1250 are:
- Power Guard® signal clipping technology that prevents speaker clipping.
- Our Sentry Monitor™ short-circuit protection circuit that shuts down the power amp before current exceeds a safe operating level, then automatically resets when operating conditions return to normal.
- BUS input and outputs for easy distribution of a stereo signal to multiple outputs and/or multiple amplifiers.
- Individual channel inputs.
- 12 volt trigger capability to automatically turn other connected McIntosh Components on and off.
- Eco-friendly on/off signal detection that turns off the device if no input signal is detected for a specified period of time, or automatically turns on the amplifier when a signal is detected.
Technical specifications
ELECTRONIC SPECIFICATIONS
Power output per channel:
50 watts into 8 ohms
90 watts into 4 ohms
Number of channels: 12
Total Harmonic Distortion: 0.05%
S/N below rated output: 95dB
Dynamic Headroom:
8 ohms: 2.1dB
4 ohms: 3.3dB
Damping factor:
8 Ohms: >65
4 Ohms: >32
Rated Power Band:
20Hz to 20kHz
Frequency Response:
+0, -0.5dB from 20Hz to 20,000Hz
CONTROL
Remote Power Control: Yes
Multi-Channel DB25 Cable: N/A
CONNECTIVITY
Speaker Binding Post Type
2-pole Phoenix style push-in speaker terminals
GENERAL SPECIFICATIONS
Circuit Configuration: Closed-loop digital switching
Circuit Design: Digital
Mono Bridge: N/A
Mono Parallel: N/A
Output Type: Direct Coupled
meters: no
Meter Light Switch: No
Balanced input: 0
Front Panel: Glass with removable rack mounting ears
Illumination: Direct LED
Chassis Style: Black painted steel
BTU Rating: 900 BTU/hr
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D):
17-1/2' (44.45cm) (19' (48.3cm with mounting ears)) x 4-5/16' (11cm) (including feet) x 21' (53.3cm) (including front panel and cables)
Unit Weight: 22lbs (10kg)
Shipping Weight: 38.4lbs (17.4kg)
| Color: | black |
|---|---|
| Condition: | new item |
| Device depth mm: | 110 |
| Device height mm: | 483 |
| Device width mm: | 444.5 |
| Product type: | amplifier |
Manufacturer
McIntosh Labs
McIntosh Labatory Inc.
2 Chambers Street
13903 Binghamton
New York
USA
rhullekes@finesounds.nl
EU Representative
Audio Components Vertriebs GmbH
Leverkusenstraße
Hamburg 22761
Germany
info@audio-components.de
Safety Information
Product-specific safety instructions can be found in the operating manual.
