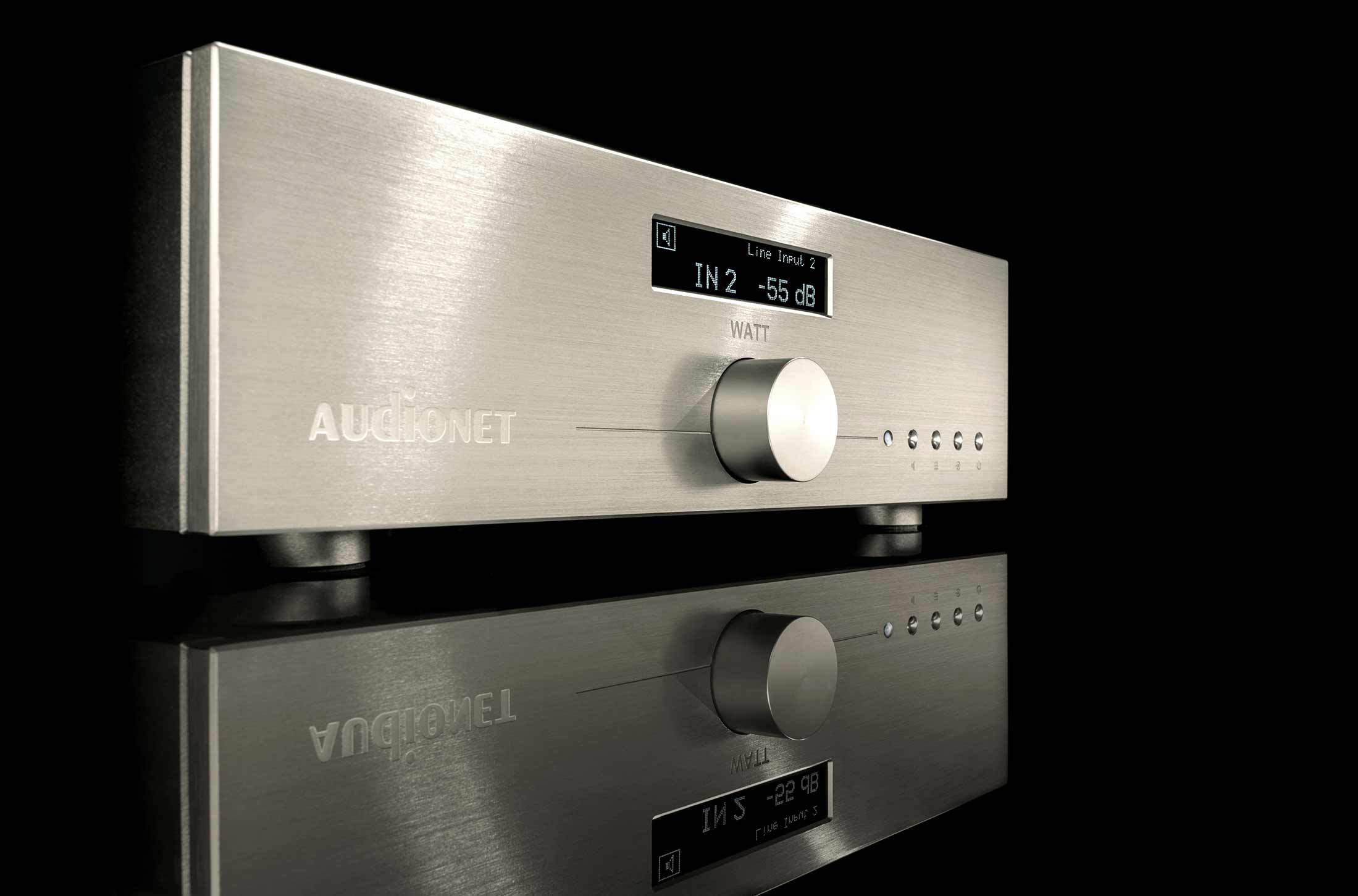

Audionet WATT Integrated Amplifier
€13,990.00
per Piece incl. VAT / incl. Shipping
- After placing your order, your Account Manager will contact you to schedule delivery and installation.
- We deliver your new devices in Germany and Austria personally to the place of installation - no courier, no forwarding agency.
- The Auditorium Team installs your new devices professionally and connects them to existing components.
SCIENTIST SERIES - ULTRA MACHINE WATT
The machine:
From the exceptional phenomenon among audiophile integrated amplifiers, SAM, we have made another quantum leap. WATT is even more subtle and spacious, even more transparent and spatial, at the same time more supple, powerful and absolutely unshakable.
Anyone looking for maximum wealth of information and timbres in one device, strength and authority and musical coherence will find WATT in the future, and little else.
The science:
Special features WATT
Solid 20mm aluminum housing with resonance-optimized, invisible screw fixation.
Magnetically and capacitively optimized circuit and device design.
Double mono construction for maximum channel separation.
Volume setting via an electronically switched and real-time linearized precision resistor network.
DC coupling without sound-damaging capacitors or coils, shortest signal paths.
Newly developed input and output stages of the highest quality.
Discreetly structured Audionet operational amplifier modules with custom-made mica capacitors of the highest quality.
ULA technology (Ultra Linear Amplifier).
Separate power supply for control and analog sections.
Two encapsulated encapsulated 700 VA toroidal transformers with separate windings for the driver stage and for the power stage.
A total of over 200,000 µF sieving capacity.
Consistent double mono construction of the Phonomoduls for MM and MC systems, fine adjustment via menu.
Inner wiring made of gold-doped pure silver.
Furutech rhodium binding posts.
Rhodium fuse.
Bypass mode for home cinema integration.
Microprocessor with its own power supply unit monitors and controls all functions and provides information on a dimmable display.
2 Audionet Link outputs for remote activation of additional Audionet components.
Switchable headphone output, driven by power amplifier.
Audionet metal remote control RC 1.
function
Analog stereo integrated amplifier
particularities
Consistent double mono structure of input, volume and output stages as well as power supplies.
Separate power supply for digital and analog sections.
Remote control (included).
DC servo that cannot be switched off, no capacitor in the signal path.
By-pass function (e.g. for looping into home theater chains).
Audionet link outputs for remote activation of additional Audionet components.
Switchable headphone output

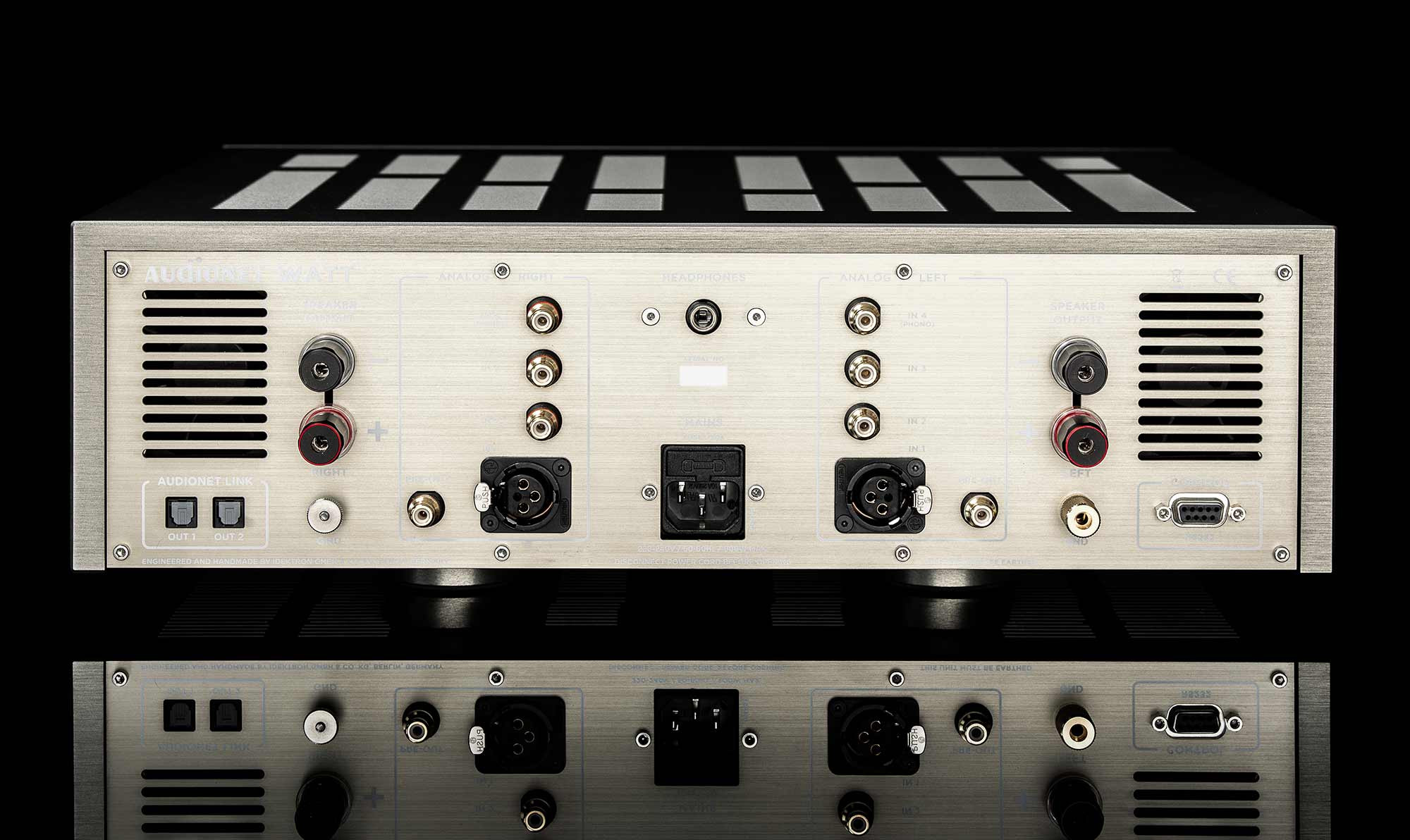

connections
Entrances: | 3 pairs of Cinch Line, gold-plated, Teflon-insulated |
Outputs: | 2 pairs of Furutech clamp or 4 mm sockets, rhodium |
Readings
Power: | 2 x 167 W at 8 ohms |
Frequency response: | 0.3,650,000 Hz (-3 dB) |
Damping factor: | typ. 1,000 at 100 Hz |
Distortion spectrum: | k2 typ. -101 dB, k3 typ. -107 dB @ 1 kHz, 25 W / 4 Ohm |
THD + N: | <-98 dB @ 1 kHz, 100W / 4 ohms |
SNR: | > 106 dB (A-weighted) |
Channel separation: | > 103 dB @ 1 kHz |
Sieving capacity: | 200,000 µF (total) |
Input impedance: | Line input 50 kOhm |
Power consumption: | <1 W standby, typ. 900 W |
Mains connection: | 220.240 V or 110.120V, 50.60 Hz |
Dimensions: | Width 430 mm |
Weight: | 22.5 kg |
execution
Front: | Brushed aluminum, 12 mm, C-32 (light bronze) anodized, text and symbols engraved |
Display: | White |
Cover: | Brushed aluminum, 6 mm, C-32 (light bronze) anodized |
Side parts: | Brushed aluminum, 12 mm, C-32 (light bronze) anodized |
Chassis: | Brushed aluminum, C-32 (light bronze) anodized, white print |
Options
Phono module for MM and MC samplers
| Color: | blue, silver |
|---|---|
| Condition: | new item |
| Product type: | amplifier |
Safety Information
Product-specific safety instructions can be found in the operating manual.
