Sonoro Meisterstück GEN.2 All in one audio system

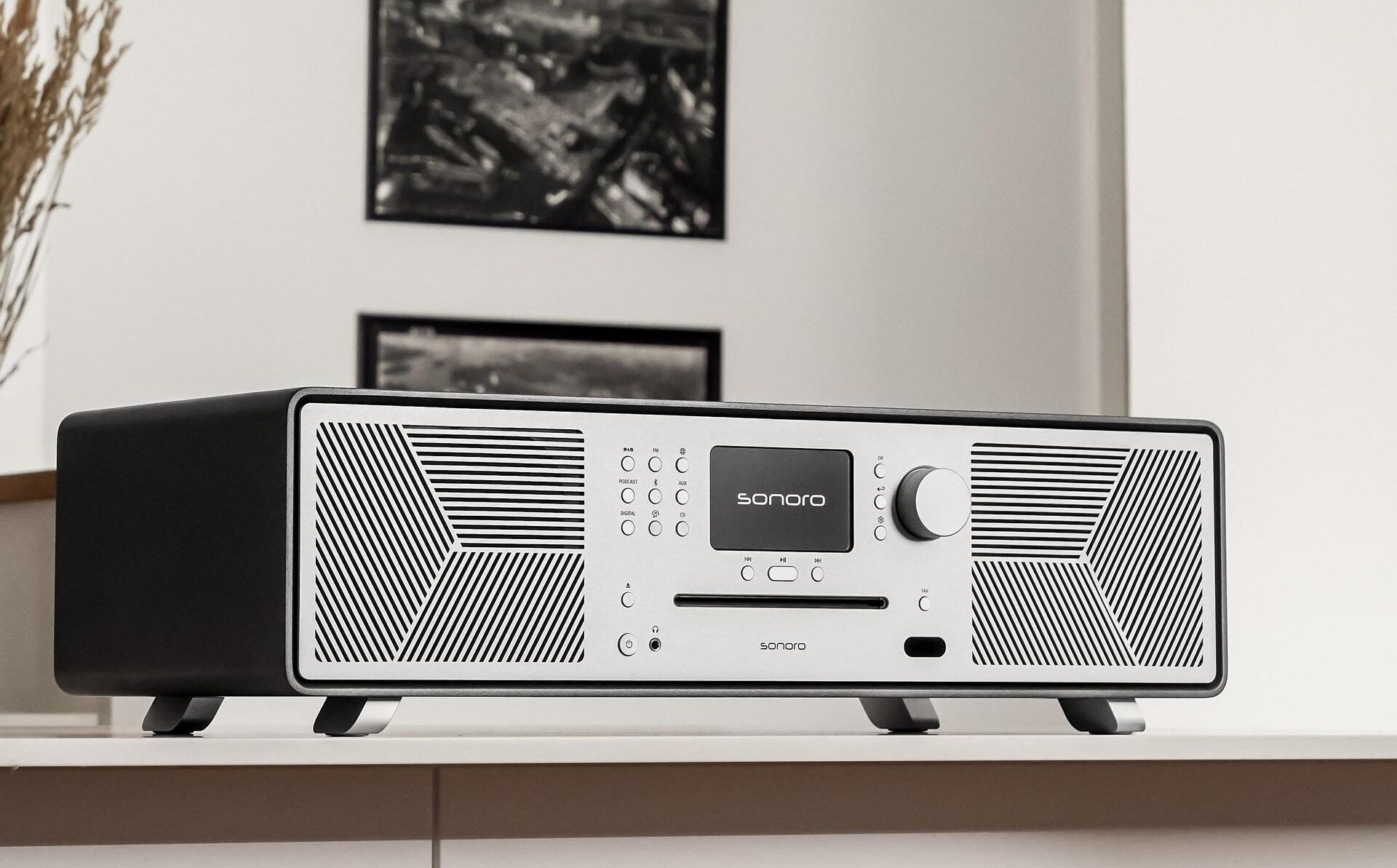

MASTERPIECE (Gen. 2) – All-in-One HiFi System & Soundbar

The MASTERPIECE (Gen. 2) combines an audiophile 2.1 compact system and a high-quality soundbar in a single unit. Designed and developed in Neuss ("German Audio Design"), the second generation combines state-of-the-art amplifier technology, extensive connectivity, and precise room correction with premium materials.

Technical Highlights & Acoustics

• Powerful 2.1 speaker system: Four integrated high-performance drivers and a dedicated subwoofer ensure a balanced, dynamic sound.
• 5 individual Class-D power amplifiers: Efficient amplifier technology ensures high impulse fidelity and precise control of all frequency ranges.
• Dynamic Bass Function: Automatic sound and bass optimization for a coherent foundation even at low volumes.
• App-based room correction: Measuring and compensating for room modes via a room correction app (iOS, from iPhone 6 onwards) for linear playback at the listening position.

Signal sources & connectivity

The MASTERPIECE (Gen. 2) offers both analog and digital interfaces for maximum flexibility in HiFi and TV setups:

• Wireless streaming standards: Bluetooth (bidirectional, e.g. for integrating Bluetooth headphones), Apple AirPlay, Google Cast and WLAN.
• Natively supported streaming services: Spotify Connect, TIDAL Connect and Qobuz Connect for lossless music streaming.
• TV & Digital Audio: HDMI (ARC) for direct connection to the television, optical and coaxial digital input.
• Analog & data interfaces: AUX-In, USB-A and USB-C.
• Classic sources: Integrated slot-in CD player as well as radio reception via FM, DAB+ (digital radio) and internet radio.

Craftsmanship & Design

The housing is manufactured with meticulous attention to detail and acoustically optimized:

• Decoupled wooden housing: Hand-sanded and finished in multiple layers to avoid unwanted resonances.
• Massive aluminum front: Laser-cut from a single piece with a floating appearance.

Operation & Integration

• Display & Direct Dial: Easy-to-read 4-inch color display with revised, intuitive menu navigation and direct dial buttons on the device.
• Control options: Included system remote control, control via sonoro audio app and integration into common smart home systems.

Technical data

Components & Amplification

• Speaker drivers: 2 x 0.75" tweeters, 2 x 3" midrange drivers, 1 x 5.25" subwoofer
• Amplifiers: 5 separate Class-D amplifiers
• Signal processing: Digital sound processor (DSP), equalizer (bass/treble), 3D sound, dynamic bass function
• Measurement: Room correction app (iOS, from iPhone 6 onwards)

Network, Wireless & Connections

• Wireless: WLAN (IEEE 802.11 a/b/g/n/ac/ax, 2.4/5 GHz; WEP/WPA2/WPA3/WPS), Apple AirPlay, Google Cast
• Bluetooth: Bluetooth® (A2DP, AVRCP) with Qualcomm aptX™ & aptX™ HD, bidirectional connection (transmit function for BT headphones)

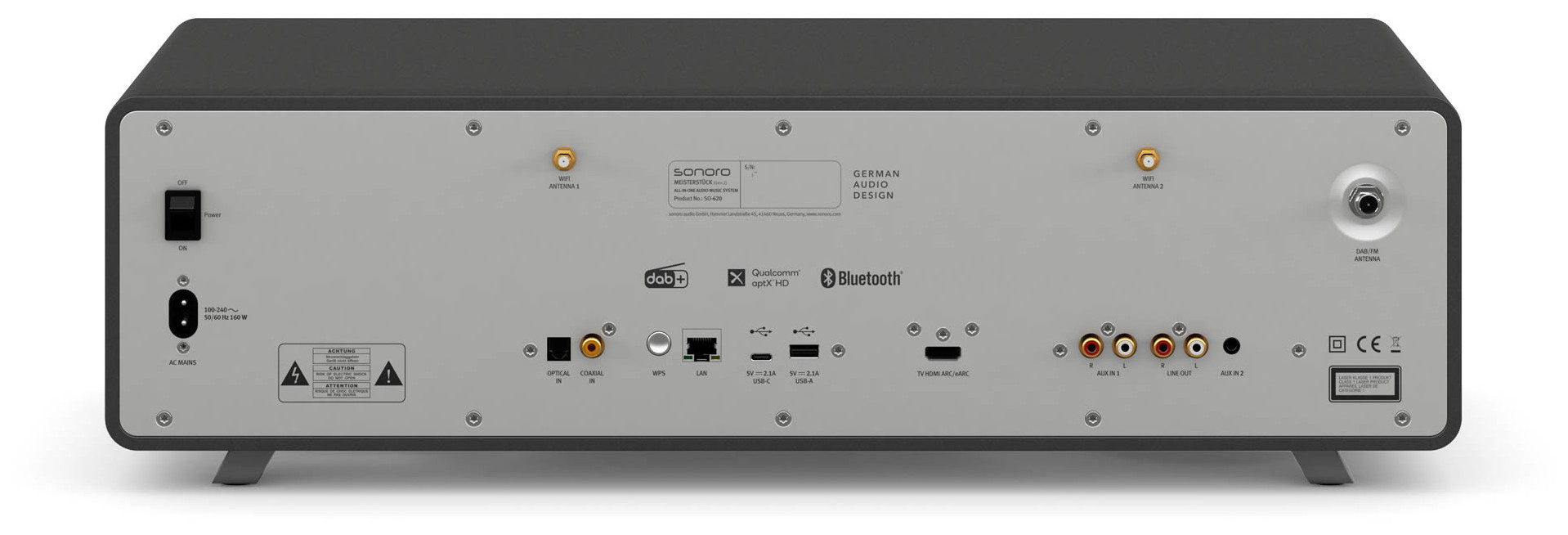

• Wired inputs: HDMI (ARC), optical & coaxial digital input, 2x AUX-In (3.5 mm jack), USB-A & USB-C (charging and playback function), LAN port
• Outputs: Line-out, headphone jack (3.5 mm)

Sources & Functions

• Streaming & Protocols: Spotify Connect™, TIDAL Connect™, Qobuz Connect™, Deezer™, Amazon Music™, DLNA, UPnP
• Radio & Media: FM & DAB+ digital radio, internet radio, podcast mode, slot-in CD player (CD, CD-R, CD-RW, MP3-CD, WMA) with repeat and shuffle function
• Operation & Display: 4" TFT color display (high-resolution, graphical, automatic brightness adjustment), control via remote control, sonoro audio app or on-device control, Smart Home Ready
• Memory & Timer: 99 favorite memory slots (including max. 20 Spotify playlists/tracks/artists), sleep timer (5–120 min.), auto/manual station search

Case & Dimensions

• Design: Hand-sanded wooden case with high-gloss lacquer finish, laser-cut aluminum front panel in one piece ("floating look"), all-metal knobs and rotary controls
• Dimensions (W × D × H): approx. 570 × 262 × 168 mm (incl. antennas, excl. rotary control)
• Weight: approx. 10 kg
• Power supply: Built-in power adapter (AC 100–240 V~ 50/60 Hz) with power switch
