McIntosh MI254 AC 4-channel digital power amplifier
McIntosh MI254 AC
Digital surround power amplifier
The MI254 4-channel digital amplifier is a versatile multi-channel amplifier ideally suited for distributed audio, home theater, or 2-channel stereo playback. It delivers 250 watts into 8-ohm speakers or 300 watts into 4-ohm speakers via its sophisticated digital power amplifiers. These amplifiers are paired with extremely robust power supplies that achieve rarely seen levels of performance.

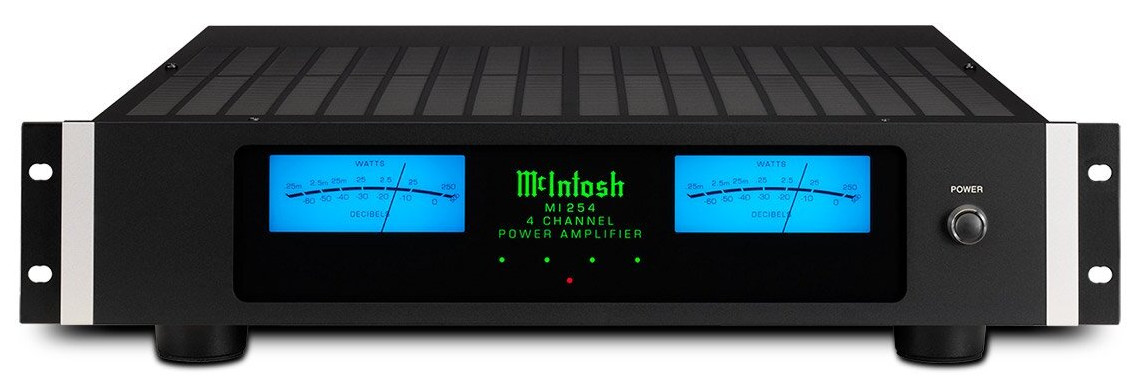

It has user-friendly dimensions and can be mounted in a 2U rack using the included mounting lugs (which can be removed for out-of-rack installations). As a highly efficient Class D amplifier, no noisy fans are required to maintain the rated operating temperature. In addition to distributed audio applications, the MI254 is ideal for home theaters to drive surround-sound speakers and can be integrated into virtually any existing home theater system.

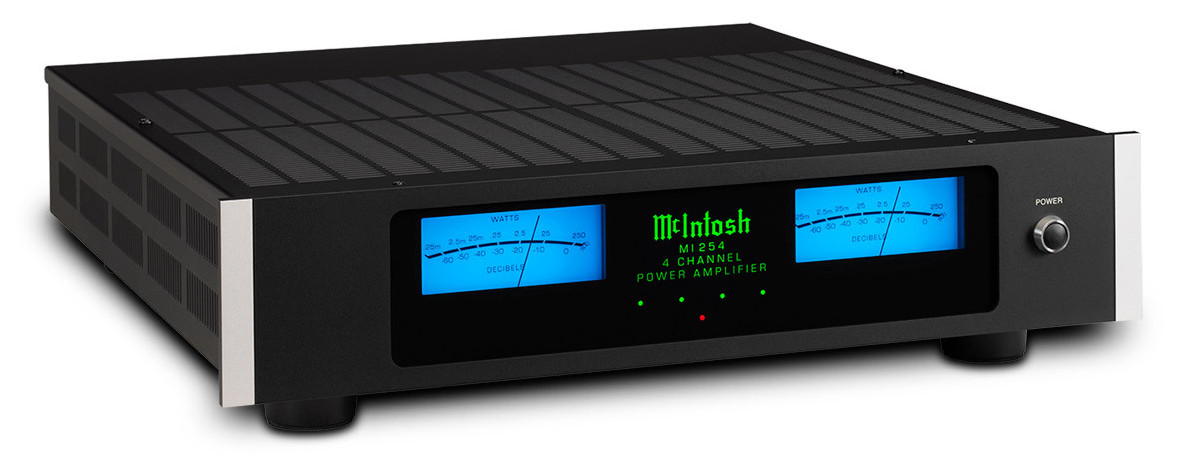

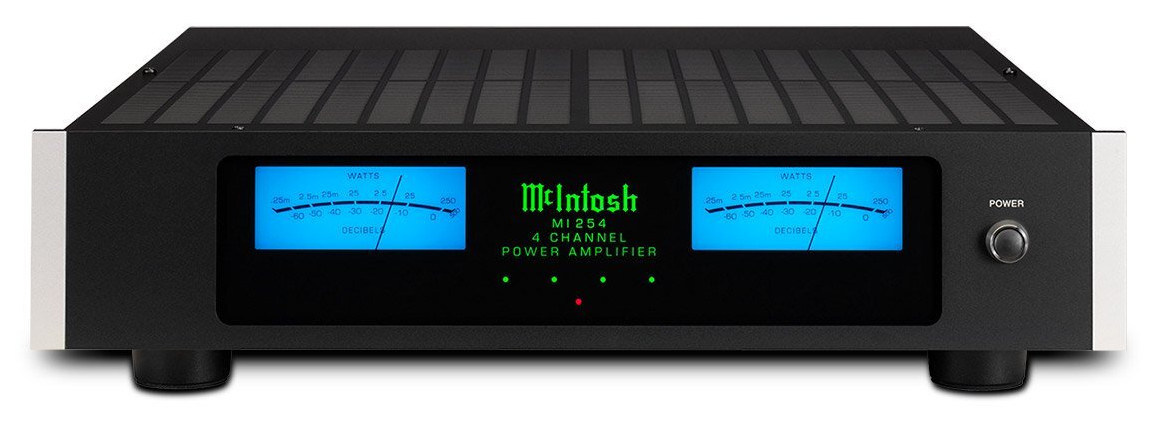

On the front panel are two blue McIntosh wattmeters displaying the combined output power of channels 1+2 and 3+4. Multi-colored LED indicators show the status of each channel. On the rear panel are one balanced and one unbalanced input for each channel, along with our standard 5-way speaker terminals.
Other features of the MI254 include: Loudspeaker Guard signal overload technology, which prevents speaker distortion; our Sentry Monitor™ short-circuit protection circuit, which shuts down the output stage before the current exceeds safe operating levels and then automatically resets when operating conditions return to normal; BUS inputs and outputs for easy distribution of a stereo signal to multiple outputs and/or multiple amplifiers; individual channel inputs; 12-volt trigger capability; and on/off signal detection, which either turns the unit off if no input signal is detected for a set period or automatically turns the amplifier on when a signal is detected.
The MI254 incorporates many McIntosh design elements, including a black glass front, blue wattmeters, an illuminated McIntosh logo, and a familiar form factor highlighted by silver embellishments.
Technical data
Output power per channel:
250 watts at 8 ohms
300 watts at 4 ohms
Number of channels: 4
Total harmonic distortion: 0.025%
Signal-to-noise ratio (S/N) at rated power: 100dB
Dynamic headroom:
8 ohms: 2.5 dB
4 ohms: 3.5 dB
Damping factor:
8 ohms: >85
4 ohms: >45
Nominal power band: 20Hz to 20kHz
Frequency response:
+0, -0.9 dB from 20 Hz to 20,000 Hz
STEERING
Remote power control: Yes
Multi-channel DB25 cable: KA
CONNECTIVITY
Speaker jack type: Standard
GENERAL SPECIFICATIONS
Circuit configuration:
Closed digital circuit
Circuit structure: Digital
Mono-bridge: N/A
Mono-parallel: KA
Output type: Direct coupling
Counter: Yes
Light switch counter: No
Symmetrical input: 4
Front panel: Glass with removable rack mounting lugs
Lighting: Direct LED
Case style: Black lacquered steel
WEIGHTS AND DIMENSIONS
Dimensions (W x H x D):
44.45 cm x (48.3 cm with mounting eyelets) x 11 cm (4-5/16 cm) (including feet) x 53.3 cm (including front panel and cable)
Weight: 10.7 kg
Shipping weight: 18.1 kg
| Color: | black |
|---|---|
| Condition: | new item |
| Device depth mm: | 533 |
| Device height mm: | 110 |
| Device width mm: | 444.5 |
Manufacturer
McIntosh Labs
McIntosh Labatory Inc.
2 Chambers Street
13903 Binghamton
New York
USA
rhullekes@finesounds.nl
EU Representative
Audio Components Vertriebs GmbH
Leverkusenstraße
Hamburg 22761
Germany
info@audio-components.de
Safety Information
Product-specific safety instructions can be found in the operating manual.
