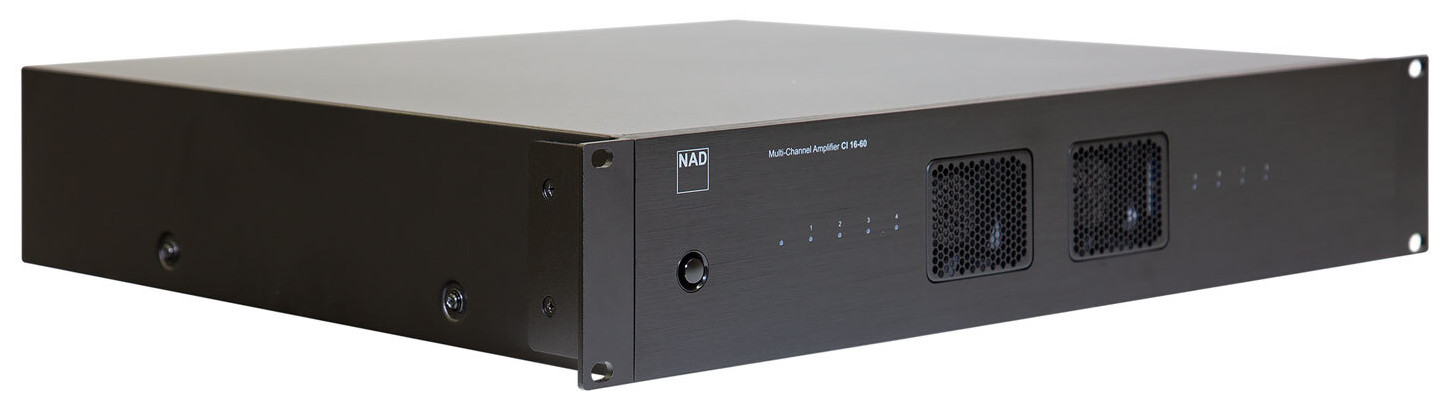

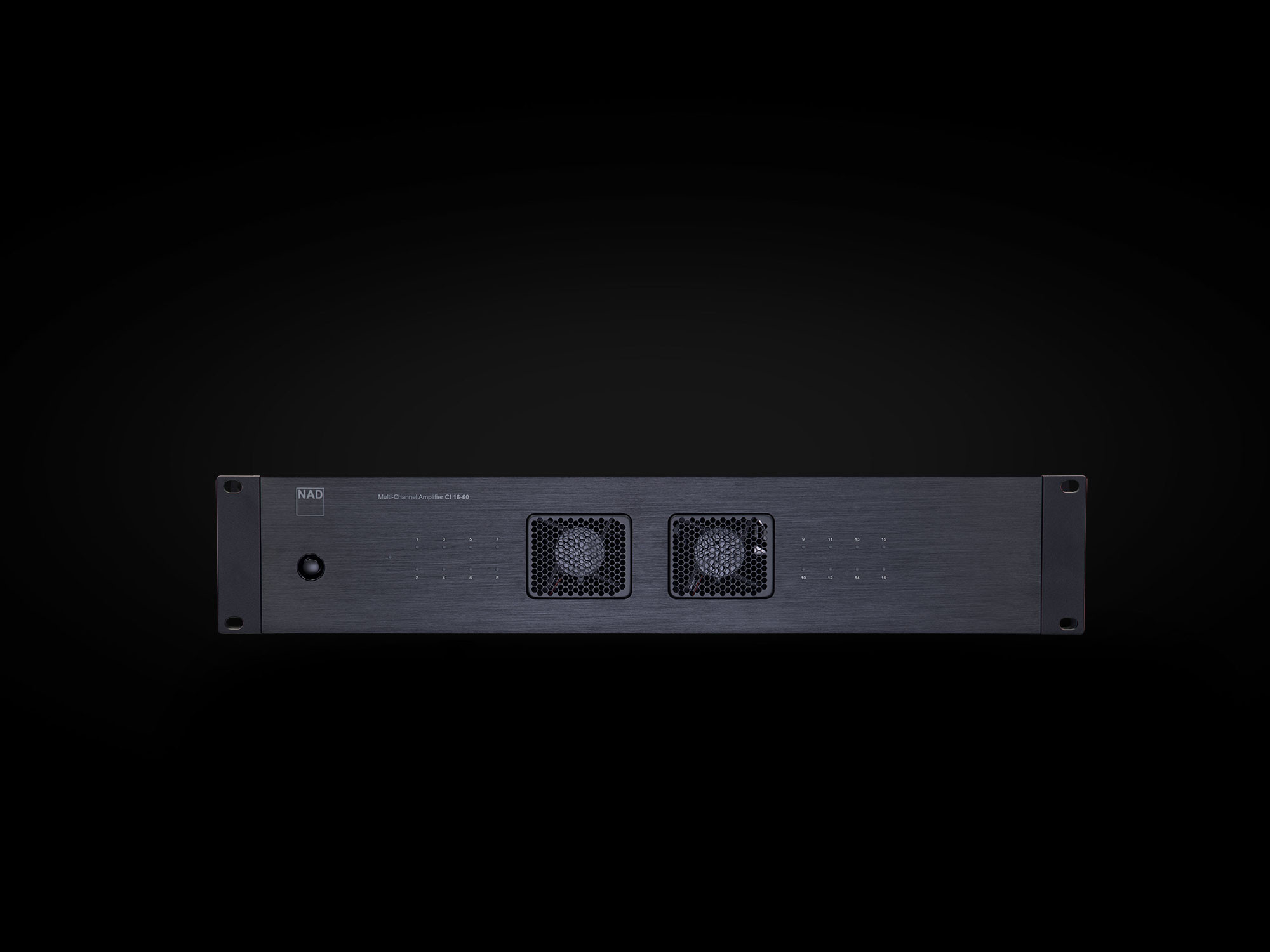

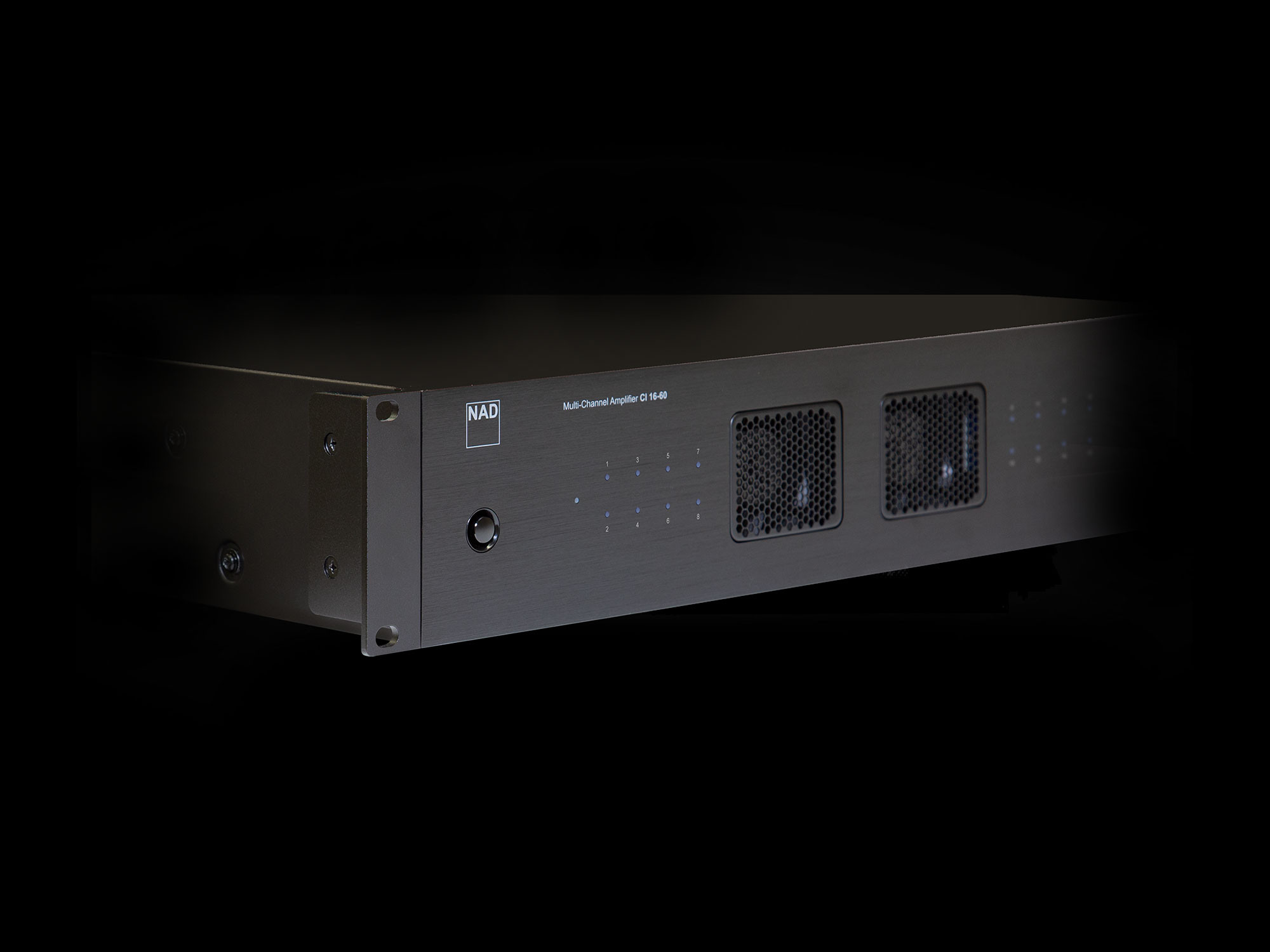

NAD CI16-60 V2 DSP 16-Channel Power Amplifier

With the NAD CI 16-60 DSP, NAD presents a powerful 16-channel power amplifier specifically designed for professional multiroom and custom installation systems. Equipped with modified Hypex UcD power amplifiers and network-based DSP control, it combines maximum reliability with precise signal processing – perfect for demanding commercial or residential installations where stability, efficiency, and sound quality are paramount.

Maximum flexibility for professional applications

The CI 16-60 DSP offers an impressive range of applications – from multiroom systems in residential buildings to complex audio distributions in restaurants, conference rooms or hotels.

Thanks to integrated Hypex UcD technology, it boasts extremely low distortion, minimal noise, and stable operation – even with long cable runs or demanding speaker loads. Each of the 16 power amplifier channels delivers 60 watts into 8 ohms (or 65 watts into 4 ohms). In bridged mode, any two channels can be combined to deliver 8 × 140 watts into 8 ohms, giving the amplifier exceptional power handling capabilities.

The global inputs and outputs allow an audio signal to be conveniently routed to multiple channels or external amplifiers – ideal for installations with numerous speaker zones.

Intelligent control via network (WEB GUI)

The CI 16-60 DSP can be integrated directly into the network via LAN connection and fully configured and calibrated via a web-based user interface.

The user-friendly interface offers:

• Access to digital multi-channel signal processing (DSP)
• Virtual patch panel for freely selectable routing of inputs to any outputs
• Real-time monitoring of temperature and power status
• Remote maintenance and troubleshooting (power on/off, reset, firmware updates)

This makes setting up even extensive audio systems incredibly easy – without any additional software or physical switching.

Sound quality with typical NAD character

Like all NAD custom-install components, the CI 16-60 DSP delivers the typical NAD sound – powerful, neutral, and detailed. The modified Hypex UcD power amplifiers ensure exceptionally clean reproduction across the entire frequency spectrum.

The amplifiers operate linearly across a wide bandwidth, ensuring consistent power output regardless of speaker load. With a total harmonic distortion of less than 0.05% and a damping factor of 110, the power amplifier delivers clear, controlled reproduction – even in demanding installations.

Bridge operation and signal loop-through

For particularly power-intensive setups, the channels of the CI 16-60 DSP can be bridged in pairs, increasing the output power to 8 × 140 watts at 8 ohms. The analog RCA inputs and outputs are available both channel-by-channel and globally. This allows multiple amplifiers to be easily cascaded without the need for external signal distributors.

This flexible architecture facilitates the planning and implementation of large multiroom systems while simultaneously enabling high scalability with minimal installation effort.

Energy efficient and reliable

The CI 16-60 DSP was designed for continuous operation in professional rack systems. Despite its high output power, it remains energy-efficient and thermally stable thanks to efficient Class-D technology.

The device has a standby power consumption of less than 0.5 watts and automatic activation via signal detection. The 12V trigger input and IR in/out also allow for integration into automated control systems.

Technical data

• Amplifier power:
  • 16 × 60W @ 8O (0.05% THD, 1kHz)
  • 16 × 65W @ 4O (0.05% THD, 1kHz)
  • Bridge mode: 8 × 140 W @ 8 O (0.05 % THD, 1 kHz)
  • Pulse power: up to 125 W (4 O) or 270 W (bridge mode)
  • Damping factor: 110 (at 8 Ω, 20–1,000 Hz)
  • Frequency response: 20 Hz – 20 kHz ±1 dB
  • THD: <0.05% (20 Hz - 3 kHz), <0.2% (3 - 20 kHz)
  • Channel separation: 60 dB (1 kHz)
  • Signal-to-noise ratio (A-weighted): 80 dB

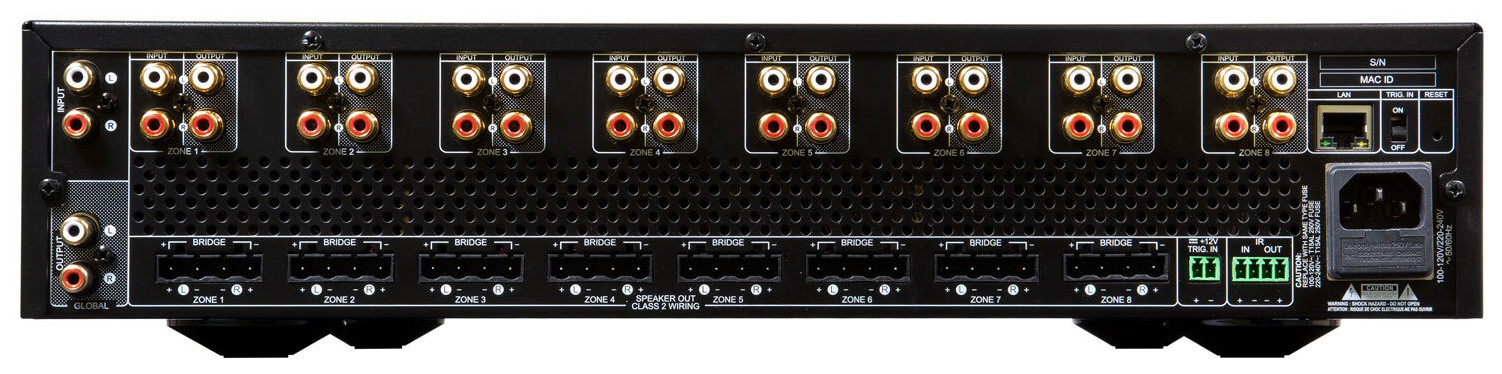

• Connections & Controls:
  • 16 × RCA inputs (one per channel)
  • 16 × RCA outputs (one per channel)
  • 2 × Global inputs/outputs (stereo RCA)
  • Phoenix speaker terminals
  • 12V trigger input
  • IR input/output
  • Network control via web GUI (DSP & monitoring)
• General data:
  • Format: 19-inch rack, 2U
  • Dimensions (W × H × D): 483 × 100 × 435 mm
  • Weight: 10.3 kg
  • Standby power consumption: < 0.5 W
  • Automatic signal detection
  • Typical NAD sound signature
