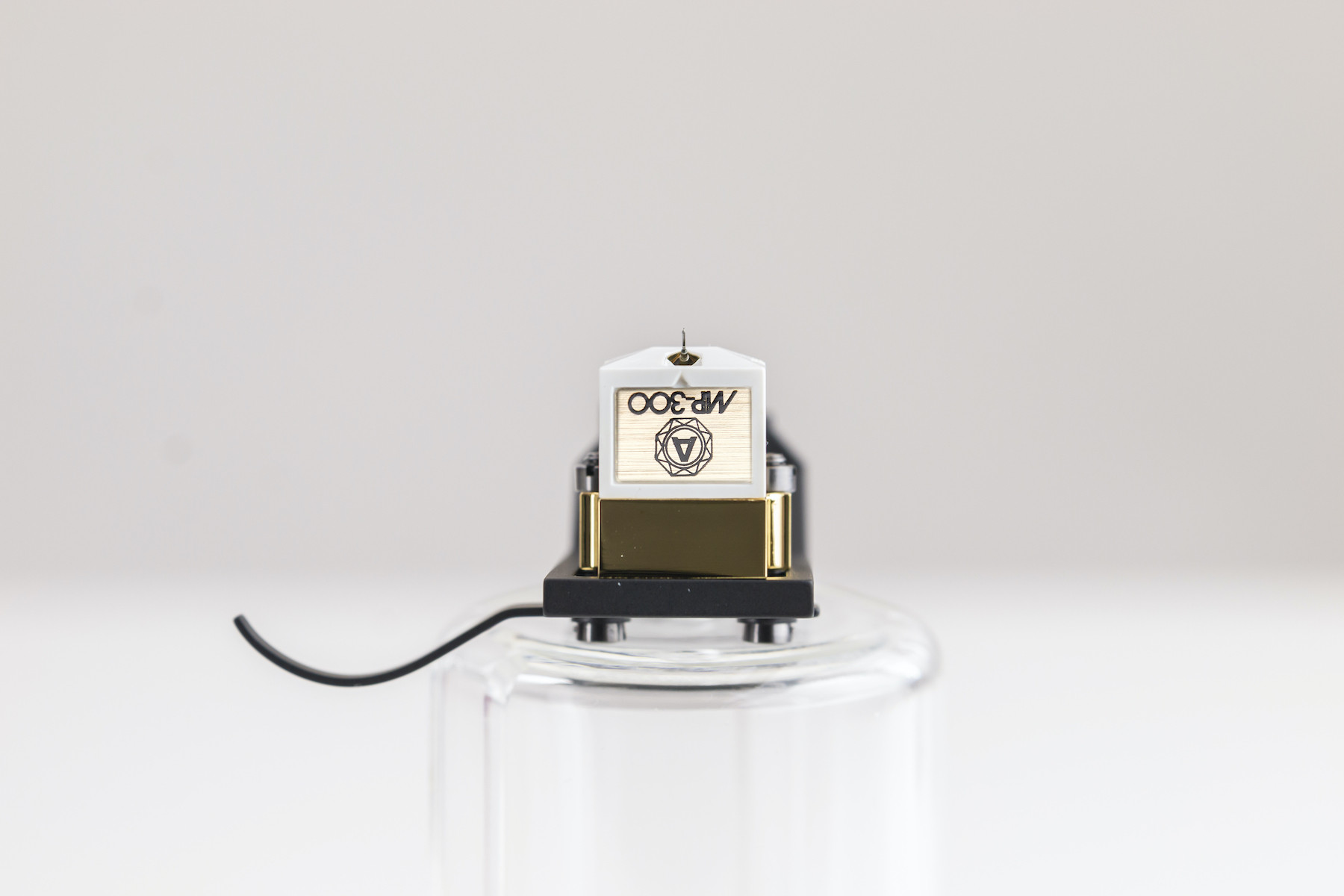

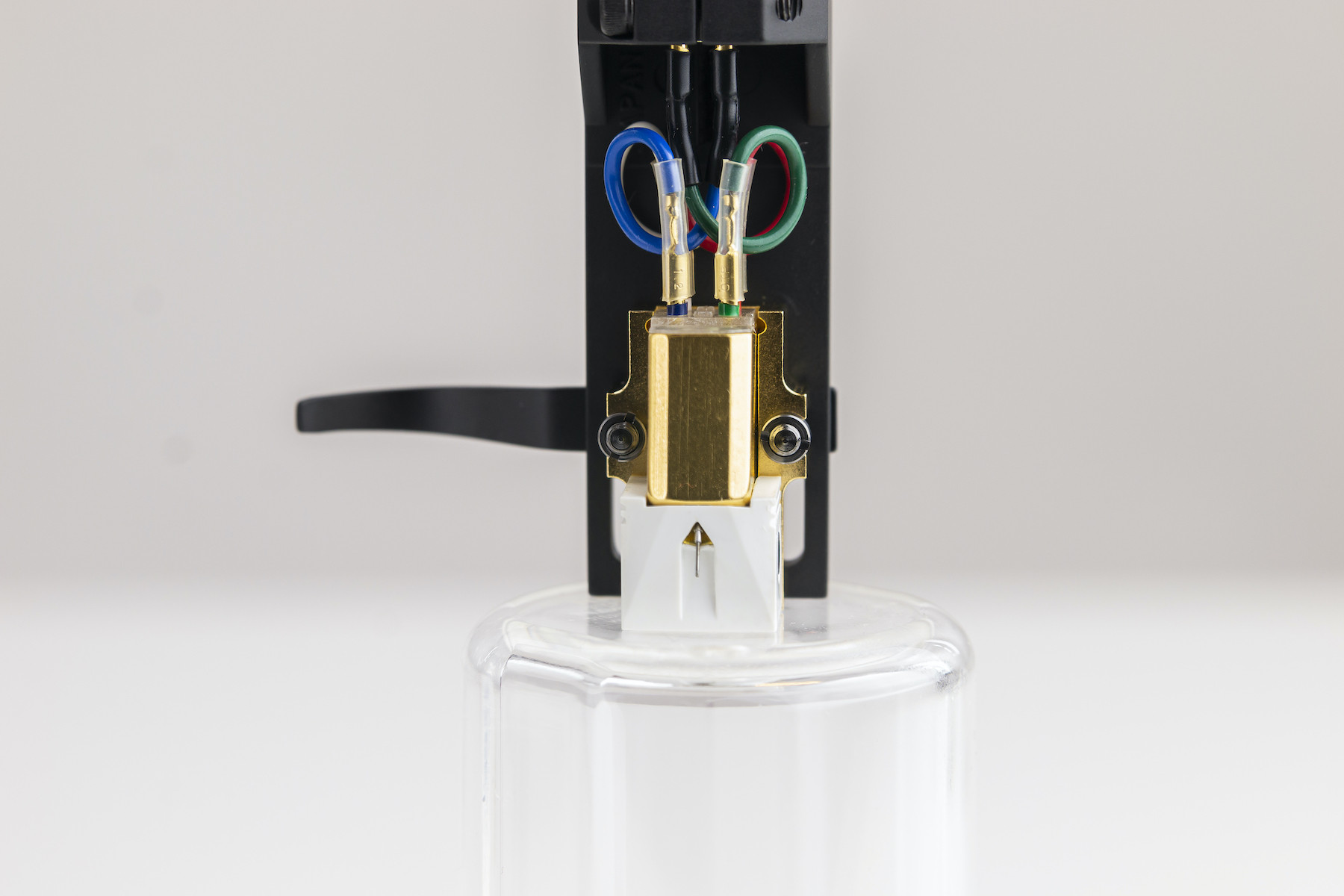

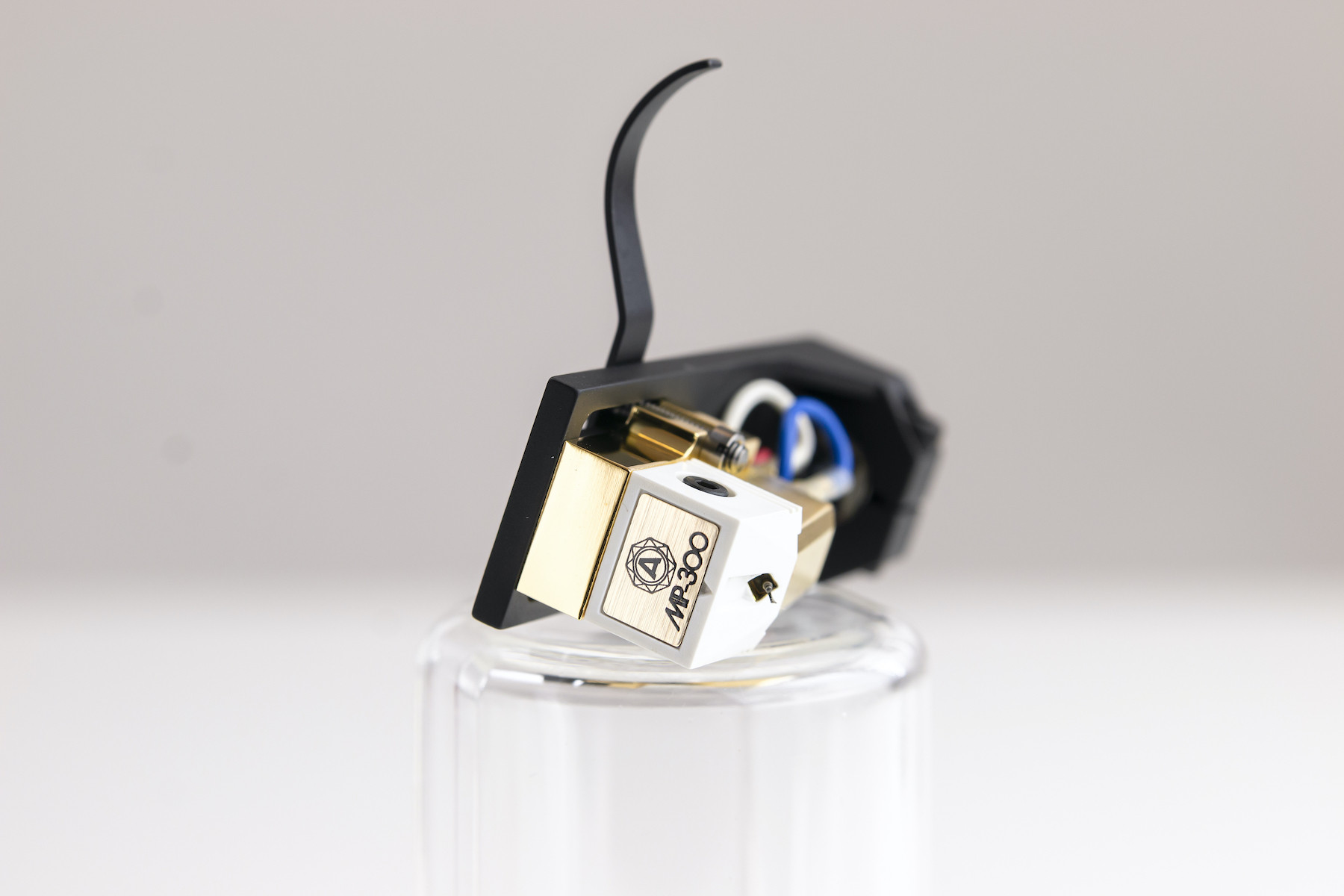

Nagaoka MP-300 H Cartridge with Head Shell
€859.00
per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
This Cartridge consists of a high-strength aluminium alloy, which is additionally damped with fibre-reinforced plastic. These impressive design features contribute significantly to the outstanding sound experience. The semi-line diamond of the boron needle carrier guarantees low-distortion pickup. Despite low wear and tear and contact force, an exceptionally good pickup performance is achieved. The MP-300 is a solid pickup for medium-weight tonearms.
Technical data
- Principle: MP - High Output (for the MM input)
- Weight: 8.0 g
- height: 18mm
- Needle cut: Elliptical 0.4x0.7mm
- Needle carrier: Boron
- Frequency response: 20 - 25,000 Hz
- Output voltage (1kHz, 5cm/sec): 3.0 mV
- Channel separation (1kHz): > 25 dB
- Channel balance (1kHz): < 1.0 dB
- Needle compliance: 22 µm/mN
- Recommended contact force: 16 mN (13-18 mN)
- Recommended termination resistor: 47 kOhm
- Recommended termination capacity: 150 - 200 pF
- Replacement needle: JN-P300
| Cartridge type: | with head shell |
|---|---|
| Condition: | new item |
| Frequency response: | 20Hz - 25kHz |
| Product type: | Pickup MI |
| Promotion: | no |
| Series: | MP |
