Pro-Ject Phono Box E Phono-preamplifier

Phono Box E

Phono preamp

Phono Box E: Pure vinyl joy at an absolute bargain price!

Many current amplifiers do not offer a dedicated phono input. Phono Box E is the ideal solution for these hi-fi systems. Phono Box E enables the connection of MM pickups and offers audiophile music enjoyment at a beginner's price. A modern circuit concept based on SMD avoids noise and distortion. The integrated shielding and the outsourced power supply hardly give external interference a chance. Because of its compact dimensions, the Phono Box E can be placed close to the turntable. Both input and output jacks are hard gold plated to prevent corrosion. Phono Box E is connected to a line input (AUX etc) of the amplifier.

features

• Gain & RIAA equalization for MM cartridges
• Design principle inspired by Dr. Sykora
• SMD circuits
• Low-noise assemblies
• Internal metal shield
• Compact housing for placement close to the turntable
• Hard gold plated RCA jacks
• External power supply included
• Black or white housing

Technical specifications

Input impedance 47 kOhm
Input capacitance 120 pF
Gain 40dB
Output voltage (typical) 500 mV/ 1 kHz at 5 mV/ 1kHz
Signal-to-noise ratio 88 dB (A weighted)
THD<0.05%
RIAA deviation deviation max. 0.5 dB/ 20 Hz - 20 kHz

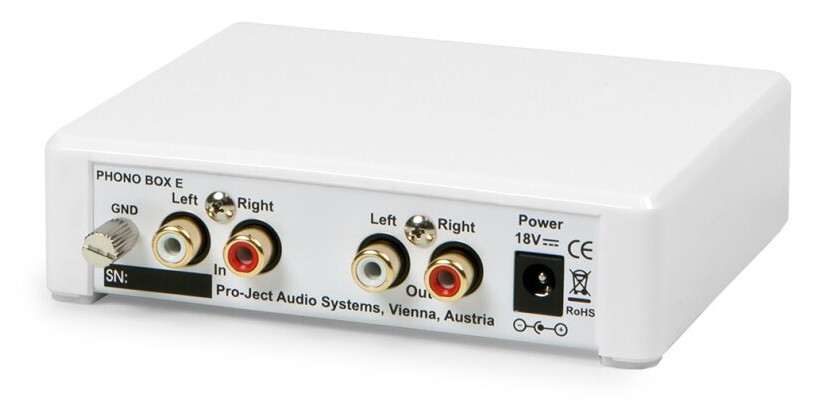

Input 1 pair of RCA jacks
Output 1 pair of RCA jacks
External power supply 18V/500mA DC; 220-240V, 50Hz
Standby consumption < 1 watt
Power consumption 20mA DC
Dimensions W x H x D (D with sockets) 120 x 32 x 100 (106) mm
Weight 269 g without power supply
