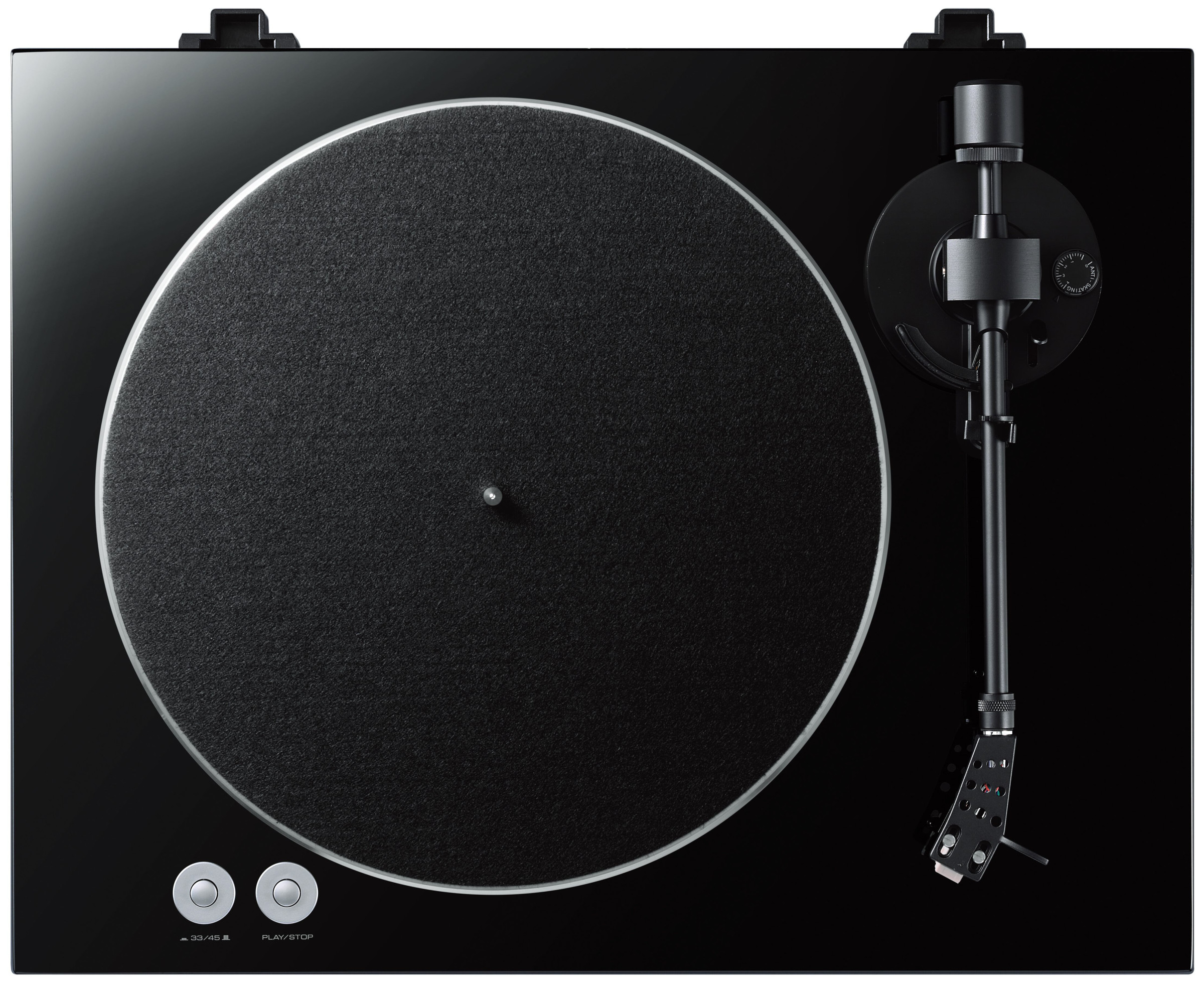

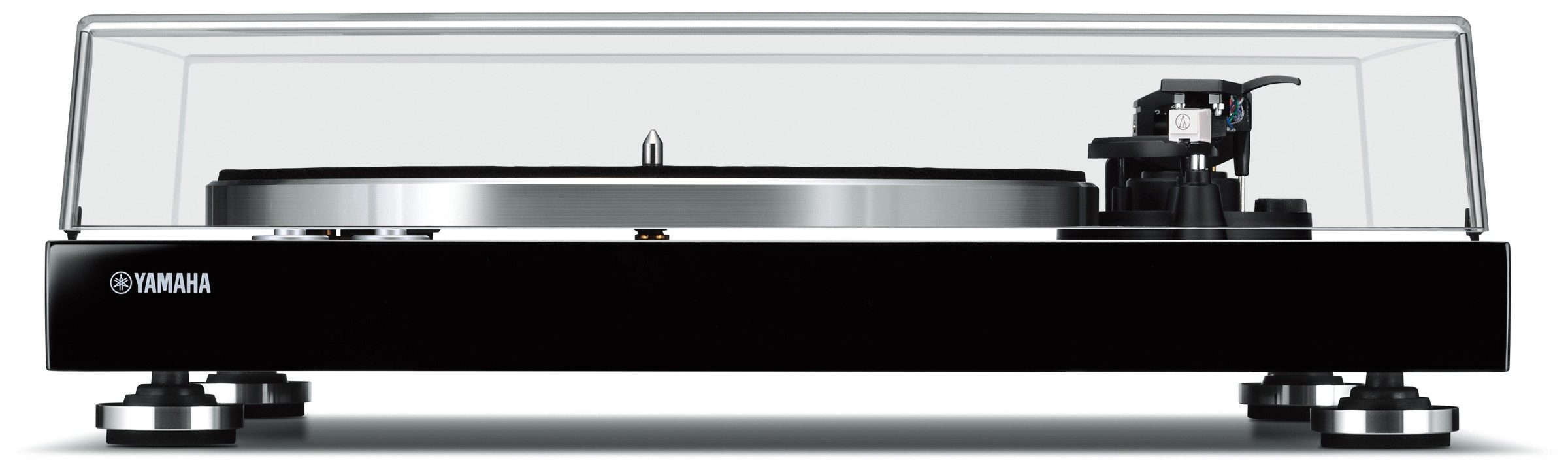

Yamaha TT-S 303 Turntable

Yamaha TT-S 303 turntable

Immerse yourself in the world of vinyl with the Yamaha TT-S303 turntable. The straight tonearm and robust housing deliver authentic sound from old and new vinyl collections.

Details:

• Straight tonearm for transparent and open sound
• Belt drive turntable

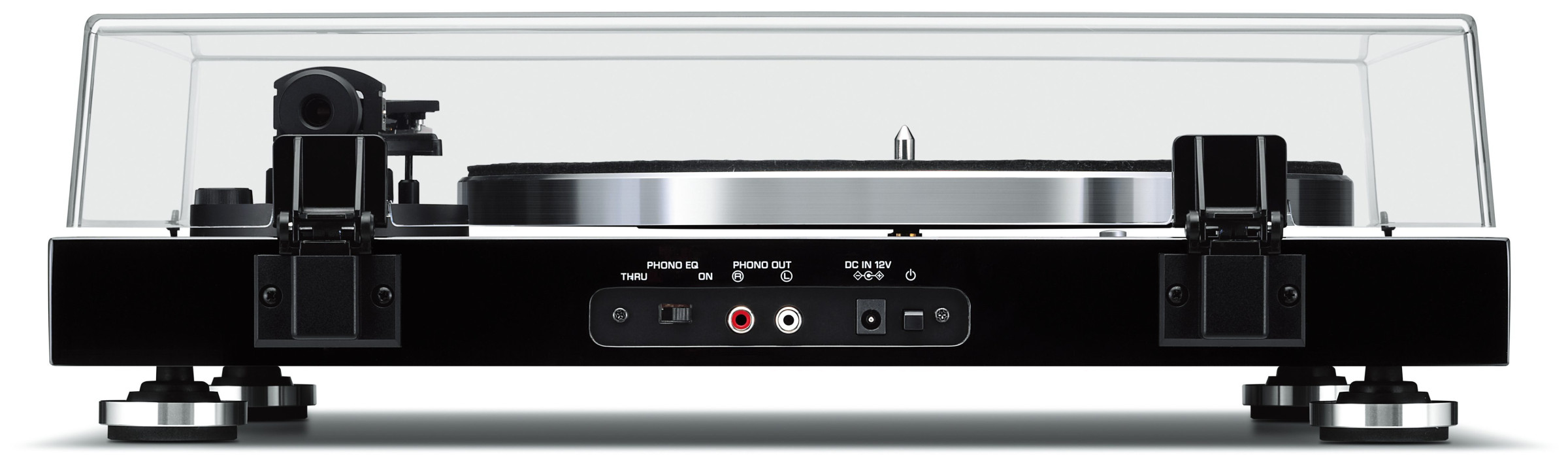

• Switchable phono and line outputs
• Authentic Hi-Fi design

Legendary sound

Transform your listening experience. This turntable design has undergone rigorous testing to ensure the most faithful reproduction of music - the way it was meant to be heard.

Built-in preamplifier

Simple and flexible. With an integrated phono EQ amplifier you have the option to connect to a line input on an amplifier without a phono stage, or even to active speakers!

Alternatively, if you want to use your amplifier's phono preamp, switch the TT-S303 to phono output mode for the perfect combination with your favorite amplifier.

Traditional sound

Nothing conveys the nostalgic feeling of vinyl like the sound that connects you to the music.

Yamaha, experts in sound, boast an enviable range of Hi-Fi products that have shaped the way we listen to music. Some products have even achieved cult and legendary status in hi-fi circles - praised for their quality, innovation and unmistakable Yamaha sound.

The TT-S303 marks the return of the Yamaha turntable, drawing inspiration and expertise from the company's unrivaled musical roots.

Designed for Hifi

The TT-S303 was designed to match the classic look and aesthetics of Hi-Fi components.

Whether paired with a stereo amplifier or a receiver, add a turntable to your setup to enjoy both classic and modern vinyl collections.

Technical data

Turntable
Drive Method: Belt drive
Motor: DC motor
Rotation Speed: 33-1/3rpm, 45rpm
Rotation Speed Variation: ±2%
Wow And Flutter: 0.2%
Platter: Aluminum die-cast (diameter 30 cm)
Output Level: 140 mV (-17 dBV, with RIAA EQ), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec)
Signal To Noise Ratio: 67 dB or higher (A-weighted, 20 kHz, LPF)

Low tone
Tonearm: Static balance straight tonearm
Effective Arm Length: 223.5mm
Overhang: 19 mm
Stylus Pressure Adjustment Range: 0-4g
Acceptable Cartridge Weight: 15.5-19 g (including headshell)

Attached cartridge
Cartridge Type: MM type
Output Voltage: 2.5 mV (1 kHz, 3.54 cm/sec)
Stylus Pressure: 3.5 ± 0.5g
Cartridge Weight: 5.0 ± 0.3g
Cartridge Height: 17.0 ± 0.7mm
Head-shell Weight: 10 g (including screws, nuts and wires)

Audio Specifications
Output Terminal: RCA: 1 (PHONO)

general
Power Consumption: 1.5W
Standby Power Consumption: 0.1W
Dimension (W×H×D): 450 x 136 x 368 mm; 17-3/4” x 5-3/8” x 14-1/2”
Weight: 4.8 kg; 10.6 lbs.
