McIntosh MI502 Stereo Power amplifier
Mcintosh MI502 Stereo Power Amplifier

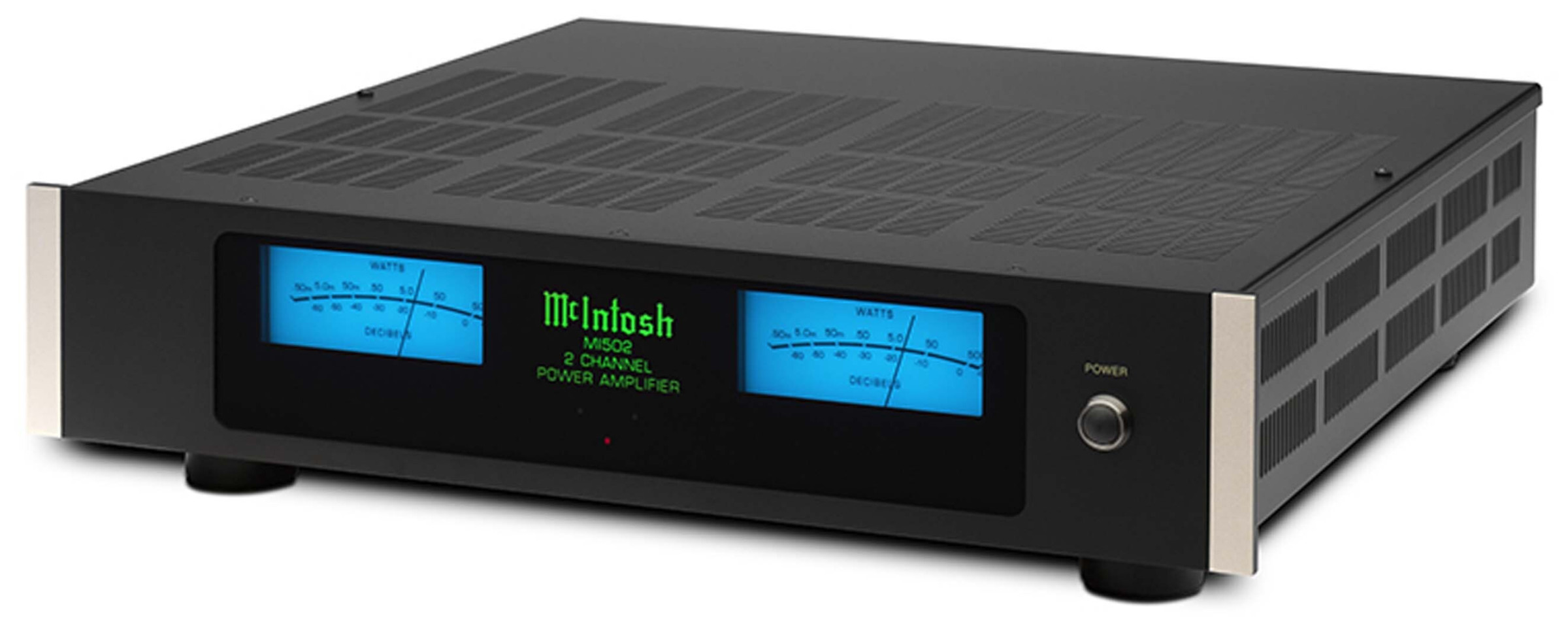

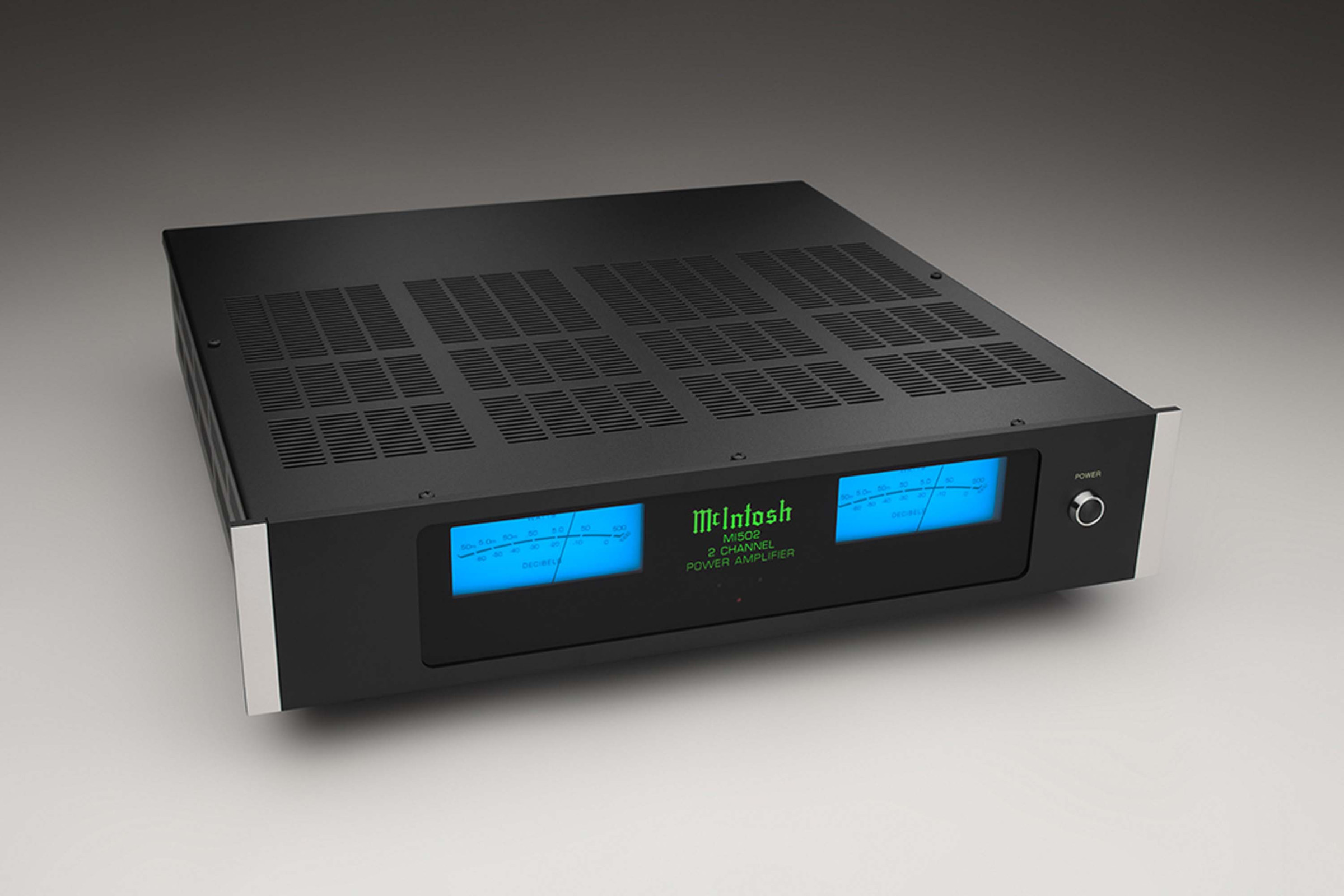

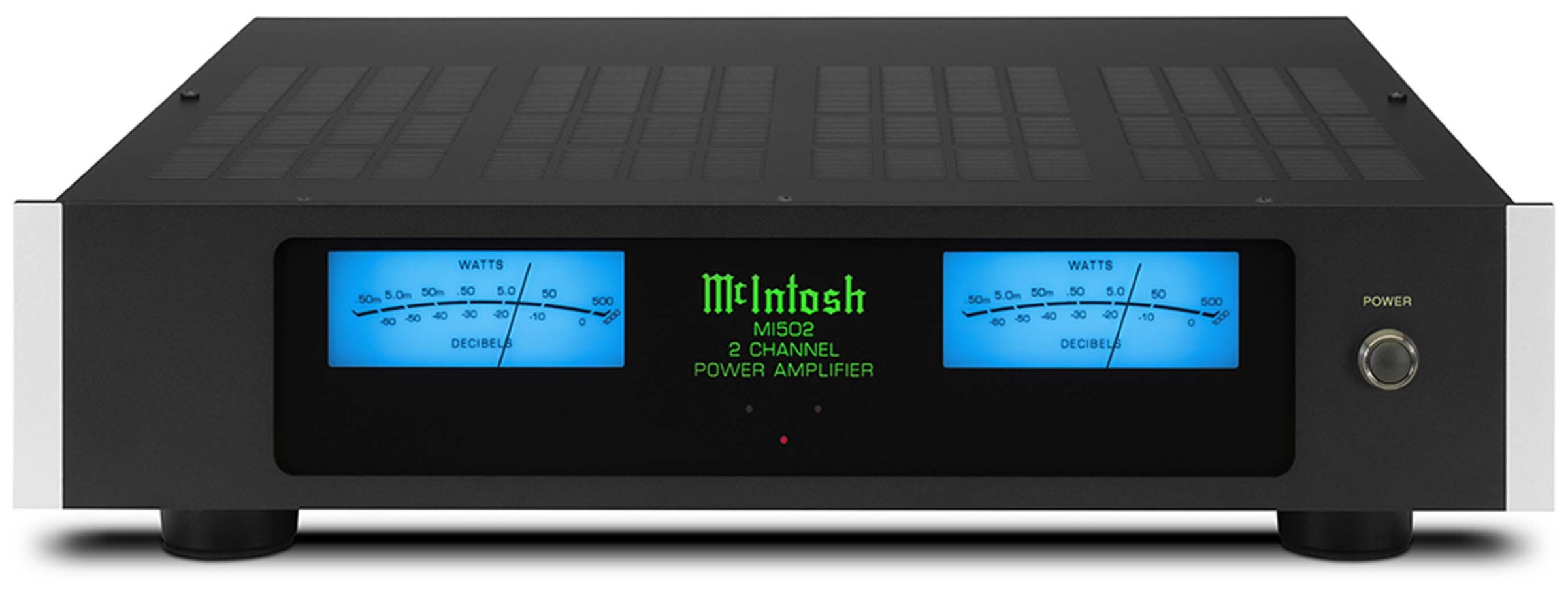

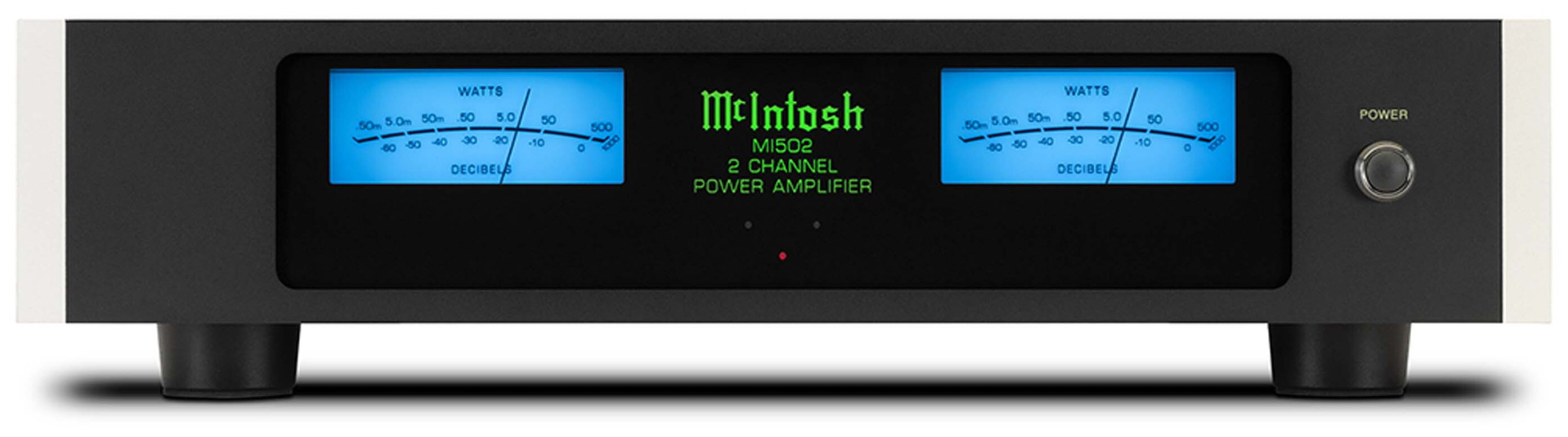

The MI502 2-channel digital power amplifier is a great addition to a custom-installed home audio or home theater system. It consistently delivers the world-renowned McIntosh sound quality with an output of 500 watts into 8-ohm speakers and 800 watts into 4-ohm speakers.
The stereo power amplifier uses highly developed, closed-loop digital switching amplifiers, which – paired with extremely robust power supplies – are used in the
They are capable of generating extreme power levels when needed.

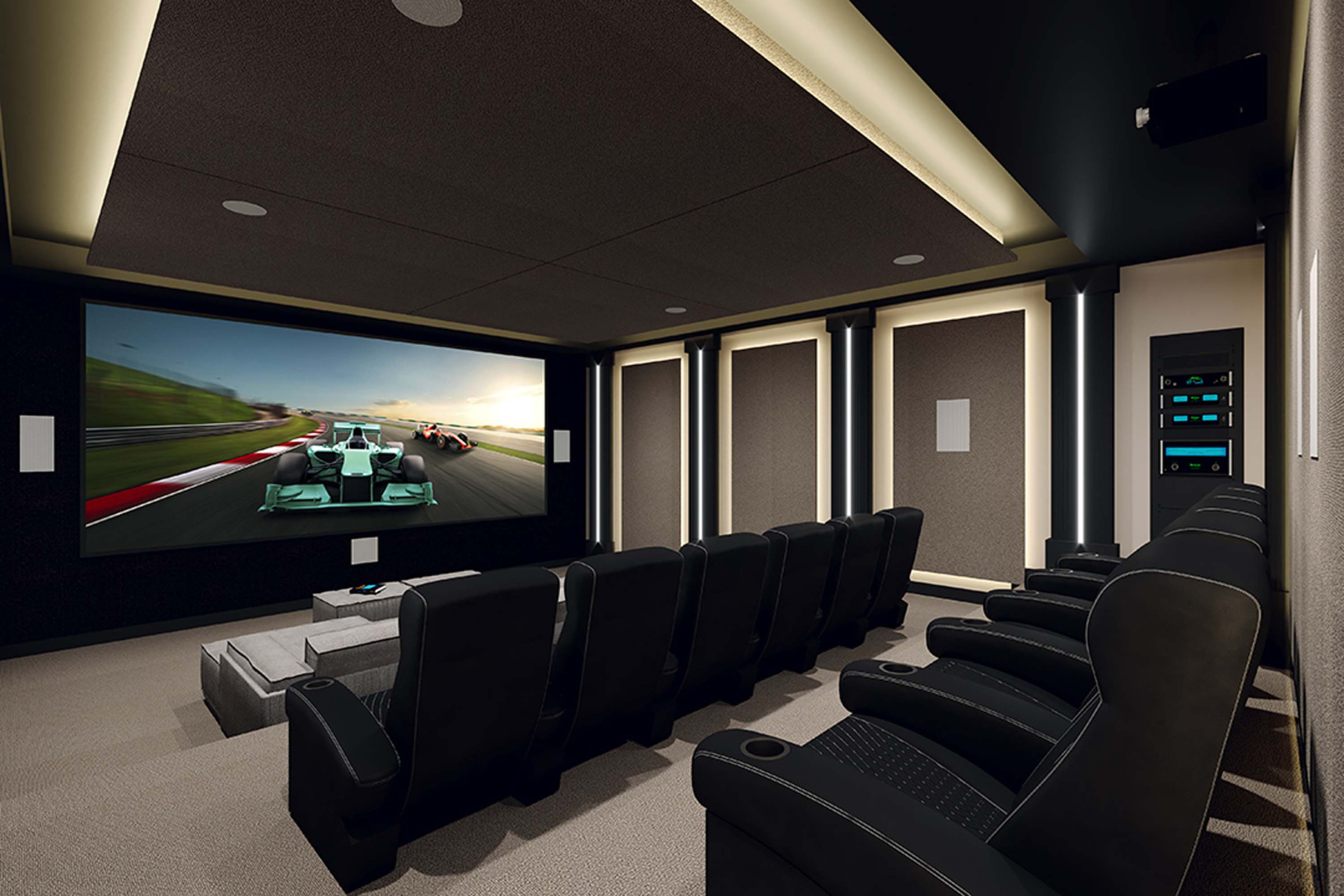

The application possibilities of the MI502 are virtually limitless: as a front speaker power source in a home cinema, as a drive for two wall-mounted subwoofers, or in dual use, so that both the three front channels of a home cinema and a (passive) subwoofer are driven.

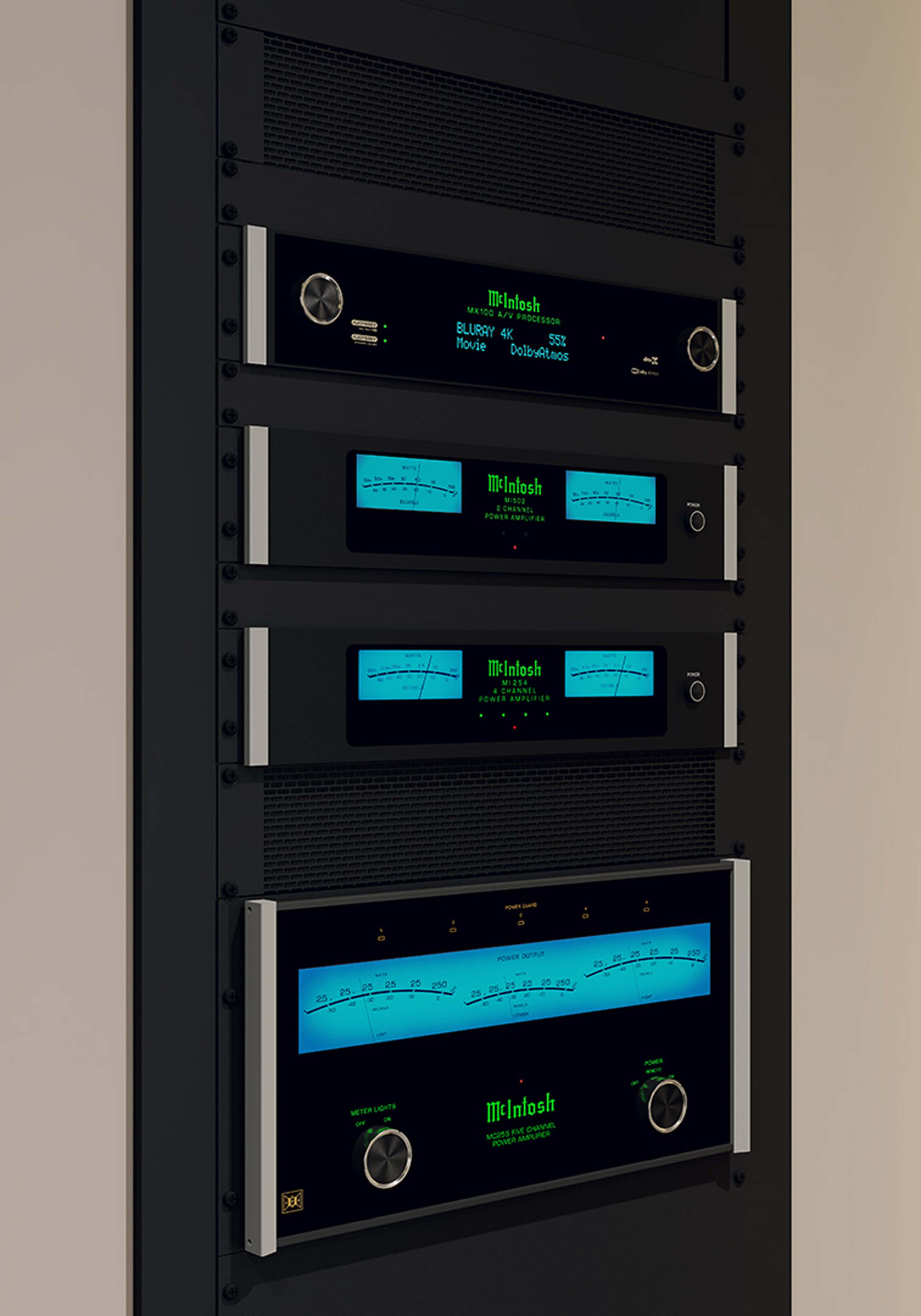

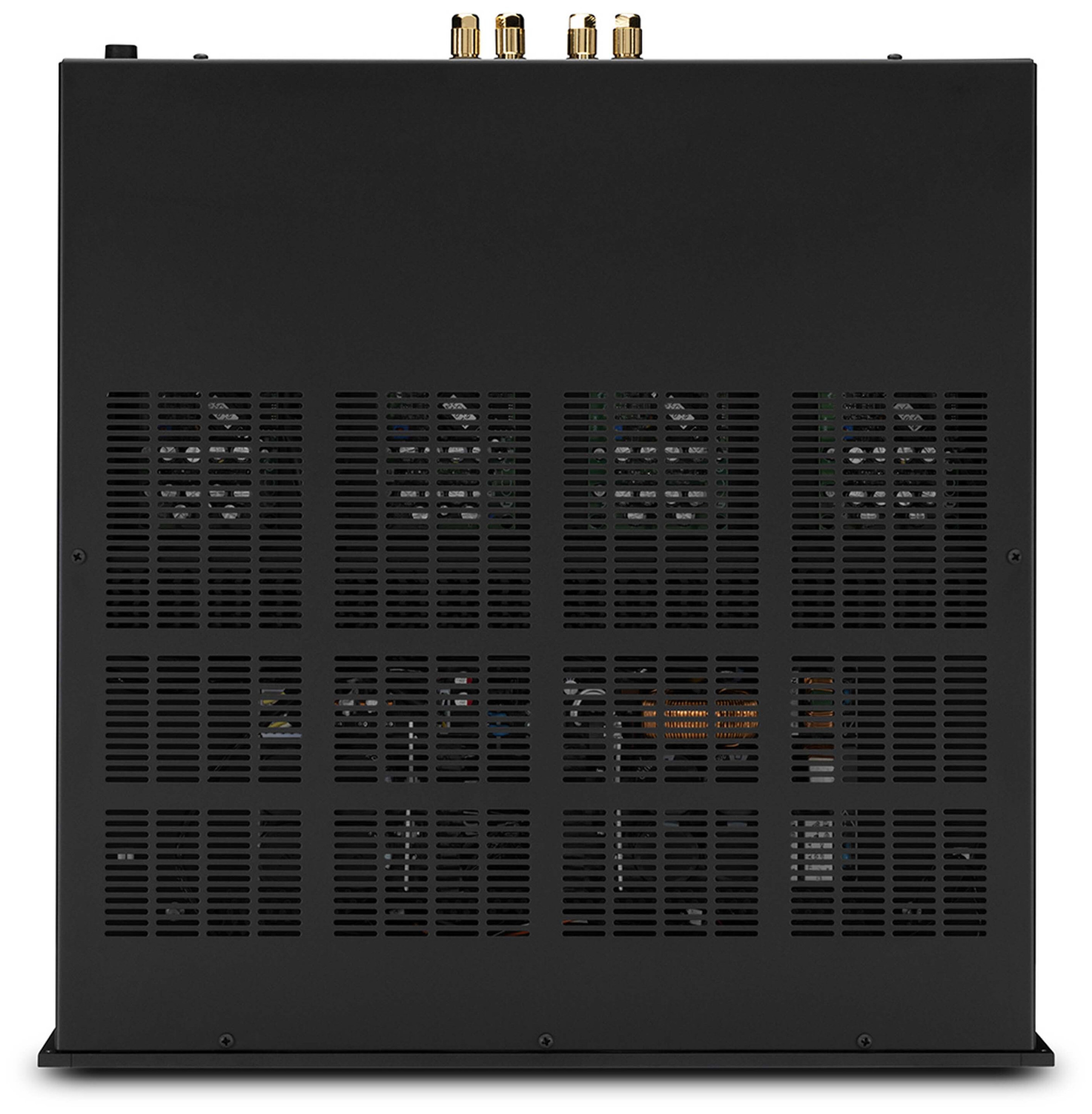

With a rack-friendly height of 2U, the MI502 power amplifier can also be installed discreetly in an AV rack using the included mounting brackets. The highly efficient Class-D amplification requires no (sometimes noisy) fans to maintain the rated operating temperature.
The MI502 stereo power amplifier features the classic McIntosh protection systems Power Guard®, Sentry MonitorTM and Power Control, as well as an on/off signal detection system.
Technical data
Power Output:
500 Watts into 8 Ohm speakers
800 Watts into 4 Ohm speakers
Total Harmonic Distortion:
0.05% maximum from 20Hz to 20kHz
Signal-to-noise ratio:
98dB
Dynamic Headroom:
8 Ohms: 2.7dB
4 Ohms: 3.7dB
Damping Factor:
8 Ohms: >85
4 Ohms: >45
Frequency Response:
+0, -0.9dB from 20Hz to 20kHz

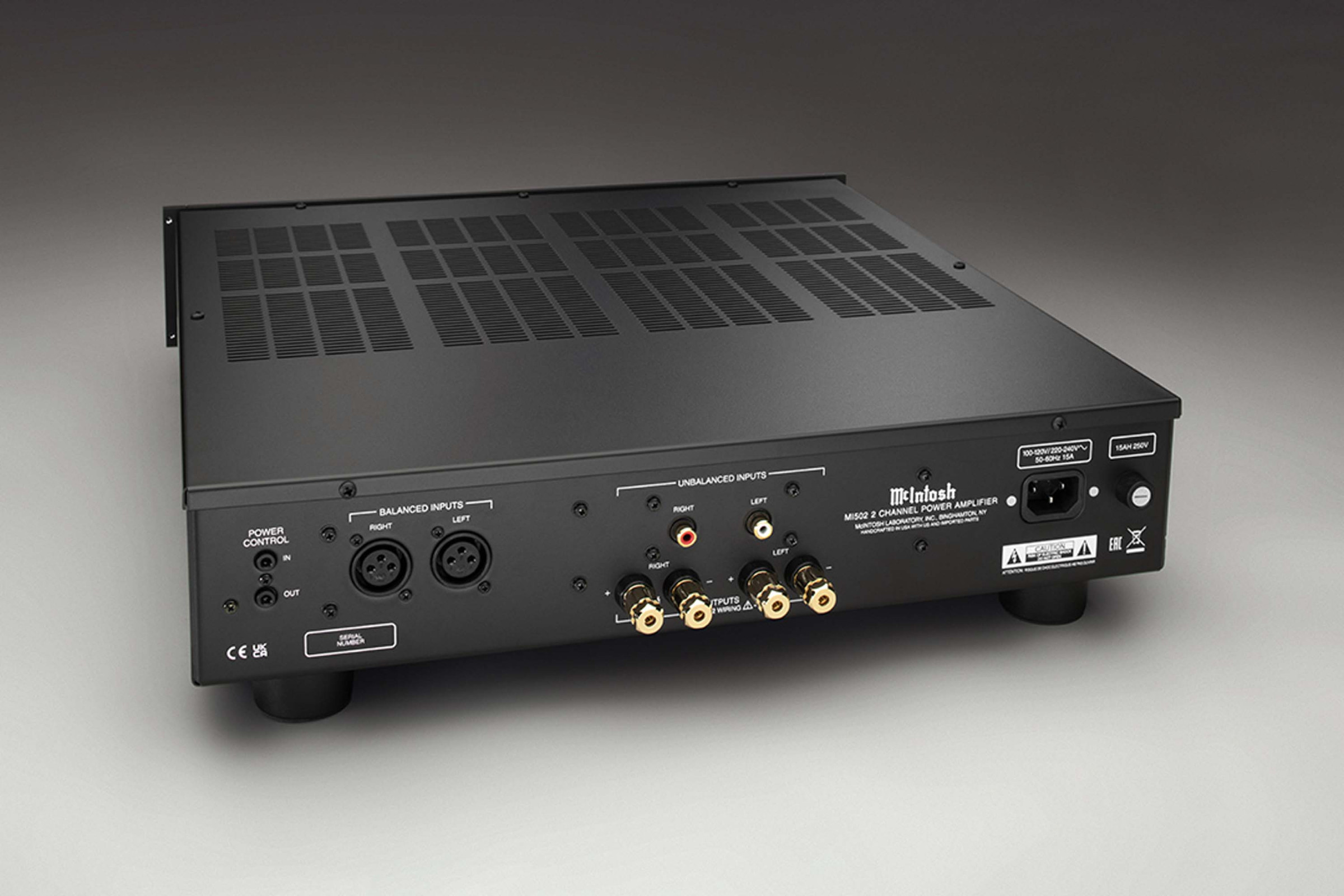

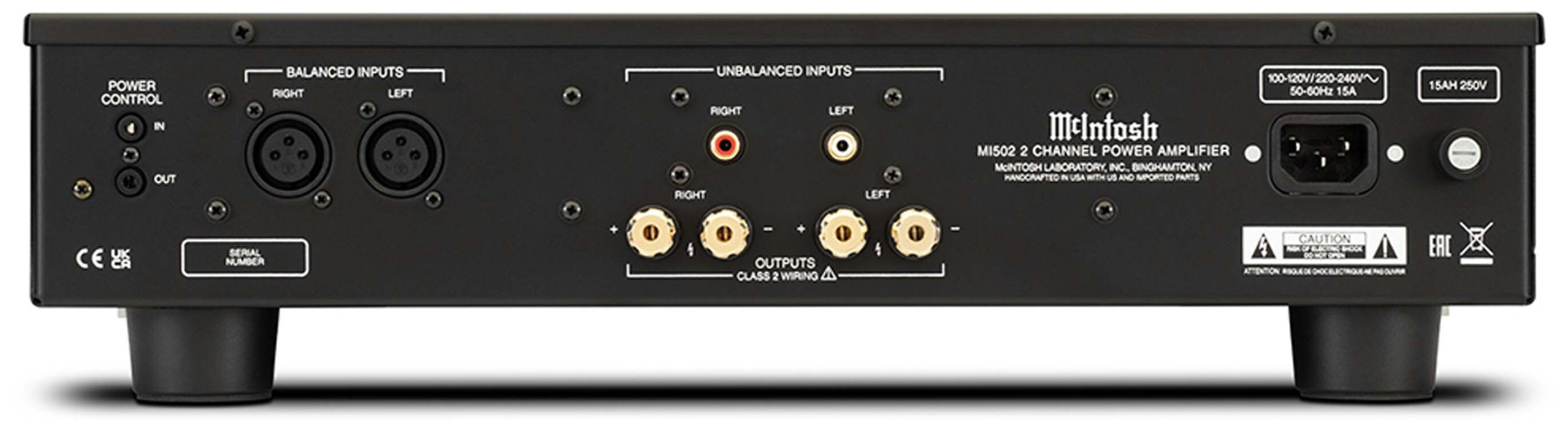

Inputs:
1 Balanced
1. Unbalanced
Rack Units:
2U
Overall Dimensions (W x H x D):
44.45cm (48.3cm with mounting ears)
x 11cm x 53.3cm
Weight:
9.8 kg net,
17.2 kg in shipping carton
| Color: | black |
|---|---|
| Condition: | new item |
| Device depth mm: | 533 |
| Device height mm: | 110 |
| Device width mm: | 444.5 |
| Power amplifier: | stereo |
| Product type: | Power amplifier |
Manufacturer
McIntosh Labs
McIntosh Labatory Inc.
2 Chambers Street
13903 Binghamton
New York
USA
rhullekes@finesounds.nl
EU Representative
Audio Components Vertriebs GmbH
Leverkusenstraße
Hamburg 22761
Germany
info@audio-components.de
Safety Information
Product-specific safety instructions can be found in the operating manual.
