Luxman CL-1000 Tube Preamplifier

CL-1000 – Flagship Tube Preamplifier

The Luxman CL-1000 is the new flagship of tube preamplifiers, combining classic tube technology with state-of-the-art precision. Inspired by the legendary C-1000 from 1975, it elevates music reproduction to a new level and harmonizes perfectly with high-end power amplifiers such as the MQ-300. The cabinet, crafted from natural walnut with a rosewood gloss finish, exudes elegance and warmth, while its technology meets the highest sonic demands.

Transformer-based volume control LECUTA

At the heart of the CL-1000 is the Luxman Electronically Controlled Ultimate Transformer Attenuator (LECUTA). The volume control utilizes 34 electronic relays that precisely activate taps on the left and right transformers. Thanks to Hitachi Metals' FINEMET® core material, a rich, detailed, and unadulterated sound is achieved even at low volumes.

Tube technology & SRPP circuit

Six E88CC tubes form the basis for a 2-stage amplification circuit in the phono, tone control, and line sections. The SRPP circuit ensures a linear frequency response, low output impedance, low distortion, and long tube life. Bass and treble controls offer three-step crossover frequencies, plus a low-cut switch at 30 Hz (-6 dB/octave).

The phono preamplifier is designed for MM and MC cartridges, including step-up transformers and a two-stage gain selector switch for MC systems.

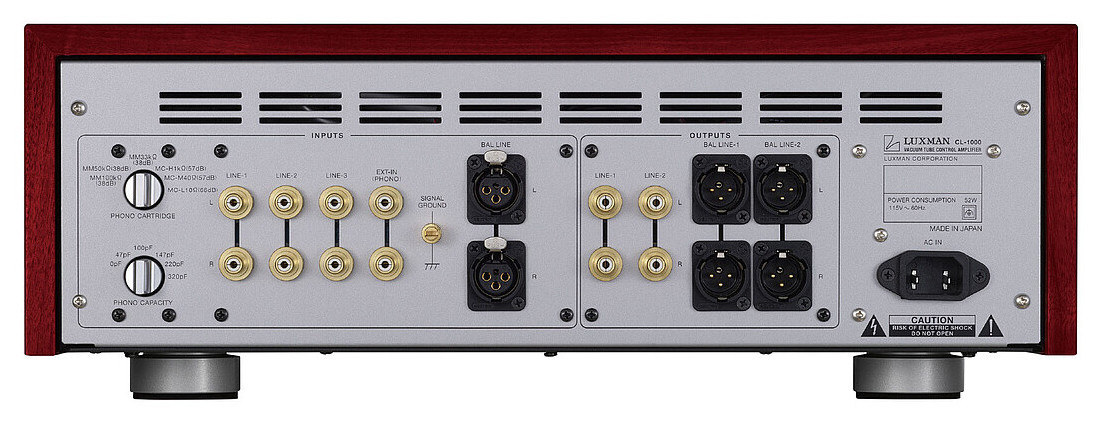

Connections & Integration

Balanced and unbalanced line inputs allow for easy integration into high-end systems. The analog output signals are low-impedance buffered, ensuring optimal drive for any integrated amplifier.

Technical data

Input sensitivity / Input impedance:

• LINE: 180 mV / 90 kΩ
• BAL.LINE: 1 V / 70 kO
• PHONO MM: 2.2mV / 100kO, 50kO, 33kO
• PHONO MC-H: 0.26 mV / 1 kΩ
• PHONO MC-M: 0.26 mV / 40 Ω
• PHONO MC-L: 87 µV / 10 Ω
• Output impedance: LINE / BAL.LINE: 1 kΩ

Frequency response:

• LINE / BAL.LINE: +0.3 / -0 dB, 20 Hz – 20 kHz
• PHONO: ±0.3dB, 20Hz - 20kHz

Total harmonic distortion (THD):

• LINE / BAL.LINE: 0.016%
• PHONO MM: 0.3%
• PHONO MC-H/M: 0.3%
• PHONO MC-L: 0.5%

Signal-to-noise ratio (IHF-A):

• LINE / BAL.LINE: 120 dB
• PHONO MM: 108 dB
• PHONO MC-H/M: 92 dB
• PHONO MC-L: 83 dB
• Tone control: ±8 dB, bass turnover: 150 / 300 / 600 Hz, treble turnover: 1.5 / 3 / 6 kHz
• Low-cut: 30 Hz (-6 dB / Oct.)
• Circuit system: 2-step amplification PK NF type, tone control PG NF type, phono equalizer NF type
• Tubes: E88CC × 6 (JJ Electronic)
• Power supply: 230 V~ (50 Hz) / 115 V~ (60 Hz)
• Power consumption: 52 W
• Dimensions (W × H × D): 460 × 166 × 454 mm
• Weight: 24.4 kg
• Accessories: Power cord

The Luxman CL-1000 combines historical expertise, state-of-the-art tube technology, and the finest components. It offers a musical experience that is precise, dynamic, and detailed, yet also warm and musical – the ultimate tube preamplifier for hi-fi enthusiasts.
