T+A SD 3100 HV Streaming DAC

The reference streaming DAC
The SD 3100 HV is a puristic converter / streamer and is identical to the SDV 3100 HV except for the preamplifier section.
In an HV system, it acts as a top-quality player and converter for all conceivable digital sources. It is connected to the P 3000 HV preamplifier or the PA 3100 HV integrated amplifier via one of its analog outputs. If you want to play CDs or SACDs, the reference drive PDT 3100 HV is connected to the SD 3100 HV.
The SD 3100 HV or an entire HV system is operated with the F 3100 remote control or one of the T + A apps.

technology

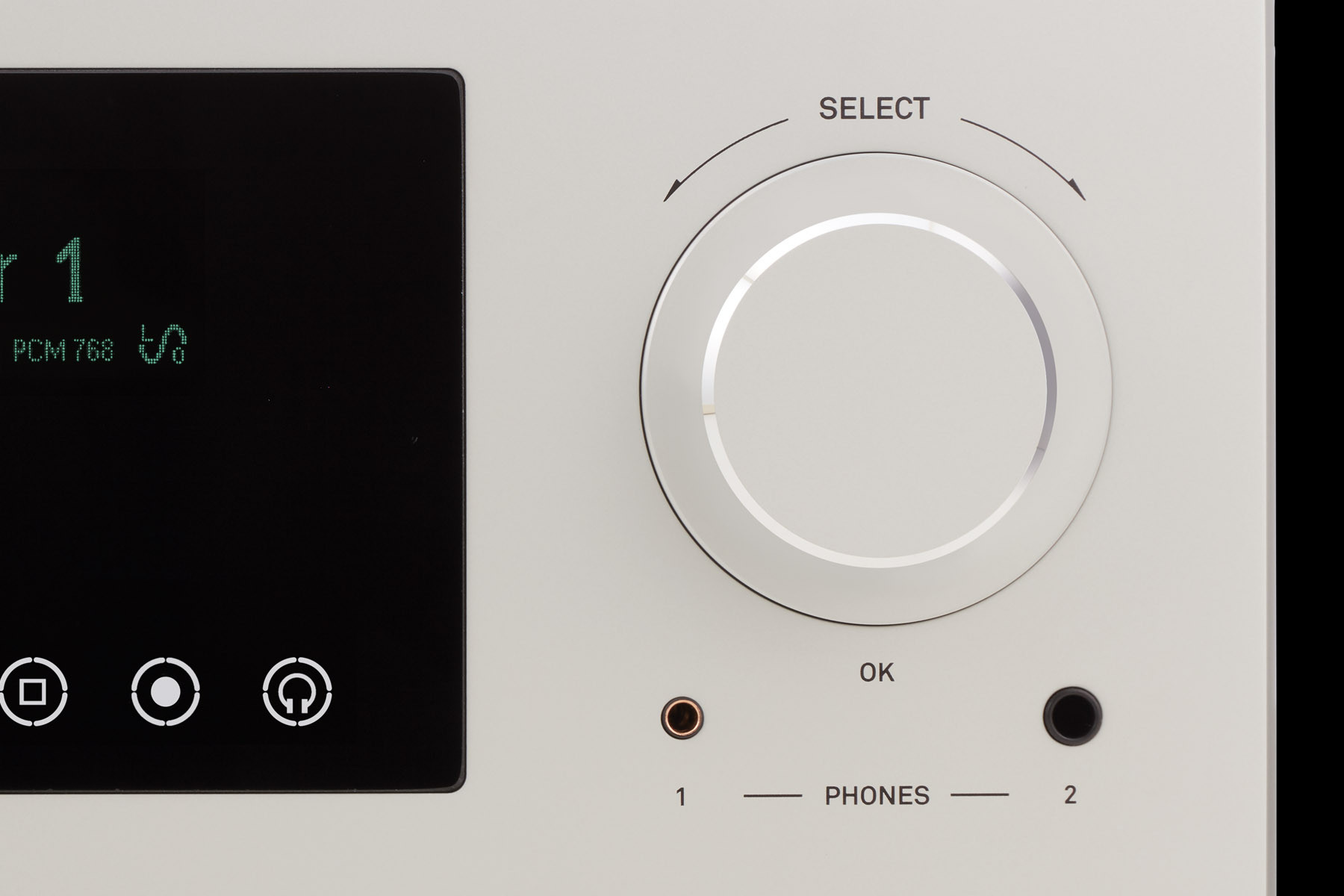

Because more and more audiophile music lovers use high-quality headphones, we have developed a particularly good and powerful, analog headphone amplifier in HV technology that works entirely in Class A mode and has outstanding sound properties. The connection sockets for 6.3 mm jack plugs and high-quality, four-pole symmetrical Pentaconn plugs are located on the front.

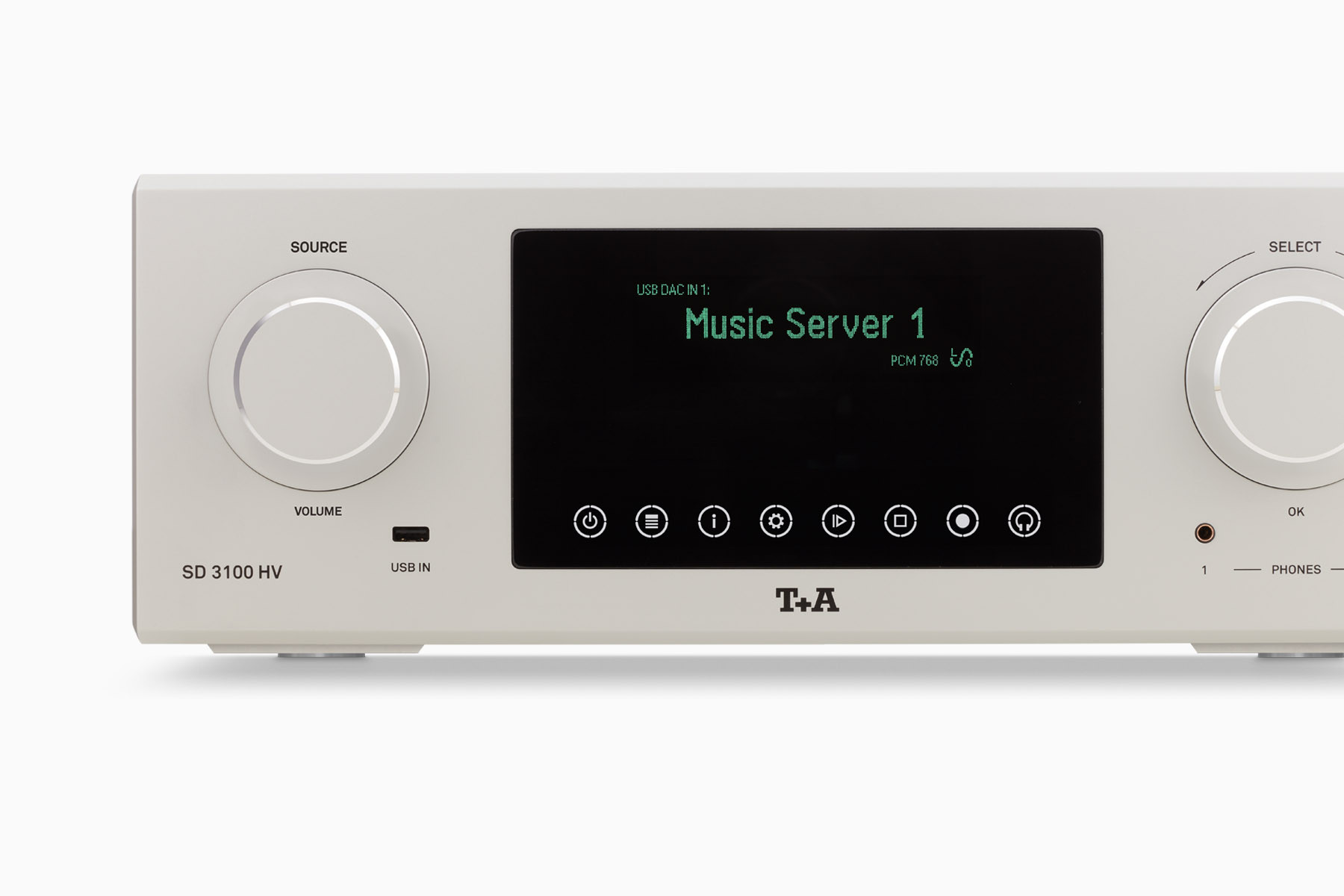

Like all HV devices, the SD 3100 HV is made of pure aluminum without ferromagnetic materials and has five compartments, separated by aluminum partitions, in which the motherboard with digital inputs, the D / A converter with analog output stage, the analog power supply, the digital power supply and The control with the bright display and sensor buttons are housed in the massive front.

Technical specifications

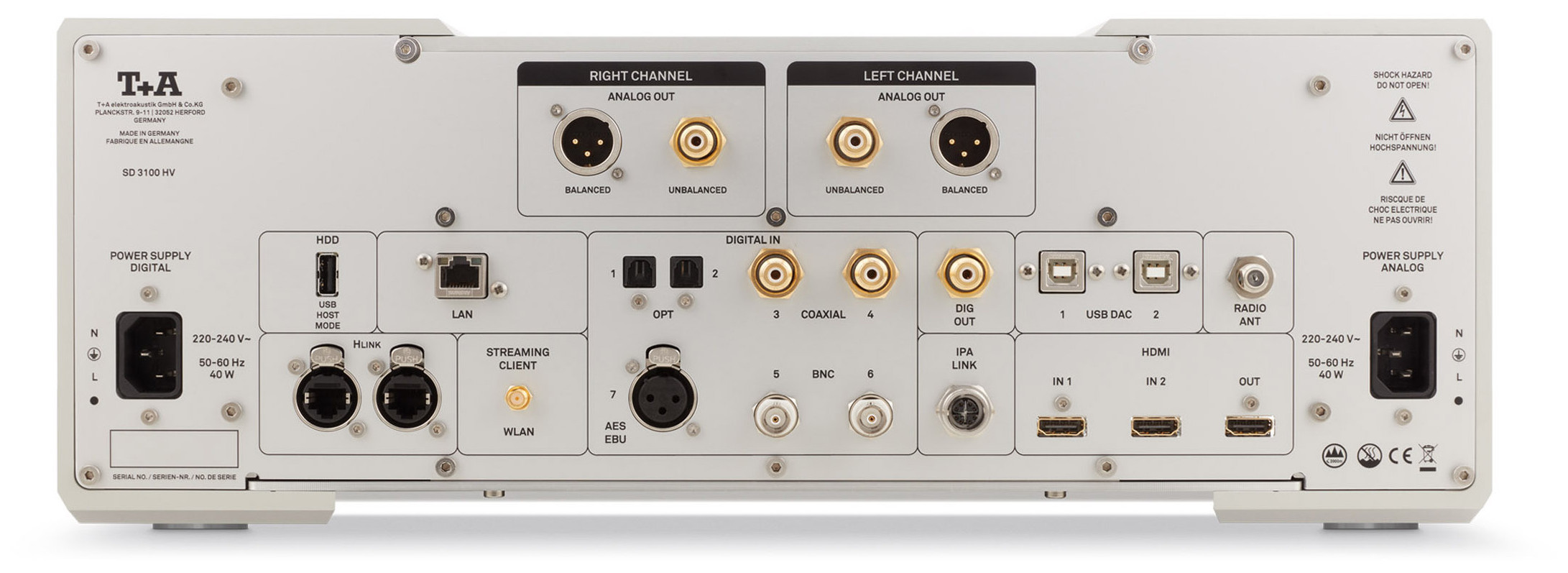

Analog output

Coaxial (Cinch) ö XLR
2.5 Veff / 20 Ohm ö 5.0 Veff / 40 Ohm

Headphone output
6.3 mm jack (20 Ohm) and 4.4 mm Pentaconn (8 Ohm)

1x coax, IEC 60958 S / P-DIF (LPCM)

Digital inputs
1 x AES-EBU 32 ... 192 kHz / 16-24 bit
6 x S / P-DIF:
2 x standard coax
2 x high quality BNC 32 ... 192 kHz / 16-24 bit,
2 x optical TOS-Link 32 ... 192 kHz / 16-24 bit
2 x USB DAC:
Device mode with max. 768 kSps (PCM) and DSD 1024, supports asynchronous data transfer.
DSD 512 and DSD 1024 only from a Windows PC with driver
2 x USB master mode for USB mass storage (stick or HDD)
2 x HDMI IN, 1 x HDMI OUT with ARC
1 x IPA (LVDS)
LAN, antenna input for WLAN and FM, 2 x H-Link

D / A converter

PCM
Double differential quadruple converter with four 32-bit sigma-delta D / A converters per channel. 705.6 / 768 kSps conversion rate
DSD
T + A-True-1Bit DSD D / A converter, up to DSD 1024 (49.2 MHz), native bitstream
Upsampling (PCM)
T + A signal processor - synchronous upsampling with 4 selectable oversampling algorithms. FIR short, FIR long, Bezier / IIR, Bezier
Analog filter
Phase linear Bessel filter 3rd order, switchable with 60
or 120 kHz cutoff frequency
Frequency response
PCM 44.1 kSps: 2 Hz - 20 kHz
PCM 48 kSps: 2 Hz - 22 kHz / DSD 64: 2 Hz - 44 kHz
PCM 96 kSps: 2 Hz - 40 kHz / DSD 128: 2 Hz - 60 kHz
PCM 192 kSps: 2 Hz - 80 kHz / DSD 256: 2 Hz - 80 kHz
PCM 384 kSps: 2 Hz - 100 kHz / DSD 512: 2 Hz - 100 kHz
PCM 768 kSps: 2 Hz - 120 kHz / DSD 1024: 2 Hz - 120 kHz
Distortion factor
<0.001%
S / N ratio
> 117 dB
Channel separation
> 110 dB

Streaming client

Formats / standards
MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC / UPnP AV, T + A Control
Data rates
PCM 32 ... 192 kHz, 16/24 bit; MP3 up to 320 kBit,
constant and variable data rate
services
Tidal, Deezer, qobuz (subscription required)
Features
Gapless playback for MP3 (Lame), WAV, FLAC
T + A Control App for iOS and Android
Network connection
LAN: Fast Ethernet 10/100 Base-T, WLAN: 802.11 b / g / n

tuner

Internet radio
Airable Internet Radio Service (> 11000 stations worldwide)
FM, FM-HD
87.5-108 MHz; Sensitivity 1 µV; S / N> 65 dBA
DAB, DAB +
168-240 MHz (band III); Sensitivity 2.0 µV, S / N> 96 dBA
Features
RDS / RDBS, station name (PS), program type (PTY), radio text (RT), time

Bluetooth

Bluetooth standard / codec
A2DP (audio), AVRCP 1.4 (Control) / aptX®, MP3, SBC

Connection / accessories / dimensions

Mains connection
2 x 110-120 V or 220-240 V, 50-60 Hz.
Operation: 2 x 40 W.
Standby
<0.5 W
Dimensions (W x H x D) / weight
17 x 46 x 46 cm / 26 kg
equipment
2x power cable, remote control F 3100, BNC adapter
Executions
Case lacquer silver 47 or titanium 64
