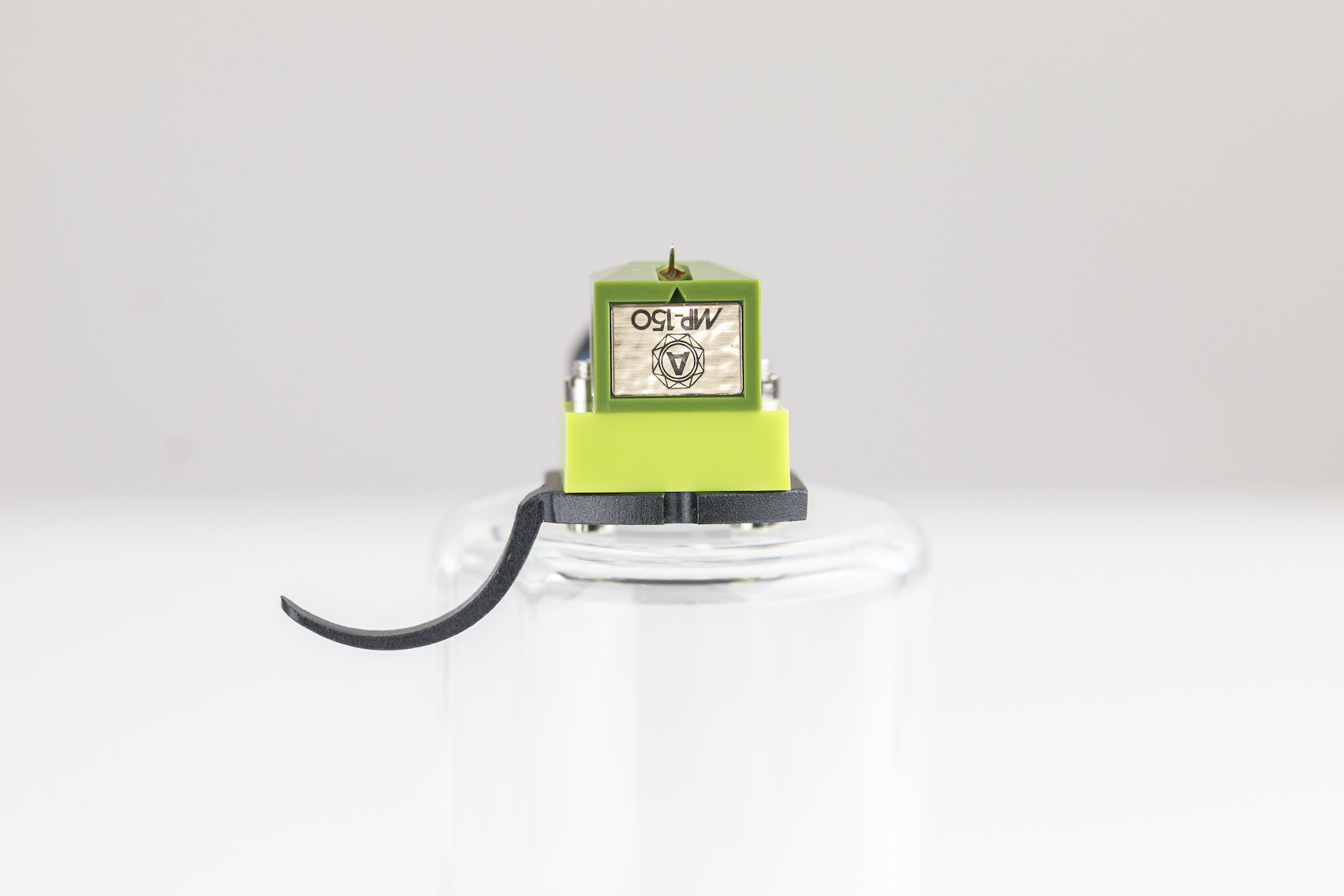

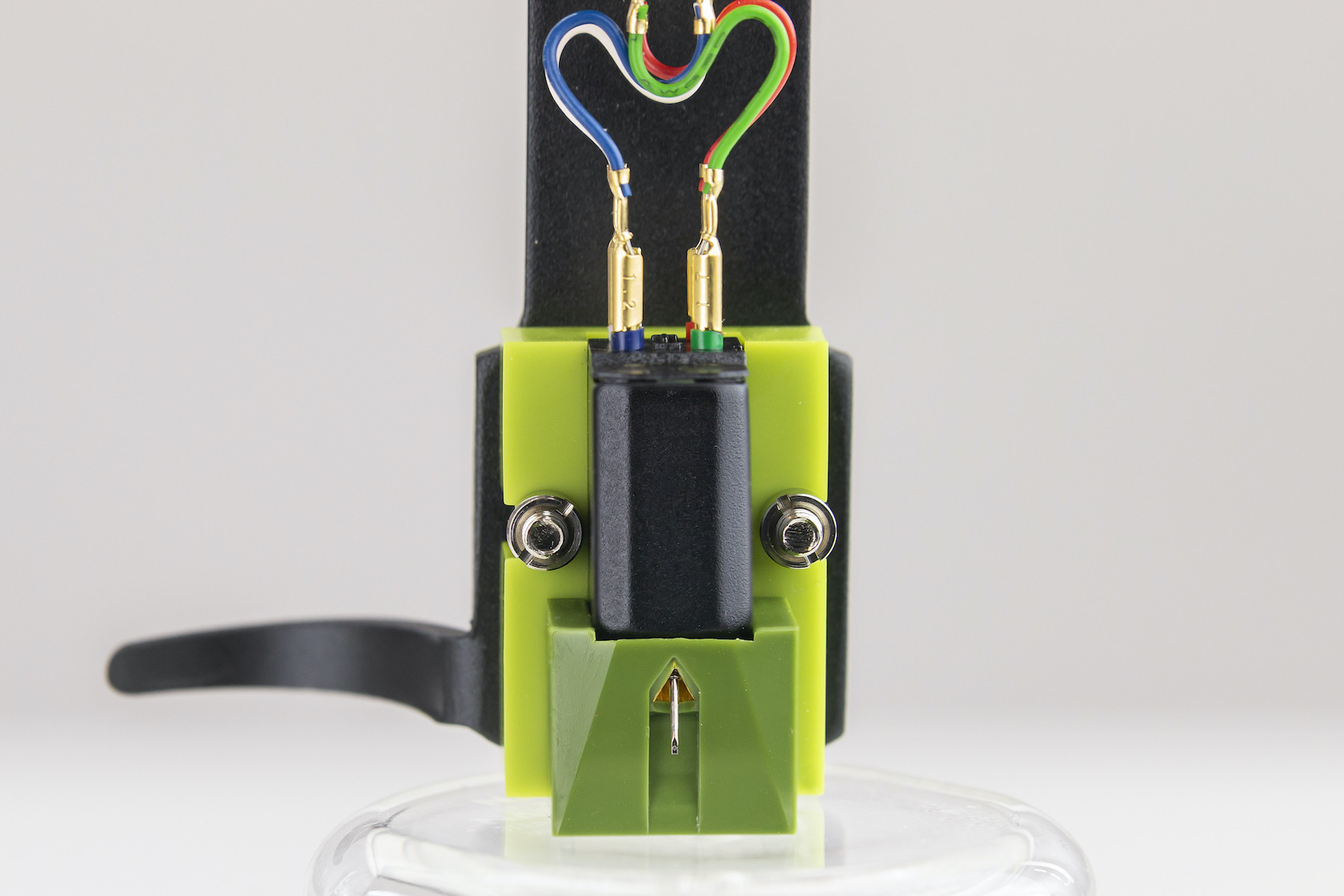

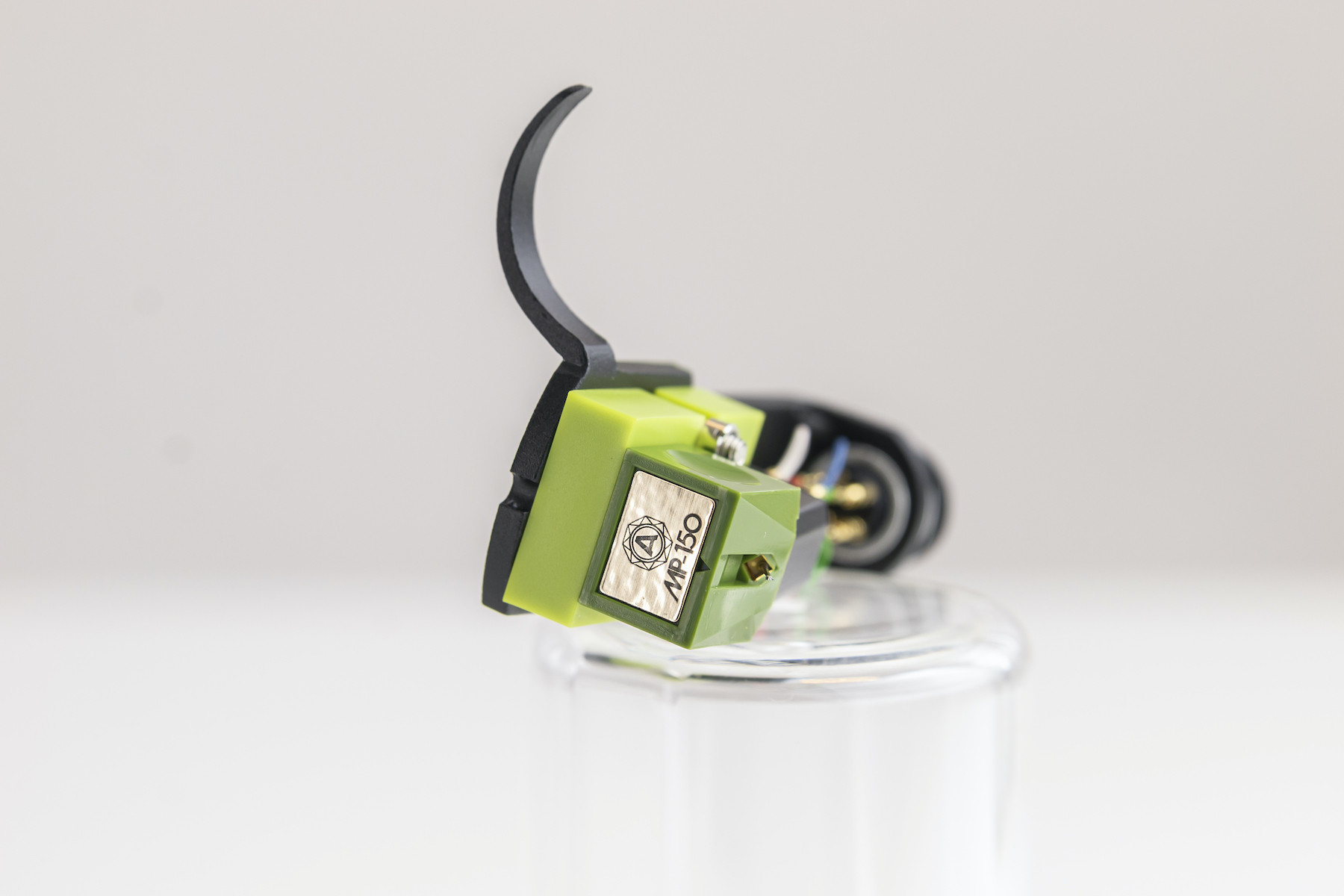

Nagaoka MP-150 H Cartridge with Head Shell
€439.00
per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
The design of the MP-150 has been considerably refined. Higher quality magnetic materials, a better needle carrier and a bonded diamond provide better scanning capability and detail reproduction. The bass range also sounds more balanced.
Technical Specifications
- Principle: MP - High Output (for the MM input)
- Weight: 6,5 g
- Height: 18mm
- Needle cut: Elliptical 0.4x0.7mm
- Needle carrier: stiffened tapered aluminium tube
- Frequency response: 20 - 20,000 Hz
- Output voltage (1kHz, 5cm/sec): 4.5 mV
- Channel separation (1kHz): > 24 dB
- Channel balance (1kHz): < 1.5 dB
- Needle compliance: 20 µm/mN
- Recommended contact force: 18 mN (15-20 mN)
- Recommended termination resistor: 47 kOhm
- Recommended termination capacity: 150 - 200 pF
- Replacement needle: JN-P150
| Cartridge type: | with head shell |
|---|---|
| Condition: | new item |
| Frequency response: | 20Hz - 20kHz |
| Product type: | Pickup MI |
| Promotion: | No |
| Series: | MP |
